As seen on Tested featured by Adam Savage!
Check out their Youtube reveal here: https://youtu.be/axiYo61XRRw

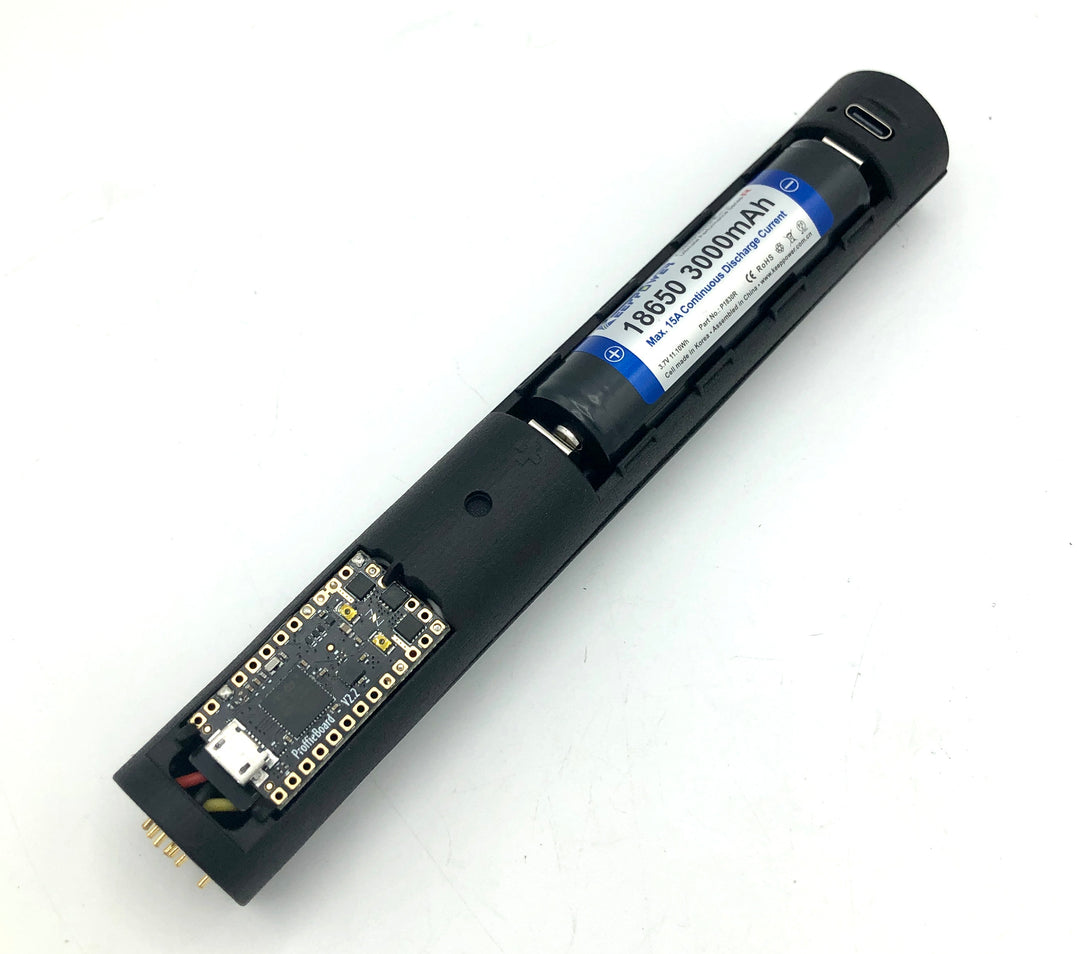

1” fully installed chassis kits made for Neopixel builds. These are made specially designed to be used with our entry level line up of hilts here
These offer an easy entry level option for a fully installed core of electronics with top of the line quality parts. Each core can be used with any compatible empty saber that allows for a 1” inner diameter, and a single 12mm switch hole, along with a method of chassis retention
Each core is 1” (25.3mm) in outer diameter and approximately 168mm in total length
Offering two soundboard choices for either Proffie or GoldenHarvestV3. Both option are preconfigured for the correct core configuration, depending on 1 or 2 button setups. Both soundboard options are loaded with fonts and bladestyles.
PixelCores use NPXL ECO Hilt side connectors, removable KeepPower 18650 protected button top batteries (3000mah and 15A discharge), 22mm Veco 4ohm/3W bass speakers, USB-C battery charging option, reverse polarity protection, and either single button or dual tactile buttons from KR Sabers for core use and activation.
Battery polarity will be indicated on the Core by a "plus" sign which designates the correct orientation of the positive end of the battery. Each core will also include a charging cable which can be used for the inhilt USB-C port. The battery can also be removed and charged separately.
User changes to the boards settings and configuration are not covered by warranty or tech support. Please make sure you have read and reviewed your soundboard’s user manual prior to use or making any edits or changes to the configuration
