Soundboard
Full Parts Kit

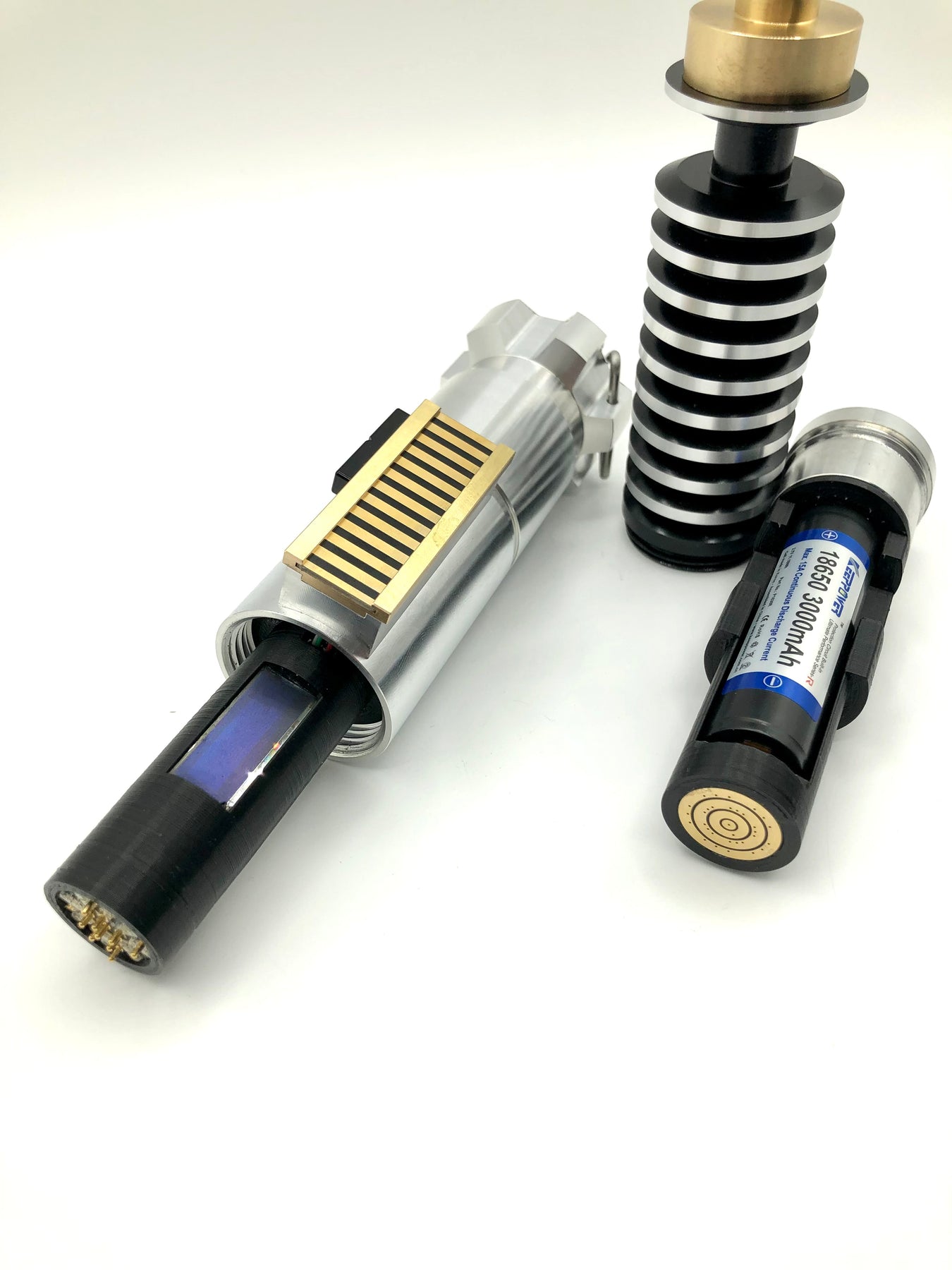

Install chassis for the Creepy Uncle hilt made by Denis Lukyanov. Not intended for any other hilt design. This listing does not include an empty hilt or any electronics fully installed. Listing photos are used for examples only.

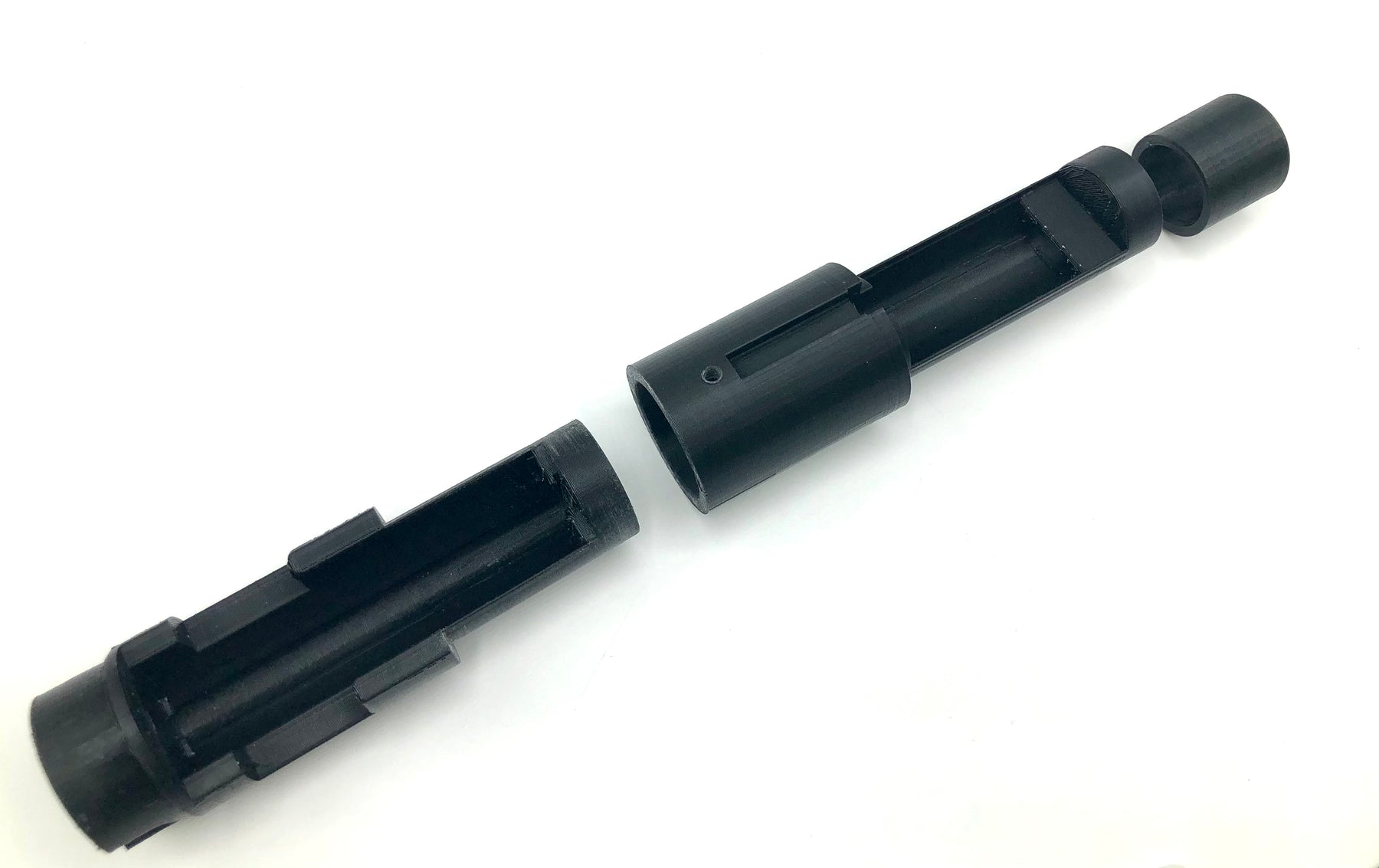

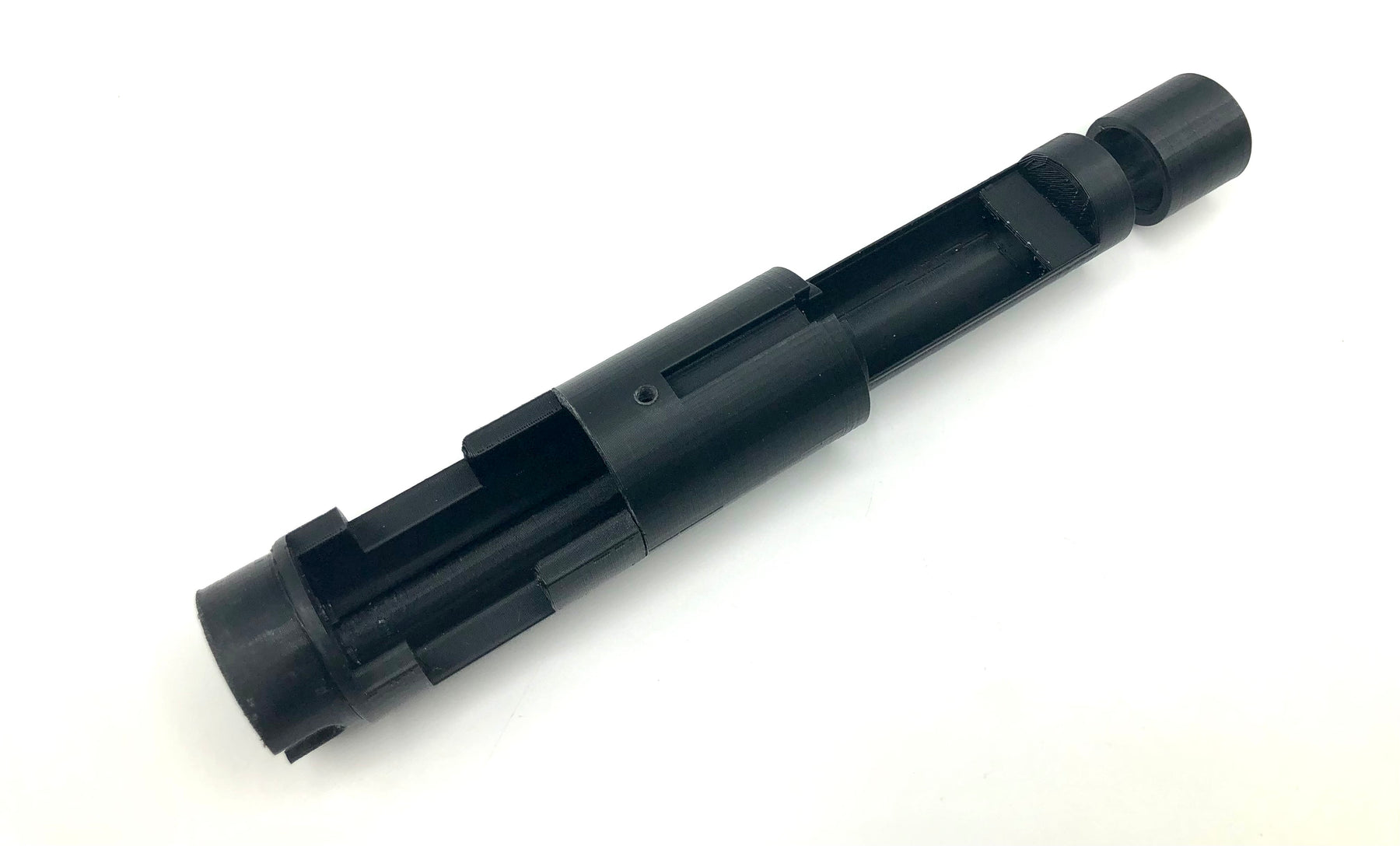

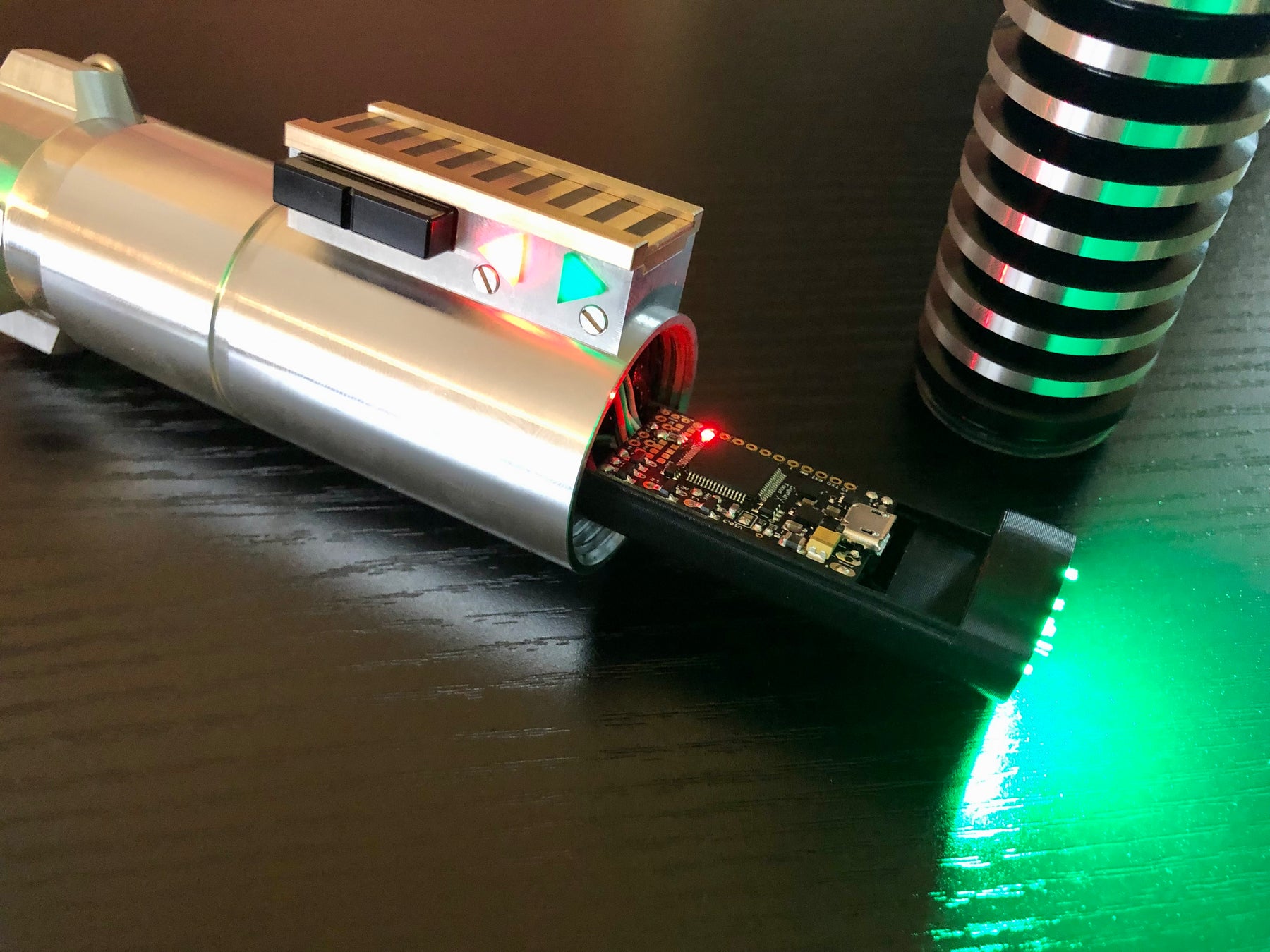

Chassis is made from three parts. A battery/speaker holder section, a main body section for the soundboard, wire channel for control box wiring, optional OLED screen, and NPXL V3 shortpin connector. Third piece is for the upper grenade section which holds the blade side PCB.

Main body chassis is meant to be held in place by M3 set screw, which goes in underneath the control box main screw closest to the pommel, this prevents the main body from moving and stays in place. M3 set screw is included with the chassis.

Smallest required wire gauges are mandatory for this build. 30-32AWG wire for switches, speaker, accent LED's and OLED wiring are recommended. 22AWG for battery positive and negative wiring and 28AWG for data line. Please refer to your soundboard manual for proper wiring diagrams for required parts for installation.

Parts list for install:
-CFX, Proffie, or GHV3
-qty. 2 NPXL shortpin hilt side connectors
-qty.1 ShtokCustomWorx Blade Side PCB
-removable 18650 button top protected cell
-Batttery/Speaker Smaller Version PCB set
-28mm bass speaker
-OLED screen (optional)

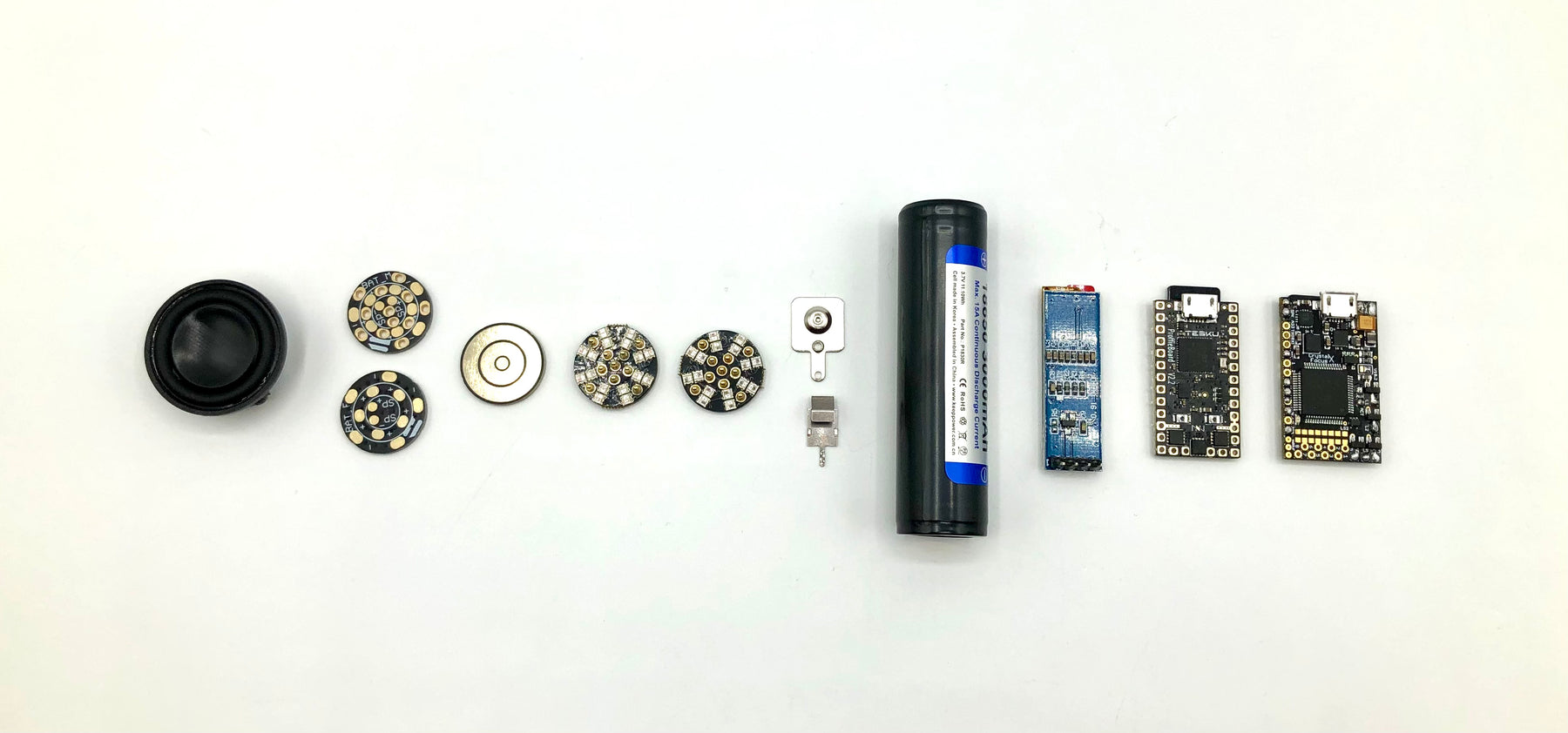

FULL PARTS KIT includes:
-choice of soundboard (CFX, ProffieV3.9 or GHV3)
-qty.2 assembled NPXL V3 shortpin hilt side connectors
-qty.1 Blade Side PCB
-qty.1 KeepPower 18650 3000mah 15A button top protected cell
-qty.1 unassembled Battery/Speaker Smaller Version PCB set
-qty.1 28mm X-BASS 4ohm/3W bass speaker
-qty.1 blue TCSS OLED screen (for OLED chassis options)
