Master Sentinel

The Master Sentinel hilt, a collaboration between Wade Sabers LLC, SithLord Sabers, and A&A Designs.

This is an empty DIY saber, full of unlimited customization options.
Please watch the Youtube video link below for proper assembly/disassembly if required.

https://www.youtube.com/watch?v=yxOb1njyf38&t=62s

Hilt design features a polished surface(some hilts may have some micro scratches, can easily be buffed out if desired), two independent working switch plungers, 1" emitter size for blades, multiple shrouds, custom grip sleeve which can also be removed in place for other things like leather or custom wraps, custom machined D-ring attachment using shoulder bolts, and bottom access through the pommel.

Inner hilt dimensions features 1.1" of install space for all major soundboard components and up to a 28mm bass speaker for electronics installs.

All hilt purchases include the assembled hilt, collectors box, plaque, blade retention allen wrench, and set of shroud inserts which can be adhered to the hilt through your own adhesive methods.

For custom cosmetic work, please message the store for rates on powdercoating and other custom work. We do not provide etching services.

Install options include a basic removable chassis build using CFX, Proffie, or GHV3

Install chassis for the Master Sentinel saber. This is a 3D printed chassis made from black PLA + filament. This listing does not include the saber.
Every chassis will include the battery contacts(option 3 here in the store) and SCW tactile switch PCB's required for the install. This chassis is not intended for any other parts other than what is listed here in the description. This chassis is only intended for use in the Master Sentinel hilt available here in the store.

Chassis can accommodate the following parts:

-Choice of soundboard(CFX, Proffie, GoldenHarvestV3 or Verso)

-KeepPower 21700 5000mah(or 4000mah) 15A removable battery

-NPXL V3 short pin connector

-28mm bass speaker(example here)

This is a very user friendly and easy chassis to install. The chassis is fully removable and is inserted from the bottom of the hilt through the pommel. Removal of the chassis only requires pushing down through the top of the emitter and grabbing from the bottom once it starts to come out.
The channels lined up with the tactile switches allow the chassis to slide past the switch plungers incorporated into the hilt, while not allowing the chassis to move side to side. Chassis is held in place by the interior design of the hilt and from the pommel pressing against the bottom of the speaker.

Soundboards can be installed SD card face up or USB port side up on boards that have them for easy board access.

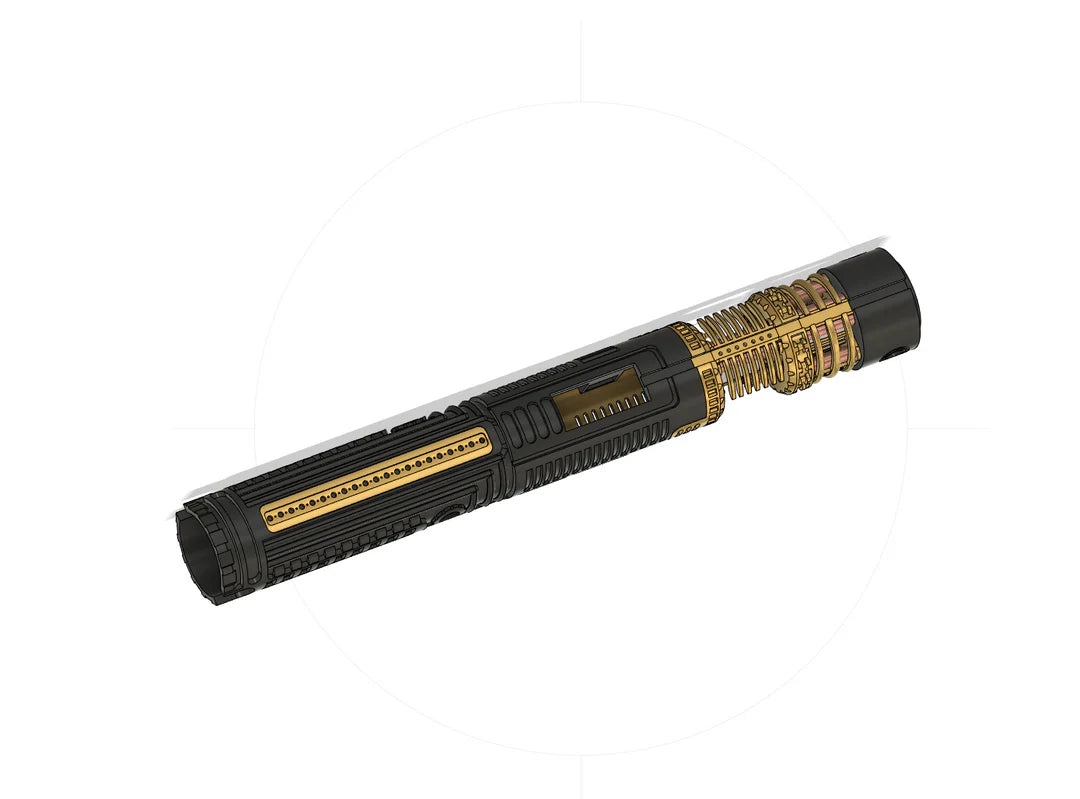

3D printed fully removable install chassis for the Master Sentinel saber hilt. This listing is for the chassis only and does not include the saber or any electronics. Chassis design made by Jimmy's Saber Junk. Printed in black PLA+ filament.
Printed in three parts. Top piece is for NPXL shortpin connector, soundboard, high amp killswitch and two 1.5mm brass tactile switches(inserted from the side). Second piece is for the crystal chamber, chamber illumination utilized by a single pixel accent(crystal not included). Third piece is for the spring loaded removable 18650 battery, OLED screen and 28mm bass speaker.
The crystal chamber can be painted to the color of your choosing, it will come in the standard black color.
Made to hold the following electronics:
-CFX, GHV3 or Proffie soundboard
-NPXL shortpin connector
-two 1.5mm brass tactile switches(included with chassis print)
-high amp killswitch
-single pixel accent for crystal chamber illumination
-spring loaded 18650 battery(battery contacts provided with chassis print)
-optional 128x32 OLED screen
-28mm bass speaker

D ring for the Master Sentinel

Basic dimensions: 38mm ID, 42mm OD

Grip sleeve for the Master Sentinel

Basic dimensions: 31.8mm ID, 35.5mm OD, length of 93.5mm
