Switches/Actuators

Momentary brass tactile switches in various heights

Base dimensions are 5mmx5mm with height options of:(height measurement is total height of the switch including the base)
1.5mm
1.9mm
2.5mm
4mm
6mm

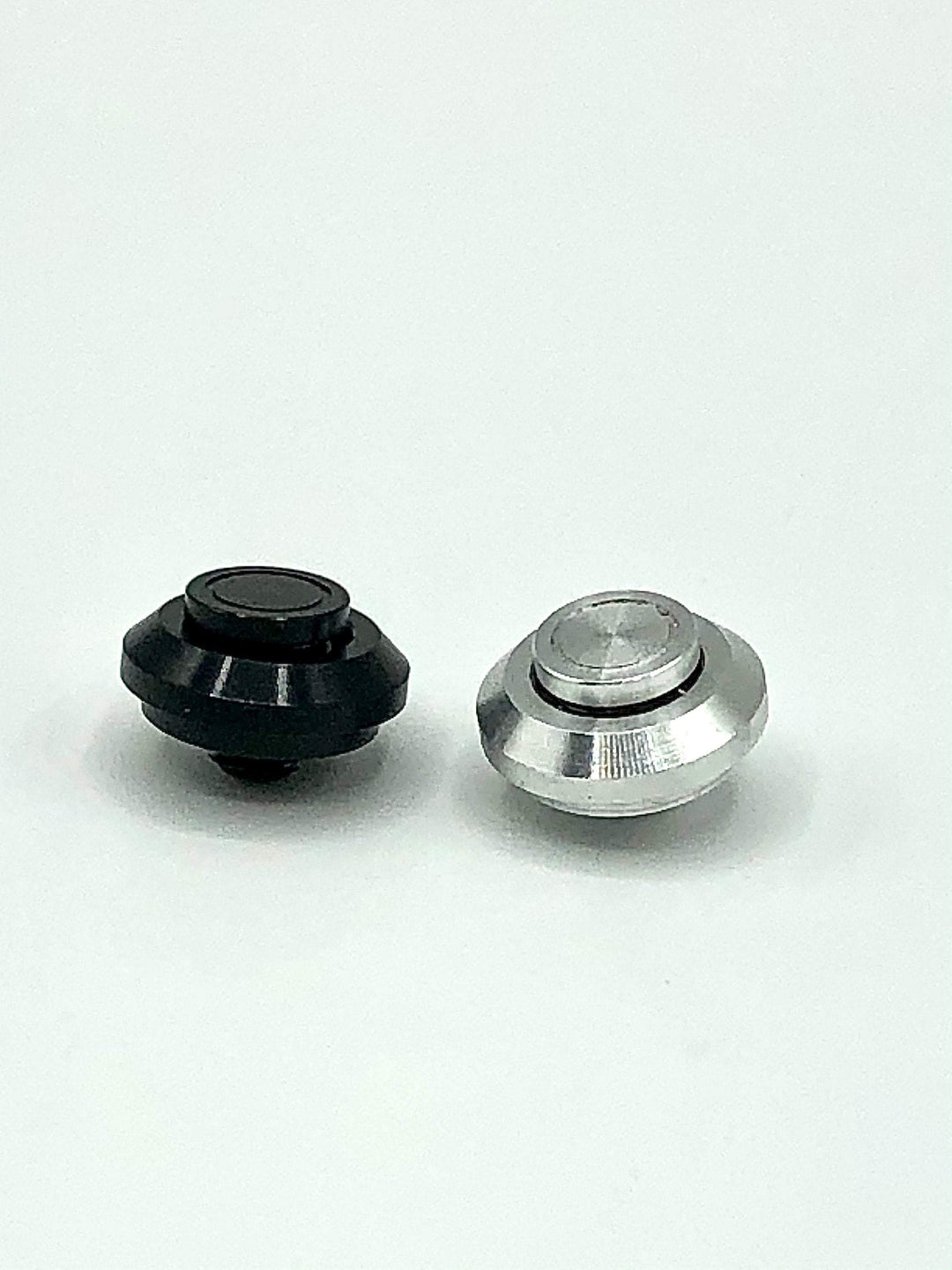

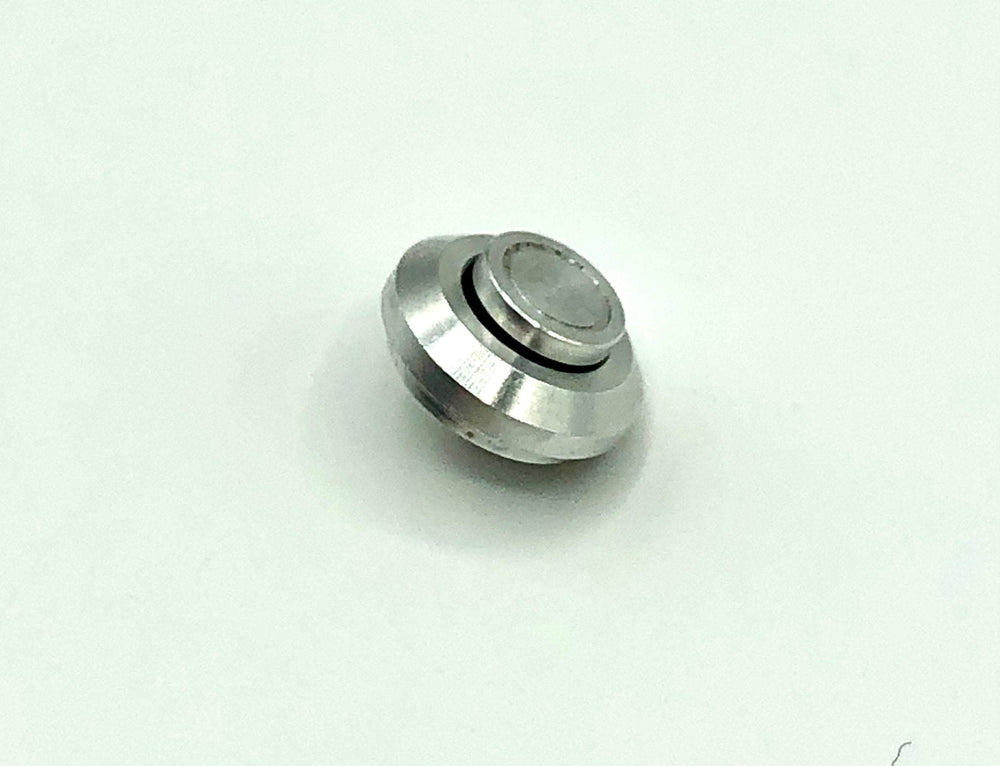

Switch plunger actuators designed for 12mm AV switch most commonly found on lightsaber hilts

Made from aluminum, these come in two finishes, standard machined finish and black anodized

Intended to assist with removable chassis electronic designs, these work best with any of the most recent removable chassis systems also here in other listings in the store. They can be used for any other lightsaber application where possible

Switch plunger mechanism is a 14mm OD at the widest part to accommodate the recessed area around most 12mm switch holes

Fully pressed in, these plungers have a low profile and are easy to press comfortably Depending on your specific hilt, some plungers may have a tighter fit than others

It is recommended to secure these with E6000 after final fitting to prevent them from coming out of your switch hole

12mm knurled switch actuators for 12mm AV switch holes. Available in red, gold, copper, and black.
This is only for switch actuation or to be used as a plunger to press down onto your own tactile switch underneath, there is no switch built into these.

The smaller section is 11.9mm to easily fit into most common switch holes, and the knurled section is just under 14mm.

Dual brass tactile switch holder for 12mm switch holes. The outer diameter of these are 14mm, with the smaller section 12mm.

Due to switch hole variances of different hilt manufacturers, you may need to sand the outside of these to fit snugly or sand the inside of the switch hole.

Comes in either aluminum, black anodized or brass finish. The back retainer piece is only made in aluminum. This listing will include one complete kit to make the assembly.

-1 aluminum, black anodized or brass switch holder

-1 aluminum back retainer

-2 brass tactile switches (5mm height)

-2 set screws (M2x3mm)

Please refer to pictures for proper installation and trimming of tactile switch legs.

Tactile switch PCB's made by ShtokCustomWorx.

These are small profile PCB's designed for chassis designs which require tactile switches without the need to solder directly to the switch.

Product dimensions are 11mmx6mmx3mm. Height is including the height of the tactile switch. Actual PCB material height is 1mm.

PCB has solder pads for both switch wires, one for actual switch to return to the switch pad on the soundboard, and the other for the ground, orientation does not matter.

Please refer to your soundboards manual for proper wiring diagrams for the wires to return to your soundboard.

Small wire gauges of 30-32AWG are required for proper wiring installation.

Tactile switch PCB's made by ShtokCustomWorx.

These are small profile PCB's designed for chassis designs which require tactile switches without the need to solder directly to the switch. These also come in a neopixel accent LED version, with built in pixel accents.

Product dimensions are 11mmx6mmx3mm. Height is including the height of the tactile switch. Actual PCB material height is 1mm.

PCB has solder pads for both switch wires, one for actual switch to return to the switch pad on the soundboard, and the other for the ground, orientation does not matter.

PCB's also have solder pads for the pixel accents, labeled with a + or - sign, as well as a Di(Data In) and Do(Data Out), for wiring your data line.

Please refer to your soundboards manual for proper wiring diagrams for the wires to return to your soundboard.

Pixel accent LED versions are preresistored for the data line.

Small wire gauges of 30-32AWG are required for proper wiring installation.

SPST momentary tactile switch

6.5mm x 6.5mm x 2.5mm

Made by Kyocera AVX, these are gold contact plated spring loaded connectors designed for removable applications for external wiring builds. Each set includes a flat PCB and a matching spring loaded connector for the desired number of contacts.
Each contact is rated for up to 5A.
An example application would be a set of switches wired inside a control box and then wired to one of the contact sets, with the matching PCB wired inside a removable chassis.|
Please make sure you have sufficient space for these in your build.
The spring loaded side needs its matching set to be inserted from the correct side for the springs to compress properly. Please check your springs before wiring to confirm the correct orientation you will need to place them in your build.

Product dimensions for three contact set:
Spring side-11.65mmx11mmx5.65mm(springs not compressed, height of 3.7mm with springs fully compressed)
Flat PCB side: 13mmx11mmx1.65mm

Product dimensions for two contact set:
Spring side-11mmx7.75mmx5.65mm(springs not compressed, height of 3.7mm with springs fully compressed)
Flat PCB side: 11mmx9mmx1.65mm

These are CNC machined knurled switch actuators, designed to allow shine through effects through the acrylic plunger. This part is made of 4 pieces; the housing, acrylic plunger, actuator spring, and a retaining nut. It will come preassembled.
These will fit in most standard non threaded 12mm switch holes found commonly on various saber hilts, as well as compatible M12x0.75 male threading that can be used with popular hilts such as the KR Regiis.
Available in both aluminum and brass finishes.
Threading is approximately 6.5mm long with an actuator depth of around 1mm
Perfectly paired with our SCW Pixel Tactile Switches sold here

To increase plunger depth, you can trim down the inner spring to make it shorter.

Momentary Silver AV switches with built in LED's.
Switches are rated for 3V.

Actual diameter of largest switch area is 14mm, threaded part is 12mm which can fit into most standard sized hilt switch holes.

Available LED colors are red, green, blue, white and yellow.

Forward voltage rating: please refer to these values when using the correct resistor for your switch, failure to use a resistor may result in the led being burnt out.

Red-2.2V

Green, Blue, White and Yellow-3V

Each LED runs at 20mah

Here we have the new unique 12mm 'PixelSwitch' momentary tactile switches. This is the dual option!

Designed and produced by KR Sabers, these stylish 2-in-1 12mm style switches work perfectly for various hilt styles like the popular KR Flagship and KR Regiis hilt model.

They are also compatible with all other hilts that have 12mm style switch support such as Saberforge or MHS hilts.

Each switch is provided as a disassembled kit comprising of a switch body, 2 switch actuators, LED diffuser, retention ring and switch PCB. These kits also include 2 x 2mm*0.5mm shim washers. They will be in a separate bag and must be inserted into the recessed pocket of each actuator. This is to ensure a flat surface presses the PCB switch actuator. Please pay close attention to these as they are quite small.

The new unique 12mm 'PixelSwitch' momentary tactile switches. This is the single option!

Designed and produced by KR Sabers, these stylish 2-in-1 12mm style switches work perfectly for various hilt styles like the popular KR Flagship and KR Regiis hilt model.

They are also compatible with all other hilts that have 12mm style switch support such as Saberforge or MHS hilts.

Each switch is provided as a disassembled kit comprising of a switch body, switch actuator, LED diffuser, retention ring and switch PCB.

A brief overview behind these switches can be found here.

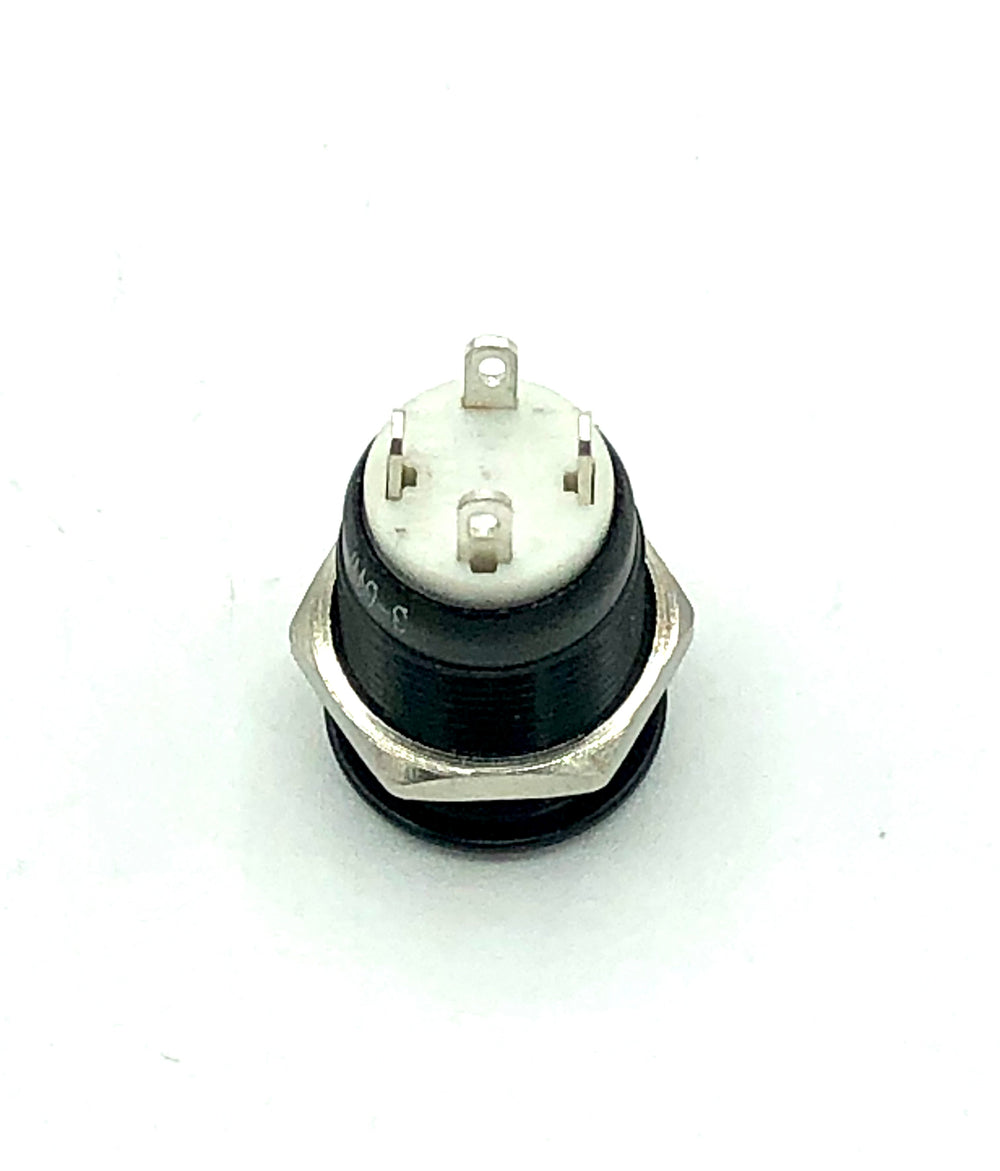

Momentary Black AV switches with built in LED's.
Switches are rated for 3V.

Actual diameter of largest switch area is 14mm, threaded part is 12mm which can fit into most standard sized hilt switch holes.

Available LED colors are red, green, blue, white and yellow.

Forward voltage rating: please refer to these values when using the correct resistor for your switch, failure to use a resistor may result in the led being burnt out.

Red-2.2V

Green, Blue, White and Yellow-3V

Each LED runs at 20mah

12mm sized momentary switches. High top with only two legs for switch wiring, these do not have LED's.
Assorted colors in standard aluminum, blue, black, green, gold and red.

Here we have the new unique 12mm 'DuoSwitch' momentary tactile switches.

Designed and produced by KR Sabers, these stylish 2-in-1 12mm style switches work perfectly for various hilt styles like the popular KR Flagship and KR Regiis hilt model.

They are also compatible with all other hilts that have 12mm style switch support such as Saberforge or MHS hilts.

Each switch is provided as a disassembled kit comprising of a switch body, switch actuator, retention ring and switch PCB. These kits also include 2 x 2mm*0.5mm shim washers. They will be in a separate bag and must be inserted into the recessed pocket of each actuator. This is to ensure a flat surface presses the PCB switch actuator. Please pay close attention to these as they are quite small.

CIG invented the 1st Neopixel bezel combination momentary switch with a crystal clear 5mm led. A beautiful and functional switch for your lightsaber or industrial use.

Neopixel bezel switch can also be installed on other electrical panels. Eg Central fire alarm panels, Onboard vessels in the various control panel with an indicative light that is linked to the warning buzzer.

Neopixel Bezel comes in Standard chrome housing.

Neopixel: RGB

CIG Neopixel RGB Bezel with a momentary switch

- Neopixel combination with crystal clear 5mm LED (3-5 volt)
- Built-in Momentary switch
- PLA 3D printed parts
- 5 x 20cm AWG32 wire pre-tinned for easy soldering
- Free 330 ohm or 470 ohms 1/4 watt resistor for data control signal
- 8mm Hex nut & washer included
- Chrome Bezel housing
- Drill hole 7.2 mm or 5/16"
- Threading M8x0.75
