***Hilt side only***
Compatible with TCSS neo pixel connectors and Plecter pixel blades in function but will not fit in the holder of TCSS connectors
***Beskar Option is not available and is just their so the listing doesn't disappear from customers view when available options are sold out =D ***

Explanation here --> https://youtu.be/Fpv4AnaMPoY

***Hilt side only***
Compatible with TCSS neo pixel connectors and Plecter pixel blades in function but will not fit the pcb holders made for the TCSS pcb

Explanation here --> https://youtu.be/Fpv4AnaMPoY

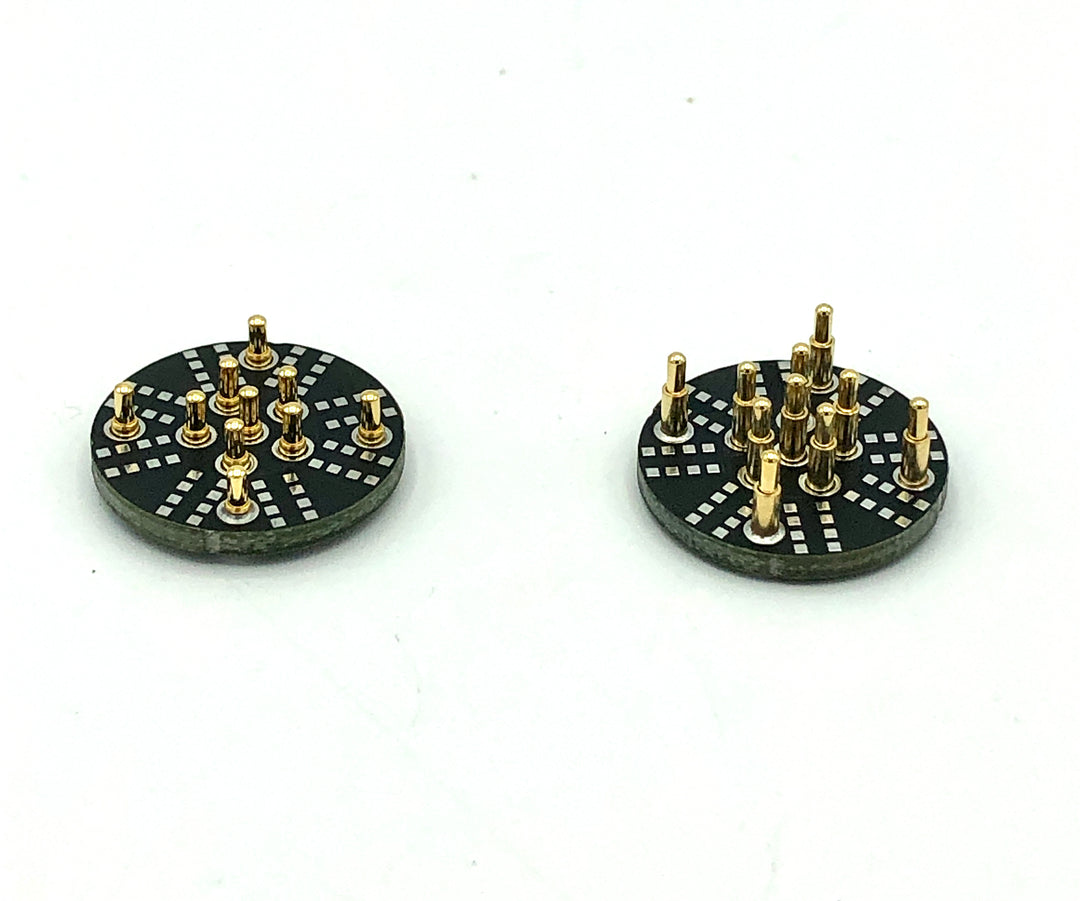

These are already pre-soldered and pre-assembled with pins for your convenience. There is also 2 SMD resistors added for you.

The V3 NPXL manual can be found here. Tinyurl.com/npxlv3manual

Specifications and features:

-High quality components, manufacturing and assembly on factory
-Black PCB color with Gold Plated pads
-Compatible with TCSS/VV/PlecterPixel Blade side pcbs/blades
-Rated up to 18 Amperes max (up to 15 Amperes recommended) without current losses
-Reliable electrical connection due to high quality gold plated pogo pins made in US and Switzerland
-3-pole contact type: 1-pin Data, 4-pin Positive, 4-pin Negative
-High quality spring loaded pogo pins (short and long style) by Mill-Max and Preci-Dip

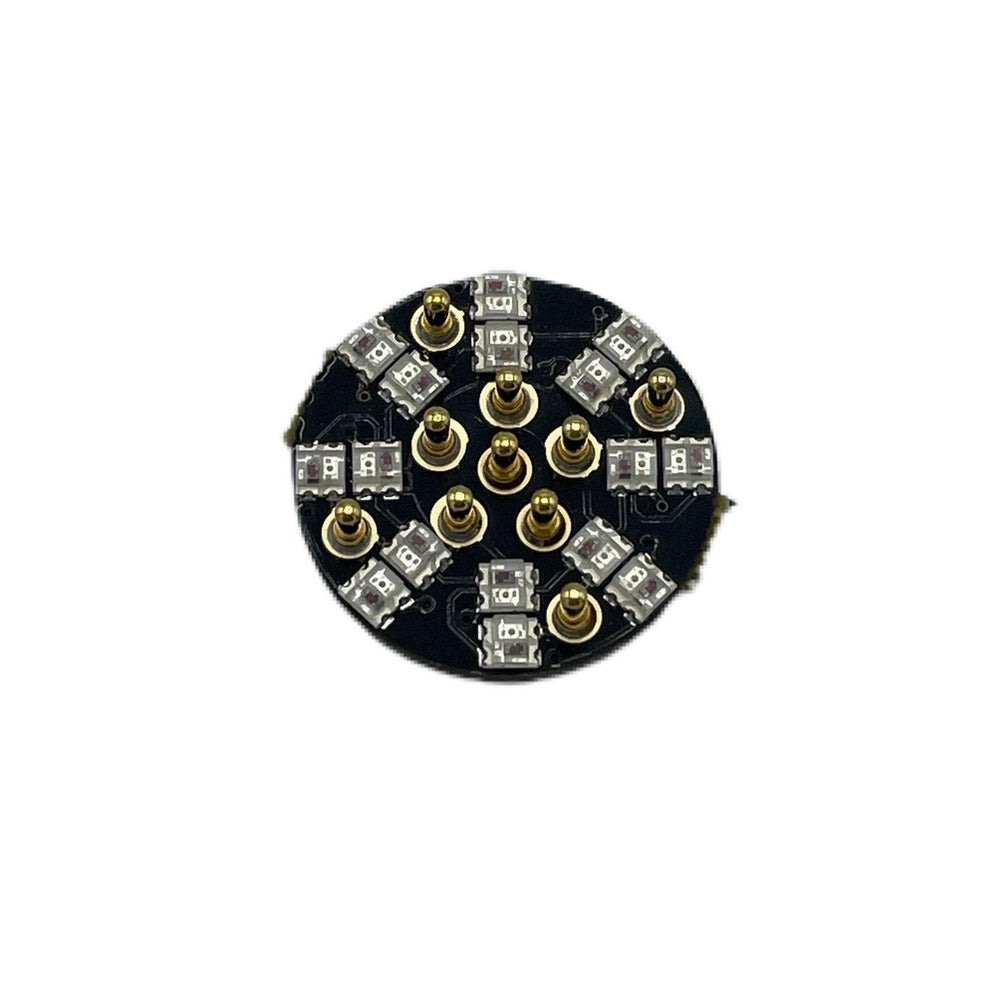

-16 on-board RGB (GRB color order) neopixel leds with separate Data input for Blade Plugs backlight
-On-board pixels have reverse polarity and short circuit protection, won’t be damaged
-Superior brightness and color, 50% brighter than the previous connector version
-Separate Blade Detection (BD) pin (5th Negative pin)
Dimensions:

Hilt pcb: 17.5x17.5x2.5mm (without pins)
Blade pcb: 17.5x17.5x1.6mm

Manual here:
https://tinyurl.com/npxlv3manual

*********As with all Neo Pixel products avoid excess moisture, Seal when possible and always store with blade plug inserted**********

***Hilt side only***
Compatible with TCSS neo pixel connectors and Plecter pixel blades in function but will not fit the pcb holders made for the TCSS pcb

Explanation here --> https://youtu.be/Fpv4AnaMPoY

These are already pre-soldered and pre-assembled with pins for your convenience. There is also 2 SMD resistors added for you.

The V3 NPXL manual can be found here. Tinyurl.com/npxlv3manual

Specifications and features:

-High quality components, manufacturing and assembly on factory
-Black PCB color with Gold Plated pads
-Compatible with TCSS/VV/PlecterPixel Blade side pcbs/blades
-Rated up to 18 Amperes max (up to 15 Amperes recommended) without current losses
-Reliable electrical connection due to high quality gold plated pogo pins made in US and Switzerland
-3-pole contact type: 1-pin Data, 4-pin Positive, 4-pin Negative
-High quality spring loaded pogo pins (short and long style) by Mill-Max and Preci-Dip
-16 on-board RGB (GRB color order) neopixel leds with separate Data input for Blade Plugs backlight
-On-board pixels have reverse polarity and short circuit protection, won’t be damaged
-Superior brightness and color, 50% brighter than the previous connector version
-Separate Blade Detection (BD) pin (5th Negative pin)
Dimensions:

Hilt pcb: 17.5x17.5x2.5mm (without pins)
Blade pcb: 17.5x17.5x1.6mm

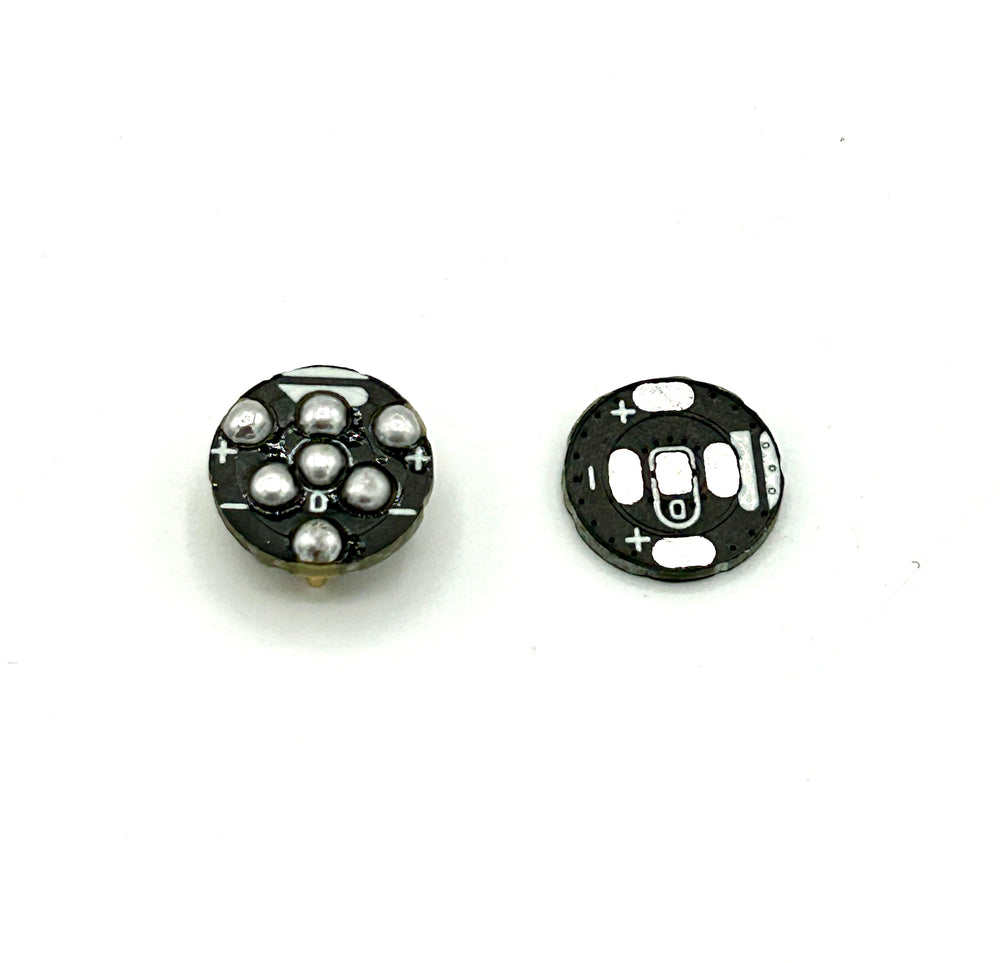

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a removable chassis system.
So one chassis could either be used for multiple hilts and/or be removable for easier access to board and battery .

It is a DIY item and designers can use these in the future for their chassis designs. You can also design your own.
These Supports pixel builds and 2 switches, and a blade detection/id pad.
They support 15a drain continuous and 20a burst

Please check the diagram as Verso is wired different.
In places of common ground which other boards use, verso uses common positive in its place

Dimensions
Male and Female PCB OD: 20.5mm
PCB's are 1.6mm thick

with pins soldered:
4.7mm from bottom of pcb to tip of pin
3.4mm when they are compressed

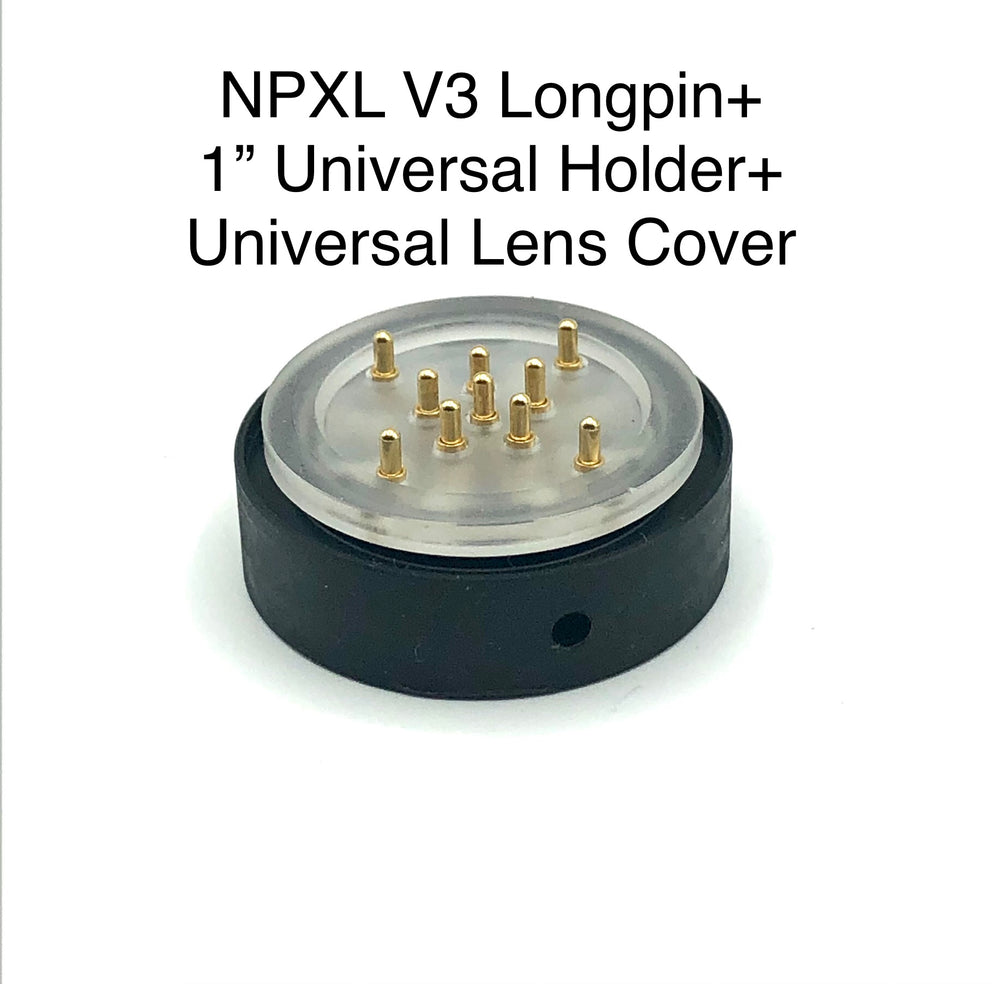

1 each of:

NPXL V3 connector (pins assembled or non assembled)

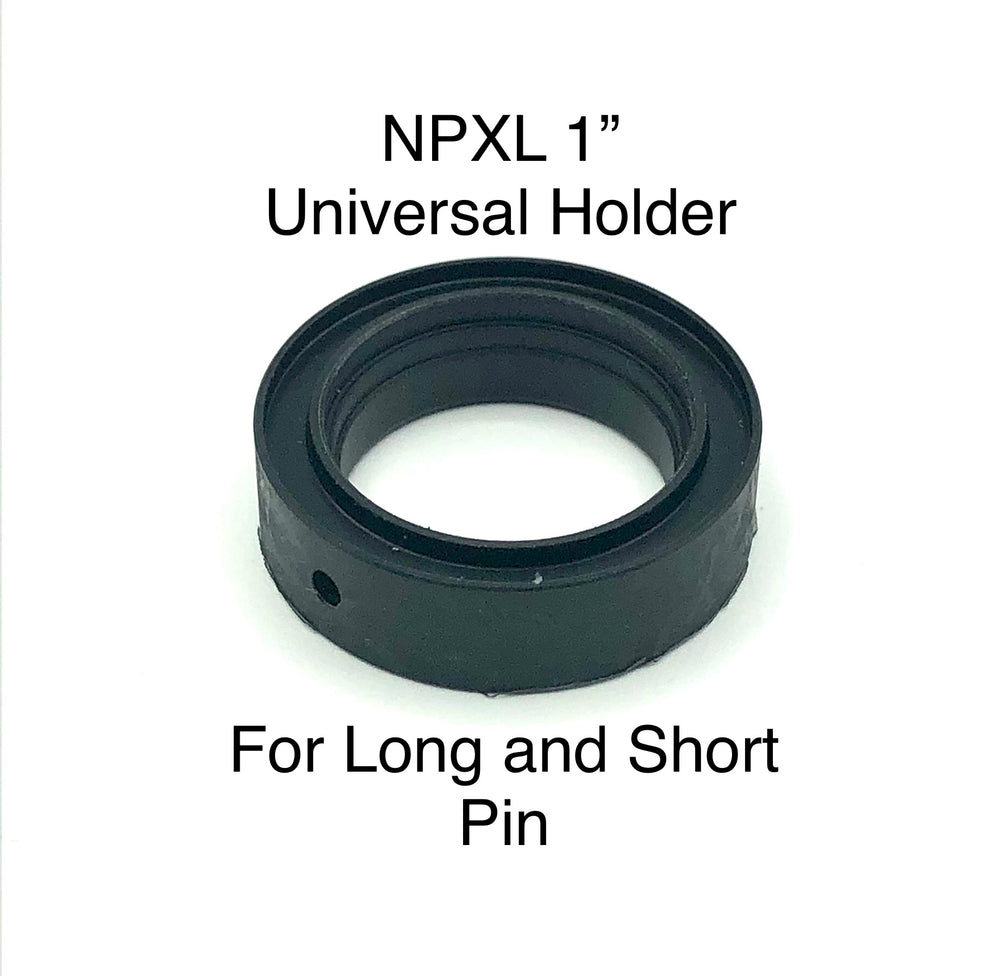

NPXL 1” Uni Holder

NPXL Uni Holder Lens

Complete package for those who want to buy all correct parts at once

These are for use of having a removable speaker in a saber build.
Designed by Dmitry Shtok of Shtok Custom Worx

****** DOES NOT INCLUDE PCB OR LENS*****
******IF USING WITH LONG PIN YOU WILL NEED THE LENS TO SUPPORT THE PINS*******
****WORK WITH ECO AND STANDARD NPXL V3****
These new holders hold have a smaller foot print then other version 7mm Tall

They work for both long and short pin

You just purchase the separate lens for use with long pin

Will work with mag connect system with shortpin Npxl pcbs only.

Long pin and lens will not work with magconnect

NPXL V3 Connector with presoldered pins and presoldered wire leads.
Wire is high temp PTFE wire from Powerwerx, a top tier supplier of high quality wire.
Each wire is 12” long.
24AWG wire is used for positive and negative wires and 28AWG wire is used for the data line wire.
Red wire-positive leads
White wire-negative leads
Green wire-data line

Please refer to your soundboard manual for proper wiring and installation to your board.
All connectors are tested prior to being assembled.

Available in long and short pin options

Neopixel pin replacements for PCB’s and NPXL connectors

These are the short pin versions; comes in packs of 10

*Last two pictures for comparison to older version*

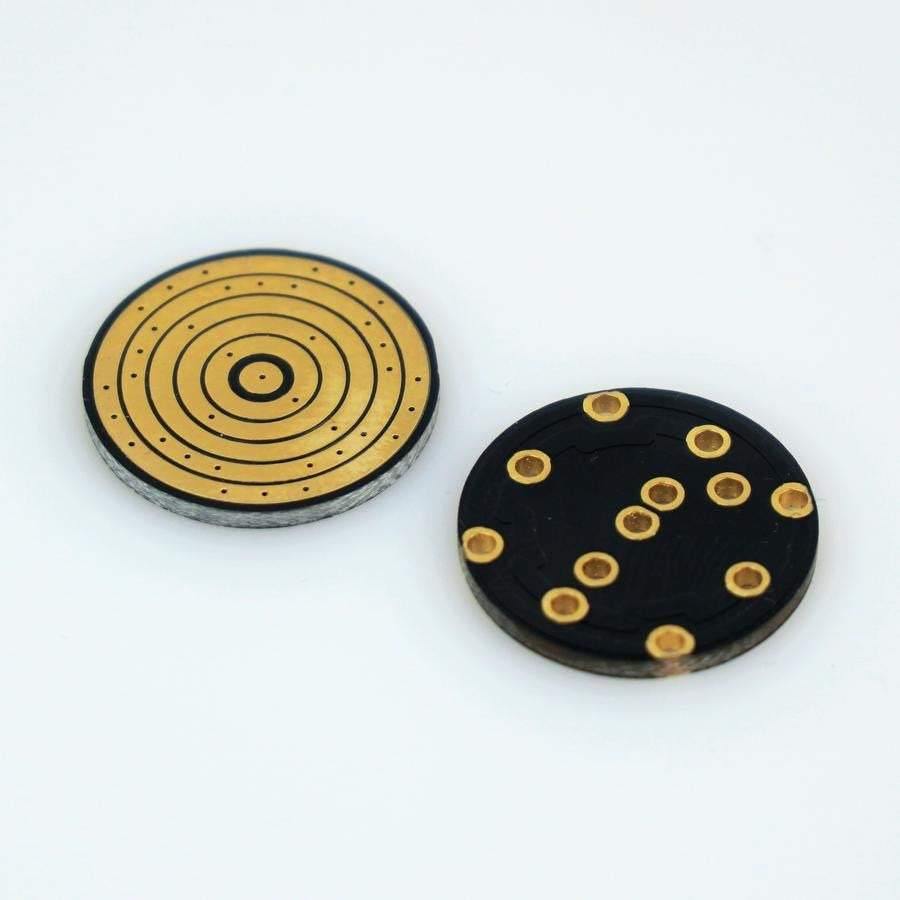

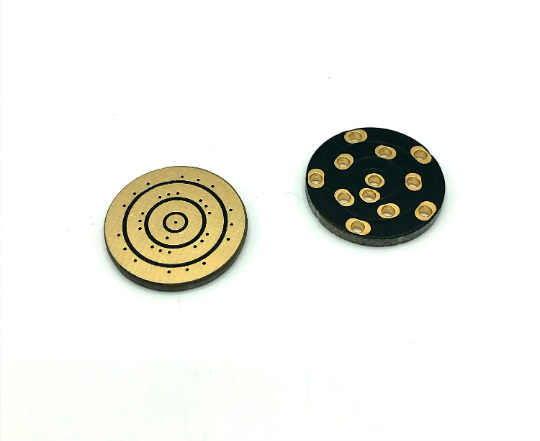

Blade side PCB's for making neopixel blades, blade plugs, and other neopixel connections.

Watch this video for a tutorial on soldering the resistor yourself: Watch here

Updated with wider data line radius for more universal compatibility. Soldering pads include two positive and negative labeled pads, and single data pad across from SMD resistor footprint.
All PCB’s will include 0603 330ohm resistor for data line.

Specifications:
- true 20A max current rating
- 17.5mm pcbs OD
- Gold Plated wear out resistive finish
- 0603 Data resistor footprint on “Blade” pcb
- big solder pads for easier wiring

****DOES NOT COME WITH THE BLACK PCB HOLDER OR THE SHTOKCUSTOMWORX PCB****
****DOES NOT WORK WITH SHORT PIN****
DOES NOT WORK FOR NPXL V2
****WILL NOT WORK WITH THE ECO NPXL VERSION****
****WILL NOT WORK WITH UNI PCB HOLDER****
***Good for adding to chassis designs***

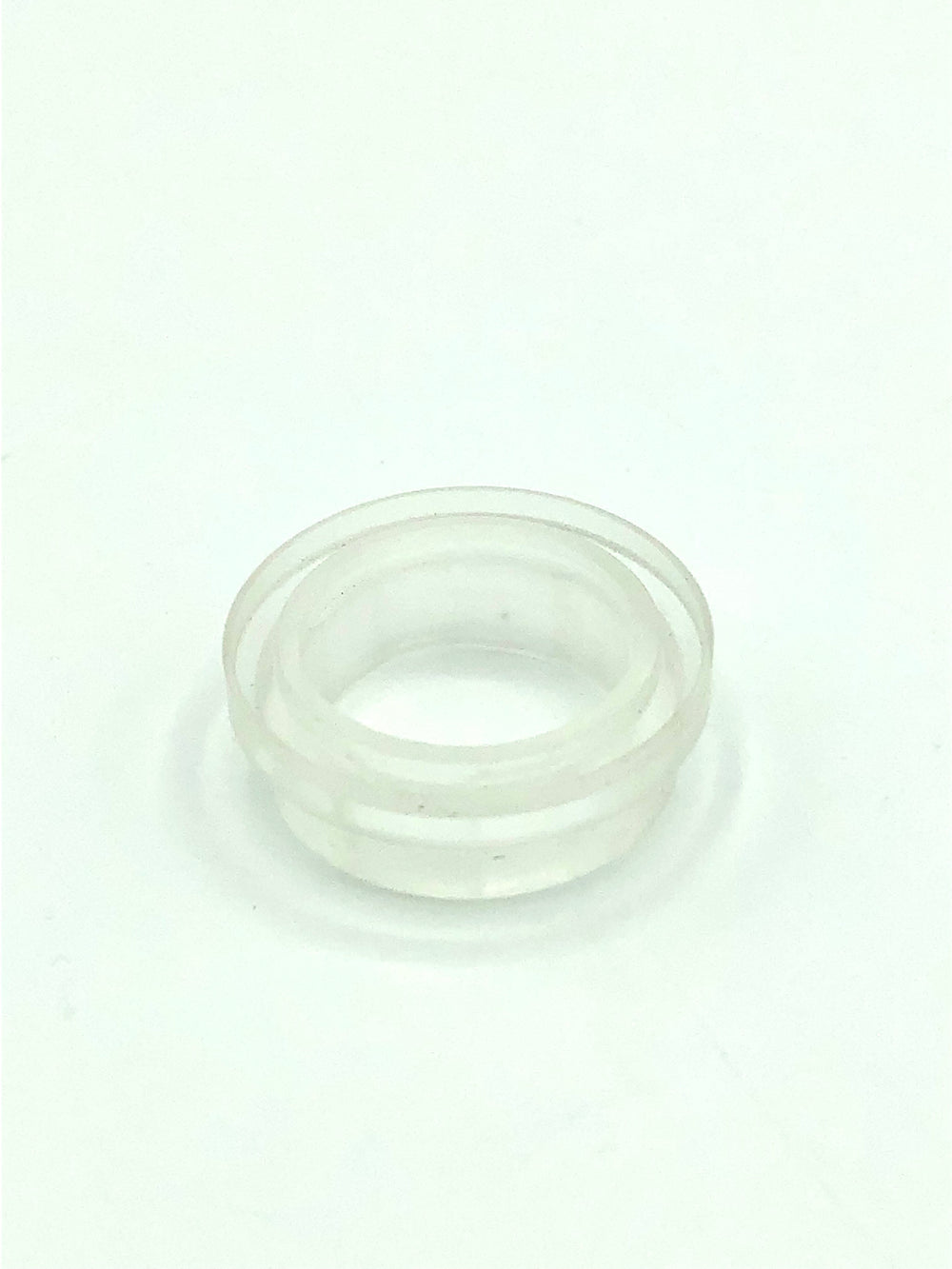

This is the lens diffusion cover for the NPXL V3 LONGPIN PCB holders.
Work for Both in 1″ and 7/8″ OD version of the LONGPIN holders.
Does not work with short pins.
Machined from acrylic. It is not compatible with any third party PCB holder or the shortpin pcb holder.
Holder is press fit. Fits nicely

Tactile switch PCB's made by ShtokCustomWorx.

These are small profile PCB's designed for chassis designs which require tactile switches without the need to solder directly to the switch.

Product dimensions are 11mmx6mmx3mm. Height is including the height of the tactile switch. Actual PCB material height is 1mm.

PCB has solder pads for both switch wires, one for actual switch to return to the switch pad on the soundboard, and the other for the ground, orientation does not matter.

Please refer to your soundboards manual for proper wiring diagrams for the wires to return to your soundboard.

Small wire gauges of 30-32AWG are required for proper wiring installation.

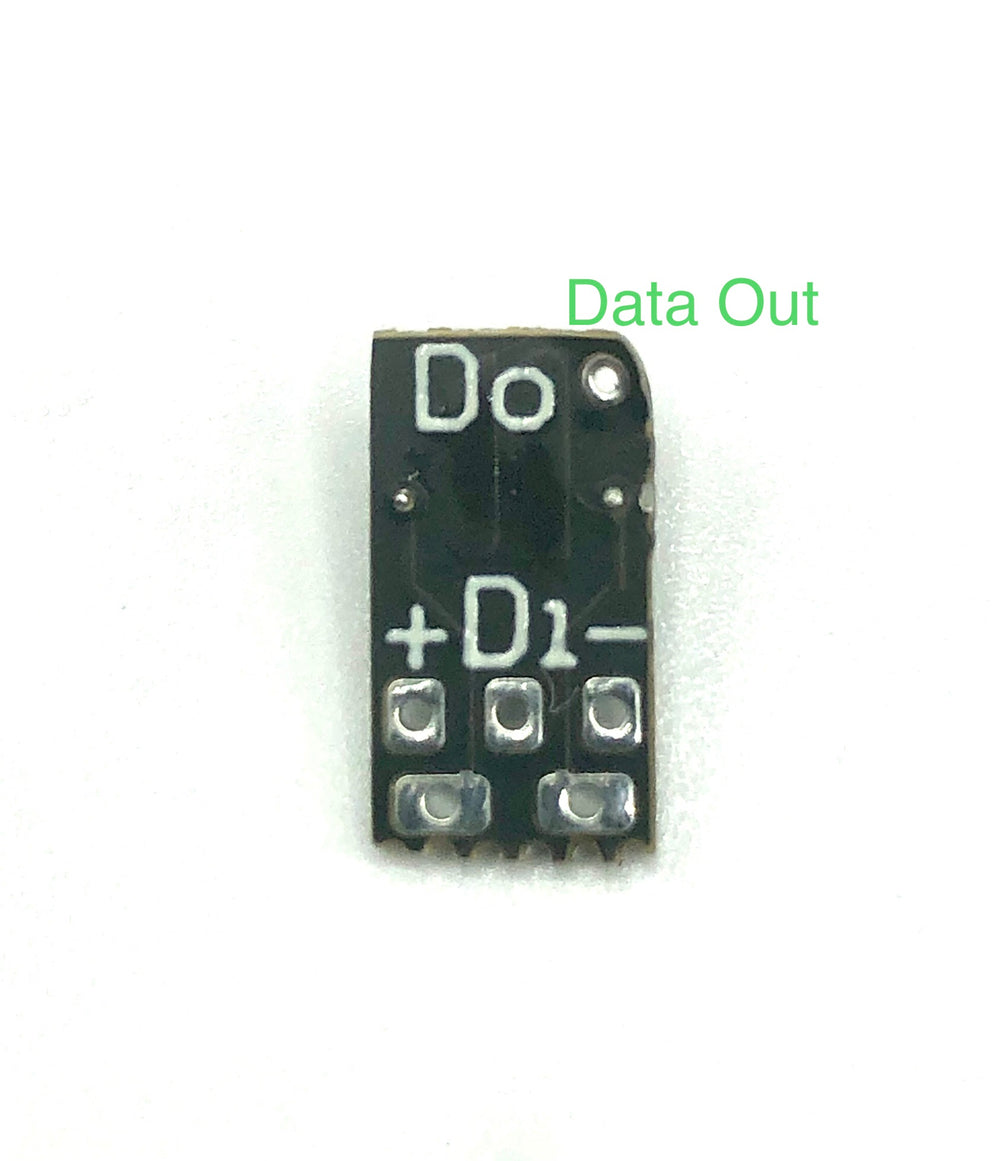

Tactile switch PCB's made by ShtokCustomWorx.

These are small profile PCB's designed for chassis designs which require tactile switches without the need to solder directly to the switch. These also come in a neopixel accent LED version, with built in pixel accents.

Product dimensions are 11mmx6mmx3mm. Height is including the height of the tactile switch. Actual PCB material height is 1mm.

PCB has solder pads for both switch wires, one for actual switch to return to the switch pad on the soundboard, and the other for the ground, orientation does not matter.

PCB's also have solder pads for the pixel accents, labeled with a + or - sign, as well as a Di(Data In) and Do(Data Out), for wiring your data line.

Please refer to your soundboards manual for proper wiring diagrams for the wires to return to your soundboard.

Pixel accent LED versions are preresistored for the data line.

Small wire gauges of 30-32AWG are required for proper wiring installation.

****ONLY INCLUDES 2 MAGNETS*****
***Please read the info in last picture regarding the fragile nature of these kind of magnets***
Designed and made by The Saber Armory.
Magnets For MagConnect Setup. These are for our and NPXL 1″ LONGPIN and SHORTPIN hiltside holders and 1" blade side PCB holders.
These are not compatible with 7/8″ versions for holding the NPXL hilt and blade side.
This helps keeping the connection between the hilt and blade side pcb's.
Listing includes 2 magnets.
Note that the magnets will need to be secured using a superglue or equivalent to the holder.

These are neopixel compatible rings designed for extra pixel illumination in lightsaber builds such as crystal chambers. These can be used for any purpose that works for your custom build.
Designed by Dmitry Shtok from ShtokCustomWorx, these come in three different sizes, and are preresistored for neopixel use.

Large-inner diameter of 10mm, outer diameter of 15mm, total of 20 individual pixel accents

Medium- inner diameter of 8mm, outer diameter of 13mm, total of 16 individual pixel accents

Small- inner diameter of 5mm, outer diameter of 10mm, total of 11 individual pixel accents

Please follow the wiring pads labeled on the back of these to wire accordingly to your soundboard.
Pads are labeled as:
'DIN' for data input
'DOUT' for data output
'+' for neopixel positive
'-' for neopixel negative

Some light sanding may be required on the perforated edges. Please handle with care as misuse and mishandling of these products may lead to damaged or malfunctioning components.

****DOES NOT COME WITH THE BLACK PCB HOLDER OR THE SHTOKCUSTOMWORX PCB****
****DOES NOT WORK WITH SHORT PIN******
****DOES NOT WORK FOR NPXL V2****
****WILL NOT WORK WITH THE ECO NPXL VERSION****

This is the lens diffusion cover for the UNI PCB holders.
Work for Both in 1″ and 7/8″ OD version of the LONGPIN holders.Does not work with short pins.
Machined from acrylic.

It is not compatible with any third party PCB holder or the shortpin pcb holder.
Holder is press fit. Fits nicely

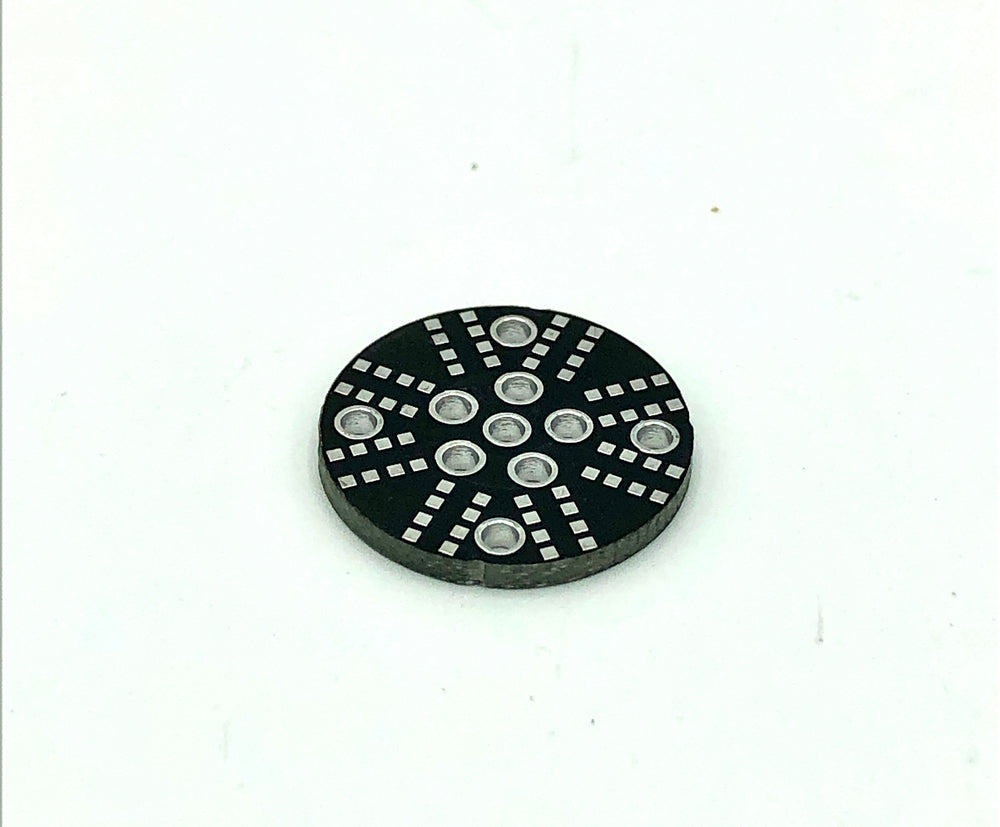

NPXL V3 hilt side neopixel connector without the LED's.
These are the same exact size and basic function as the regular V3 connectors, with soldering pads for the neopixel positive and negative connections, as well as the data line and blade detection pads.
These DO NOT have a spot for an SMD 0603 resistor, as most resistors will be built into the blade or on the soundboard now.

Available as PCB only, short pin and long pin, assembled or non assembled versions.

The assembled versions will have the pins pre soldered, and the non assembled versions will include the selected pin type separately to solder yourself. The PCB only version will not include any pins.

Smaller diameter version of the SCW Speaker/Battery PCB connector set.

Outer diameter is 17.5mm compared to the larger 20.5mm size.

Can be purchased with or without pins assembled(12 short pins included with unassembled version)

Has 4 different traces that can be used and soldered to:
-Battery +
-Battery -
-Speaker +
-Speaker -
(Speakers do not have polarity, this is just a separate trace to solder to)

Can also be repurposed for any other wiring feature that requires a detachable part with up to 4 different wires required

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a removable chassis system. So one chassis could eithe rbe used for multiple hilts or be removable.
It is a DIY item and designers will be using these in the future for their chassis designs. You can also design your own.
Supports pixel builds and led builds, 2 switches, blade detection and tangible font selection(feature of cfx)

*****PCB SOLD SEPERATELY*****

This is the blade side PCB holder for 7/8″ thin walled blades designed for ShtokCustomWorx NPXL purchase here https://tinyurl.com/npxlbladeside .

Machined from clear acrylic. It is not compatible with any third party PCB. It can also be used for the blade side PCB with LEDs to make a quick NeoPixel blade plug!
The PCB is press fit but it can be further secured using a small dab of hot glue or similar glue.

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a "power pack".
Meaning you can remove a battery and speaker module using these PCBS.
Then can handle 15 Amps continuous, 20 Amps burst.
Supports 4 connections Battery +, Battery -, speaker + and speaker -.
These do not come with the pins already soldered on. The pins will need to be soldered in place.

CNC machined polycarbonate holder and lens holder for NPXL V3 longpin connectors.
Not compatible for short pin connectors or non NPXL modules.

Two piece threaded design, no screws required.

Holder is 25.4mm or 1" in diameter and 8.75mm in height.

Proper installation requires light sanding of the connector so that it will fit into the base.

Align the pins with the proper holes and press up on the connector so that it pushes through, then screw on the bottom half.

Press back down onto the pins and it should snap into place below. Use a small amount of glue if necessary to secure the holder.

Allows excellent shine through and diffusion for NPXL LED's.

*****PCB,LENSCOVER AND MAGNET SOLD SEPARATELY*****
WORKS W/ V2 NPXL LONGPIN V3 NPXL LongPin and ECO
NPXL LongPin
This is designed to hold the LongPin versions of the NPXL Lens Cover(will not work with lens cover made for the uni holder) and magconnect magnets .

This is the hilt side and for 1″ and 7/8" emitters.

Machined from black ABS. It is not compatible with any third party PCB.

This holder is Mag Connect compatible. Magnets are sold separately here and graciously provided to us by The Saber Armory.

Please note, the magnets are a snug fit but hey will still need be glued in so the strong force of the magnets does not pull them out when they are near each other.
We recommend a low viscosity glue for this.
Be careful when doing this as the magnets are fragile.

Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. Adding the magnets may expand the holder slightly making in a tighter fit. If this is the case lightly sanding the outside of the magnets using a sanding drum or sandpaper to reduce the outer diameter slightly is recommend. This will stop the holder from expanding after installing the magnets.
The PCB is press fit but it is recommended to hot glue the back end of the holder to secure. There are 2 small holes in case you want to drill and tap and use screws to secure the PCB.

*****DOES NOT INCLUDE PCB*****
This is for the blade side and for 1″ thin walled blades.
Machined from clear acrylic. It is not compatible with any third party PCB. Designed for this product sold here https://tinyurl.com/npxlbladeside

It can also be used for the blade side PCB with LEDs to make a quick NeoPixel blade plug
This is MagConnect compatible. Magnets are sold separately here https://tinyurl.com/magconnectors.
Be aware the magnets are a snug interference fit.
They will still need be glued in so the force of the magnets does not pull them out when near each other.
We recommend a low viscosity CA glue for this.
Be careful when doing this; the magnets are fragile. Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the emitter before the magnets have been put it and after. The addition of the magnets may expand the holder slightly resulting in a tighter fit. If this is the case, we recommend lightly sanding the outside of the magnets using a sanding drum to reduce the outer diameter slightly. This will stop the holder from expanding after installing the magnets.
Note that the PCB is press fit but it can be further secured using a small dab of hot glue or equivalent.

*****PCB AND MAGNET SOLD SEPARATELY*****
WORKS W/ V2 NPXL shortpin, V3 NPXL shortpin and ECO
NPXL shortpin
This is designed to hold the ShortPin version of the NPXL
This is the hilt side and for 1″ and 7/8" emitters. It is also designed for the short pins option only.
Machined from black ABS. It is not compatible with any third party PCB.
This holder is Mag Connect compatible. Magnets are sold separately here and graciously provided to us by The Saber Armory.
Please note, the magnets are a snug fit but hey will still need be glued in so the strong force of the magnets does not pull them out when they are near each other.
We recommend a low viscosity glue for this.
Be careful when doing this as the magnets are fragile.
Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. Adding the magnets may expand the holder slightly making in a tighter fit. If this is the case lightly sanding the outside of the magnets using a sanding drum or sandpaper to reduce the outer diameter slightly is recommend. This will stop the holder from expanding after installing the magnets.
The PCB is press fit but it is recommended to hot glue the back end of the holder to secure. There are 2 small holes in case you want to drill and tap and use screws to secure the PCB.
The short pin version is not compatible with the clear lens cover.

Pin guide alignment tool for soldering the NPXL V3 longpin connector. This is a basic PCB board material. Not compatible with other designs.
Easily slides over your pins before soldering to ensure they are straight and in proper alignment.

NPXL V3 connector not included with this purchase.

These are meant to align the 10-pole pcbs
They are around 30mm long and you can cut them to your needs for use with multiple 10 pole sets

Designed by ShtokCustomWorx, these compact PCB connectors are designed for small areas in saber designs that do not have enough room for typical hilt side and blade side PCB connectors.
Measuring at 11mm in diameter, these will be most useful for narrow cavities in thin neck saber designs in place of having to splice sets of wires together.
Each PCB set comes with 7 pins, for the required number of pins for each positive and negative trace for neopixel builds.
PCB layout is marked by positive, negative and a data pad. Please refer to your soundboards manual for appropriate wiring schematics.
You can always use these in place for any other application that needs 3 different sets of wires.
Available in an assembled(presoldered pin) version or unassembled with unsoldered pins.

Replacement Neopixel pins for PCB’s and NPXL connectors

These are the long pin versions; come in a pack of 10

Here is the ShtokCustomWorx ECO NPXL V3 Hilt Side PCB Connector.

This is the SHORT pin option.

• 1" PCB holder sold here.
• 7/8" PCB holder sold here.

These are already pre-soldered and pre-assembled with pins for your convenience or you can choose an unassembled kit.

There is also 2 SMD resistors added for you.

The V3 NPXL manual can be found here.

Specifications and features:

• High quality components, manufacturing and assembling
• Reliable electrical connection
• 3-pole contact type: 1-pin Data, 3-pin Positive, 3-pin Negative
• Spring loaded Pogo pins (short and long style)
• 6 on-board 3535 SK6812 RGB Neopixel LEDs with separate Data input for Blade Plugs backlight
• Various connection options for Data input
• Fully compatible with TCSS and KR Sabers blade side PCB connectors.

Dimensions:

• Hilt pcb: 17.5x17.5x2.5mm (without pins)

Two piece pogo speaker connector set from ShtokCustomWorx
This is the V2 version which is used for tighter space builds.
You will need to remove the excess material around the flat PCB as well as carefully cut the two pogo pins down the middle.
Flat PCB needs to be secured to the back of your 28mm speaker as shown in the picture.
This is only intended for 28mm bass speakers.

Designed by Shtokcustomworx, These pcbs are meant to be placed under the 7 bubble card that is used in the ANH graflex clamps

Has data pass thru and each LEDs are individually addressable

Available in natural finish and black

1 each of:

NPXL V3 connector (pins assembled or non assembled)

NPXL 1” Long Pin Holder

NPXL V3 Long Pin Lens Cover

Complete package for those who want to buy all correct parts at once, with a slight discount versus buying all three individually

These are great to use for connection in chassis, especially in think neck builds to allow a quick way to disconnect tri creed led module from the hilt.

20mm OD Male and Female pcbs
2A max per contact recommended current rating
Gold plated contacts on female and male pcbs

Come with the 6 pins that will need to be soldered in place

Here is the ShtokCustomWorx ECO NPXL V3 Hilt Side PCB Connector.

This is the LONG pin option.

• 1" PCB holder sold here.
• 7/8" PCB holder sold here.
• Lens cover sold here.

These are already pre-soldered and pre-assembled with pins for your convenience or you can choose an unassembled kit.

There is also 2 SMD resistors added for you.

Specifications and features:

• High quality components, manufacturing and assembling
• Reliable electrical connection
• 3-pole contact type: 1-pin Data, 3-pin Positive, 3-pin Negative
• Spring loaded Pogo pins (short and long style)
• 6 on-board 3535 SK6812 RGB Neopixel LEDs with separate Data input for Blade Plugs backlight
• Various connection options for Data input
• Fully compatible with TCSS and KR Sabers blade side PCB connectors.

Dimensions:

• Hilt pcb: 17.5x17.5x2.5mm (without pins)
