Accent LED's

Accent LED pixel for Neopixel lighting
BTF Lighting WS2812C pixel
Good for lightsaber crystal chamber builds, and other applications where accent lighting is required
Labeled solder pads for data, positive, and ground wires to go in and out if wiring in series.

WS2812 accent led strips.

Available in 20 or 10 led lengths. Width is 3.5mm and come presoldered with wires attached.

20 led strips are 100mm long, 10 led strips are 50mm long. Can also be cut to shorter lengths.

These are neopixel compatible rings designed for extra pixel illumination in lightsaber builds such as crystal chambers. These can be used for any purpose that works for your custom build.
Designed by Dmitry Shtok from ShtokCustomWorx, these come in three different sizes, and are preresistored for neopixel use.

Large-inner diameter of 10mm, outer diameter of 15mm, total of 20 individual pixel accents

Medium- inner diameter of 8mm, outer diameter of 13mm, total of 16 individual pixel accents

Small- inner diameter of 5mm, outer diameter of 10mm, total of 11 individual pixel accents

Please follow the wiring pads labeled on the back of these to wire accordingly to your soundboard.
Pads are labeled as:
'DIN' for data input
'DOUT' for data output
'+' for neopixel positive
'-' for neopixel negative

Some light sanding may be required on the perforated edges. Please handle with care as misuse and mishandling of these products may lead to damaged or malfunctioning components.

These are single pixel accent LED’s designed by Shadowfoil Props

Small and compact for the tiniest of spaces, these small PCB’s are just over 5mm in diameter with minor sanding around the edges.

Each PCB is pre-resistored so no external resistor wiring is required.

Each PCB has four pads used for VDD, GND, DIN, and DOUT

VDD is for Neopixel positive wiring

GND is for Neopixel negative wiring

DIN is for the data line signal going in

DOUT is for the data line signal going out, for wiring in series with other pixels

Please refer to the listing images for proper pad layouts, and orientation is indicated by the red line which is where the resistor is located on the opposite side of the pads.

Wire gauges of 30-32AWG are highly recommended

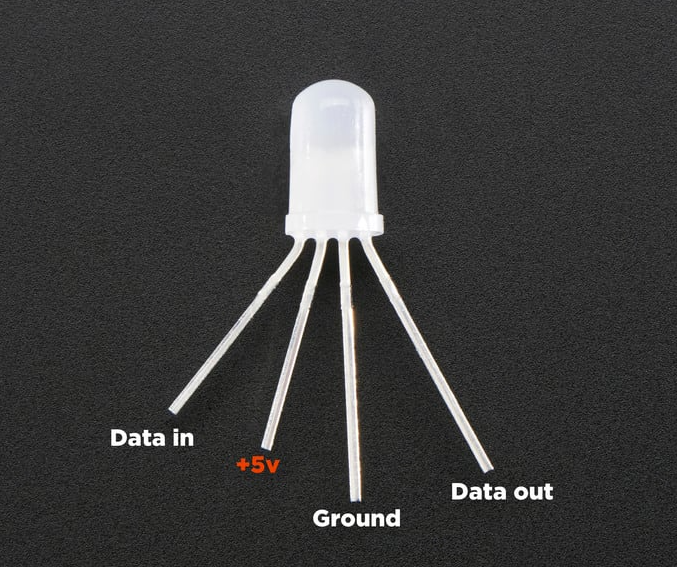

Single neopixel accent from Adafruit. This is the 5mm sized version.
This listing is for one 5mm accent LED.
4 legs are attached to each pixel accent and please refer to the product images for correct wiring descriptions.
Features a data in, data out, positive, and negative leg.
These are not resistored so you will need to use a resistor to prevent frying this LED
Please a resistor in the range of 330 to 470 ohms.
