NPXL V3 Connector with presoldered pins and presoldered wire leads.
Wire is high temp PTFE wire from Powerwerx, a top tier supplier of high quality wire.
Each wire is 12” long.
24AWG wire is used for positive and negative wires and 28AWG wire is used for the data line wire.
Red wire-positive leads
White wire-negative leads
Green wire-data line

Please refer to your soundboard manual for proper wiring and installation to your board.
All connectors are tested prior to being assembled.

Available in long and short pin options

LISTING IS FOR ONE CELL NOT TWO, PICTURE IS JUST AN EXAMPLE PHOTO
A Suggested battery for use with running NEO PIXEL
Details:
● Protected 18650 Li-ion Rechargeable Battery
● Minimum Capacity: 2900mAh
● Typical Capacity: 3000mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase

Dual brass tactile switch holder for 12mm switch holes. The outer diameter of these are 14mm, with the smaller section 12mm.

Due to switch hole variances of different hilt manufacturers, you may need to sand the outside of these to fit snugly or sand the inside of the switch hole.

Comes in either aluminum, black anodized or brass finish. The back retainer piece is only made in aluminum. This listing will include one complete kit to make the assembly.

-1 aluminum, black anodized or brass switch holder

-1 aluminum back retainer

-2 brass tactile switches (5mm height)

-2 set screws (M2x3mm)

Please refer to pictures for proper installation and trimming of tactile switch legs.

From SaberTec you can now bring your own custom lightsaber alive by giving it a Golden Harvest heart! Allow us to provide you an unique experience and lift you into another galaxy!

This board will not require programming. You can make adjustments via the SD card.
The popular online configurator of the old version of the Golden Harvest will soon be available also for the GH v3 including a preview animation for Neopixel effects! To check out the full set of features of our Golden Harvest board, visit https://tinyurl.com/Ghv3features.

The Quick Setup Guide and the manual can be found here https://tinyurl.com/Ghdownload.

All boards are fully tested before shipping. Saberbay or SaberTec cannot be held responsible for any damage that arises from a faulty install or use of the board.

The sad card will be loaded with both configurations for your to choose one, for in hilt led illumination and pixel strip illumination.

1" custom blade plugs for standard or neopixel sabers. Available in silver and gold finish options, as well as a standard nonlit version for baselit inhilt LED sabers and neopixel version for neopixel setups.
Blade plug measures 25.4mm in outer diameter with an inner diameter of 21mm.
The height of the standard plug is 51mm(not including the stem height), and the neopixel version is 56mm tall.

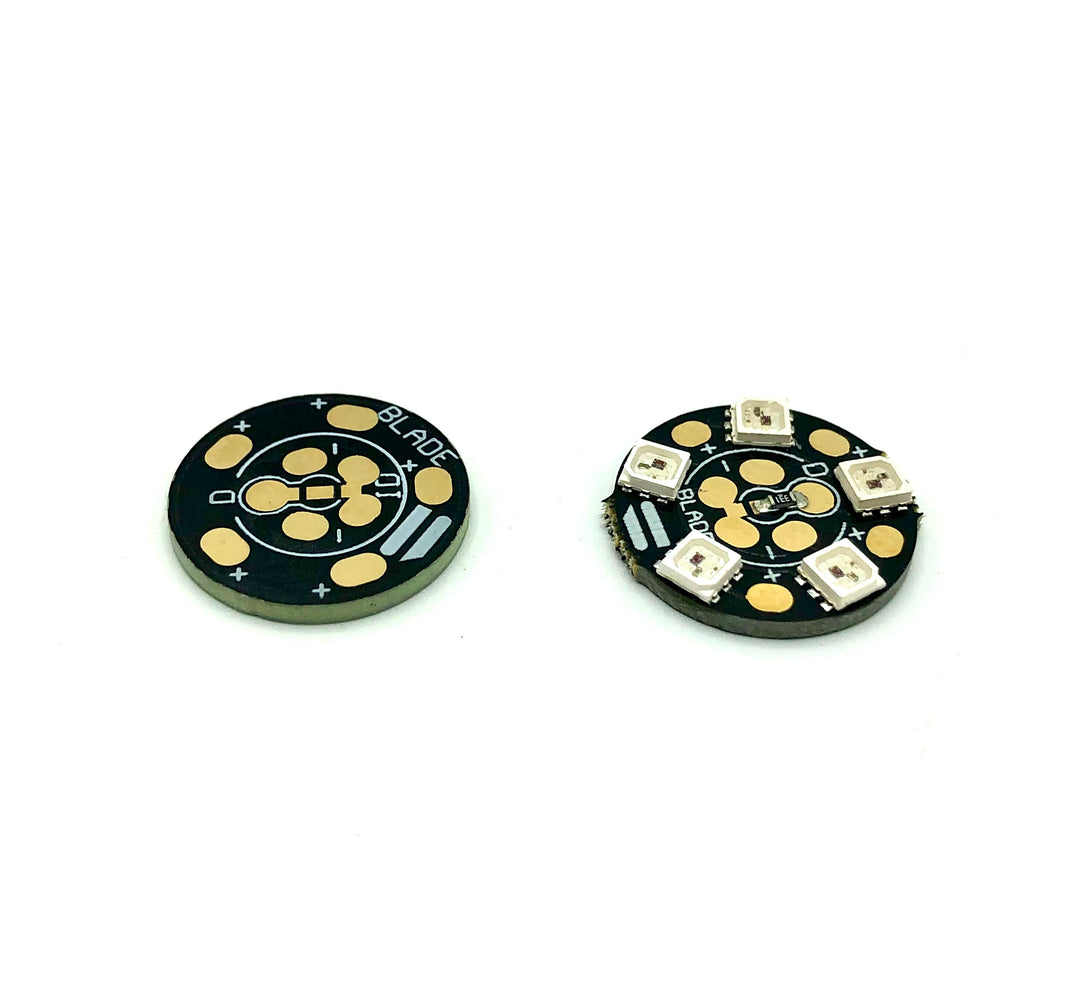

Neopixel versions will include the standard plug with a NPXL Blade Side PCB LED connector with a 3D printed holder.

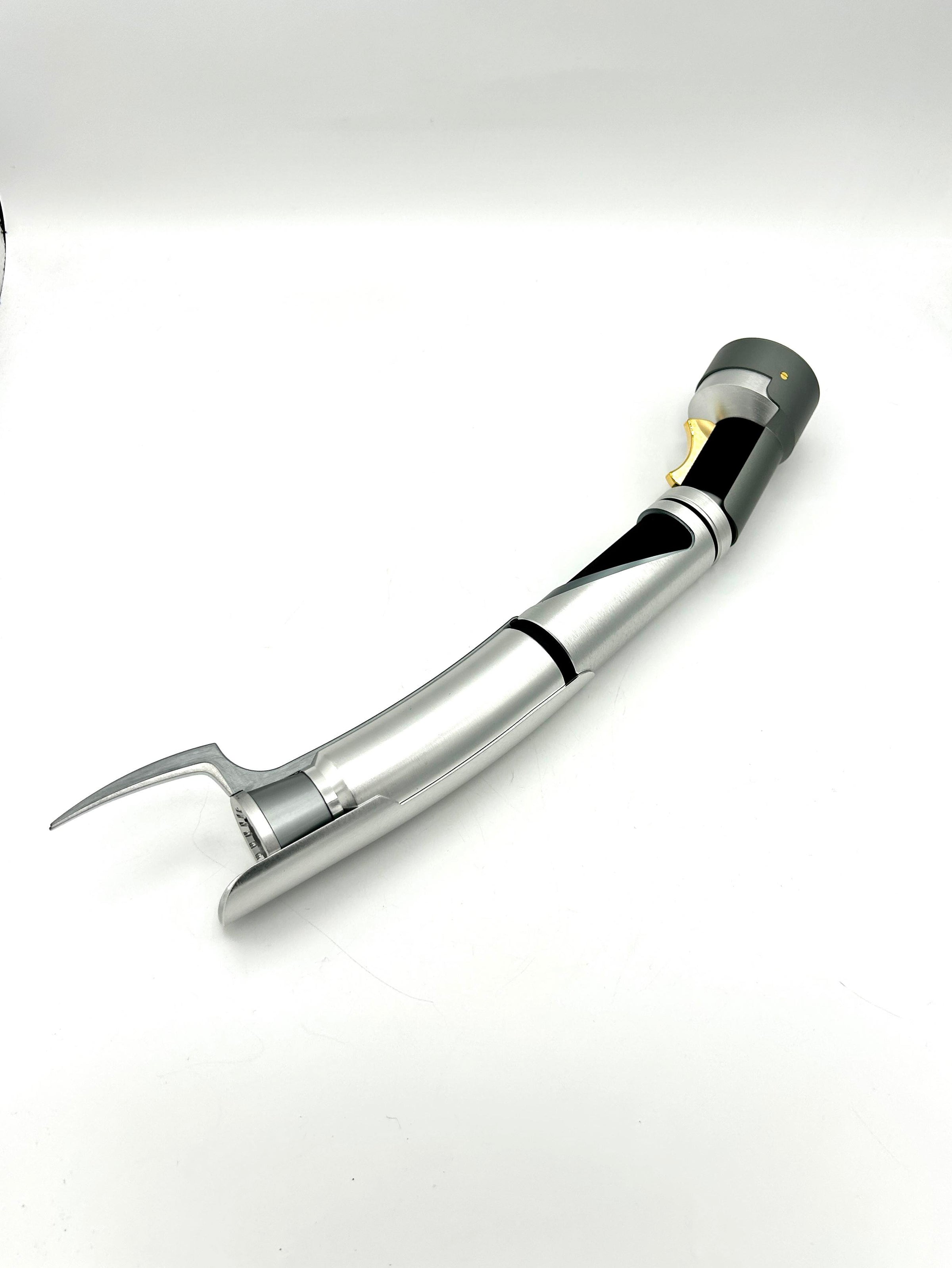

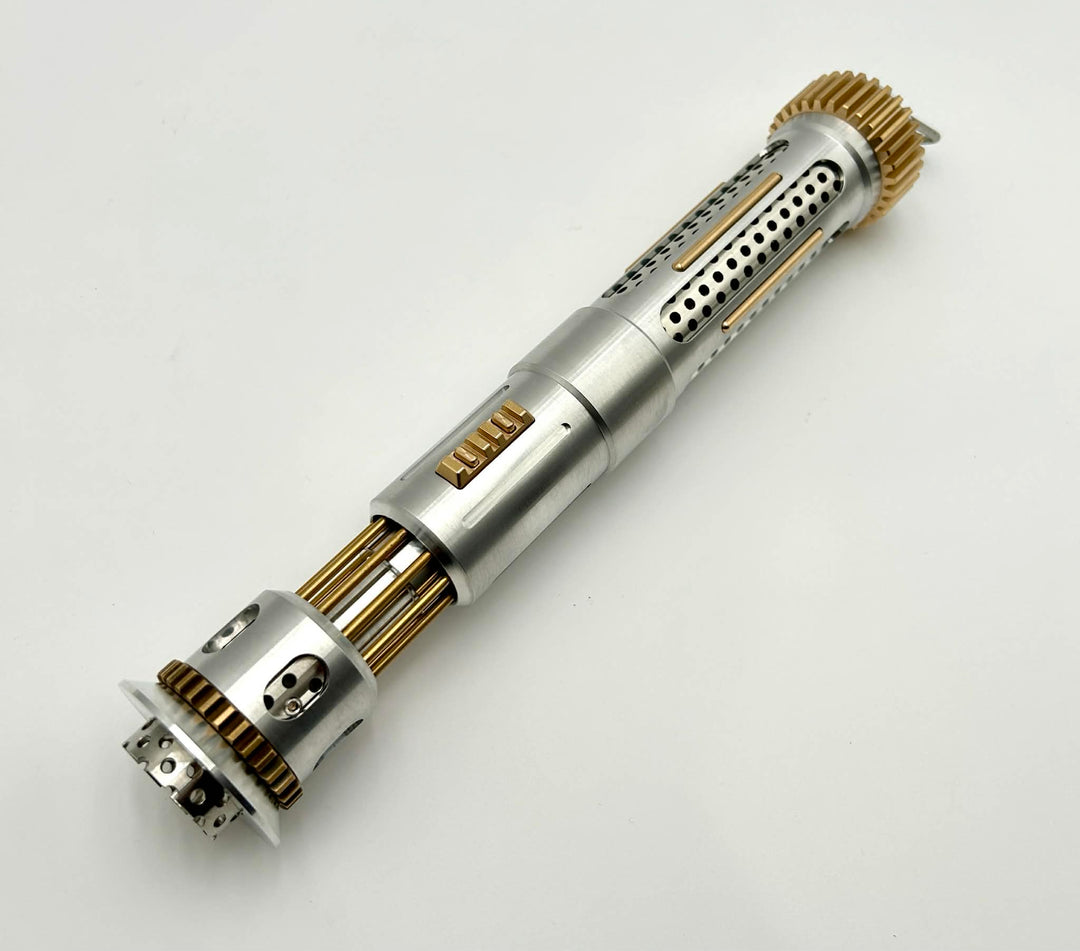

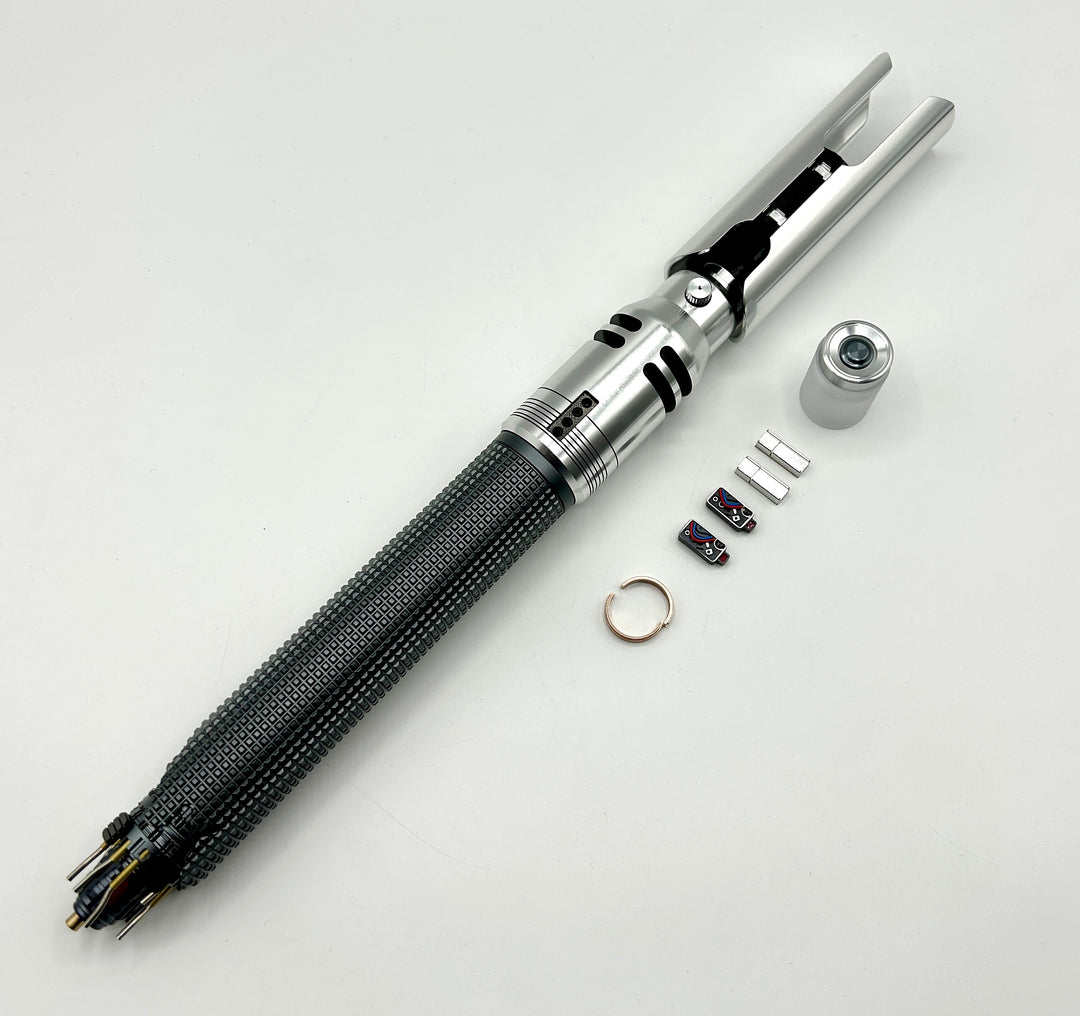

Designed and produced by Saberbay, this is Petro’s hilt based off the character from the Clone Wars series.
Available as an empty hilt, with or without an install parts package, which will include all parts and chassis necessary to do your own install.
We are not offering install services at this time.
Install packages with soundboards included are limited at this time.
If soundboard included install packages are not available, we have install packages without soundboards available in another listing. You will need to source your own soundboard.

Hilt kit is broken down into multiple parts and will arrive mostly assembled for you. See listing pictures for example of all parts.
Hilt takes a 1” blade in the emitter
Grips can be added on with or without a grip guide(sold separately).
Grip pieces and clamp cards will come with strong double sided adhesive to apply to hilt control box and grip section.

Buyer is responsible for their own install and proper handling and use of parts. We are not liable for third party damage of parts installation.
Parts kits are sold as is, and can not be substituted with other parts not listed.

12mm knurled switch actuators for 12mm AV switch holes. Available in red, gold, copper, and black.
This is only for switch actuation or to be used as a plunger to press down onto your own tactile switch underneath, there is no switch built into these.

The smaller section is 11.9mm to easily fit into most common switch holes, and the knurled section is just under 14mm.

Listing for single Proffieboard V2.2. These are DIY soundboards and are tested before being sold. Any issues from user error or programming are the sole responsibility of the customer.
There are no refunds or exchanges for these boards.

Comes with or without 32GB Sandisk SD card.

SD card included versions are preprogrammed and ready for two button neopixel installs, with soundfonts and blade styles already included.

Boards have ZZ stamp of approval.

Link to user manual:

https://drive.google.com/file/d/1vn9vRk-CNZSUHL4xm_hHwS6UgkfKXdO2/view?fbclid=IwAR2tkr92VY8--YpFA5D62JLsSD_sZiU5ibAOPE5FQEAPCQfOBclZorttWNw





DIY Kit for making your own trans white neopixel blade. Please read all information in the listing before purchasing. There are 3 different buying options for blade kits.  These are available in 1" thin walled, 1" thick walled, and 7/8" thin walled sizes.

Option 1 includes- Trans white blade, diffusion foam, and threaded blade tip

Option 2 includes- Trans white blade, diffusion foam, threaded blade tip, 3D printed blade side PCB holder, and ShtokCustomWorx blade side PCB with 330ohm SMD resistor

Option 3 includes- Trans white blade, diffusion foam, threaded blade tip, 3D printed blade side PCB holder, ShtokCustomWorx blade side PCB with 330ohm SMD resistor, and two BTF Lighting WS2812B LED strips(each strip contains 144 leds)

Please note that this is a DIY kit and blades are not fully assembled. You are responsible for making your own blade.

All blades come with a standard length of 36", for CUSTOM LENGTHS THAT ARE SHORTER THAN 36", PLEASE MAKE A NOTE IN YOUR ORDER FOR THE DESIRED LENGTH.

For 1" blades, outer diameter is 25.3mm outer diameter with 2mm wall thickness for thin walled, and 3mm wall thickness for thick walled. 7/8" blades have outer diameter of 22.8mm outer diameter with a 2mm wall thickness.

All blades have threaded male tips with matching female threads at the top of the blade. These are not compatible with other blade materials.

Diffusion foam has been custom made to fit the BTF Lighting led strips, other led strips may require some trimming to fit inside. You can also trim your strips and add cellophane or packing tape to add more diffusion.

Note that all lit blade product pictures are taken in a well lit room during the day, for example of overall brightness.1" Neopixel blade made using KR Sabers V2 rigid strips.

These are the only neopixel strips on the market made specifically for neopixel sabers. These blade are intended primarily for show purposes, and are not covered by a dueling warranty or any other misuse of the product.

Please note that is for the blade only, no other parts, electronics or lightsaber is included. Please make sure before purchasing that you have a neopixel compatible saber that can use a 1" sized blade.

Comes in two lengths only, 32.5" and 35.5"
Led count for the 32.5" length is 122 pixels, led count for the 35.5" length is 132 pixels.

You can opt for either a sanded blade finish, or a non sanded glossy blade finish. Neither finish impacts the overall performance or function of the blade. Due to various lightsaber emitter sizes, some sanding of your blade may be required at the base for a snug fit. If your blade does not fit into your blade emitter, you can sand the base using some of the techniques in this video link below.

https://www.youtube.com/watch?v=Xrj7-tSV6bk

Blade is constructed using KR Sabers V2 strips, 1" trans white thin walled diffused blade material, diffusion foam, threaded blade tip, 3D printed custom blade side PCB holder, and blade side PCB from TCSS. Resistor is built into the blade so no extra resistor is necessary. All blade wiring uses 22AWG high temp PTFE wire.

Battery charger for lithium batteries
Charger is rated for 4.2V
Output is 1 amp
Recommended for batteries wired to a recharge port
Male power jack is 2.1mm
Orange light indicates battery is charging, green light indicates fully charged battery

Please do not leave charging lithium ion batteries unsupervised for long periods of time.
Always unplug your charger when not in use.

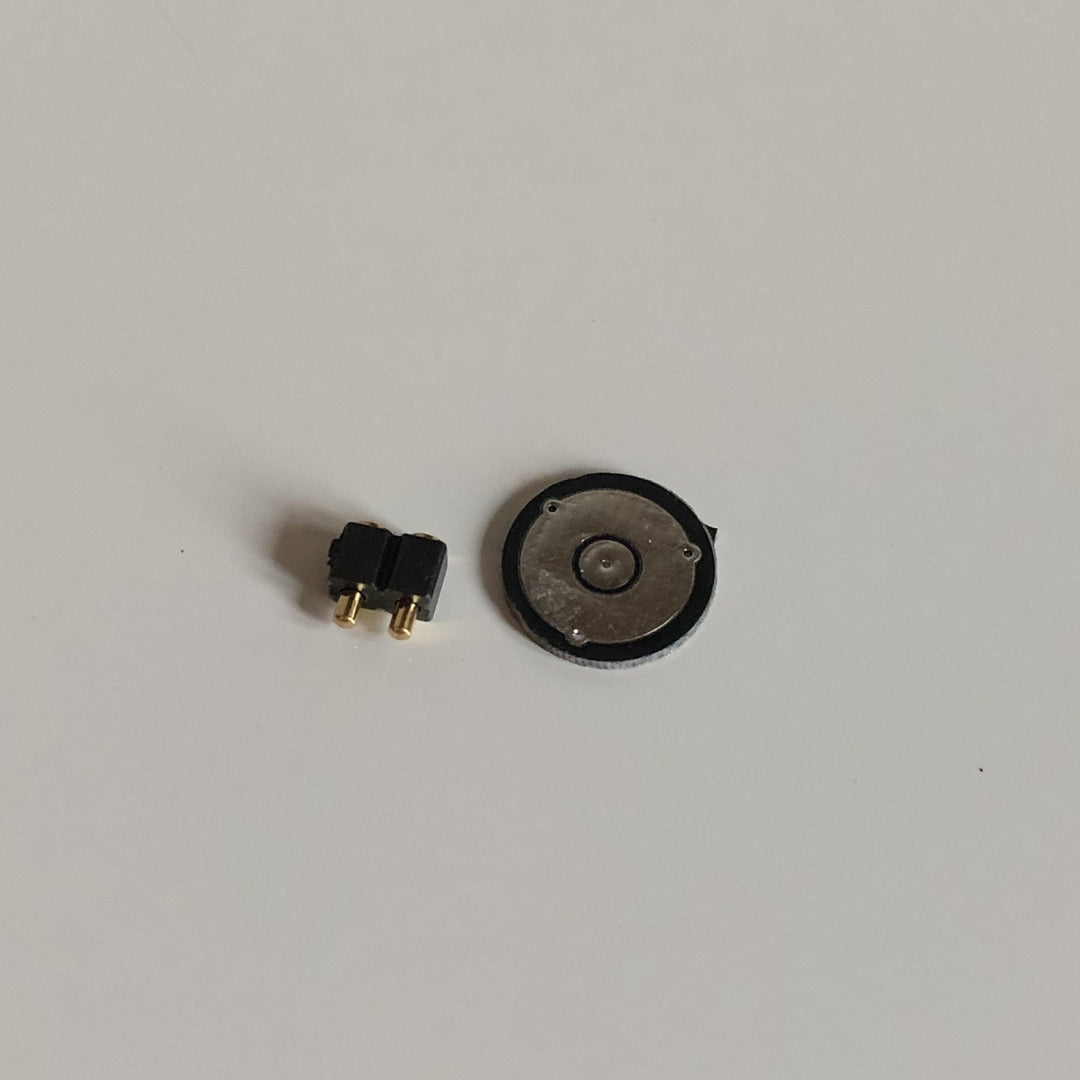

*****PCB,LENSCOVER AND MAGNET SOLD SEPARATELY*****
WORKS W/ V2 NPXL LONGPIN V3 NPXL LongPin and ECO
NPXL LongPin
This is designed to hold the LongPin versions of the NPXL Lens Cover(will not work with lens cover made for the uni holder) and magconnect magnets .

This is the hilt side and for 1″ and 7/8" emitters.

Machined from black ABS. It is not compatible with any third party PCB.

This holder is Mag Connect compatible. Magnets are sold separately here and graciously provided to us by The Saber Armory.

Please note, the magnets are a snug fit but hey will still need be glued in so the strong force of the magnets does not pull them out when they are near each other.
We recommend a low viscosity glue for this.
Be careful when doing this as the magnets are fragile.

Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. Adding the magnets may expand the holder slightly making in a tighter fit. If this is the case lightly sanding the outside of the magnets using a sanding drum or sandpaper to reduce the outer diameter slightly is recommend. This will stop the holder from expanding after installing the magnets.
The PCB is press fit but it is recommended to hot glue the back end of the holder to secure. There are 2 small holes in case you want to drill and tap and use screws to secure the PCB.
