This is the style of recharge port that lightsaber builders have been using for years.
Not all recharge ports are created equally.

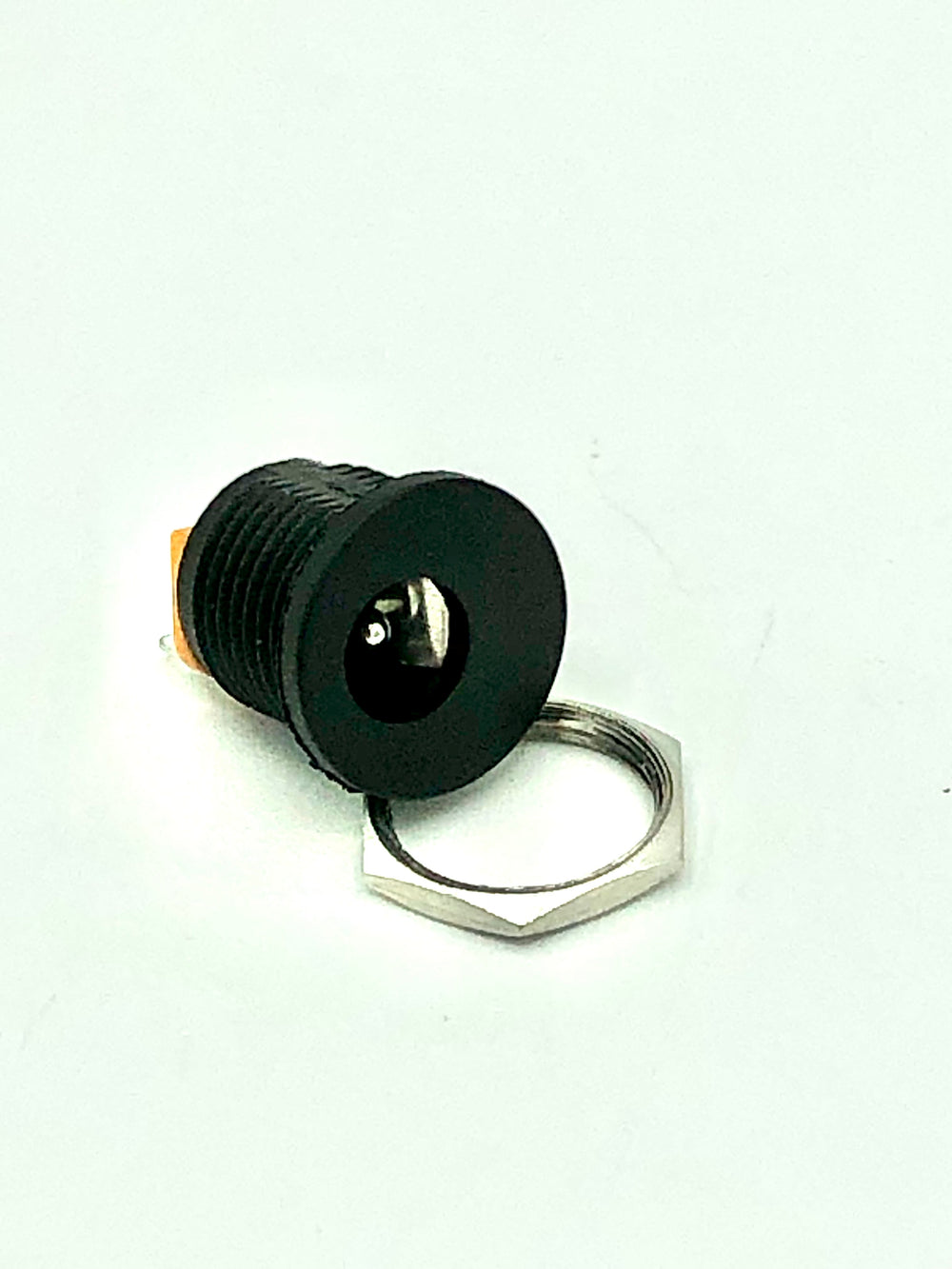

This port is from the brand Switch Craft which as an industry trusted brand for reliability and performance.

This port comes with 2 nuts and washer to secure it in your saber. You can use either or nut, or both.
It comes with standard hex nut and also a very galaxy far away looking knurled nut.
The newer version actually come in red which the manufacture started doing to signifying a high quality part

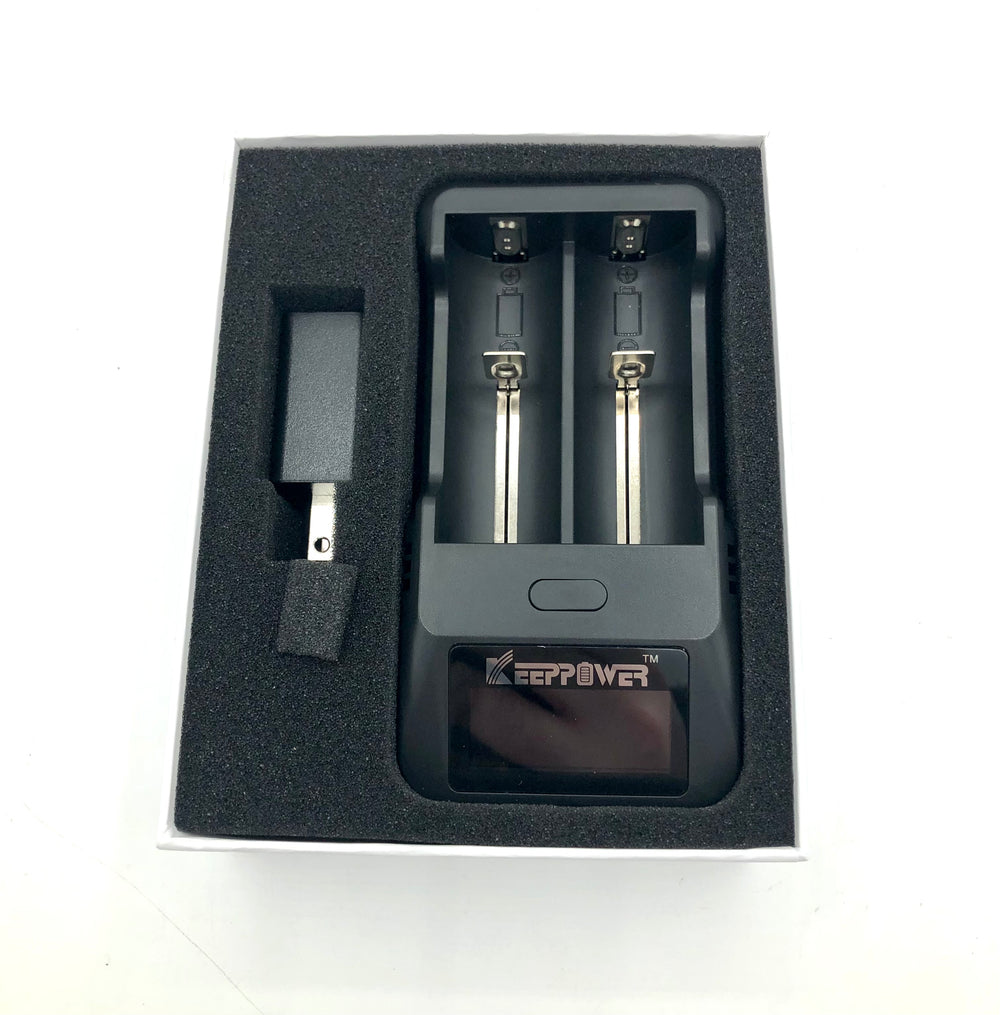

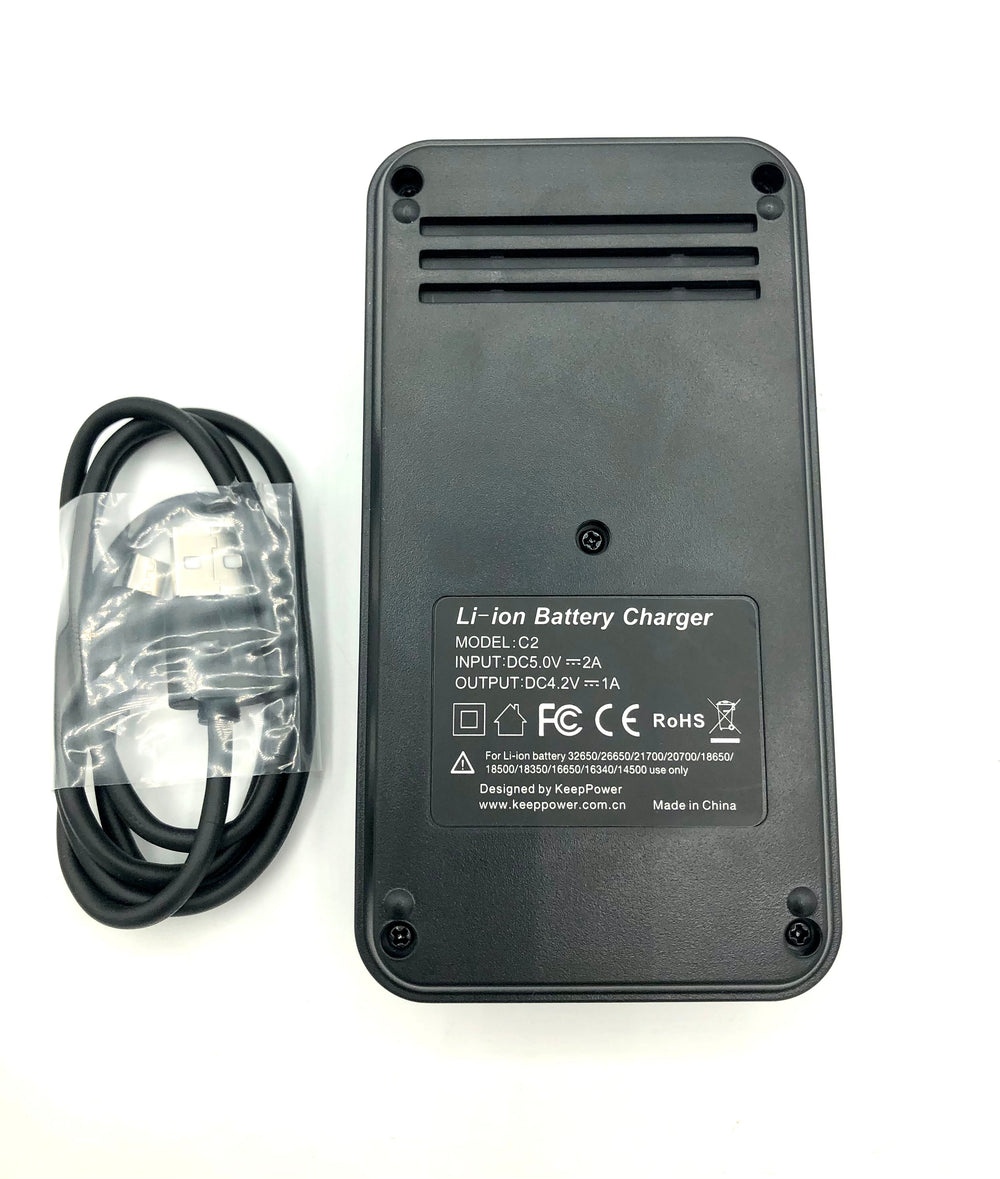

 2-slot Li-ion Battery Charger. USB charging only, No outlet plug.

Input: 5.0V 2.0A;

Output: 4.2V±1%  1.0A;

Compatible with 32650, 21700, 20700, 18650, 18500, 18350, 16650, 16340, 14500 Li-ion rechargeable battery;

Full charge state reminder with red/green LED lights;

Charged by USB power adaptor, laptop, power bank, etc.

Battery charger for lithium batteries
Charger is rated for 4.2V
Output is 1 amp
Recommended for batteries wired to a recharge port
Male power jack is 2.1mm
Orange light indicates battery is charging, green light indicates fully charged battery

Please do not leave charging lithium ion batteries unsupervised for long periods of time.
Always unplug your charger when not in use.

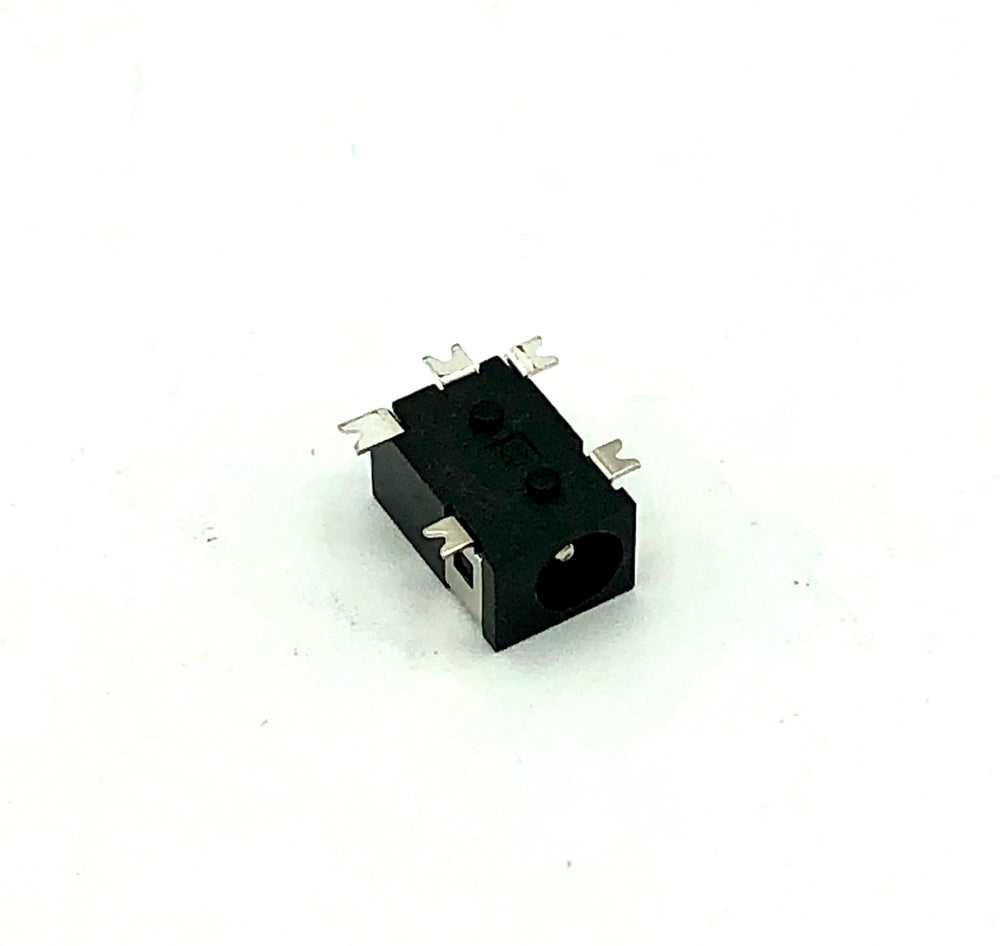

This is a great recharge port for builds where space is tight.
Accepts a 1.3mm barrel plug for charging.( may require an adapter for most chargers)
This is recommended by Shtokcustomworx for high amperage builds like NEO PIXEL

Wiring diagram in this listings photos.

Single lithium ion battery charging module.

Input voltage range: 5~6V

Output voltage: 4.2V

Charging current: 1A

Measures 12.5mmx15.5mmx3.5mm

Can be wired up to the battery as a "recharge port" using the USB-C connection. Please see the wiring diagram for proper wiring directions.



USB Type C port for data transfer and also charging with an additional TC4056 charging module.
Please not this is a TYPE C port and will not be compatible with non TYPE C plugs.

Please refer to the attached wiring diagram for suggested wiring when wiring to your soundboard, for both data transfer only and also for using the port also as a charger. The wiring diagram refers to a Proffie board can same schematic can be applied to different boards.



Recharge port adapter for 1.3mm recharge ports, common for compact lightsaber builds.
Male socket end is 1.3mm and female socket end is 2.1mm, which is most common size for most standard chargers.

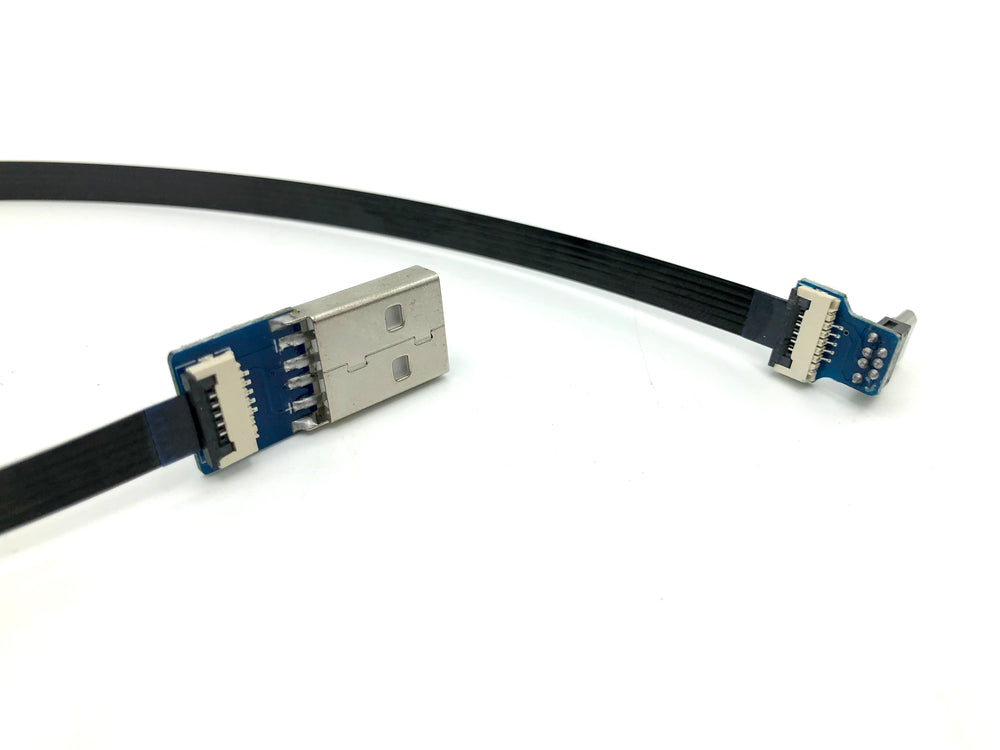

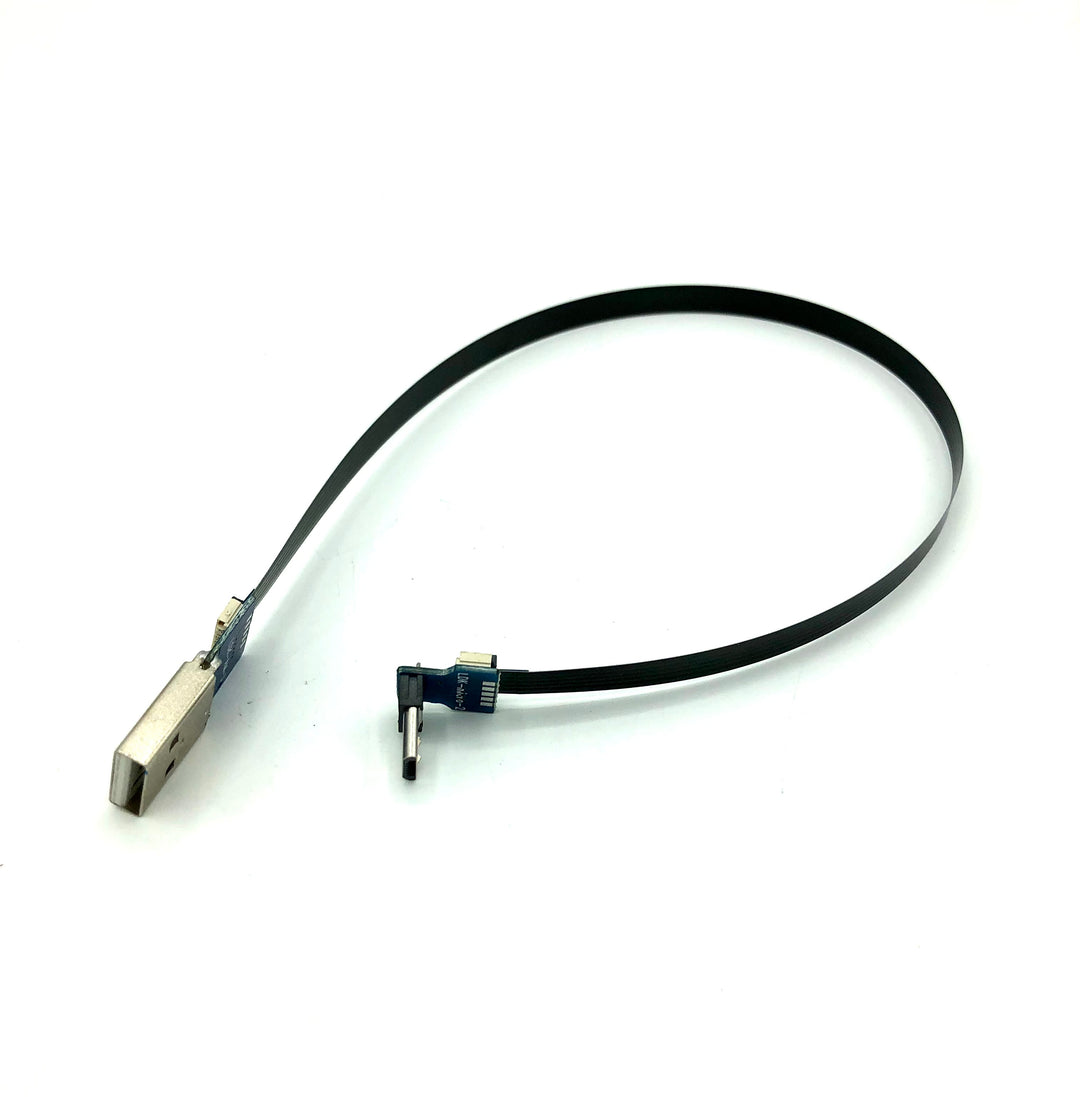

Handy adapter cable for micro USB ports, commonly found on CFX and Proffie boards. These include a micro USB to USB port adapter, with a 30cm long ribbon cable.
Easily plug this in to those hard to reach areas and tight spaces in your installs for USB board access.
Will come assembled, however you can add some heatshrink to the connection points for added security and protection.
This is not used for any sort of charging, this is a data transfer cable only.

If you have a Golden Harvest v3, you can use the Seedling USB Module for microUSB charging and file transfer. But even if you do not own a Golden Harvest v3, you can use it to charge a single Li-ion cell via microUSB. Using the Seedling USB Module you can charge a single Li-ion cell with up to 1.4A either via wall adapter or USB port of your computer. A smart charging algorithm automatically detects the maximum charging current your power source can provide and limits it to this amount. The Seedling USB Module contains a safe charging circuit. However, do not let your saber charge unsupervised! Safety always first! Please make also sure to use a protected 18650 Li-ion battery. For safe charging, use a Keeppower 18650 Li-ion battery. The Seedling USB Module can get very hot when you are charging at 1.4A due to its tiny dimensions (smaller than 11 mm x 19 mm / 0.433″ x 0.748″). It has an overtemperature protection, but please make sure that the environment in which you want to use it can handle high temperatures. Additional important information can be found in the manual of the Seedling. Please make sure to read it.
Manual found here: https://tinyurl.com/Ghseedling

All boards are fully tested before shipping. We cannot be held responsible for any damage that arises from a faulty install or use of the board.

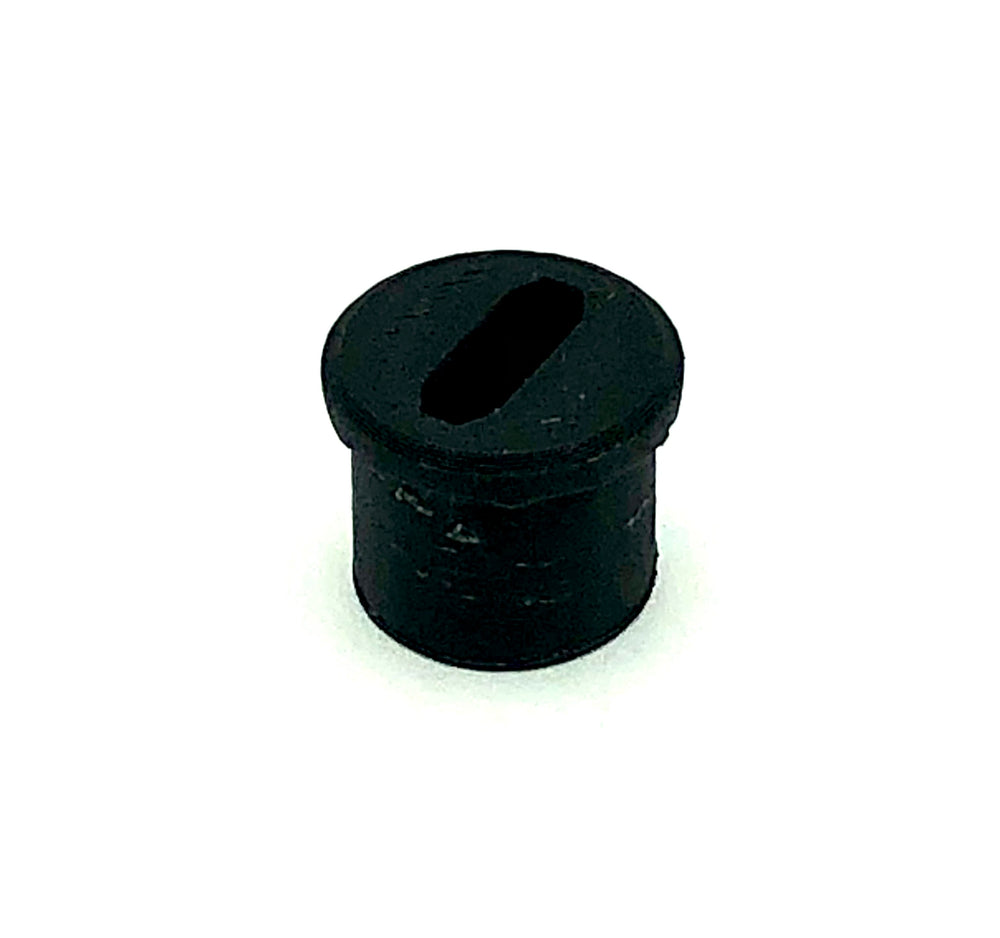

3D printed adapter for USB Type C ports also sold here at Saberbay. Adapter is printed in black PLA + filament and not compatible with non USB-C ports. Made to fit in standard 12mm switch holes found on most saber hilts.

Can be purchased separately or with an included USB-C Port. In conjunction these parts can be used as an external access point for data transfer with your soundboard, or used together will a TC4056 charging module and male micro USB adapter(see wiring diagram for examples)

Adapter can snugly fit the USB-C port and is inserted from the top, with room below to solder wires onto afterwards. It is recommended to use a very small amount of glue to secure the port on the inside so it does not get pulled out with the cable after use.

Recharge port intended for external use in standard 12mm switch holes on most hilts.
Can also be used in chassis designs that incorporate recharge ports of this size.
Includes the recharge port and securing lock ring if you wish to use it.
The port takes a 2.1mm male socket, please make sure your charger is the correct size and rating before purchasing/using.

Actual size of largest part of the recharge port is approximately 14mm, threaded part of the recharge port is 12mm.

A custom 3D printed design from Jimmy's Saber Junk. This can be used as a portable charger with spring loaded battery contacts(included with physical prints, option 1 in the store), with a built in SwitchCraft 2.1mm recharge port used for charging. Recharge port is included.
The recharge port must be installed into the charger in order to charge your battery. Please refer to a recharge port wiring diagram for how to wire your battery contact leads.
This is 3D printed in black PLA + filament.

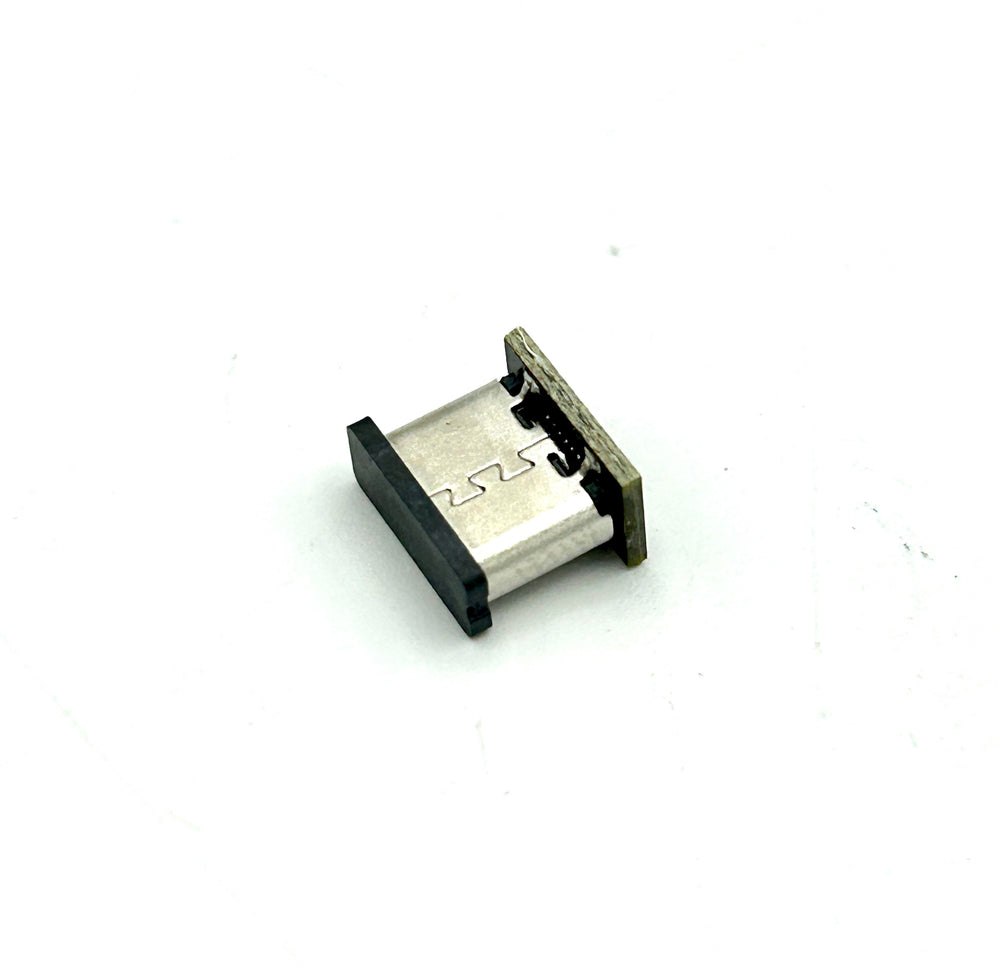

Designed and manufactured by ShtokCustomWorx, this is the horizontal version of a USB-C port. This also includes a small dust cover plug that can be used.
USB Type C port for data transfer and also charging with an additional TC4056 charging module.
Please not this is a TYPE C port and will not be compatible with non TYPE C plugs.

Please refer to the attached wiring diagram for suggested wiring when wiring to your soundboard, for both data transfer only and also for using the port also as a charger. The wiring diagram refers to a Proffie board can same schematic can be applied to different boards.
