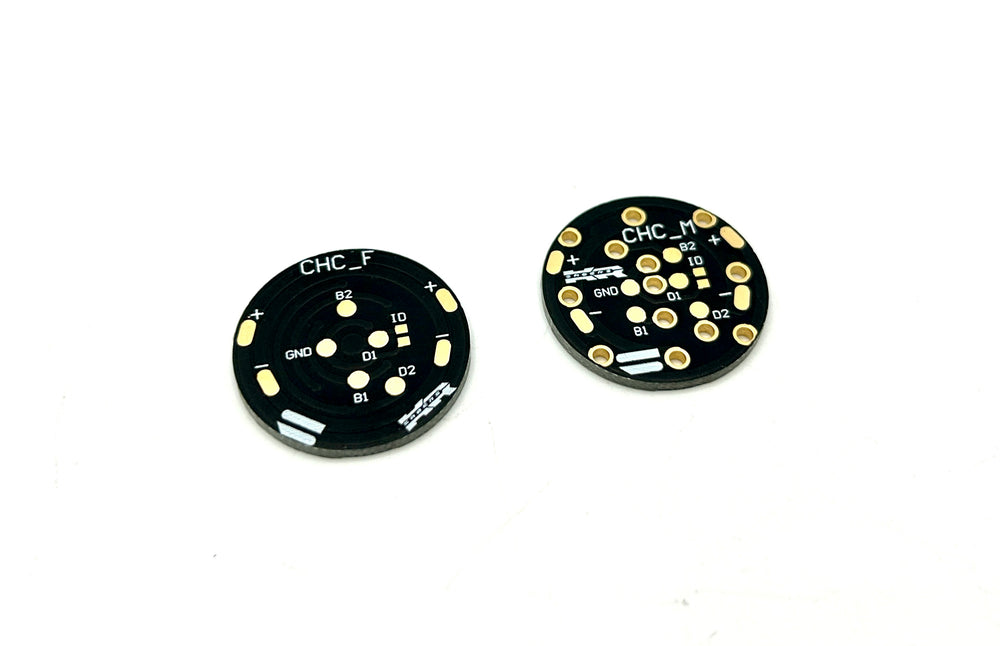

Chassis PCB Sets

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a removable chassis system.
So one chassis could either be used for multiple hilts and/or be removable for easier access to board and battery .

It is a DIY item and designers can use these in the future for their chassis designs. You can also design your own.
These Supports pixel builds and 2 switches, and a blade detection/id pad.
They support 15a drain continuous and 20a burst

Please check the diagram as Verso is wired different.
In places of common ground which other boards use, verso uses common positive in its place

Dimensions
Male and Female PCB OD: 20.5mm
PCB's are 1.6mm thick

with pins soldered:
4.7mm from bottom of pcb to tip of pin
3.4mm when they are compressed

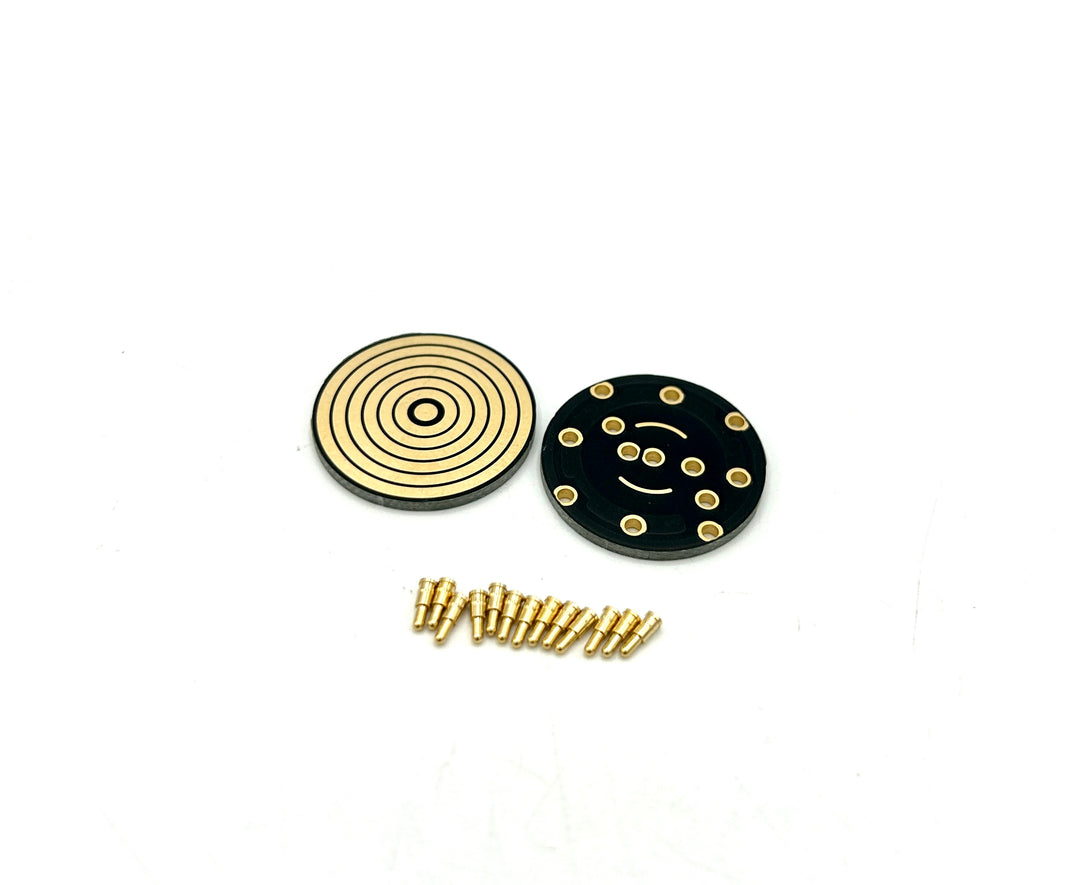

These are for use of having a removable speaker in a saber build.
Designed by Dmitry Shtok of Shtok Custom Worx

Smaller diameter version of the SCW Speaker/Battery PCB connector set.

Outer diameter is 17.5mm compared to the larger 20.5mm size.

Can be purchased with or without pins assembled(12 short pins included with unassembled version)

Has 4 different traces that can be used and soldered to:
-Battery +
-Battery -
-Speaker +
-Speaker -
(Speakers do not have polarity, this is just a separate trace to solder to)

Can also be repurposed for any other wiring feature that requires a detachable part with up to 4 different wires required

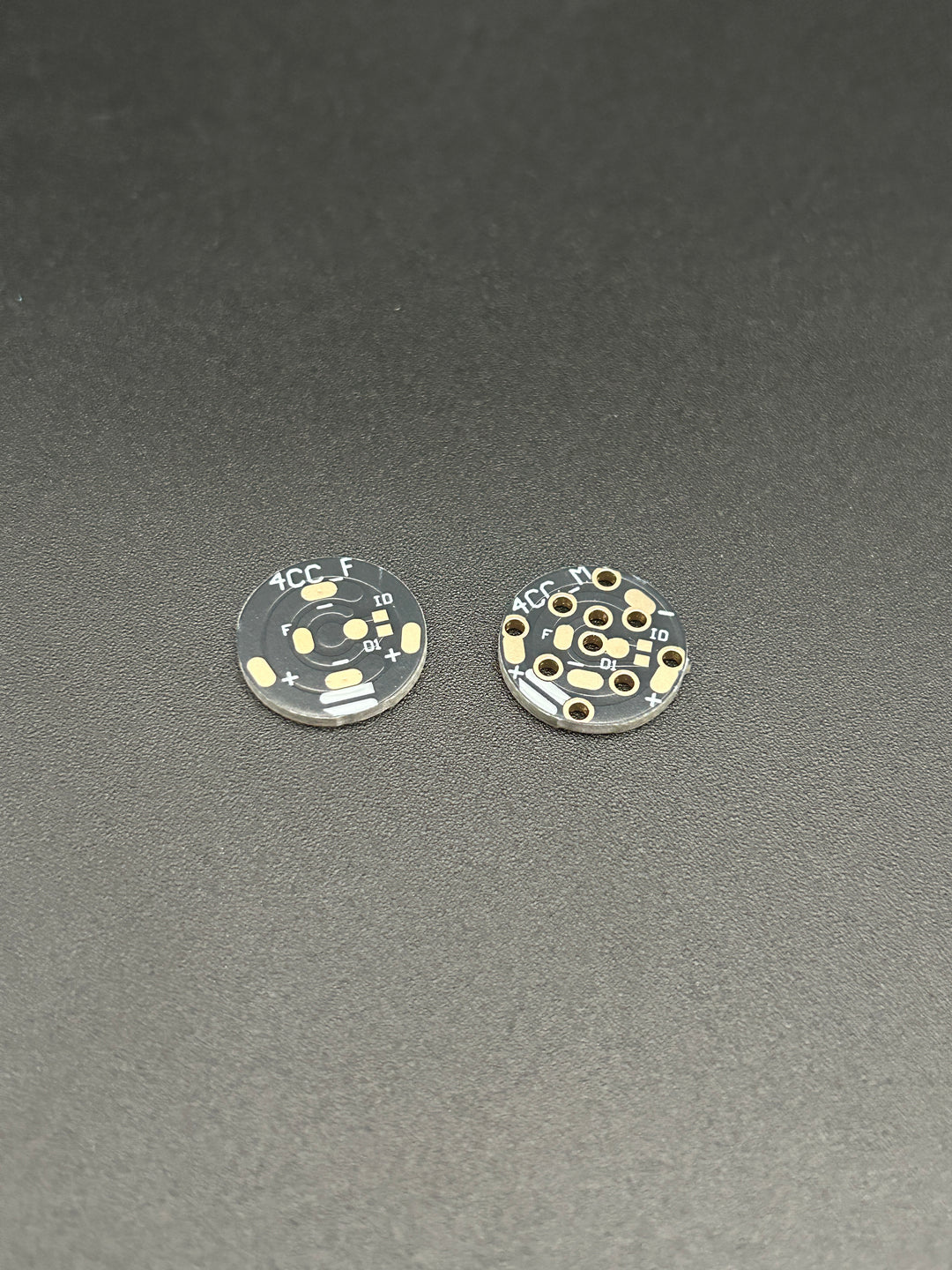

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a removable chassis system. So one chassis could eithe rbe used for multiple hilts or be removable.
It is a DIY item and designers will be using these in the future for their chassis designs. You can also design your own.
Supports pixel builds and led builds, 2 switches, blade detection and tangible font selection(feature of cfx)

These are designed and manufactured by ShtokCustomWorx with the idea of using it as a way to have a "power pack".
Meaning you can remove a battery and speaker module using these PCBS.
Then can handle 15 Amps continuous, 20 Amps burst.
Supports 4 connections Battery +, Battery -, speaker + and speaker -.
These do not come with the pins already soldered on. The pins will need to be soldered in place.

Designed by ShtokCustomWorx, these compact PCB connectors are designed for small areas in saber designs that do not have enough room for typical hilt side and blade side PCB connectors.
Measuring at 11mm in diameter, these will be most useful for narrow cavities in thin neck saber designs in place of having to splice sets of wires together.
Each PCB set comes with 7 pins, for the required number of pins for each positive and negative trace for neopixel builds.
PCB layout is marked by positive, negative and a data pad. Please refer to your soundboards manual for appropriate wiring schematics.
You can always use these in place for any other application that needs 3 different sets of wires.
Available in an assembled(presoldered pin) version or unassembled with unsoldered pins.

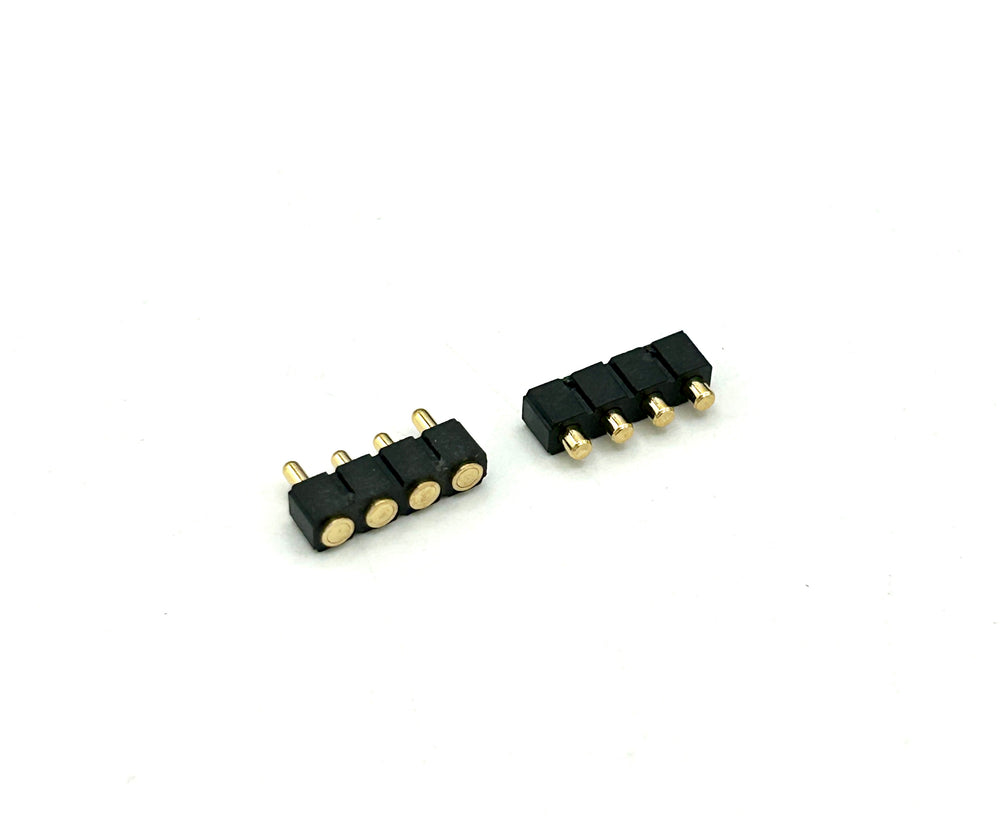

Two piece pogo speaker connector set from ShtokCustomWorx
This is the V2 version which is used for tighter space builds.
You will need to remove the excess material around the flat PCB as well as carefully cut the two pogo pins down the middle.
Flat PCB needs to be secured to the back of your 28mm speaker as shown in the picture.
This is only intended for 28mm bass speakers.

These are great to use for connection in chassis, especially in think neck builds to allow a quick way to disconnect tri creed led module from the hilt.

20mm OD Male and Female pcbs
2A max per contact recommended current rating
Gold plated contacts on female and male pcbs

Come with the 6 pins that will need to be soldered in place
