Batteries

LISTING IS FOR ONE CELL NOT TWO, PICTURE IS JUST AN EXAMPLE PHOTO
A Suggested battery for use with running NEO PIXEL
Details:
● Protected 18650 Li-ion Rechargeable Battery
● Minimum Capacity: 2900mAh
● Typical Capacity: 3000mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase

Suggested pre-wired battery for use with running NEO PIXEL
Details:
● Protected 18650 Li-ion Rechargeable Battery
● Minimum Capacity: 2900mAh
● Typical Capacity: 3000mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles


Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase

A Suggested battery for use with running NEO PIXEL
Details:
● Protected 18350 Li-ion Rechargeable Battery
● Minimum Capacity: 1100mAh
● Typical Capacity: 1200mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 10A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase

LISTING IS FOR ONE CELL
A Suggested battery for use with running NEO PIXEL

Specifications:
Minimum Capacity: 3000 mAh
Typical Capacity: 3120mAh
Nominal Voltage: 3.7V
Discharge End Voltage: 2.5V
Max. Continuous Discharging Current: 15A

Dimensions:
69.00mm (L) x 18.80 mm (D)

Protection Circuit (Over charge, over discharge, over current, and short-circuit)



Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase.

Please note: Due to the nature of this consumable product, no returns are allowed unless the product is defective upon receipt.Protected batteries are longer than unprotected batteries due to the addition of the protection circuit. Please keep in mind we cannot accept returns on batteries.

***Listing is for ONE battery***

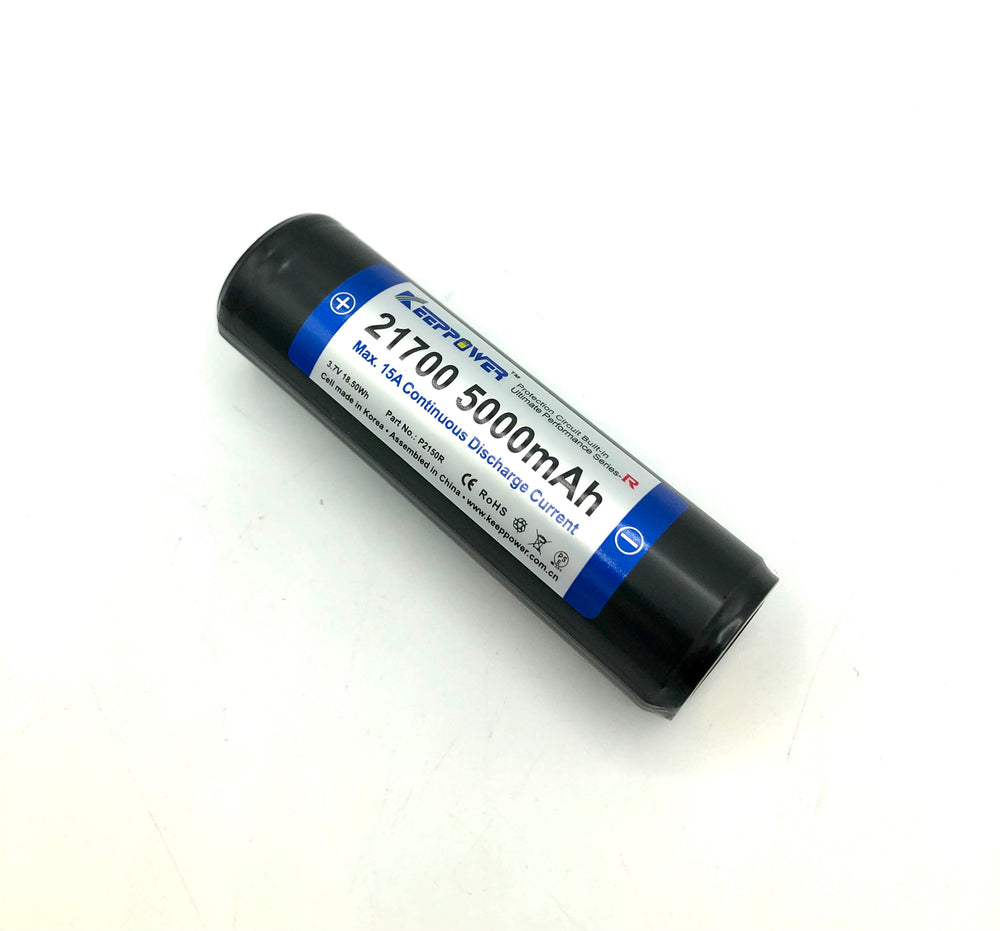

This is a high quality cell that will work in the chassis we offer here for 21700 Removable batteries.
It will work with Neo Pixel but will not perform as well with mixed color as the cell drains.
The other model we offer that is 4000mAh will before better with mixed colors but the run time will be a shorter.
Both are great options with their own advantages.
We recommend this 5000mAh for in hilt led models.

● Model: P2150R
● Nominal Capacity: 5000mAh
● Minimum Capacity: 4900mAh
● Nominal Voltage: 3.7V
● Charging Method: CC-CV
● Standard Charging Current: 2500mA
● Standard Charging Time: 180min.
● Continuous Maximum Discharge Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles
● Weight: 70.0g
● Maximum Dimensions: (D)21.6*(L)74.5mm
● Temperature
Charge: +10 to +45° C
Discharge: -20 to +60° C
Storage: 0 to +25° C

Specifications:
Nominal Capacity: 5000 mAh
Minimum Capacity: 4900 mAh
Nominal Voltage: 3.7V
Charging Voltage: 4.20+-0.05V
Discharge End Voltage: 2.5V
Standard Continuous Charging Current: 2.5A
Maximum Continuous Discharging Current: 15A
Dimensions:
74.5mm (L) x 21.6 mm (D) (±0.2mm)
Weight: 70.0g

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase.

Please note: Due to the nature of this consumable product, no returns are allowed unless the product is defective upon receipt.Protected batteries are longer than unprotected batteries due to the addition of the protection circuit. Please keep in mind we cannot accept returns on batteries.

A Suggested battery for use with running NEO PIXEL
Details:

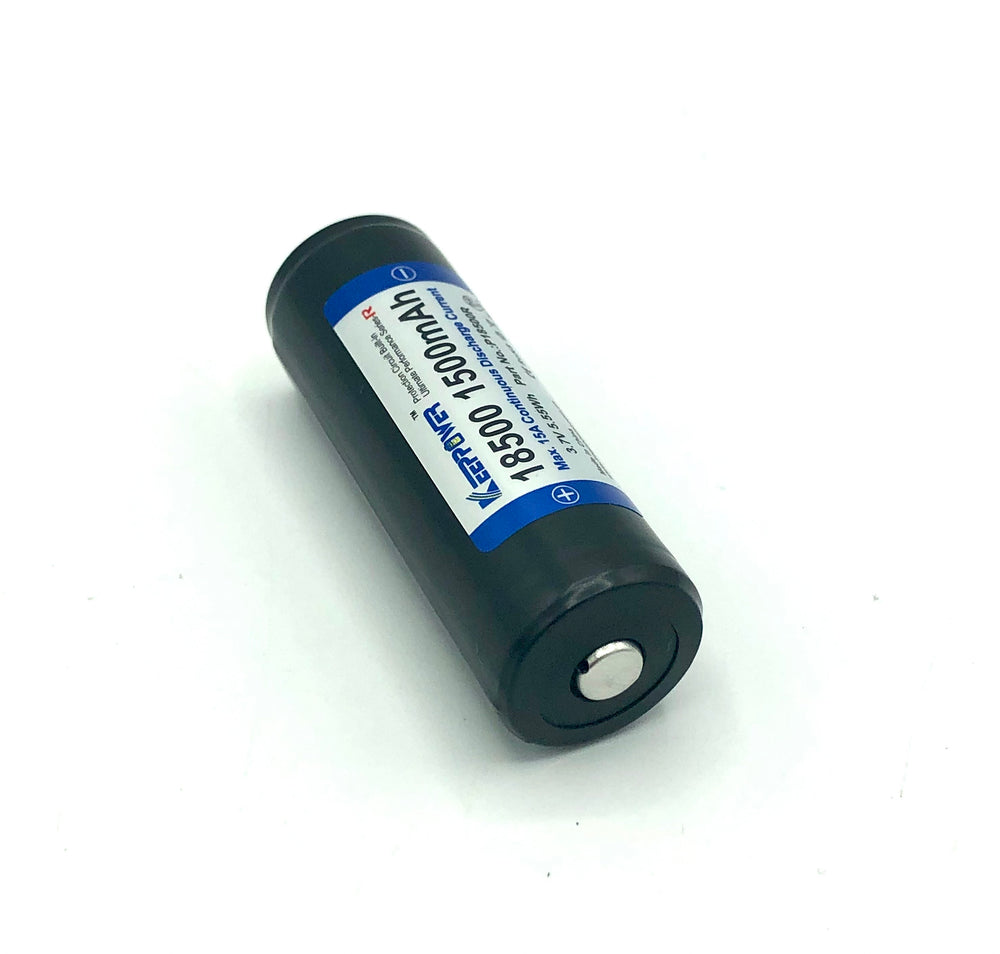

● Protected 18500 Li-ion Rechargeable Battery
● Minimum Capacity: 1400mAh
● Typical Capacity: 15200mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase

Listing is for a single battery. Please make sure you are ordering the correct type of battery (flat top) for your intended use.
Total battery length is 68mm
A Suggested battery for use with running NEO PIXEL
Details:
● Protected 18650 Li-ion Rechargeable Battery
● Minimum Capacity: 2900mAh
● Typical Capacity: 3000mAh
● Normal Voltage: 3.7V
● Maximum Continuous Charging Current: 5A
● Maximum Continuous Discharging Current: 15A
● In Built Safety Circuitry
● Protection Circuit (Against over charge, over discharge, over current and short-circuit.)
● 4.20V maximum voltage and 2.50V cut-off voltage
● Over 500 charge-discharge cycles

Warnings:
-Do not overdischarge/overcharge
-Recharge drained batteries ASAP
-Do not short circuit
-Do not dispose of in fire
-Do not expose to extreme heat or water
-Please be familiar with handling lithium-ion batteries before purchase
