Obi Wan Kenobi 'GeonObi'

The GeonObi saber, designed by Laredo Sabers and produced and distributed by Saberbay.
Based on the saber used by Obi Wan Kenobi in Attack of the Clones, this is saber is accurate to the actual prop used in the films, based on references and dimensions provided by the sold prop listing.
This is an empty DIY saber kit, and does not include any electronics or other components.
The total weight of the saber when fully assembled is 10 oz.
Overall length from emitter to pommel end is approximately 9.75"

This hilt will accommodate 1" blades, with an internal diameter of 28.6mm for all other areas of the hilt.
The hilt uses both red anodized pieces as switch actuators, for a chassis design to use tactile switches built in. We will have a chassis design offered in house for this hilt soon as well. The actuators are inserted from the inside of the hilt.
The hilt finish included brushed aluminum, polished brass, matte black anodizing, red switch anodizing and a mix of aluminum finishes and white powdercoating on the button accents.

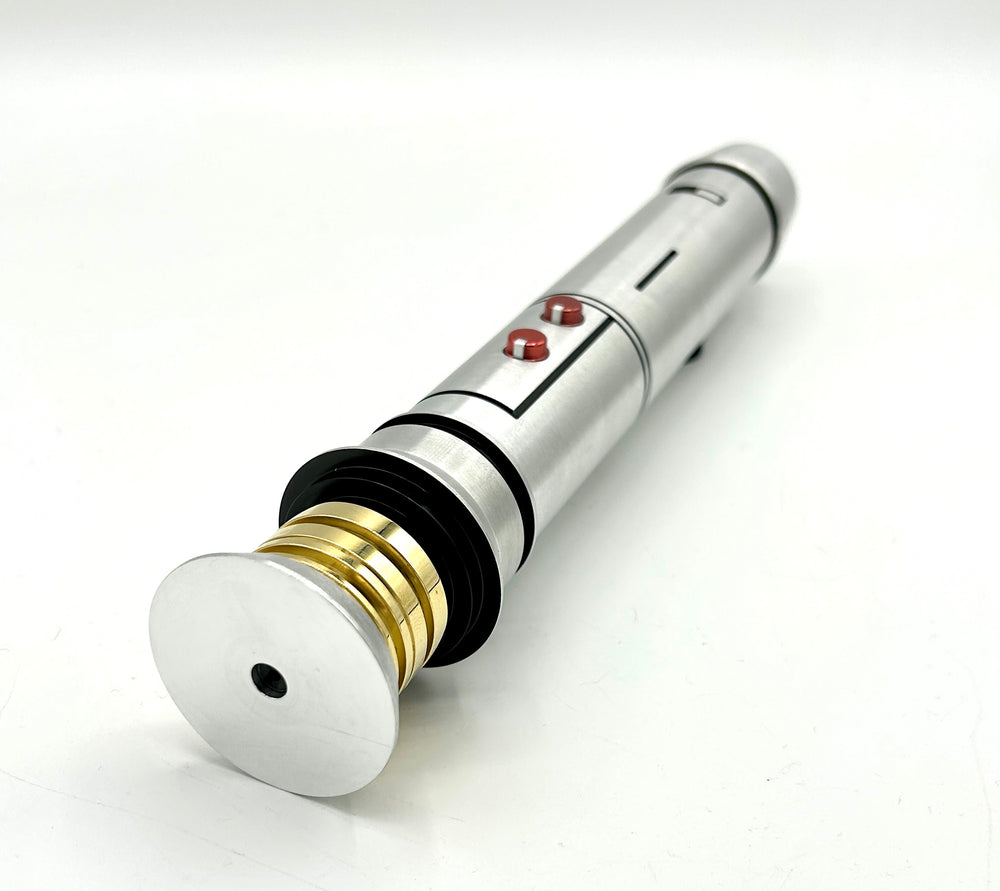

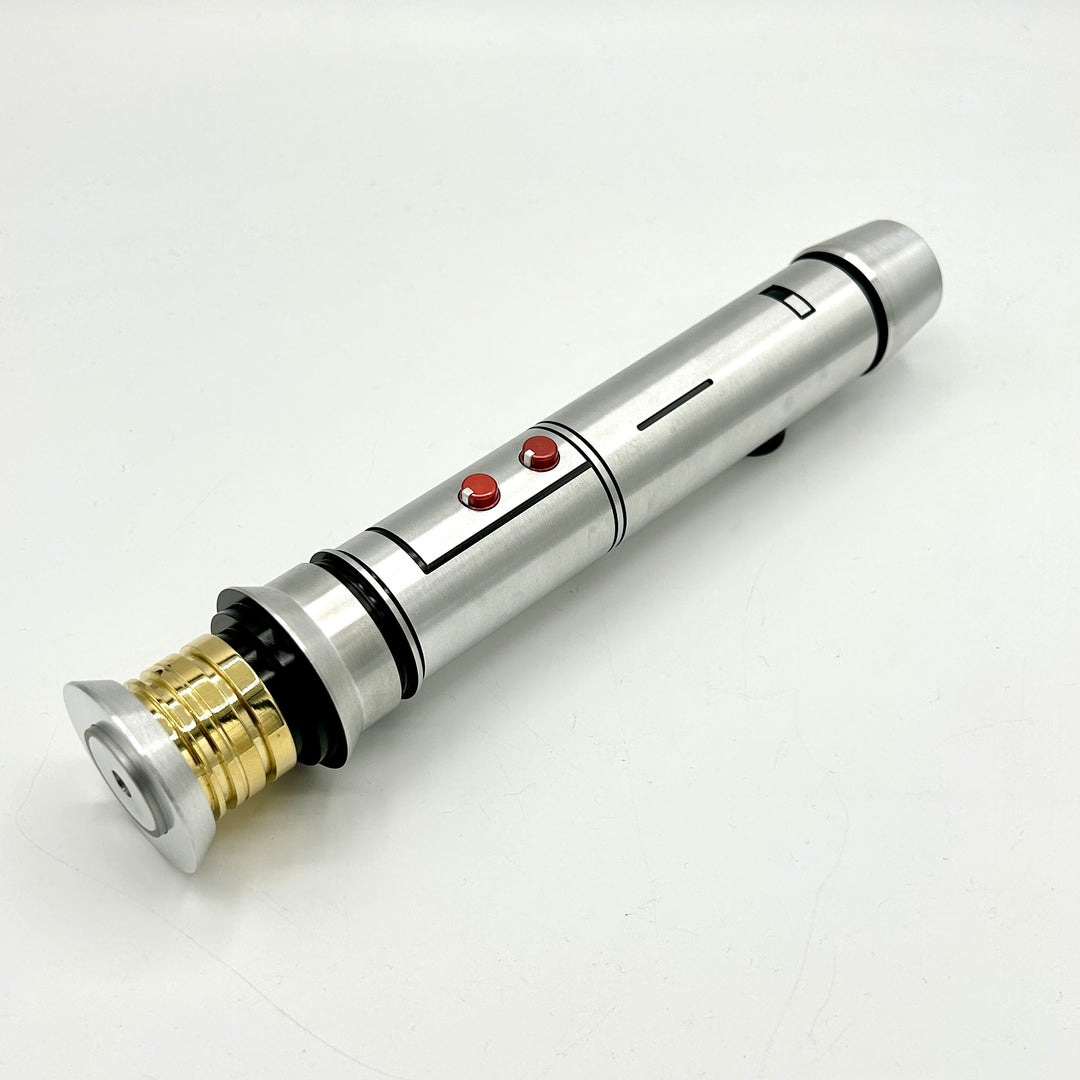

The images show our prototype saber, and there will be a few minor cosmetic differences to be noted for the final product.
-final finish will have a more polished brass surface
-final finish for blade plug will be matching aluminum finish to the hilt, not black anodized as seen in the pictures
-exterior pommel finish will be matching aluminum finish to the hilt, no black anodizing
-one of the switch accent pieces will be a white powdercoat finish, not both standard aluminum

All saber orders will include:
-GeonObi empty saber kit
-two sets of emitter collars, one for blades and one for static use
-black anodized covertech wheel for belt hanging
-matching hilt blade plug
-custom collectors box

Install chassis for the Saberbay/Laredo Sabers GeonObi hilt. Not compatible with any other hilt design.
This is 3D printed in two parts in black PLA+ filament.

This chassis is being offered for free for anyone who has purchased a GeonObi hilt. Please do not purchase this chassis for other hilt purposes. Customers who buy this without a matching GeonObi may have their orders canceled.

Chassis design features a fully removable design that allows easy access to the soundboard and removable battery once fully installed.
The bottom half slides out from the pommel and is reinserted the same way.
The top half is inserted from the top end below the emitter section, and used to keep the red actuators upright and aligned with the hilt. Top half is held in place after installation by screwing back on the hilt emitter.
Parts list required for install:
-CFX, Proffie, GHV3, or Verso soundboard
-NPXL shortpin hiltside connector (V3 or ECO)
-Two 6x6x4.3 tactile switches(INCLUDED)
-removable 18650 battery(spring loaded battery contacts included)
-high amp killswitch(optional, recommended)
-28mm bass speaker

Please note that is a DIY chassis and no other parts or electronics or installation is included with this listing.  Pictures of installed electronics are for reference only.

Install service add on for the Geonobi hilt offered here at Saberbay. This is the cost of the install labor and parts required for the install. This listing does NOT include the hilt itself or any other items.

Please select your desired soudboard choice for the install service.
All installs will include the following parts with the build.
-choice of soundboard (CFX, Proffie, or GHV3)
-NPXL V3 shortpin hiltside connector
-two button function(top button for main power, bottom button for auxiliary effects)
-bottom half removable chassis
-SCW Rotary Chassis PCB set
-high amp killswitch
-removable KeepPower 18650 3000mah 15A protected battery
-28mm X-BASS 4ohm/3W bass speaker

Chassis design features a fully removable design that allows easy access to the soundboard and removable battery once fully installed.
The bottom half slides out from the pommel and is reinserted the same way.
The top half is inserted from the top end below the emitter section, and used to keep the red actuators upright and aligned with the hilt. Top half is held in place after installation by screwing back on the hilt emitter.

Installs come with a limited 30 day warranty from normal use, not including improper use or handling of the electronics(this means user changes to the original settings, rewiring or tampering with existing wiring, or using the electronics outside of the hilt)

Chemical weathering service add on for the GeonObi hilt

Weathering is done using Casey Birchwood Aluminum Black and Brass Black

This will be a light weathering service applied to the entire hilt, minus the red buttons and covertech wheel
