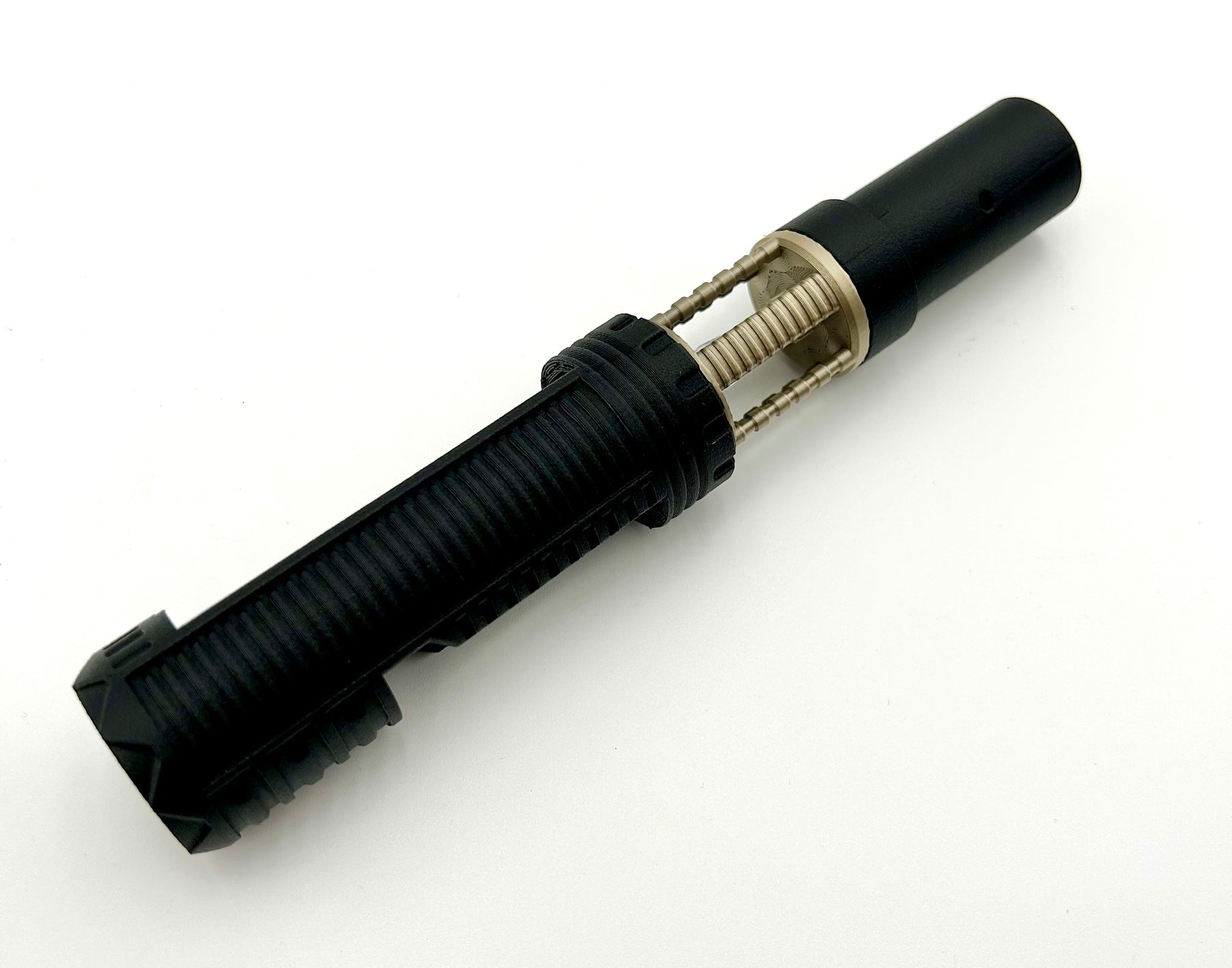

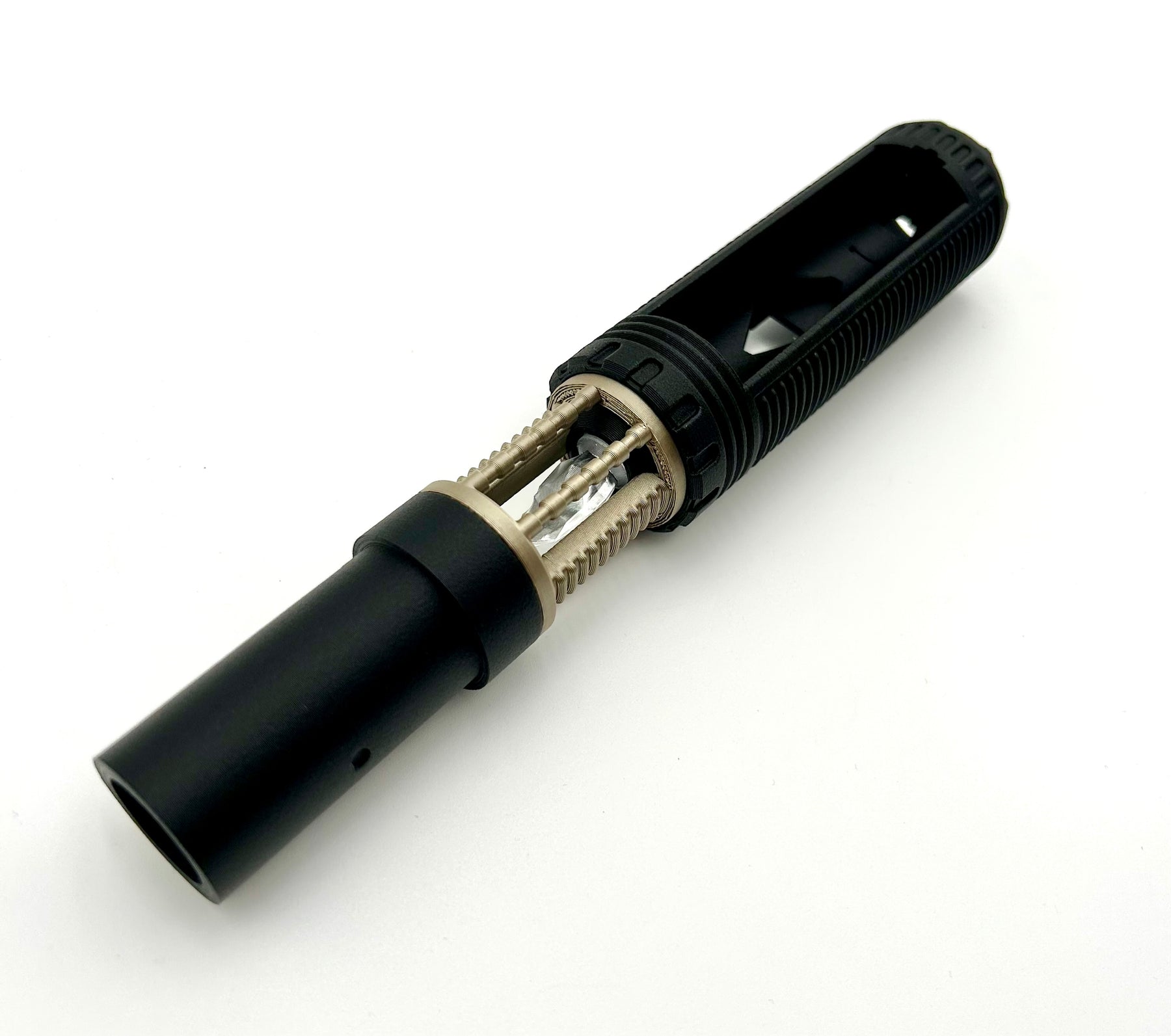

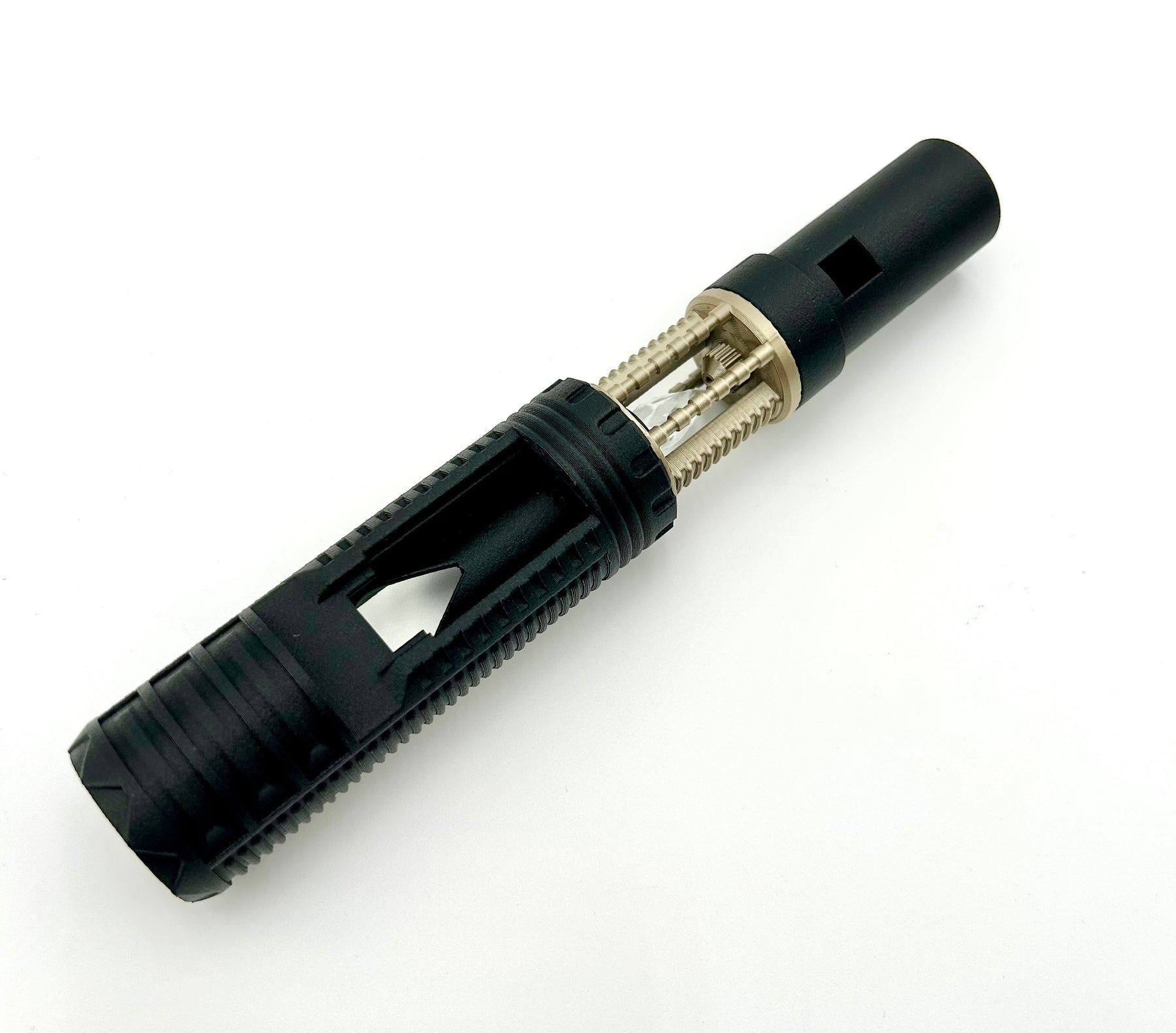

89Sabers MPP Vader ANH/ESB/R1 Crystal Chamber Install Chassis DIY Kit

DIY crystal chamber install chassis for the 89Sabers MPP hilt, compatible with the ANH, ESB, and R1 versions of the hilt. Not designed for other hilt versions.

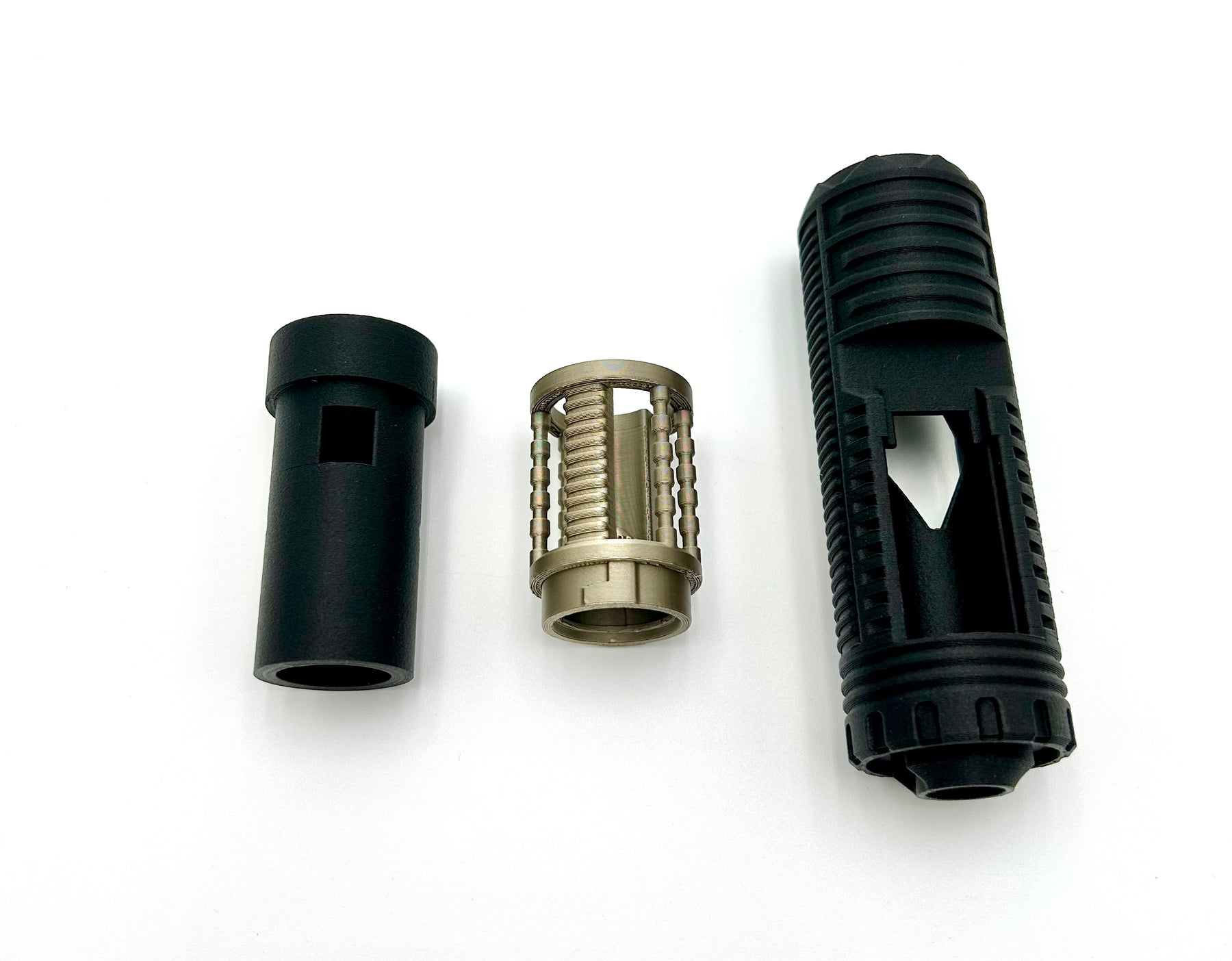

Designed as a three part chassis with a removable main section using a J-lock system. The upper section of the chassis remains static in the upper assembly/emitter of the saber.

Parts list for install:
-CFX, Proffie, GHV4
-neopixel hiltside connector short pin version
-removable 18650 protected button top battery (Option 2 battery contacts included with chassis print)
-high amp killswitch
-28mm bass speaker
-single pixel accent LED for crystal chamber illumination (resin crystal included with chassis prints)
-6 trace Rotary Chassis PCB connector set
