Imperialist Basic/Crystal Chamber Install Chassis DIY Kit

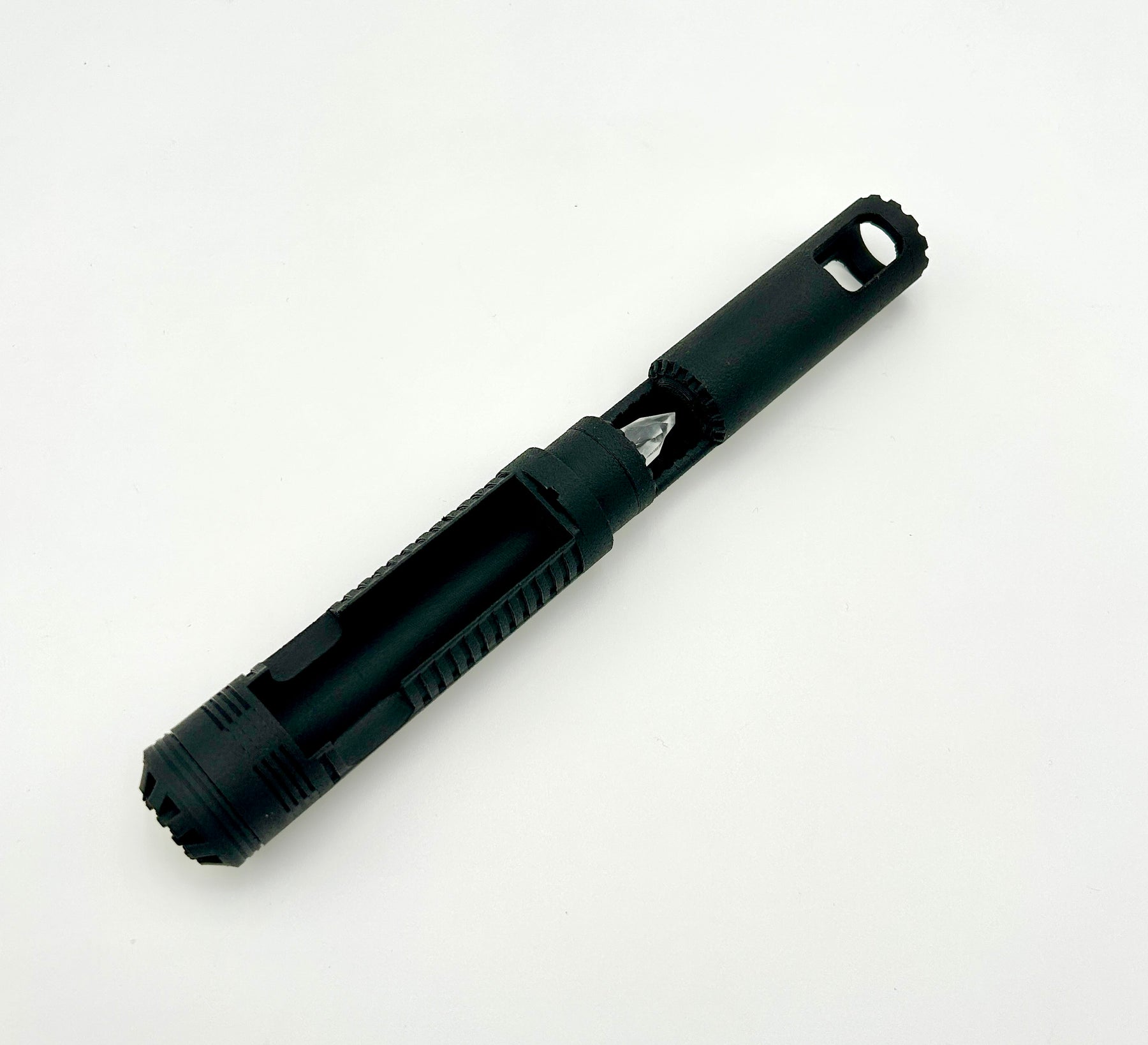

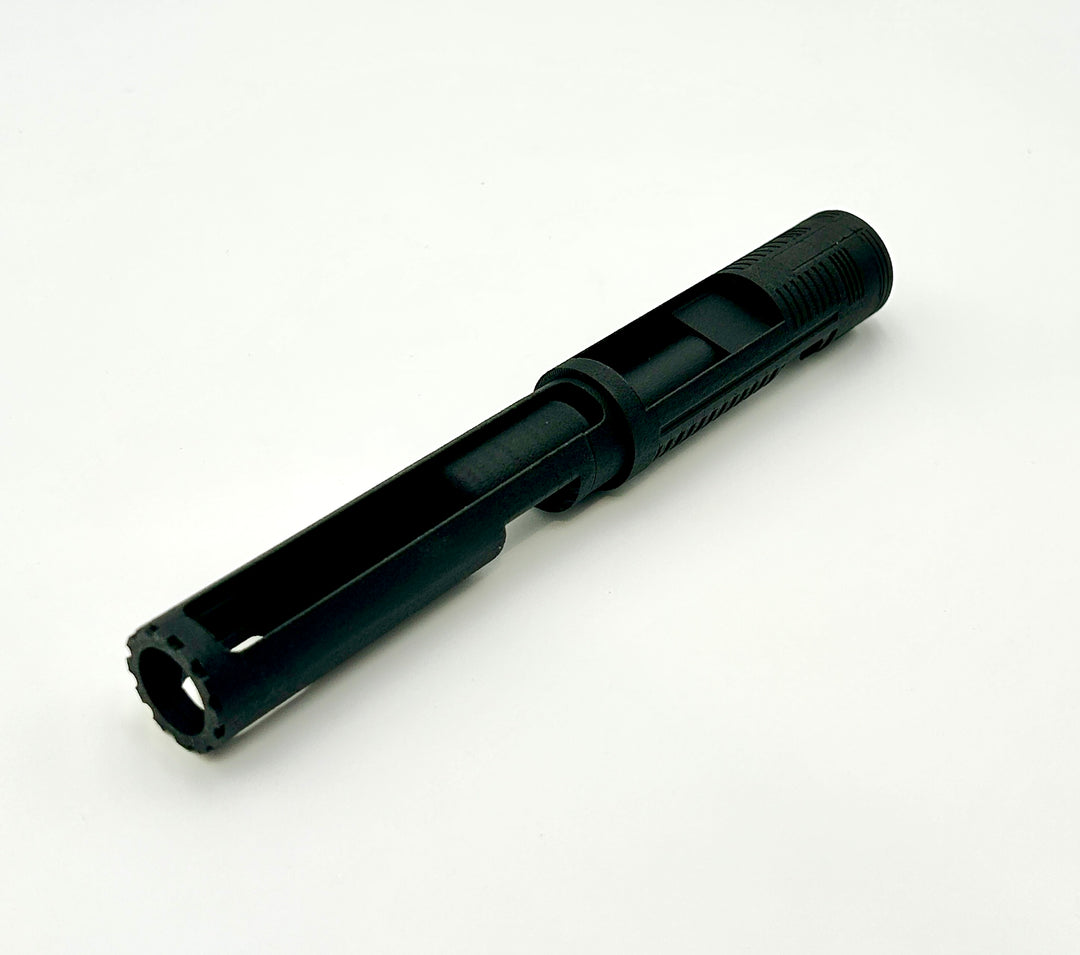

3D printed install chassis for the Saberbay/5280 Concepts Imperialist hilt, not intended for any other design.

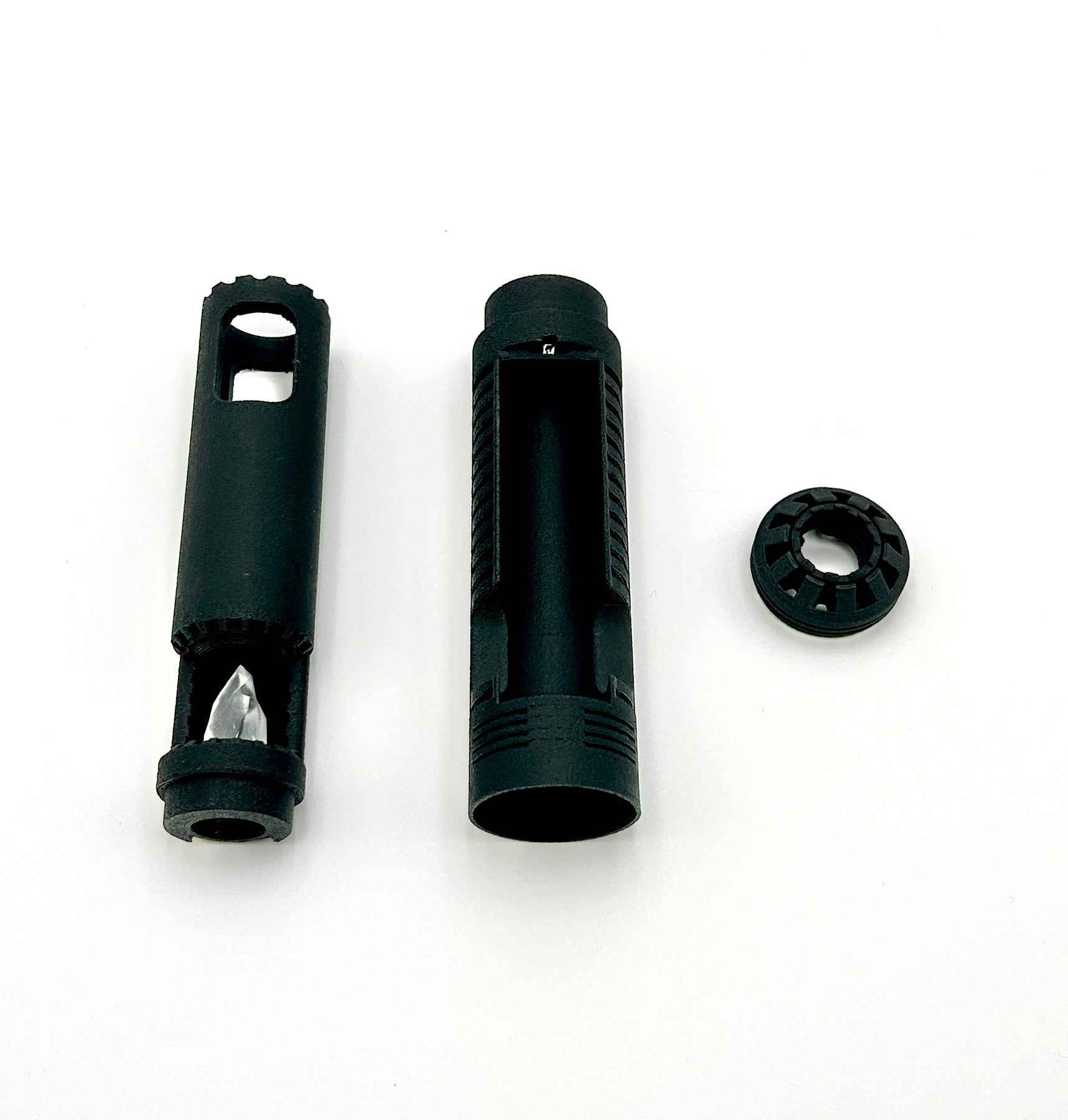

This chassis is printed in three separate parts, they will need to be glued together at the separation points as you install you chassis. The smaller piece is an optional attachment that can be affixed to the speaker end of the chassis for those wishing to add some accent lighting to their pommel area.
*Please note that depending on your wire size, you may need to remove a small section of the outside of your speaker to let the accent LED wires past the speaker area, use as small size of wire as possible*

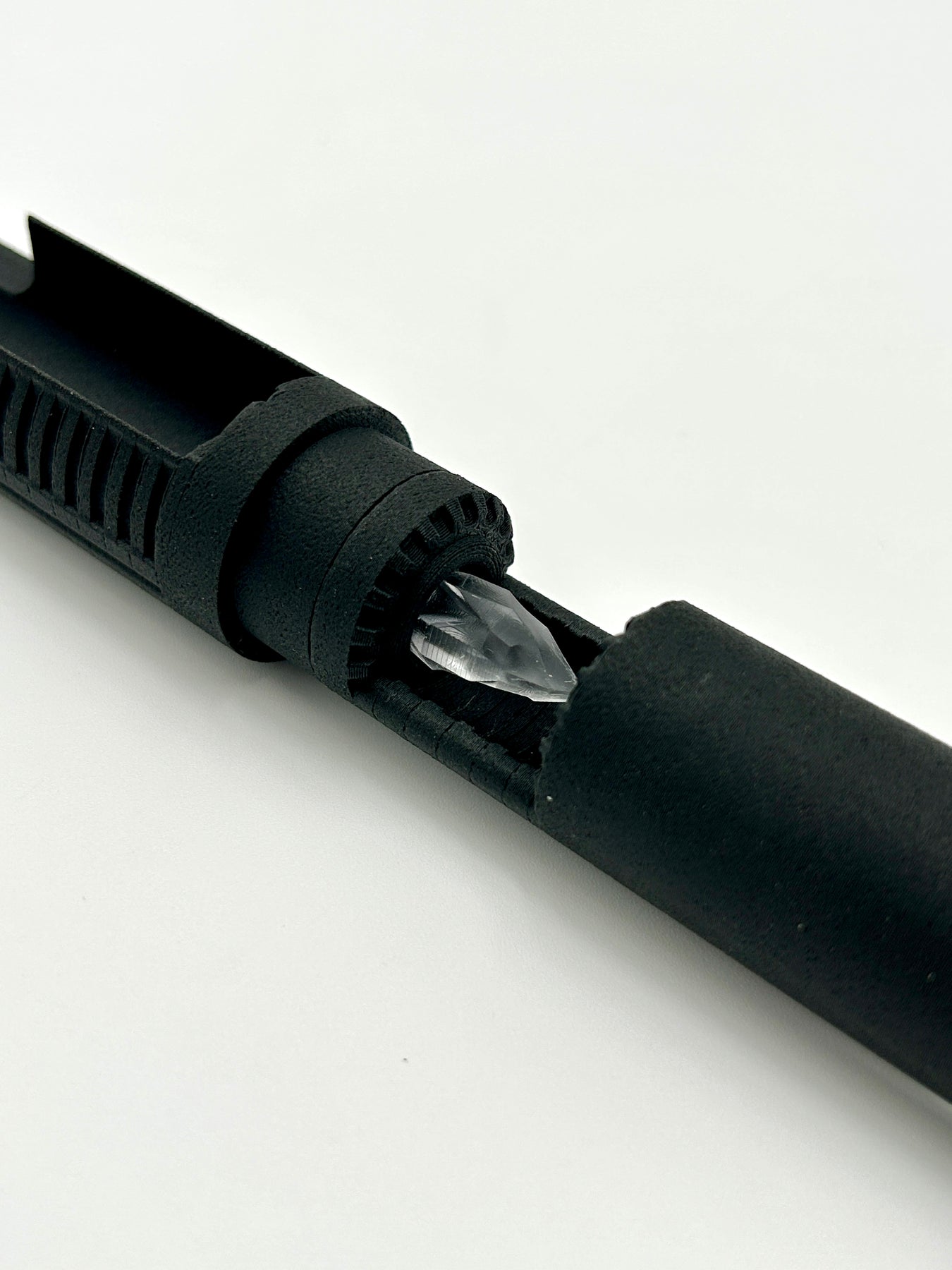

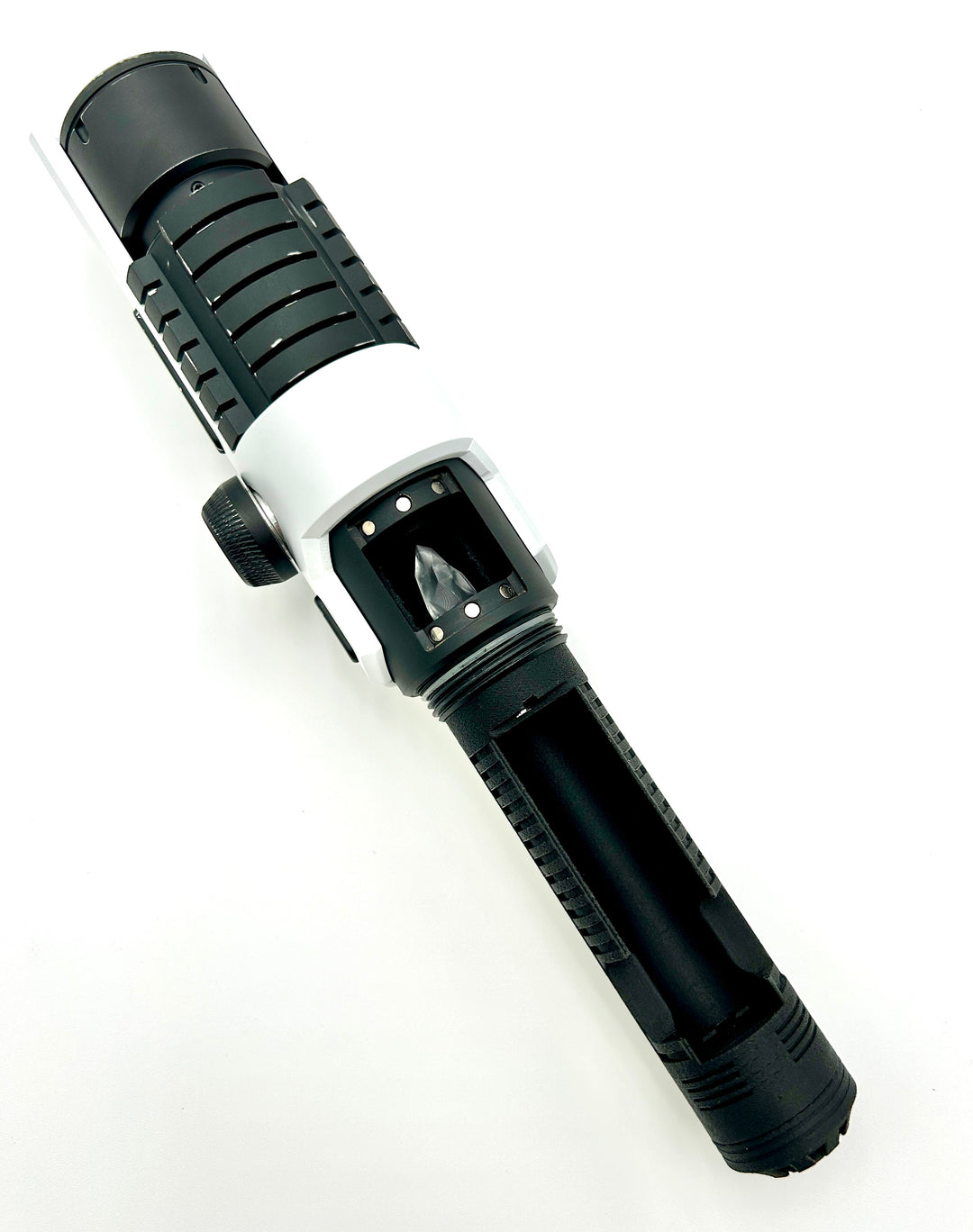

The upper chassis section holds both the hiltside pixel connector as well as the crystal for the chamber area, please designate if you wish to include the resin printed crystal in your purchase. The backside of the upper chassis has a channel for routing your switch and bunny ear pixel accent wires down to the soundboard. With proper alignment you can view the crystal chamber beneath the removable brass part of the hilt.

Parts list for install:
-CFX, Proffie, or GHV4 soundboard
-shortpin hiltside connector (NPXL or ECO compatible)
-qty.1 SCW tactile switch PCB and qty.1 SCW PIXL tactile switch PCB (for red button)
-qty.1 micropixel accent LED (for bunny ear accent)
-qty.1 basic single pixel accent LED (for crystal chamber option)
-removable 18650 button top protected cell (Option 2 battery contacts included with printed chassis)
-high amp killswitch
-28mm bass speaker
-optional Medium Pixel Ring for pommel illumination
