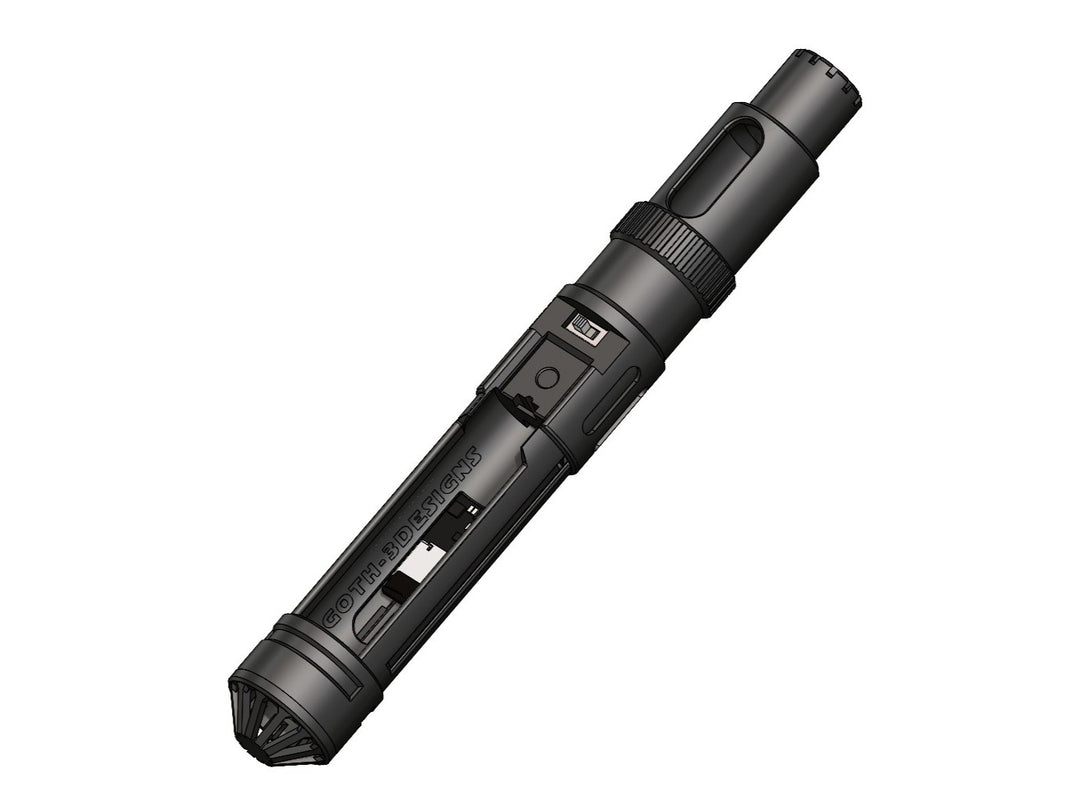

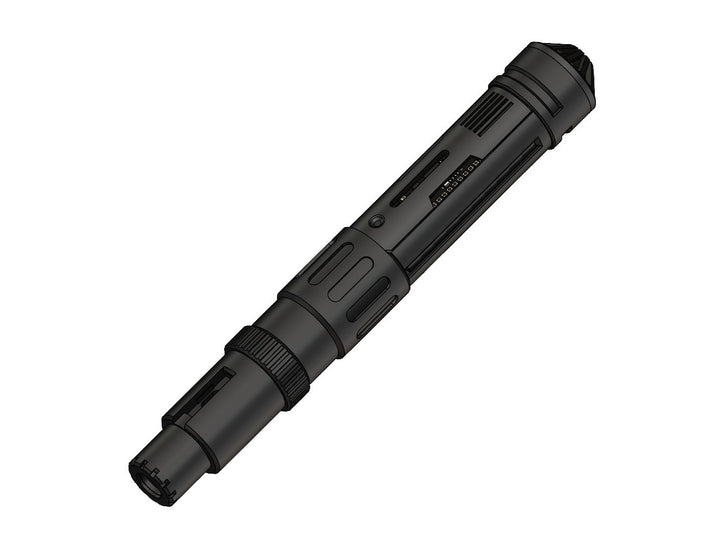

Machina Install Chassis *STL FILE*

3D printed chassis design for the Saberbay Machina hilt, not intended for any other hilt design. This comes printed in four total parts; a fully removable main chassis, an emitter piece for the hiltside connector and pin side of the thin neck PCB set, a speaker cap/cover, and an optional soundboard cover

Parts list for install:
-CFX, Proffie (GHV4 coming soon)
-shortpin hiltside neopixel connector (NPXL V4 or ECO)
-qty.2 1.5mm brass tactile switches(included with chassis print)
-removable protected button top 18650 battery (Option 2 battery contacts included with chassis print)
-high amp killswitch
-thin neck PCB connector set
-28mm bass speaker
-qty.2 WS2812 mini LED strips 10 LED count, or WS2812C-2020 15 LED count
