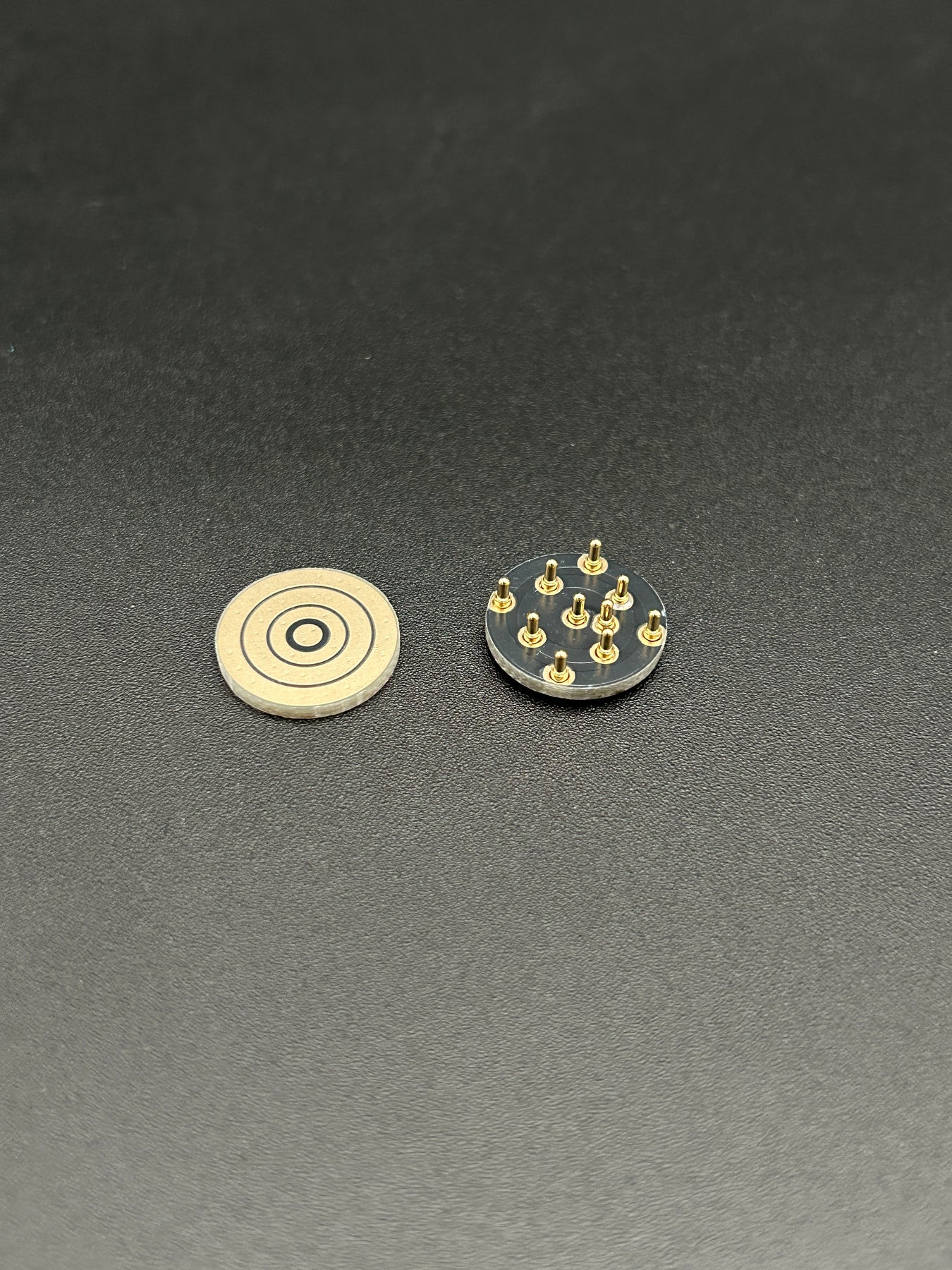

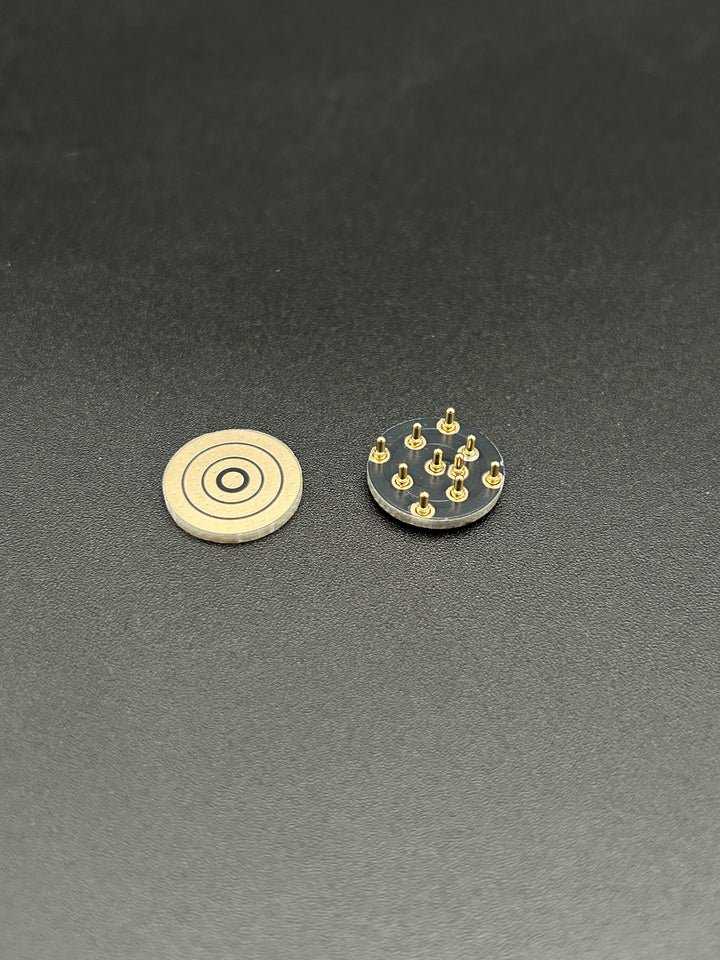

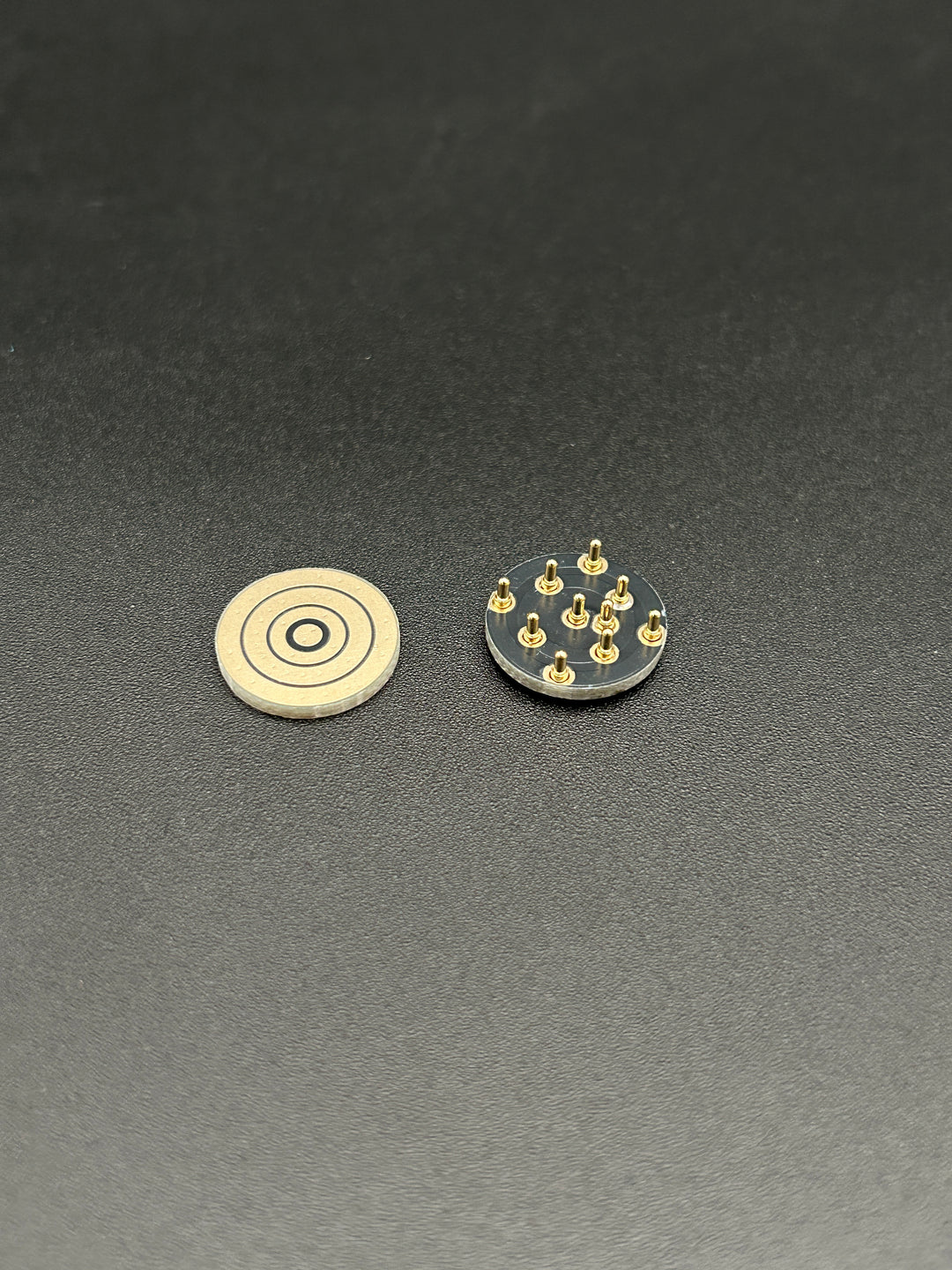

4 Trace Rotary Chassis PCB Set

Rotary chassis PCB set featuring up to 4 different traces for saber installs. A total of 10 pins are used, and can be purchased as an unassembled set with the pins included, or have the pins presoldered for you.
PCB dimensions are 16mm in OD and a height of 1.6mm; included pins are the standard short pins.

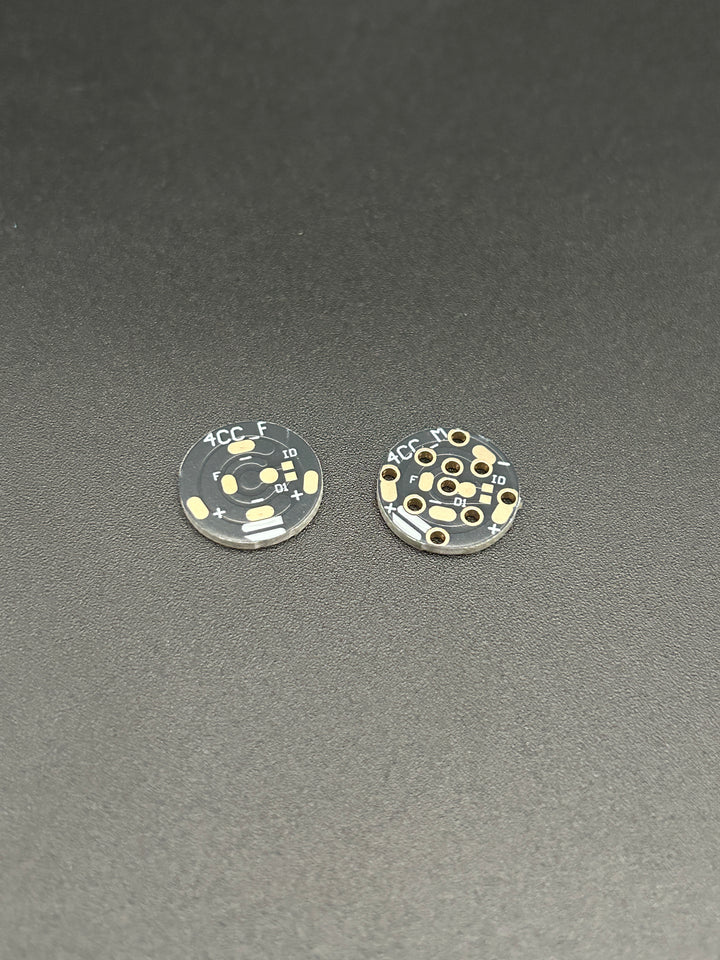

Data pads include up to two pads for positive and negative wiring, a data pad, a 'free' pad, and an extra SMD resistor footprint for any chassis detection wiring setups.
