*****PCB AND MAGNET SOLD SEPARATELY*****
WORKS W/ V2 NPXL shortpin, V3 NPXL shortpin and ECO
NPXL shortpin

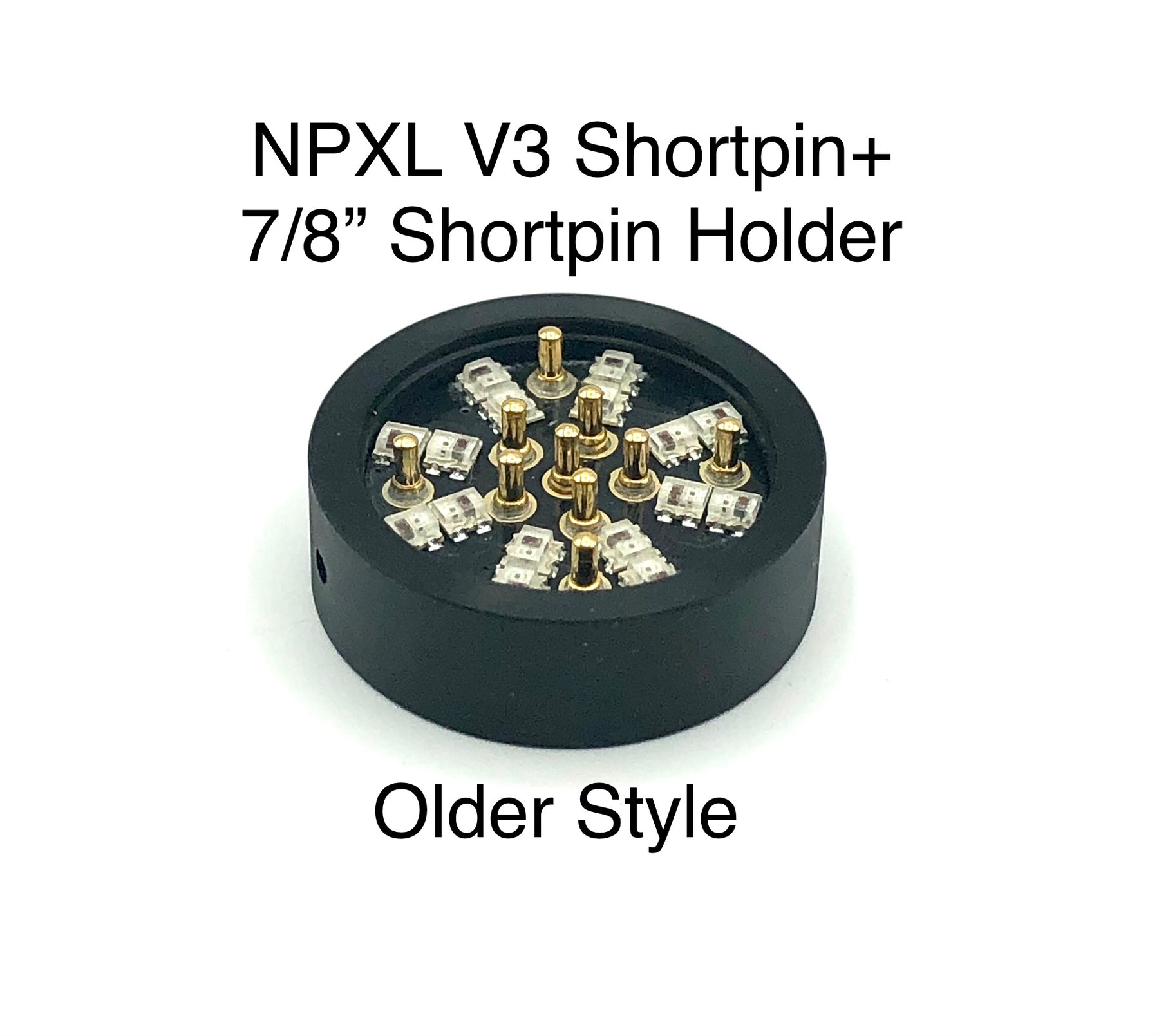

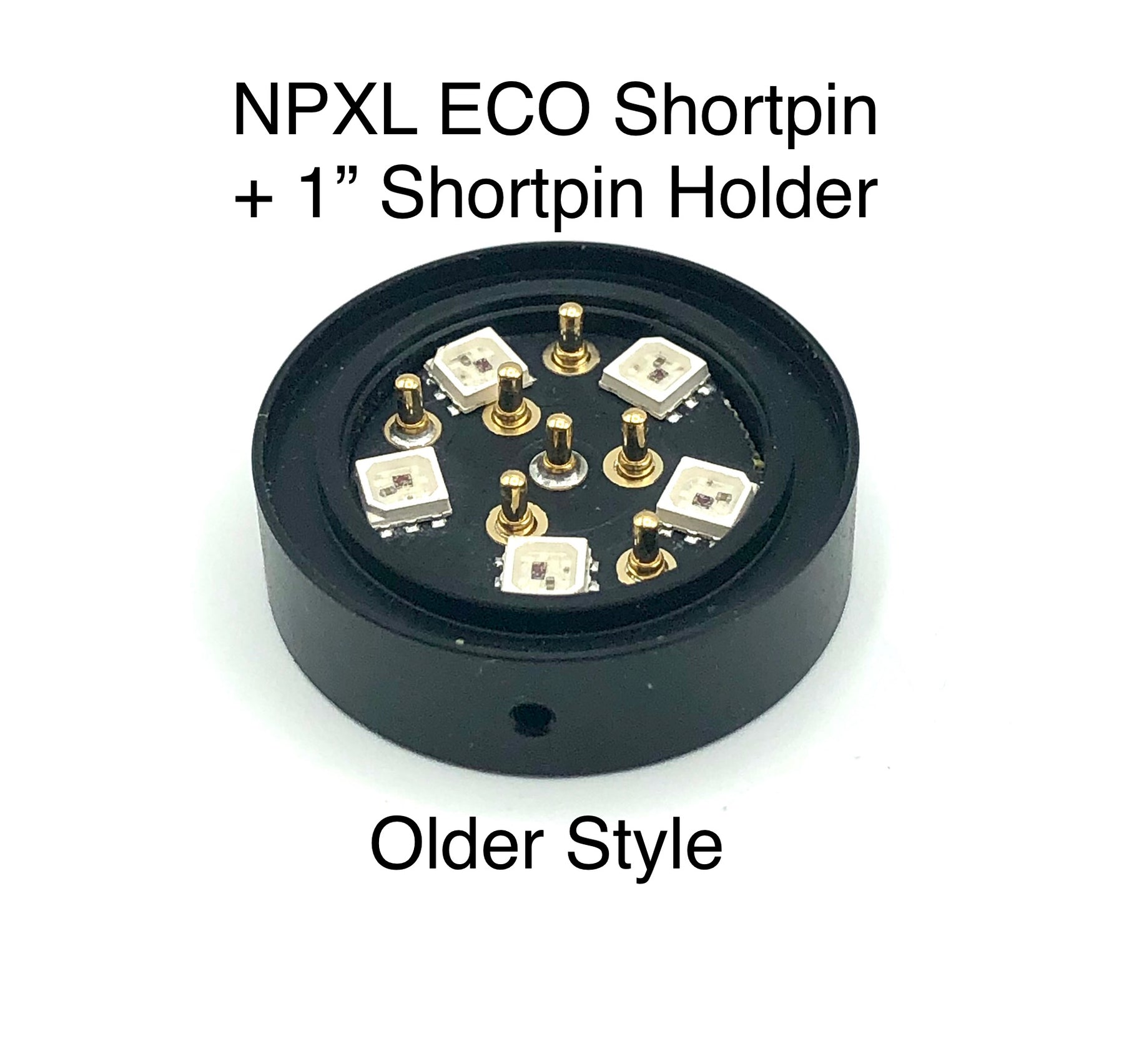

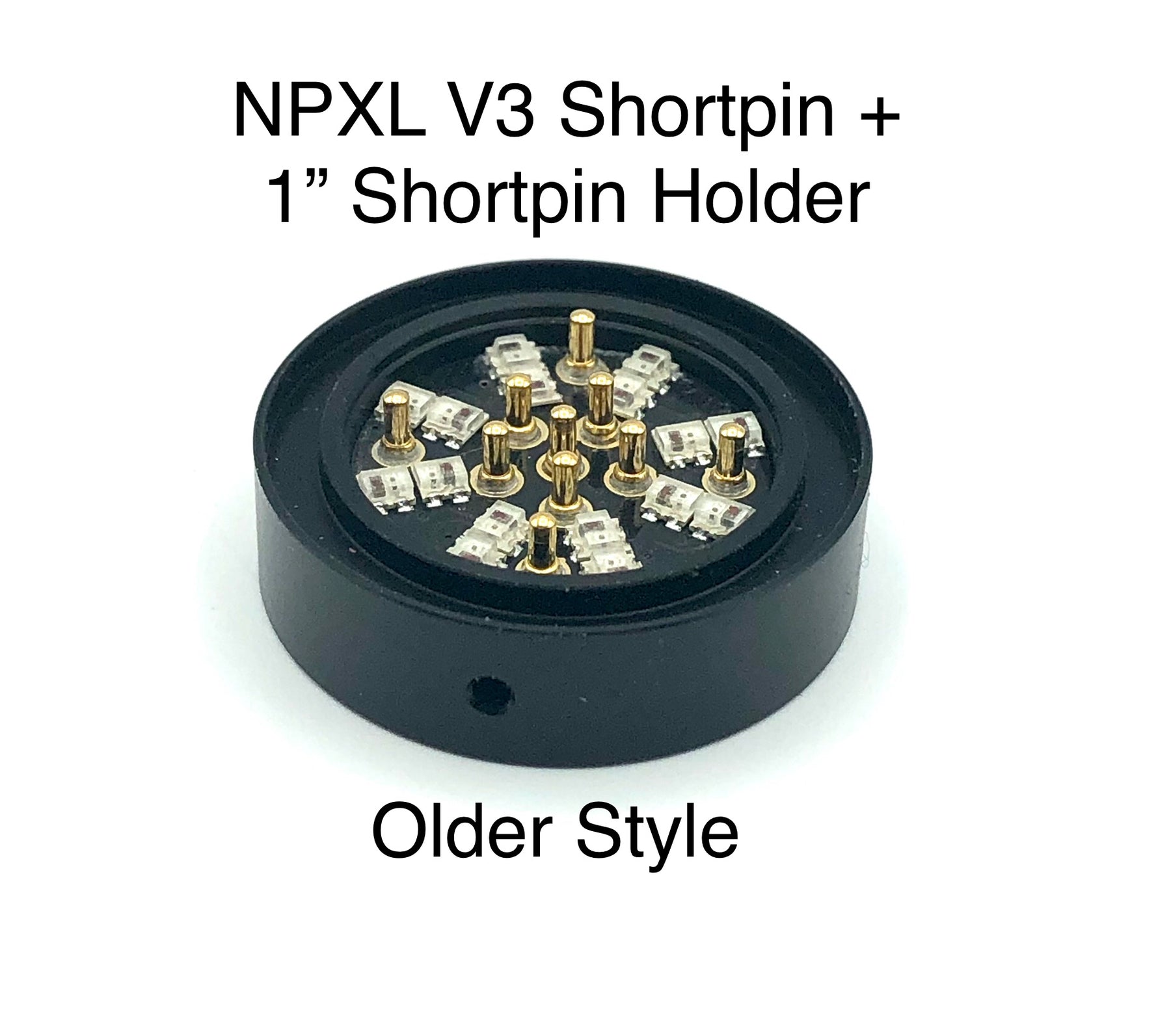

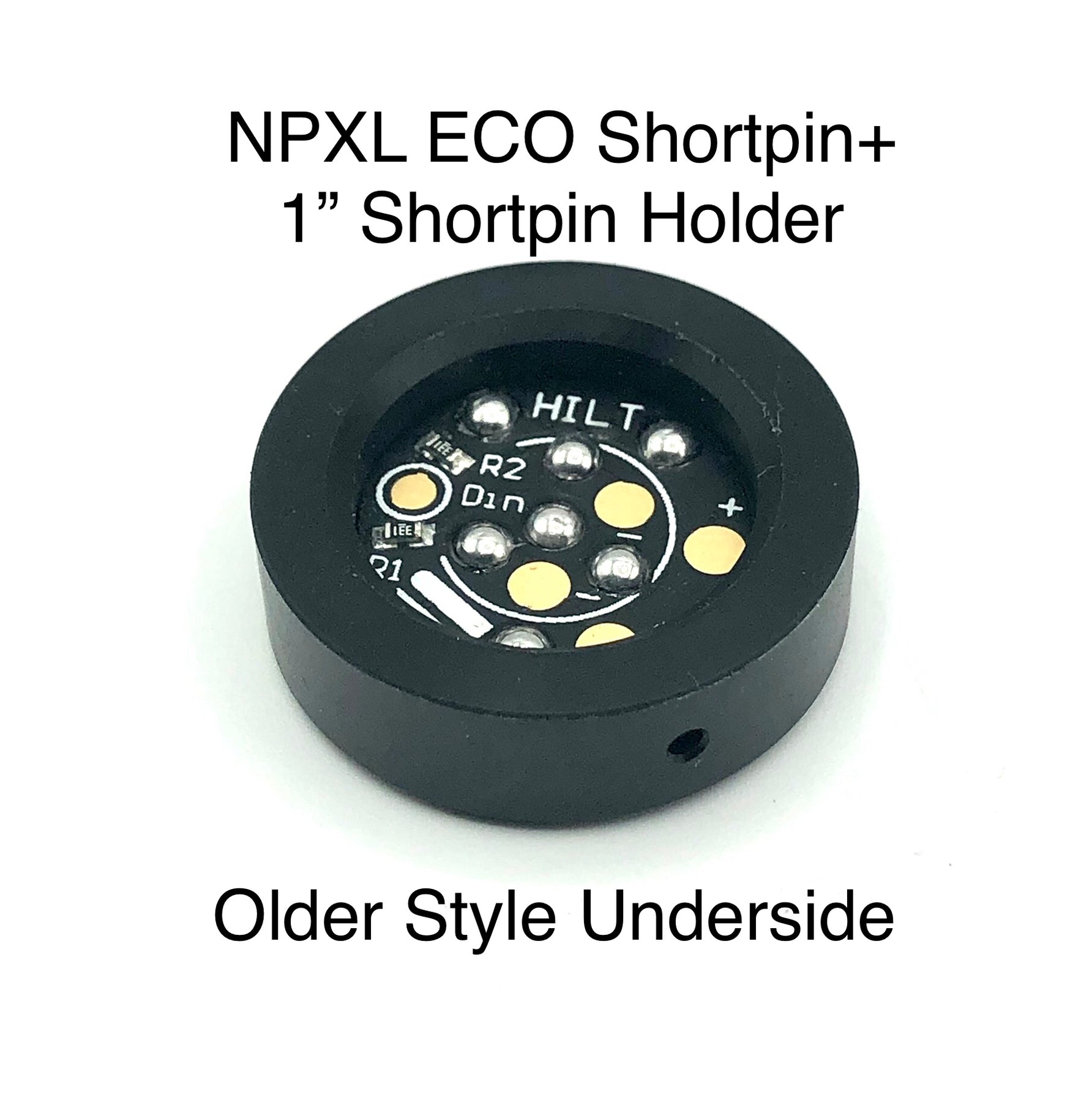

This is designed to hold the ShortPin version of the NPXL

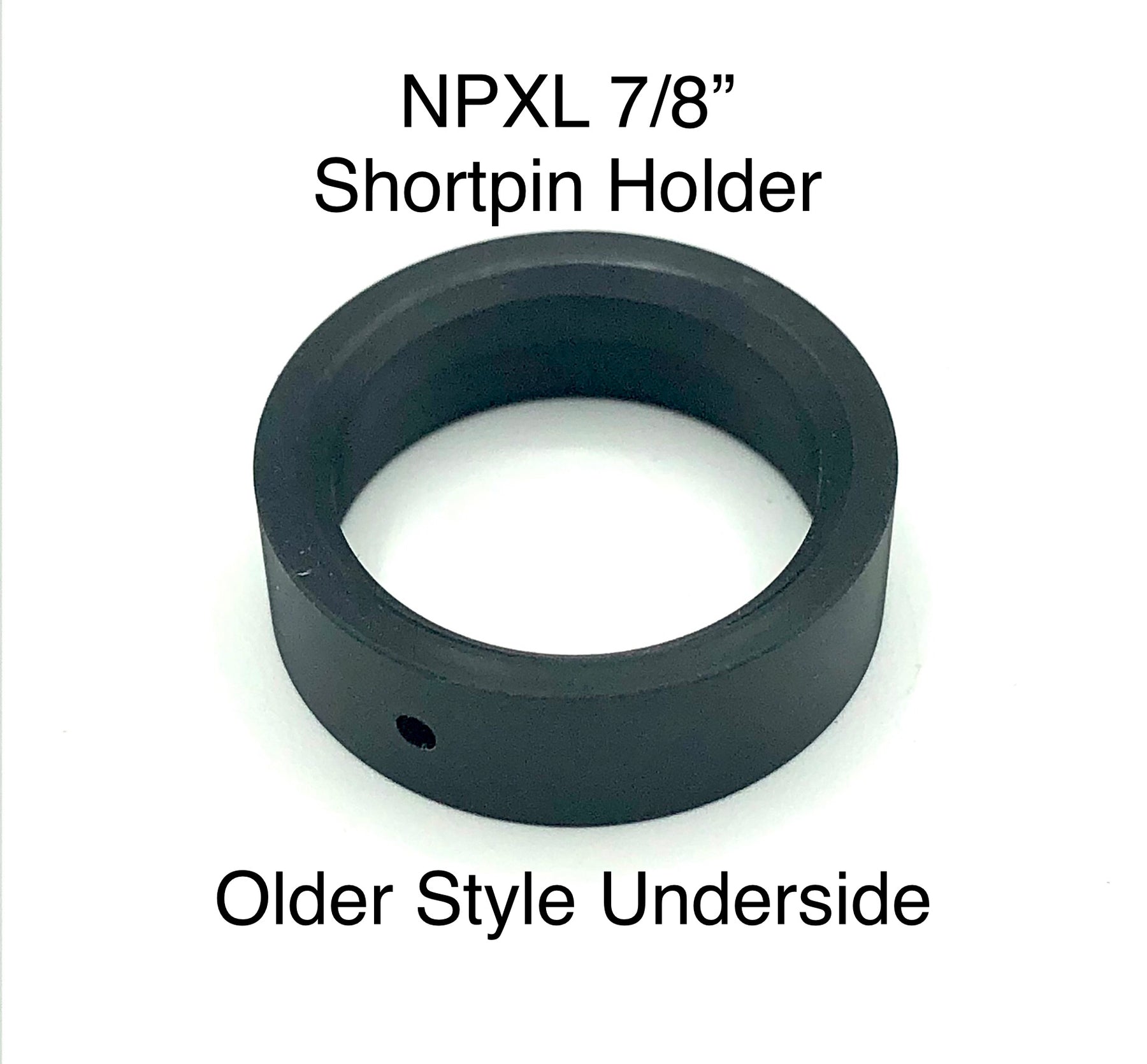

This is the hilt side and for 1″ and 7/8" emitters. It is also designed for the short pins option only.

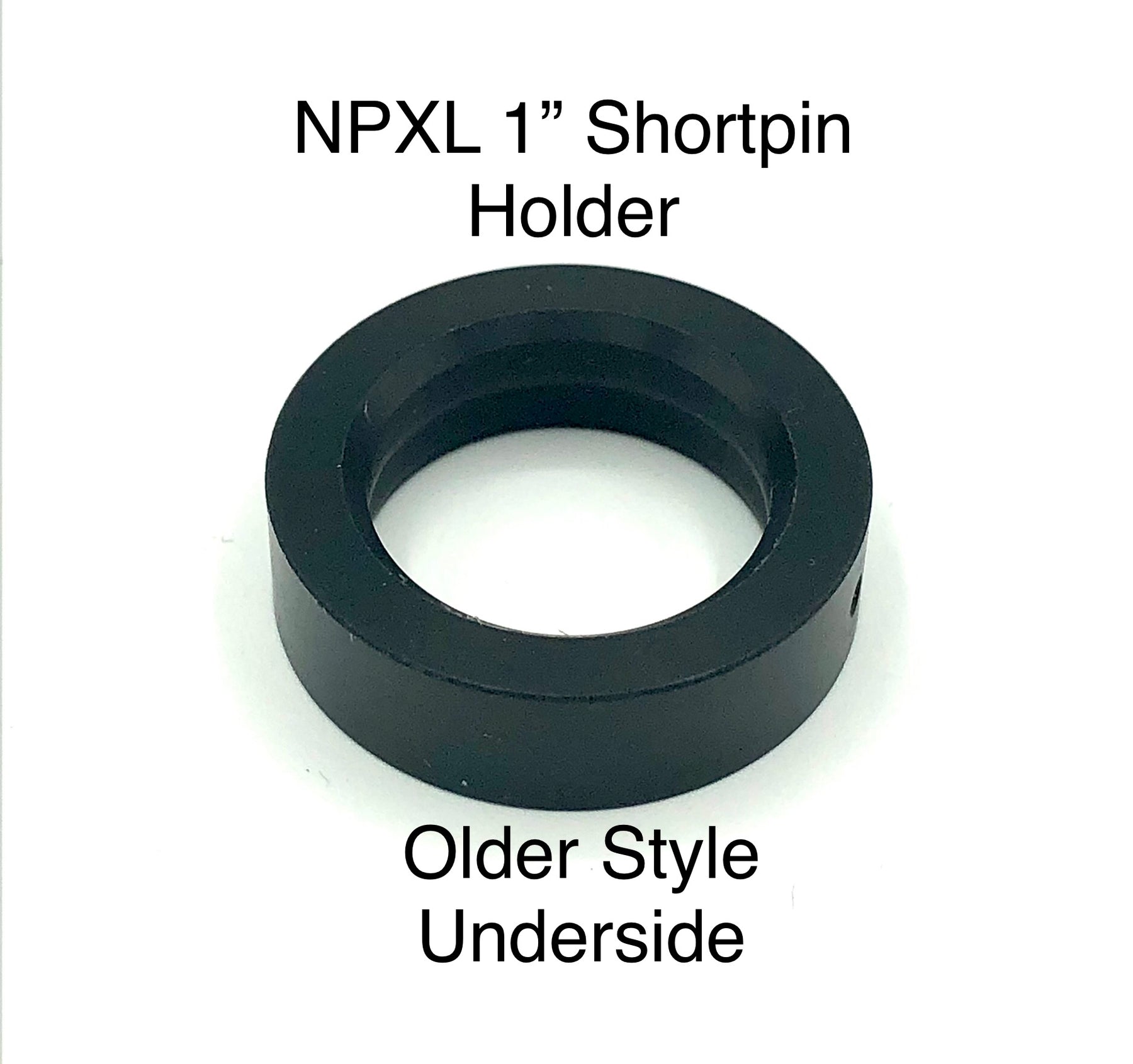

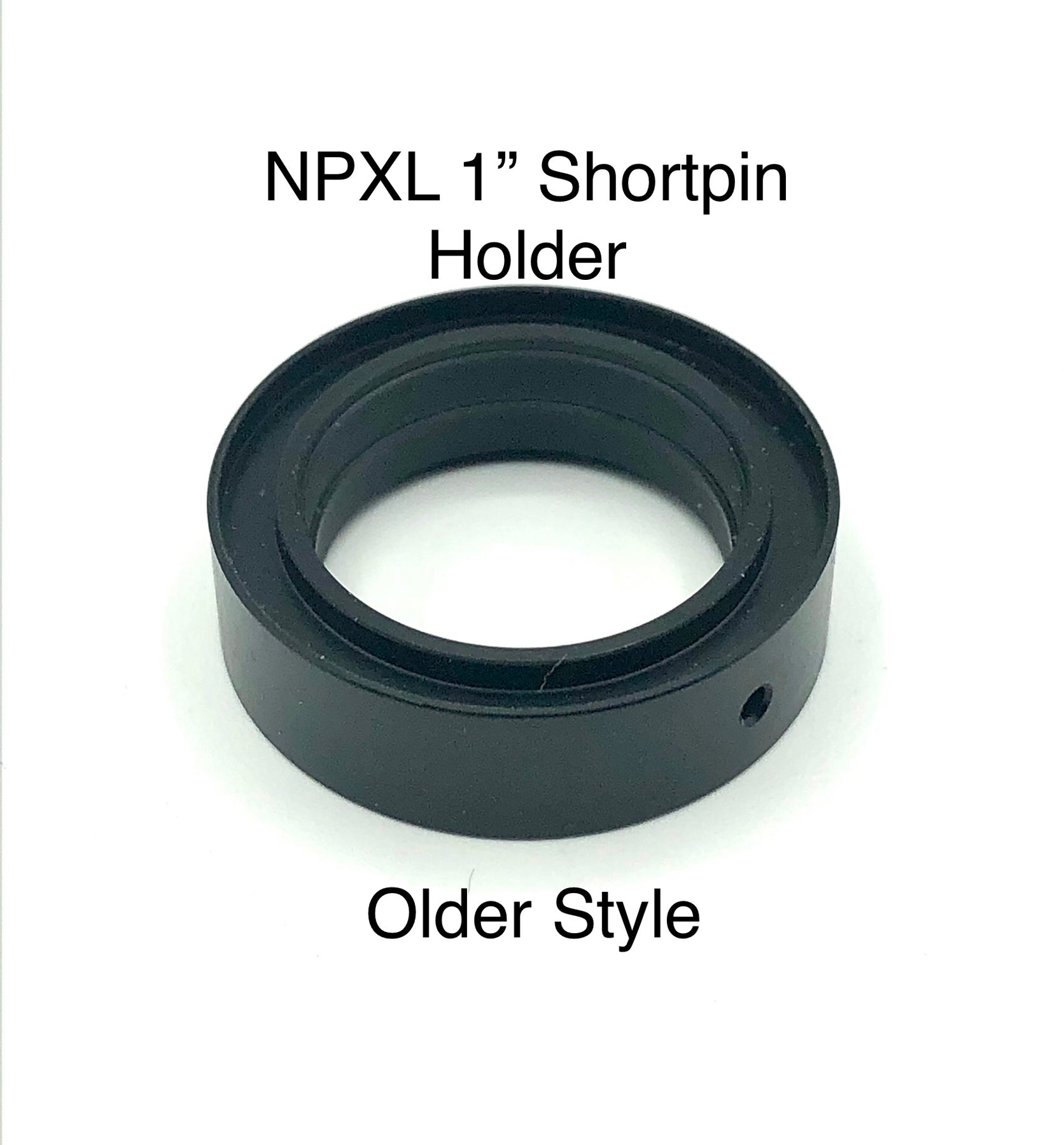

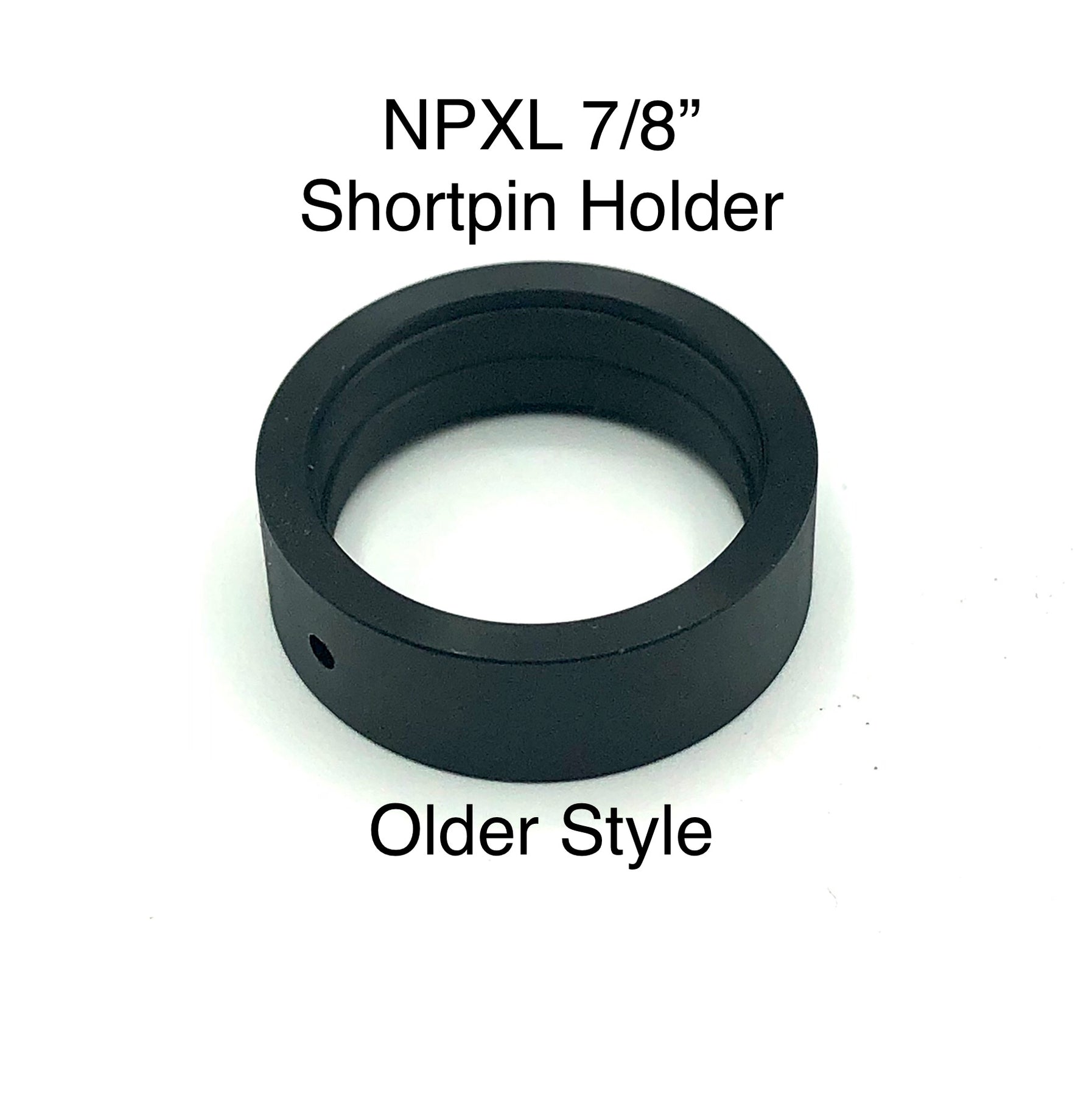

Machined from black ABS. It is not compatible with any third party PCB.
This holder is Mag Connect compatible. Magnets are sold separately here and graciously provided to us by The Saber Armory.
Please note, the magnets are a snug fit but hey will still need be glued in so the strong force of the magnets does not pull them out when they are near each other.
We recommend a low viscosity glue for this.
Be careful when doing this as the magnets are fragile.
Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. Adding the magnets may expand the holder slightly making in a tighter fit. If this is the case lightly sanding the outside of the magnets using a sanding drum or sandpaper to reduce the outer diameter slightly is recommend. This will stop the holder from expanding after installing the magnets.

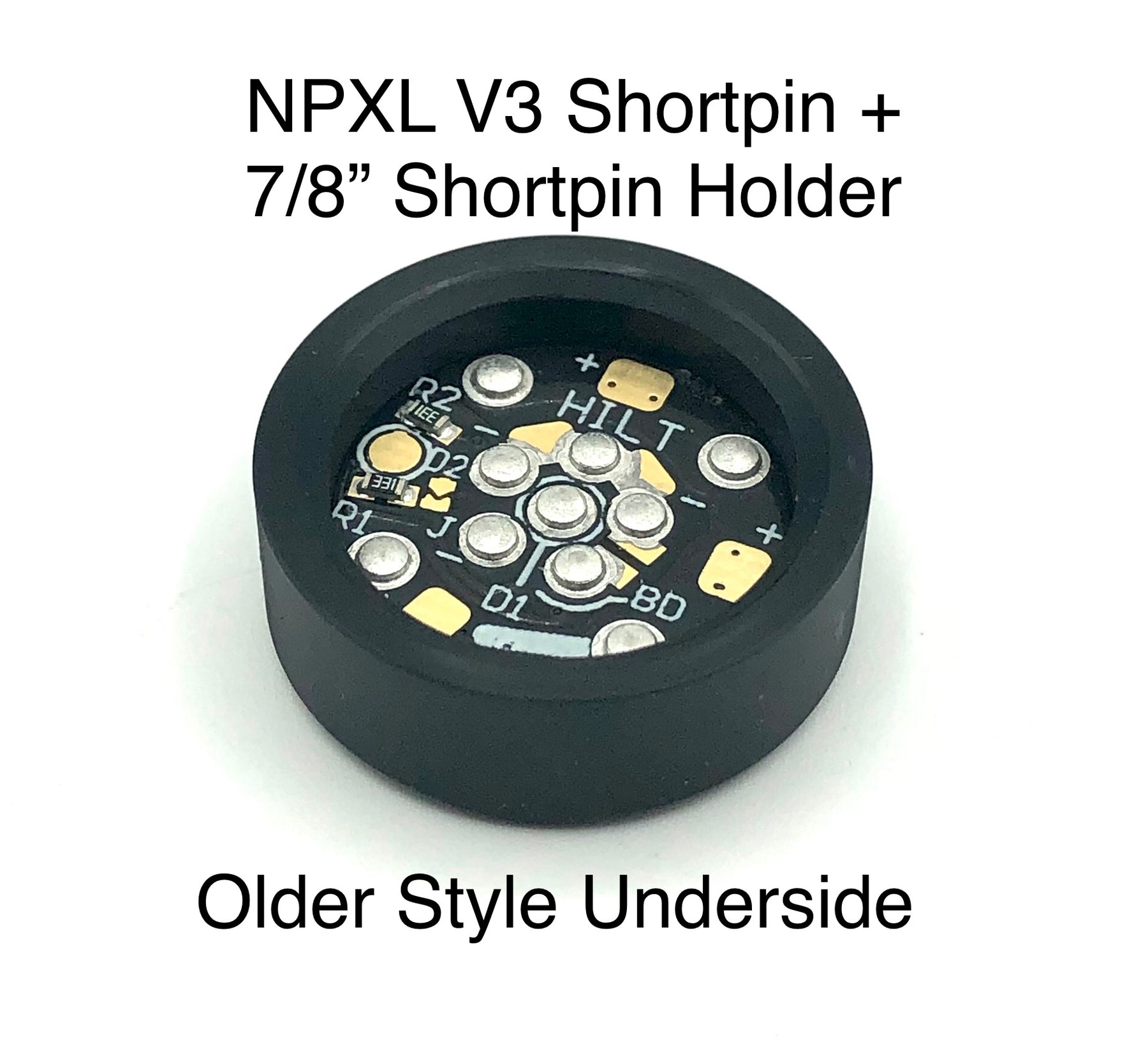

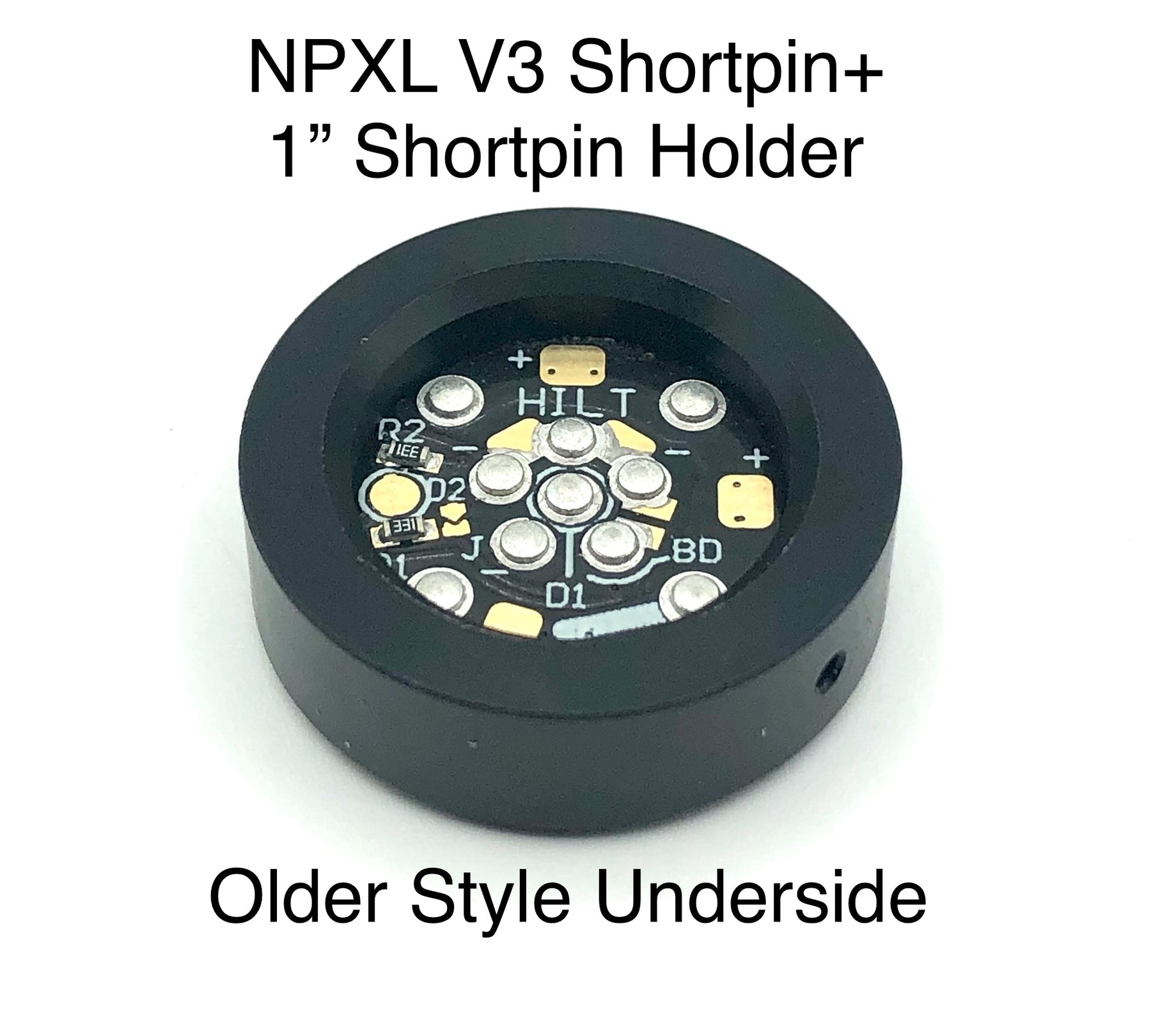

The PCB is press fit but it is recommended to hot glue the back end of the holder to secure. There are 2 small holes in case you want to drill and tap and use screws to secure the PCB.
The short pin version is not compatible with the clear lens cover.
