89Sabers Kestis Survivor Install Chassis *STL FILES*

3D printed DIY install chassis for the 89Sabers Survivor Kestis hilt. Not intentionally compatible with any other hilt design.

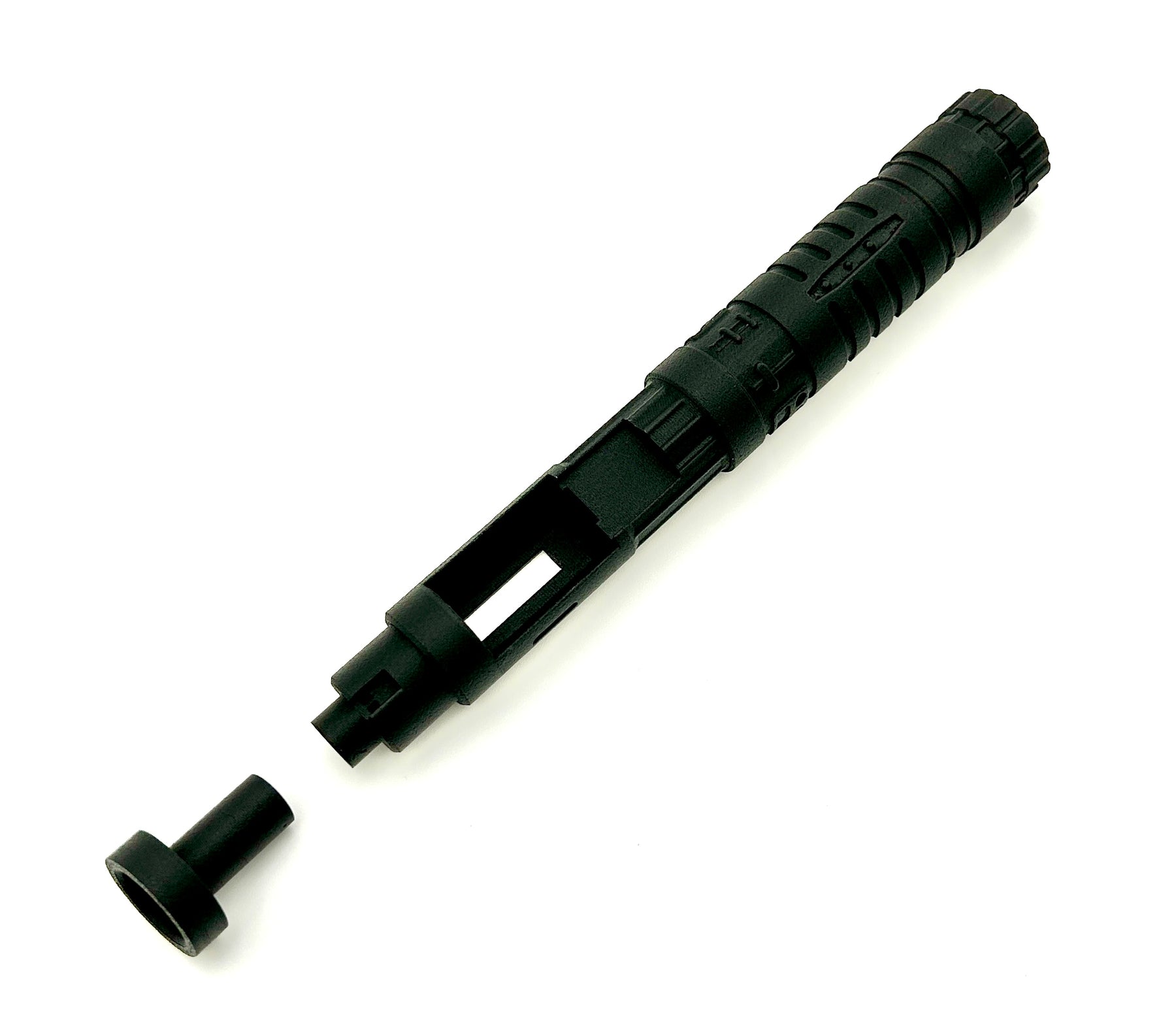

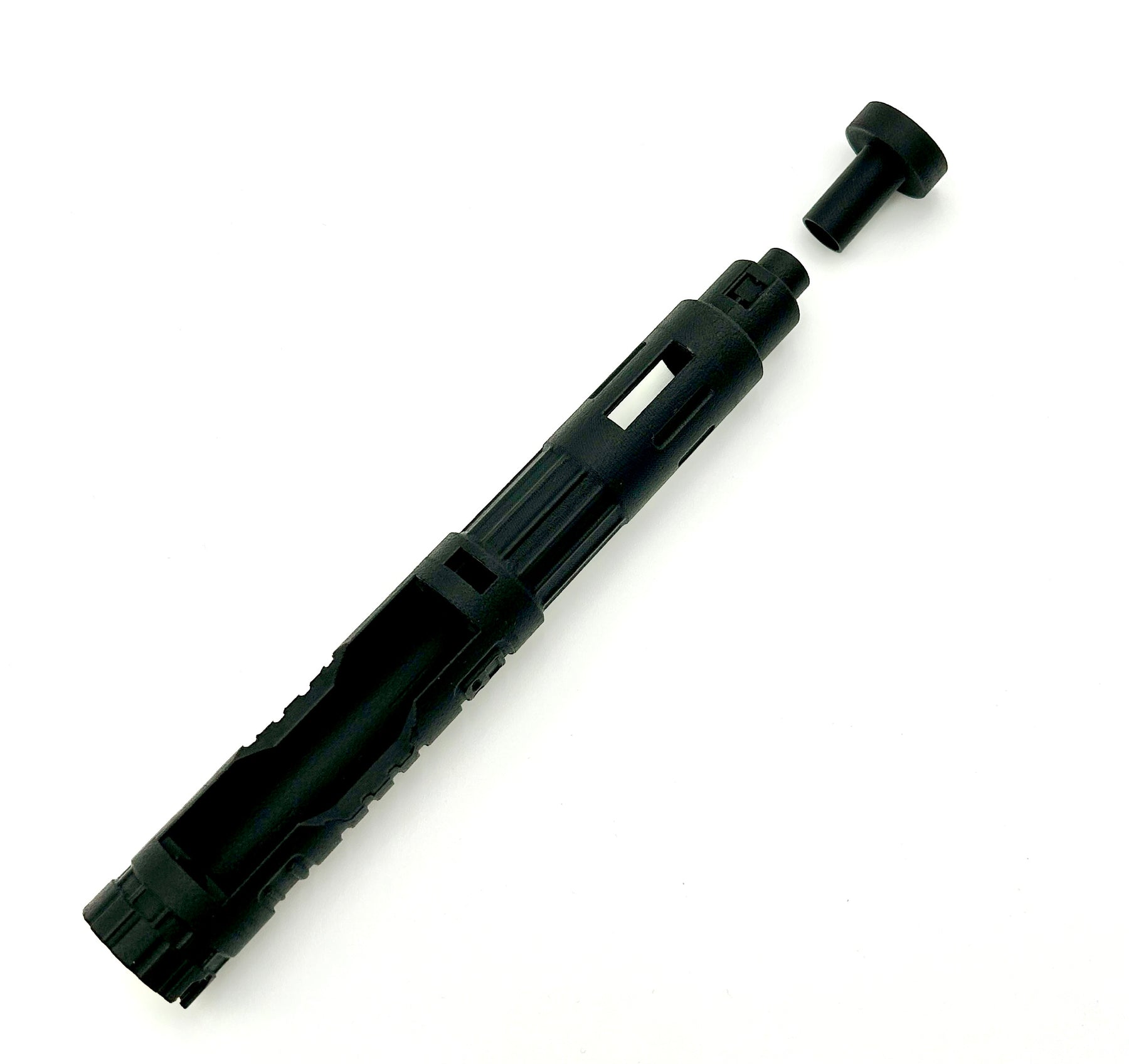

This comes in two parts, a smaller emitter section for housing the NPXL connector and pin side of the Thin Neck PCB connector, and the longer chassis for the rest of the main parts.

Parts list for install:
-CFX, Proffie or GHV4 soundboard
-shortpin NPXL hiltside connector (V4 or ECO compatible)
-up to qty.2 of 1.5mm brass tactile switches (included with chassis prints)
-Thin Neck PCB connector set
-removable 18650 protected button top cell (Option 2 battery contacts included with chassis prints)
-high amp killswitch
-optional OLED screen add on (TCSS or KR version compatible)
-28mm bass speaker

FULL PARTS KIT includes:
-choice of soundboard
-qty.1 unassembled NPXL V4 shortpin hiltside connector
-qty.1 unassembled Thin Neck PCB connector set
-removable KeepPower 3500mah 15A protected button top cell
-high amp killswitch
-Blue OLED screen (only included for OLED chosen option)
-28mm X-BASS 4ohm/3W bass speaker
