*****PCB,LENSCOVER AND MAGNET SOLD SEPARATELY*****
WORKS W/ V2 NPXL LONGPIN V3 NPXL LongPin and ECO

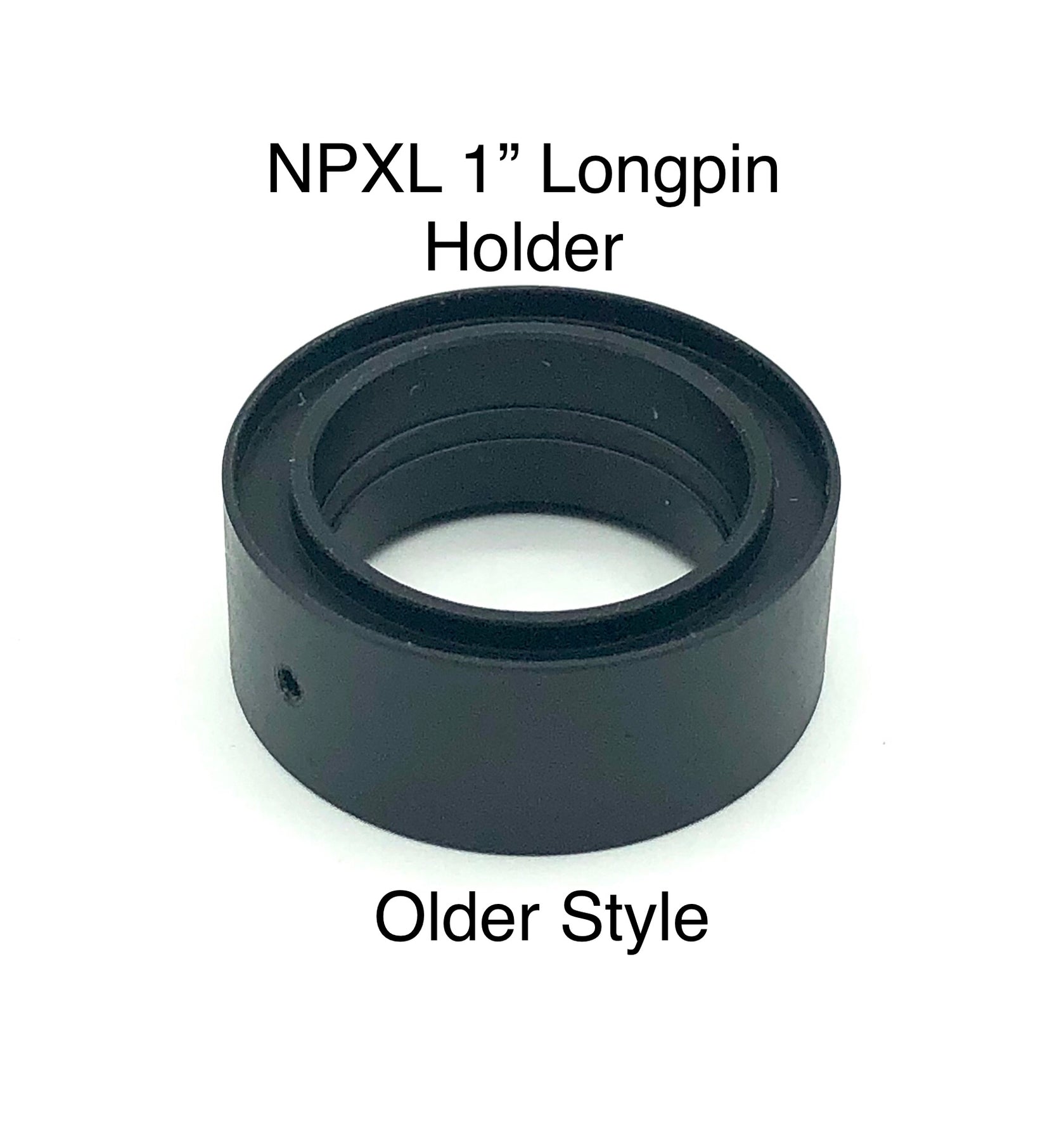

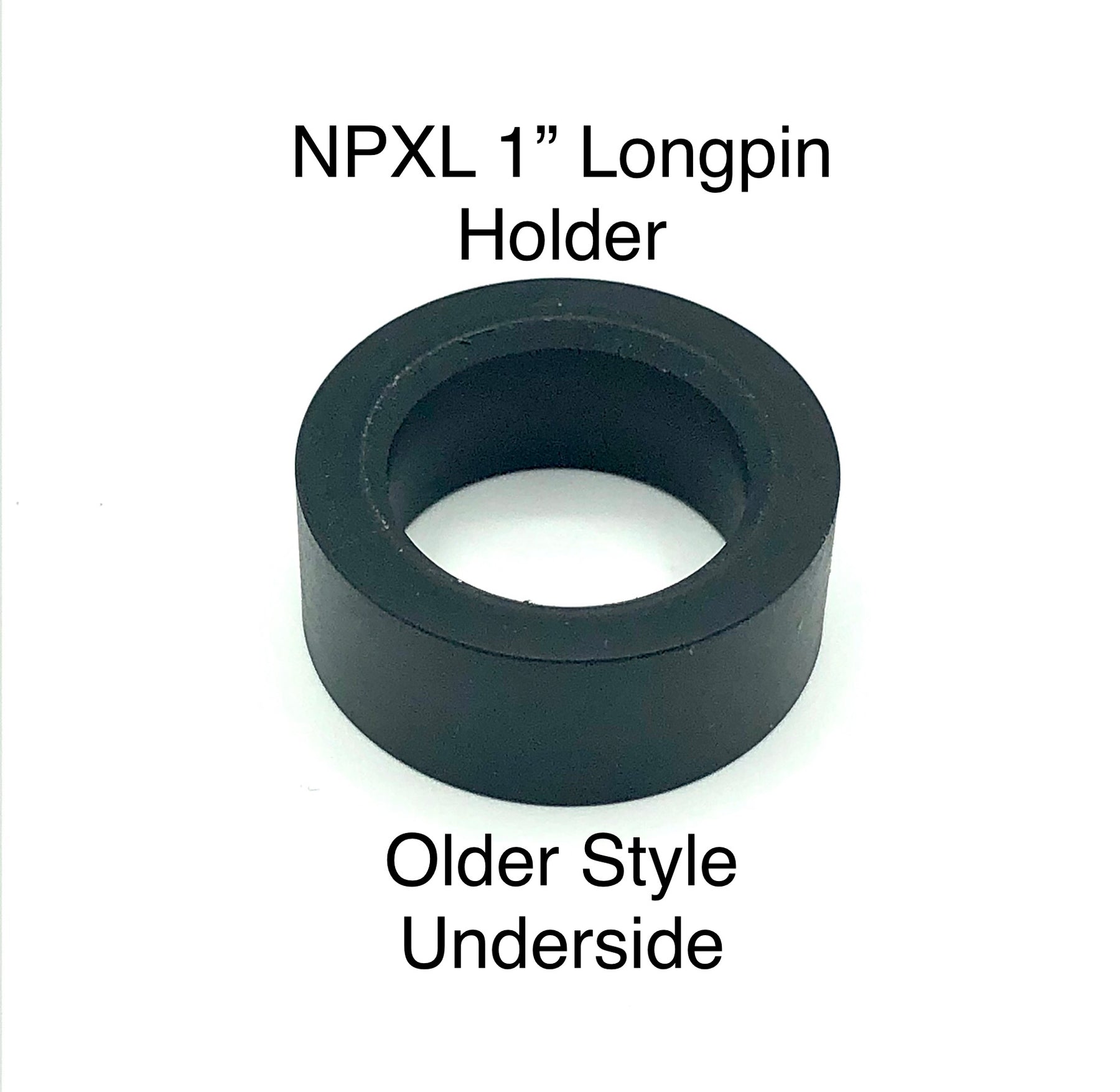

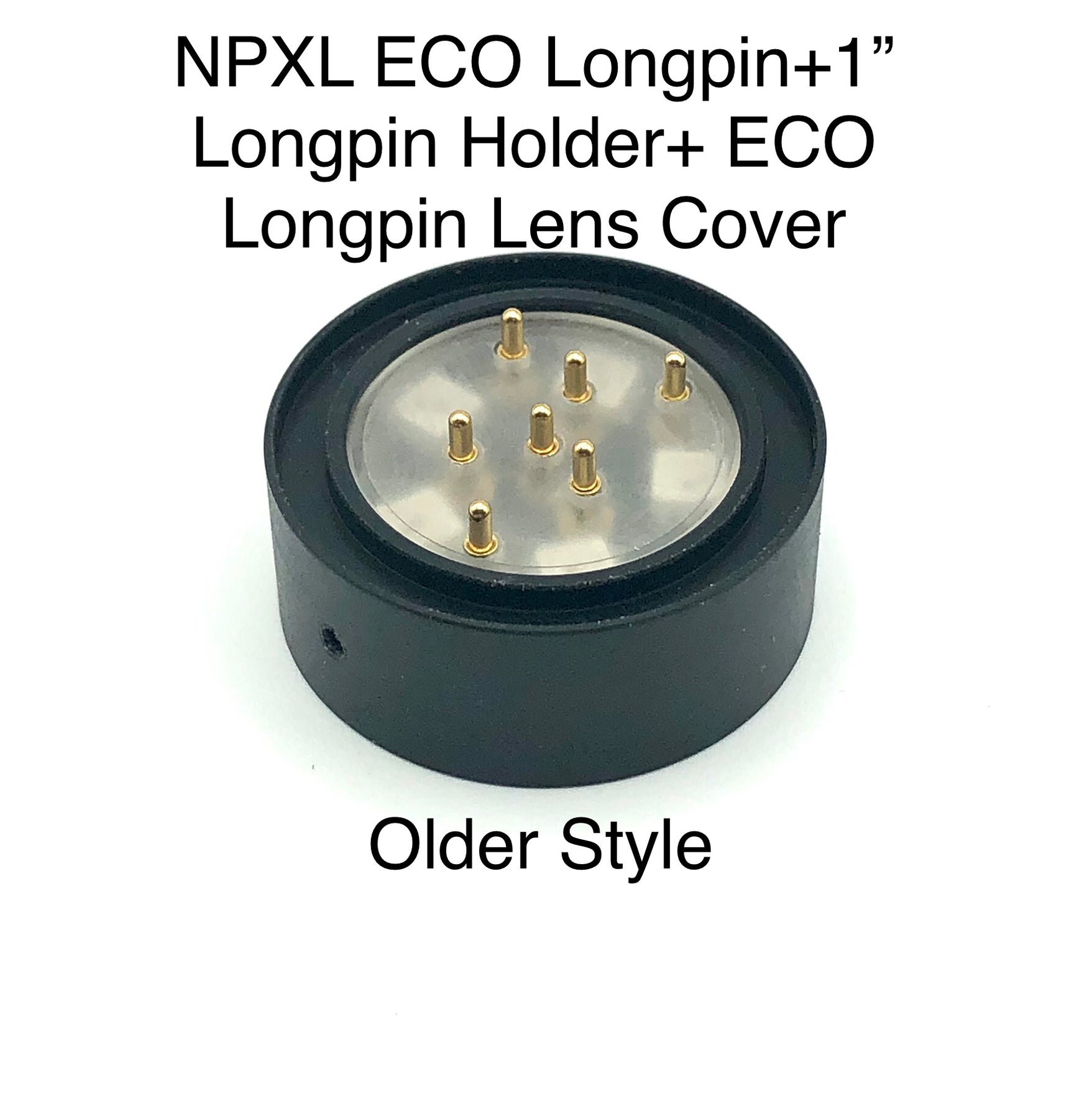

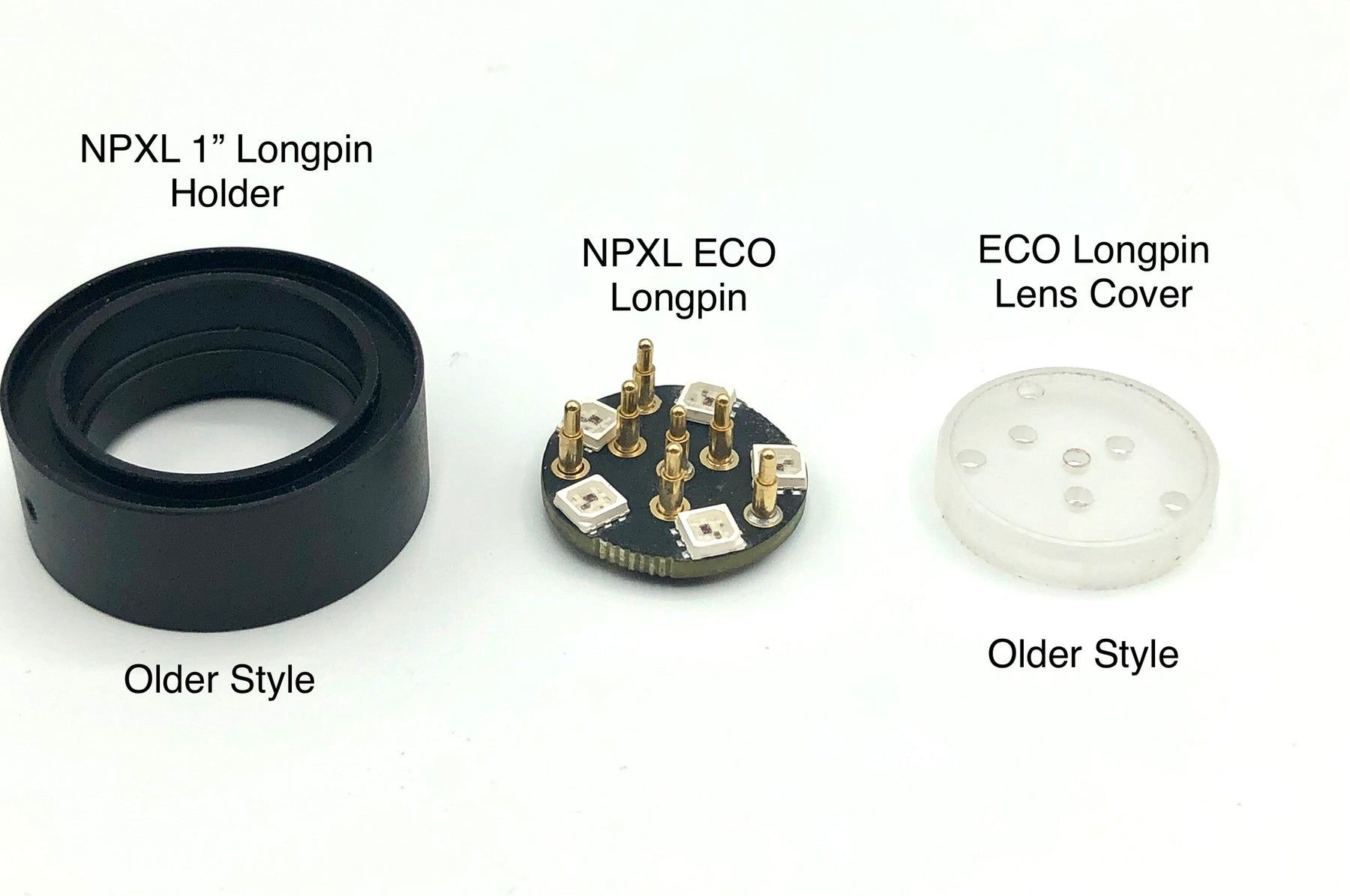

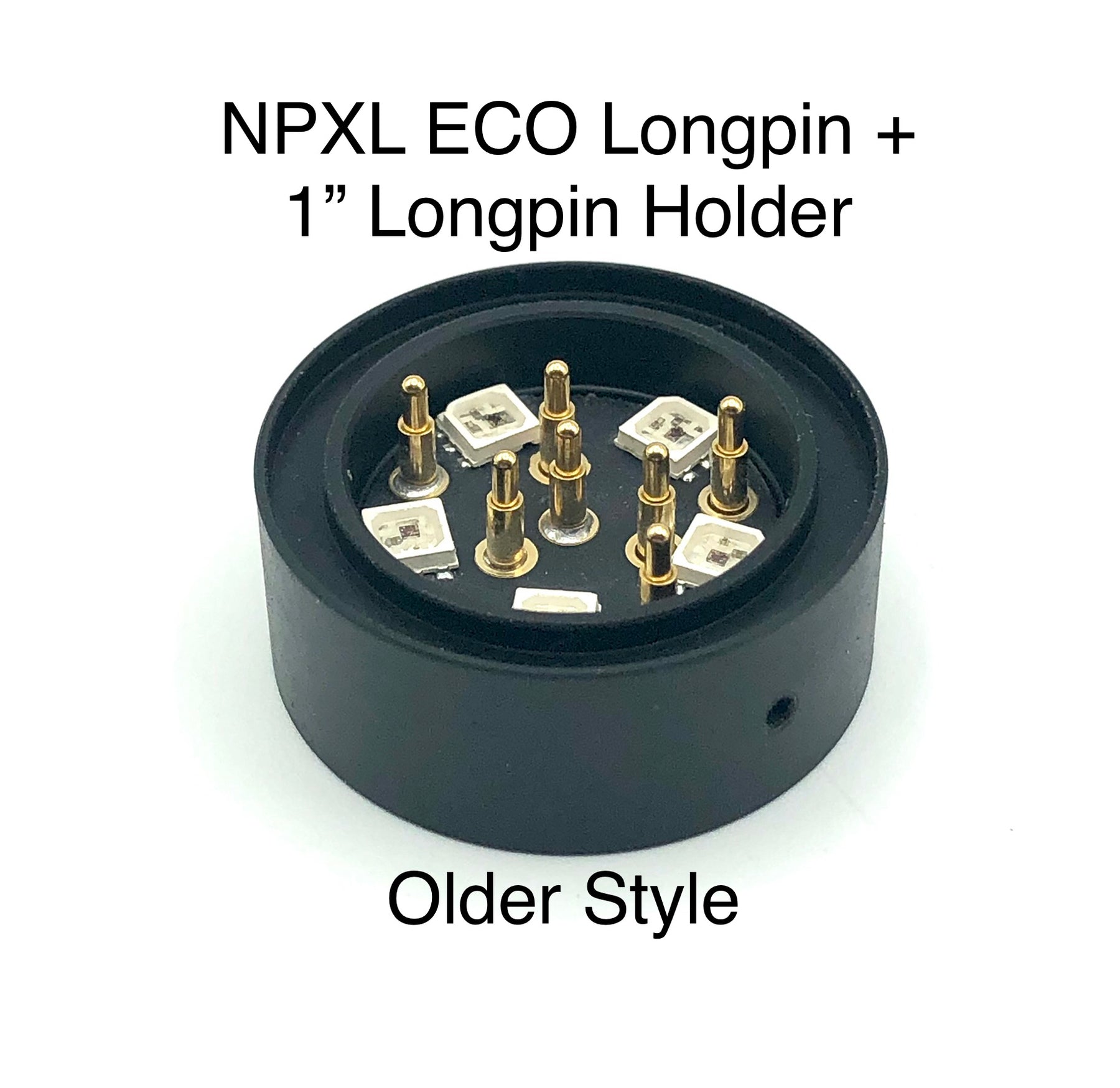

This is designed to hold the LongPin versions of the NPXL Lens Cover(will not work with lens cover made for the uni holder) and magconnect magnets .

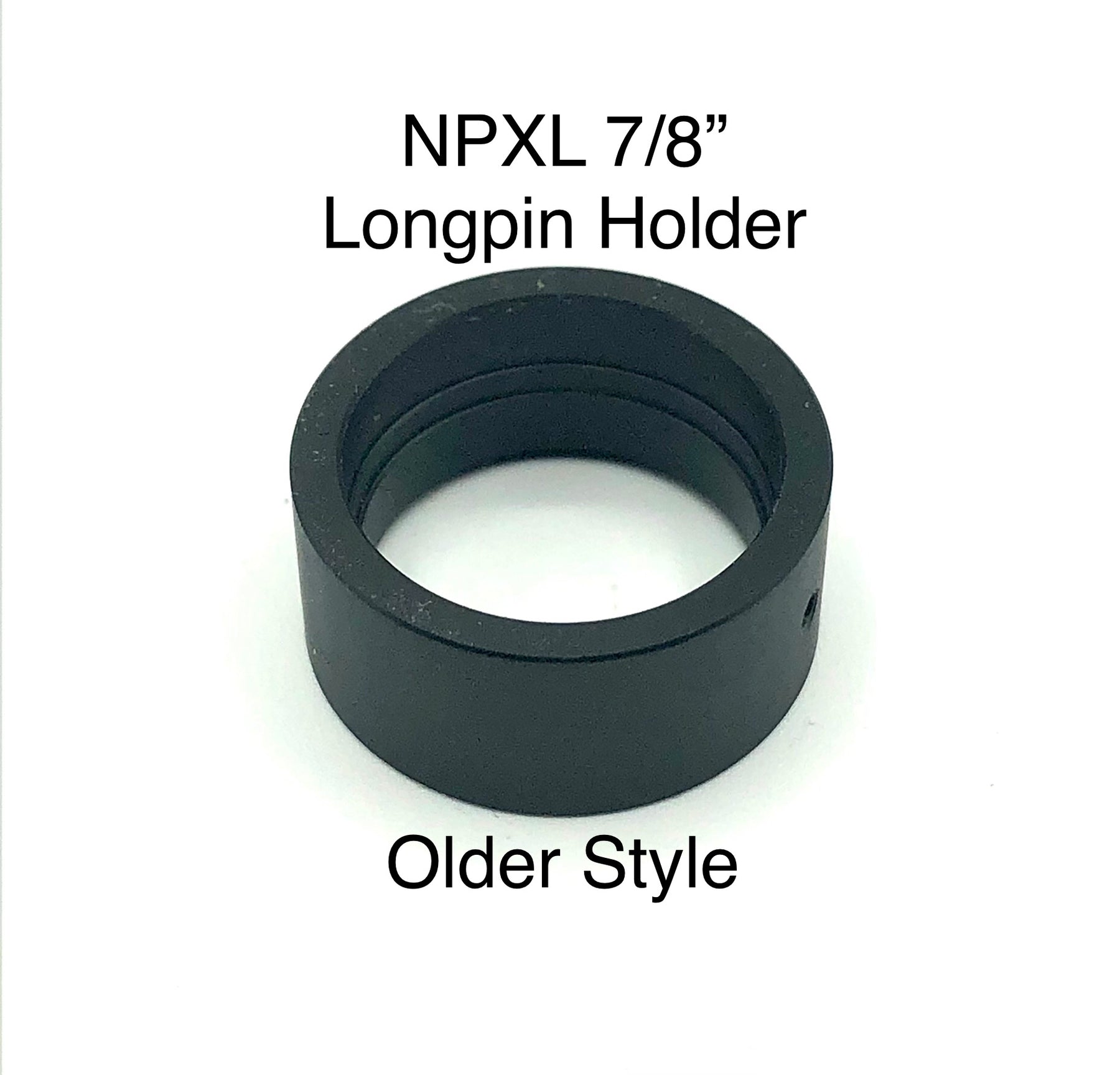

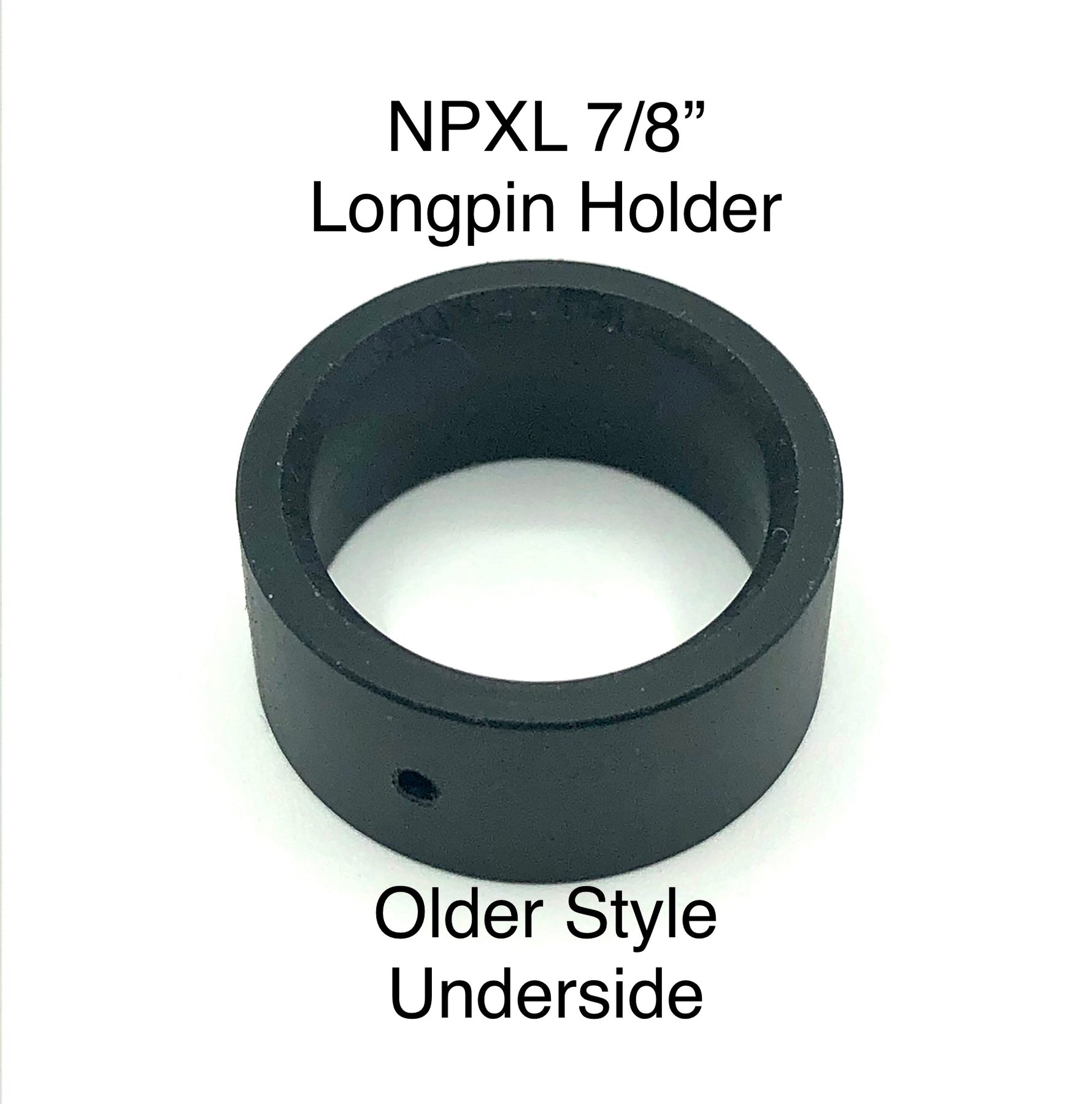

This is the hilt side and for 1″ and 7/8" emitters.
Machined from black ABS. It is not compatible with any third party PCB.
This holder is Mag Connect compatible. Magnets are sold separately here and graciously provided to us by The Saber Armory.
Please note, the magnets are a snug fit but hey will still need be glued in so the strong force of the magnets does not pull them out when they are near each other.
We recommend a low viscosity glue for this.
Be careful when doing this as the magnets are fragile.
Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the hilt before the magnets have been put it and after. Adding the magnets may expand the holder slightly making in a tighter fit. If this is the case lightly sanding the outside of the magnets using a sanding drum or sandpaper to reduce the outer diameter slightly is recommend. This will stop the holder from expanding after installing the magnets.
The PCB is press fit but it is recommended to hot glue the back end of the holder to secure. There are 2 small holes in case you want to drill and tap and use screws to secure the PCB.
