*****DOES NOT INCLUDE PCB*****
This is for the blade side and for 1″ thin walled blades.

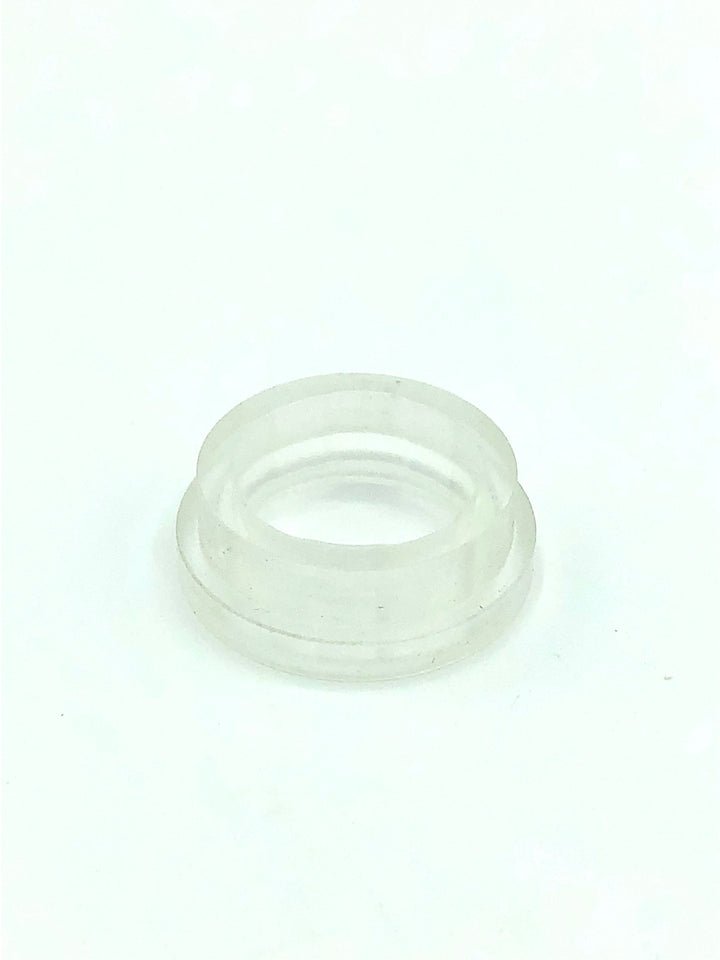

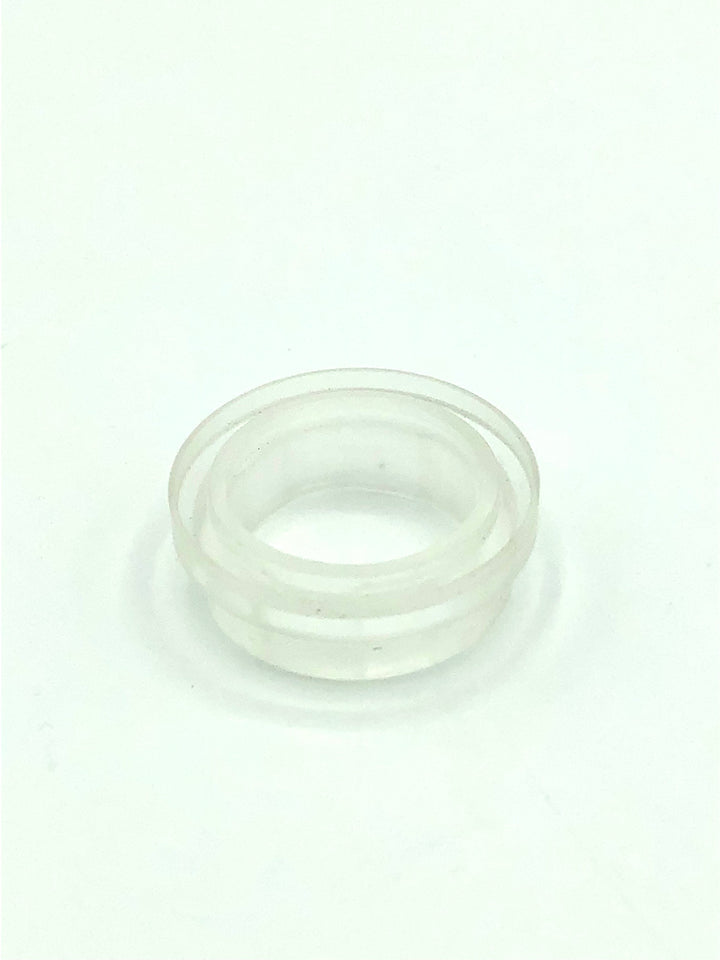

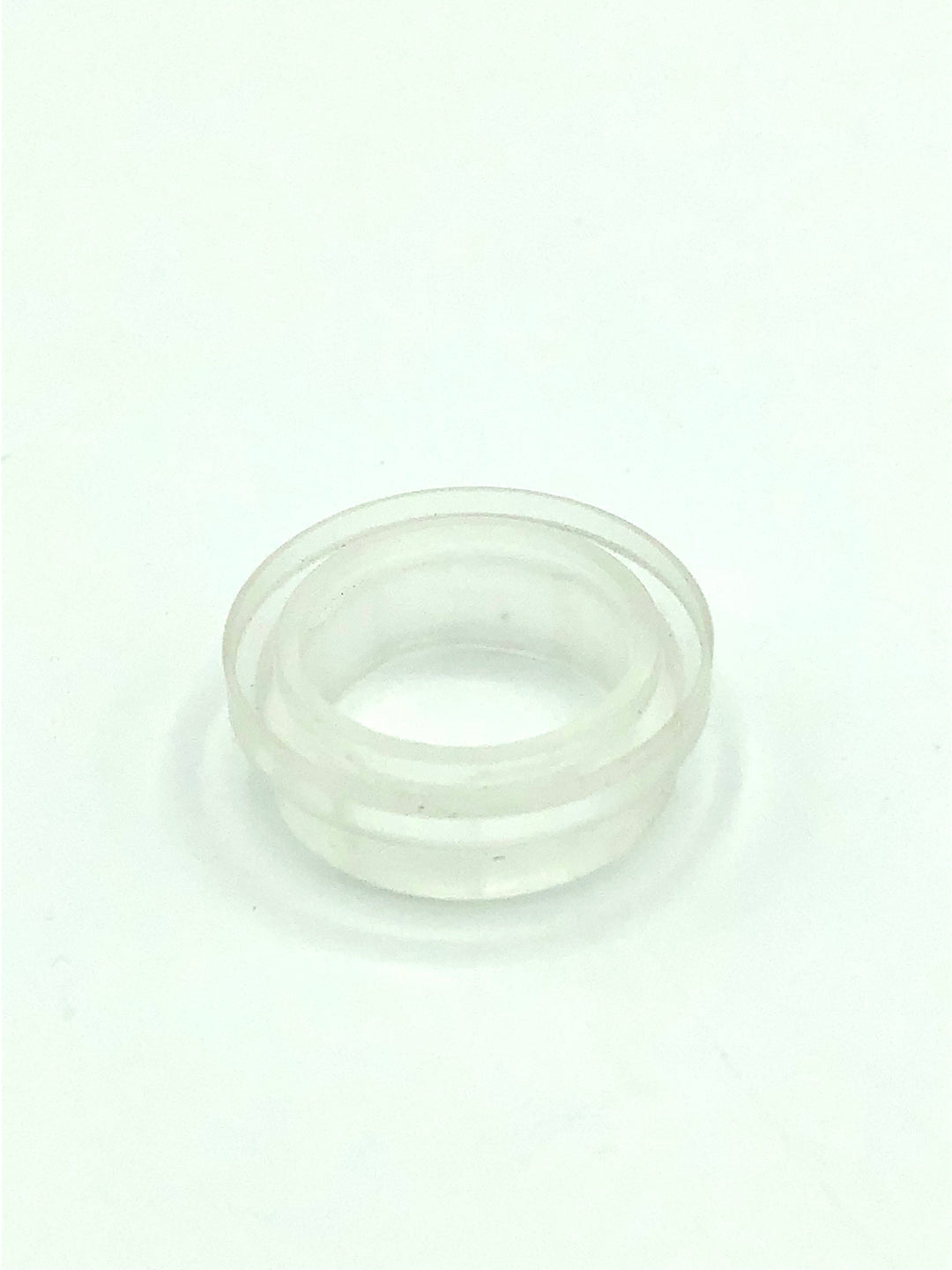

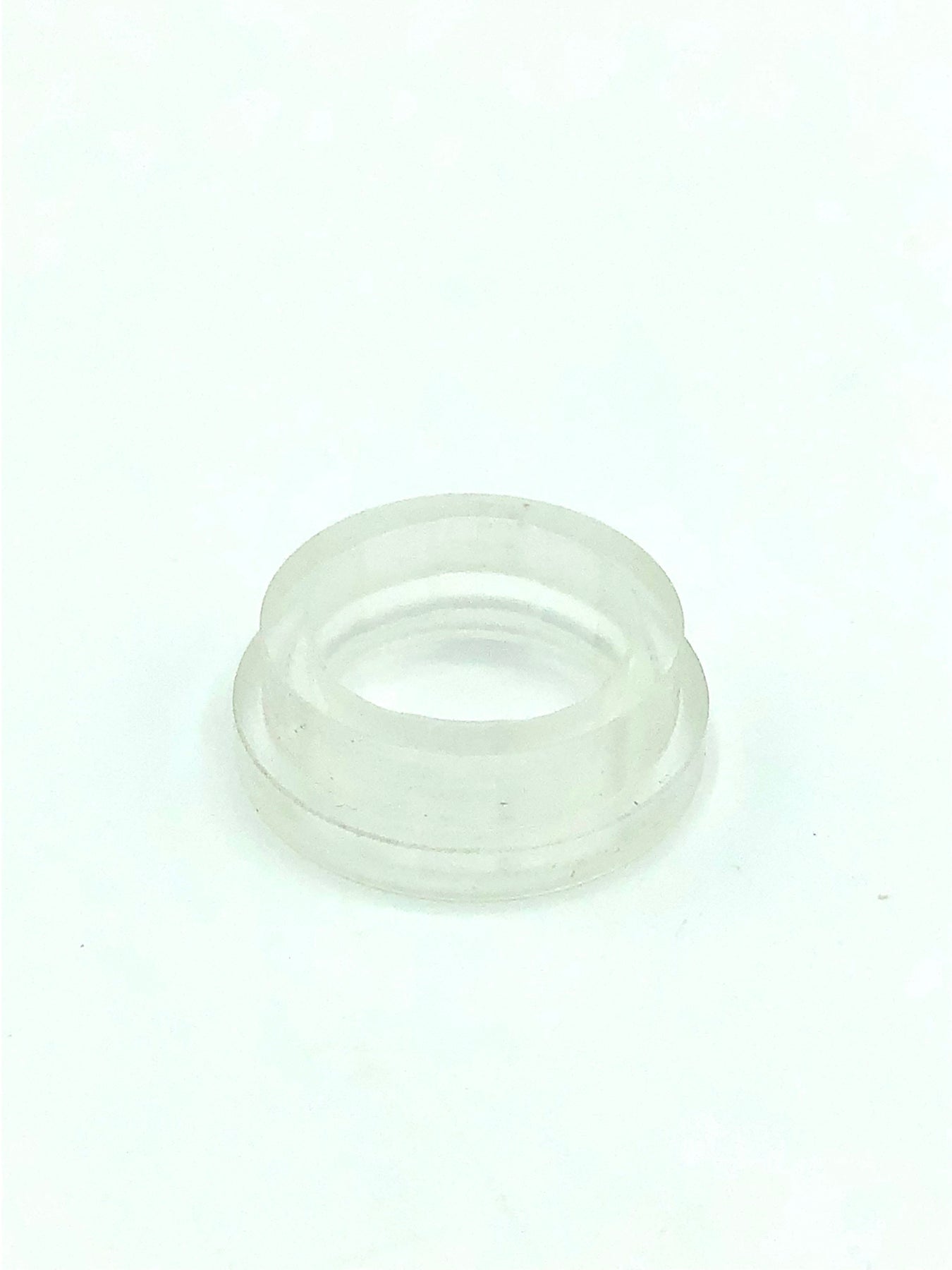

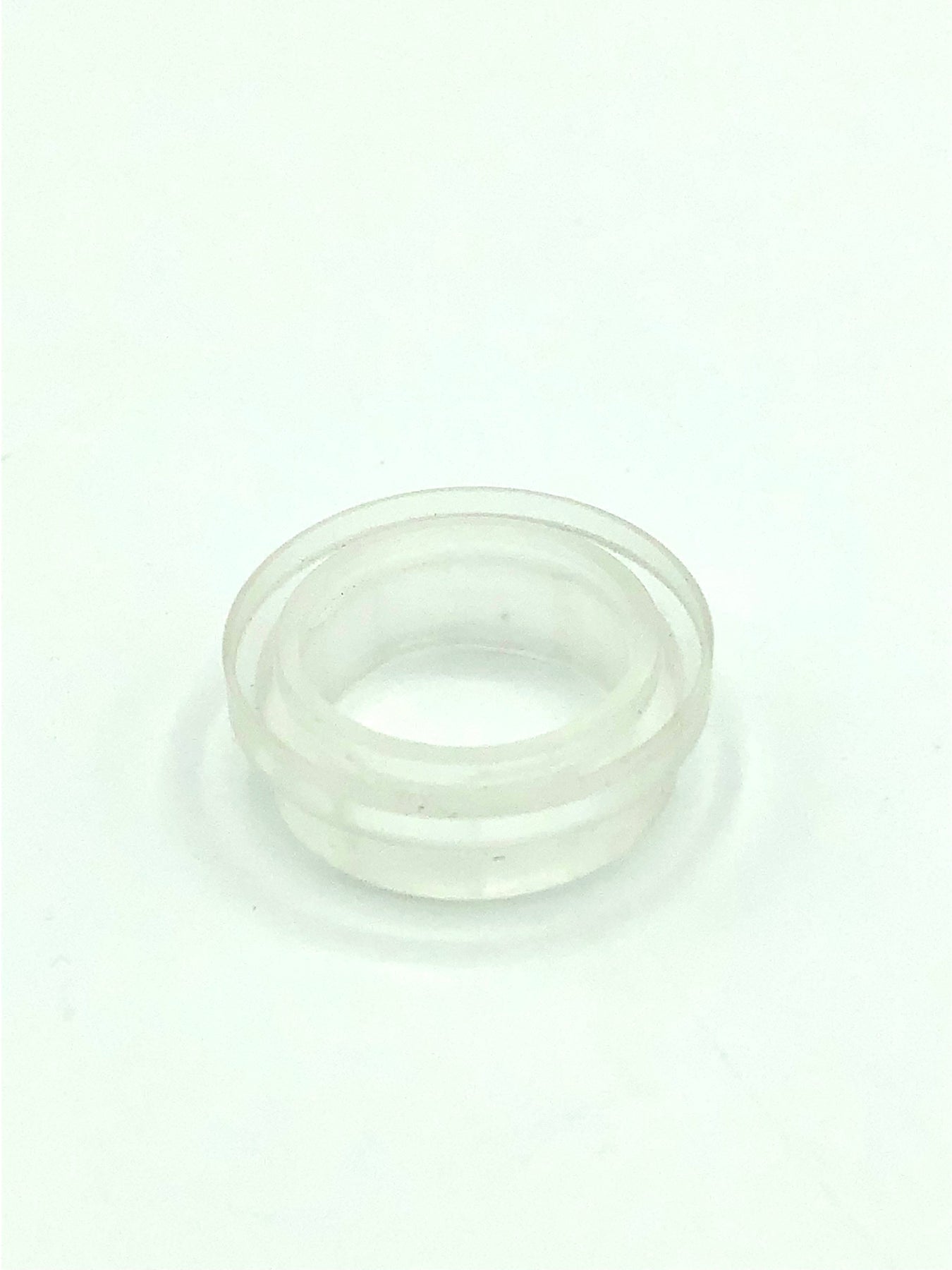

Machined from clear acrylic. It is not compatible with any third party PCB. Designed for this product sold here https://tinyurl.com/npxlbladeside
It can also be used for the blade side PCB with LEDs to make a quick NeoPixel blade plug

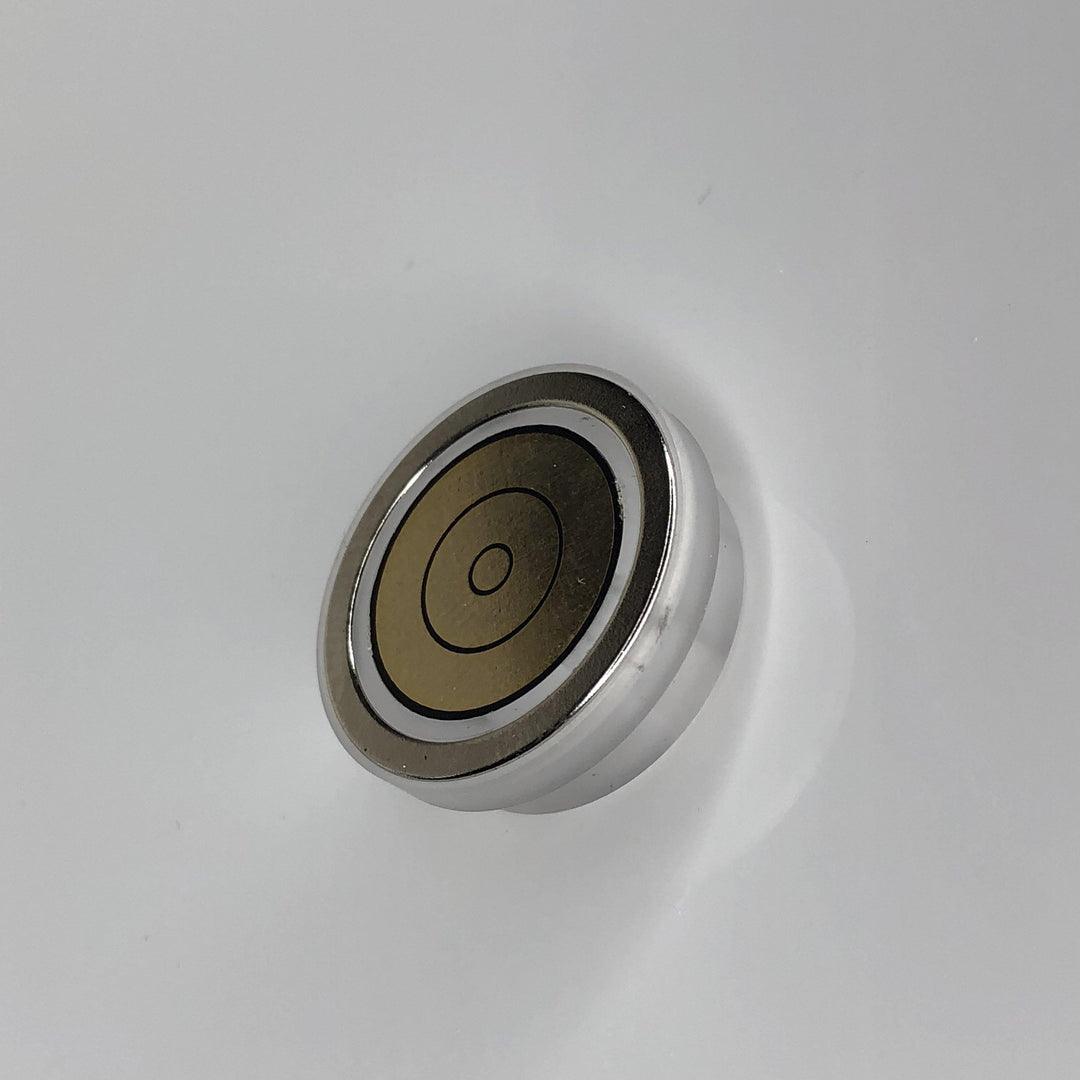

This is MagConnect compatible. Magnets are sold separately here https://tinyurl.com/magconnectors.
Be aware the magnets are a snug interference fit.
They will still need be glued in so the force of the magnets does not pull them out when near each other.
We recommend a low viscosity CA glue for this.
Be careful when doing this; the magnets are fragile. Also, it is important to note that due to the tolerances, be sure to check the fitting of the holder inside the emitter before the magnets have been put it and after. The addition of the magnets may expand the holder slightly resulting in a tighter fit. If this is the case, we recommend lightly sanding the outside of the magnets using a sanding drum to reduce the outer diameter slightly. This will stop the holder from expanding after installing the magnets.

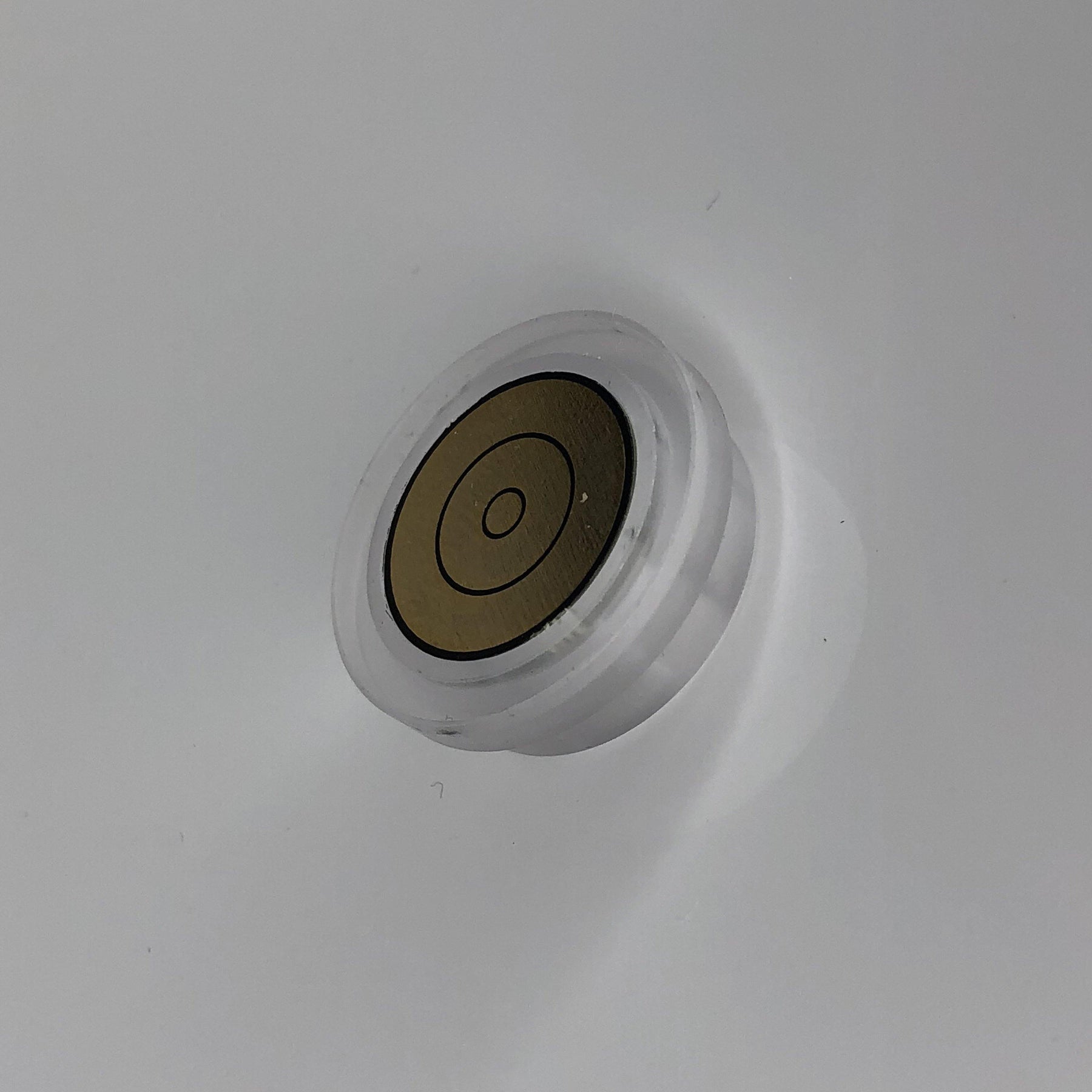

Note that the PCB is press fit but it can be further secured using a small dab of hot glue or equivalent.
