Regular price $18.00 Save $-18.00
/
Shipping calculated at checkout.

BUYER DISCRETION: This product uses ShtokCustomWorx blade side PCB connectors.
While the blade side PCB is a fantastic product, it is not compatible with certain LGT/SaberStudio sabers that use their own SaberStudio hilt side neopixel pin connector.
Some of their connectors use two separate pins for the data line, which will not line up with the blade side PCB used on this product. You will either need to upgrade your saber with a compatible connector, such as the NPXL V3, or use it with a saber that utilizes a different neopixel hilt side connector.

DIY Kit for making your own 1" trans white neopixel blade. Please read all information in the listing before purchasing. There are 3 different buying options for blade kits.

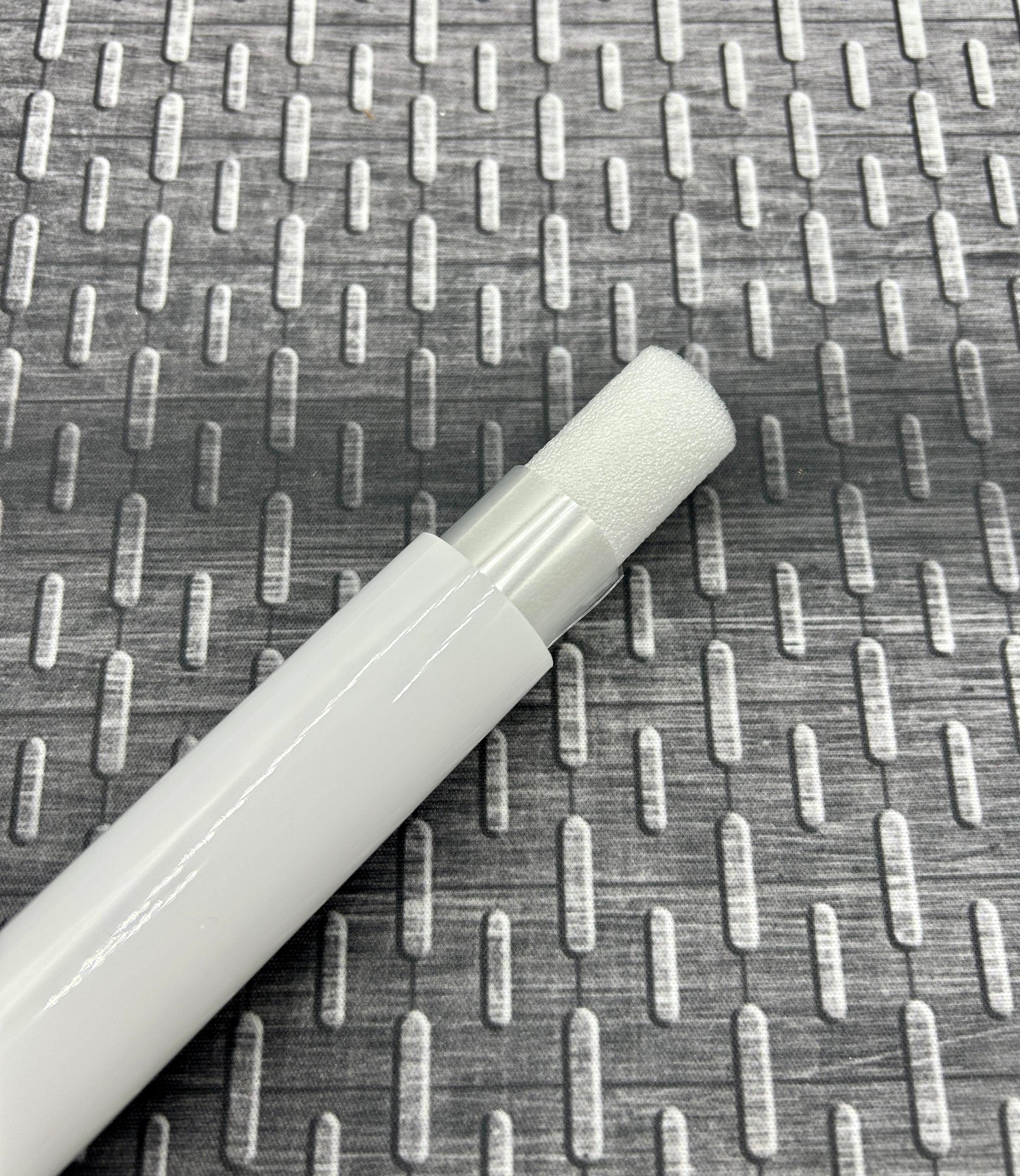

Option 1 includes- 1" trans white blade, diffusion foam, and threaded blade tip

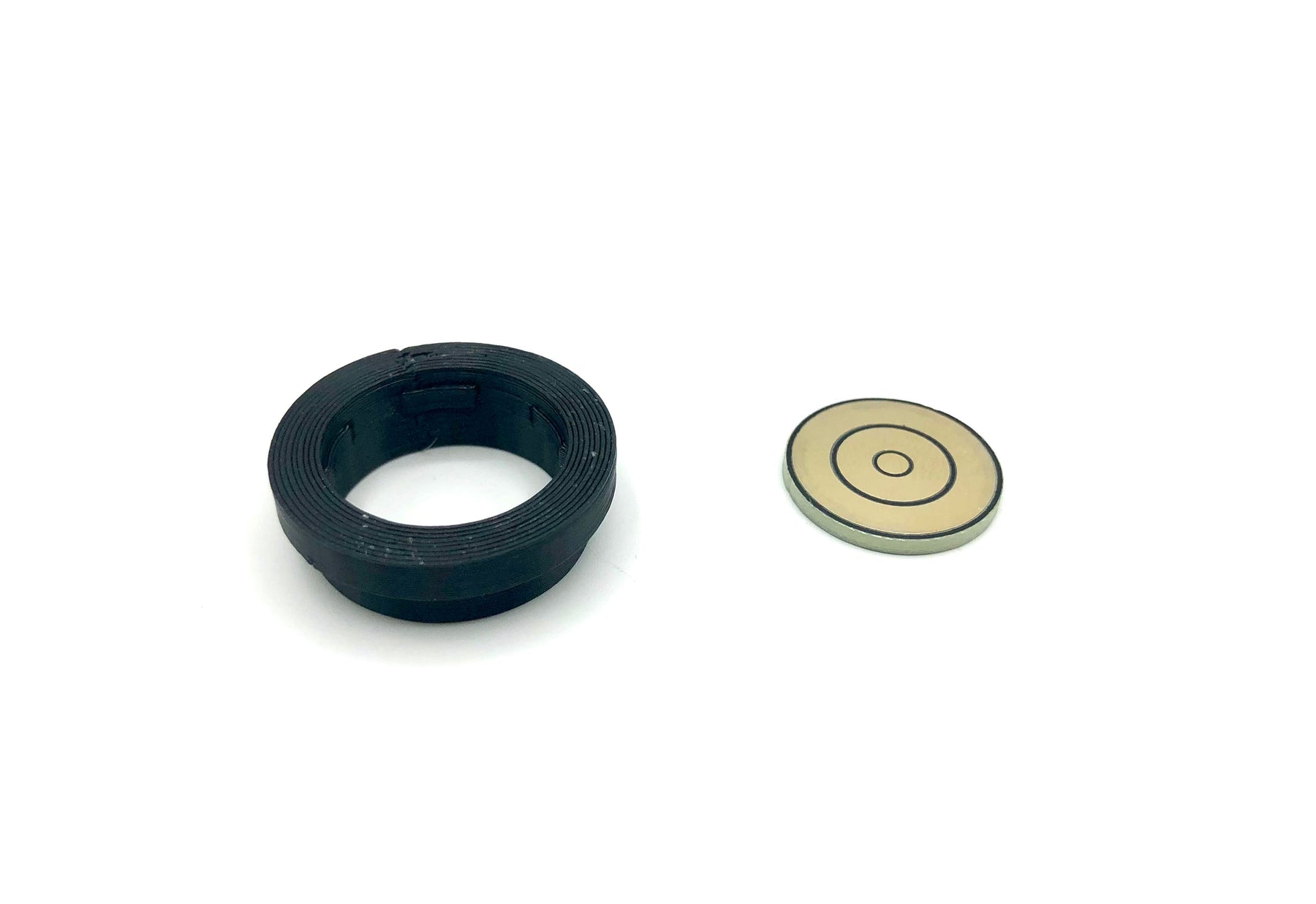

Option 2 includes- 1" trans white blade, diffusion foam, threaded blade tip, 1" thin walled blade side PCB holder, and ShtokCustomWorx blade side PCB with 330ohm SMD resistor

Option 3 includes- 1" trans white blade, diffusion foam, threaded blade tip, 1" thin walled blade side PCB holder, ShtokCustomWorx blade side PCB with 330ohm SMD resistor, and two BTF Lighting WS2812B LED strips(each strip contains 144 leds)

Please note that this is a DIY kit and blades are not fully assembled. You are responsible for making your own blade.

All blades come with a standard length of 36", for CUSTOM LENGTHS THAT ARE SHORTER THAN 36", PLEASE MAKE A NOTE IN YOUR ORDER FOR THE DESIRED LENGTH.

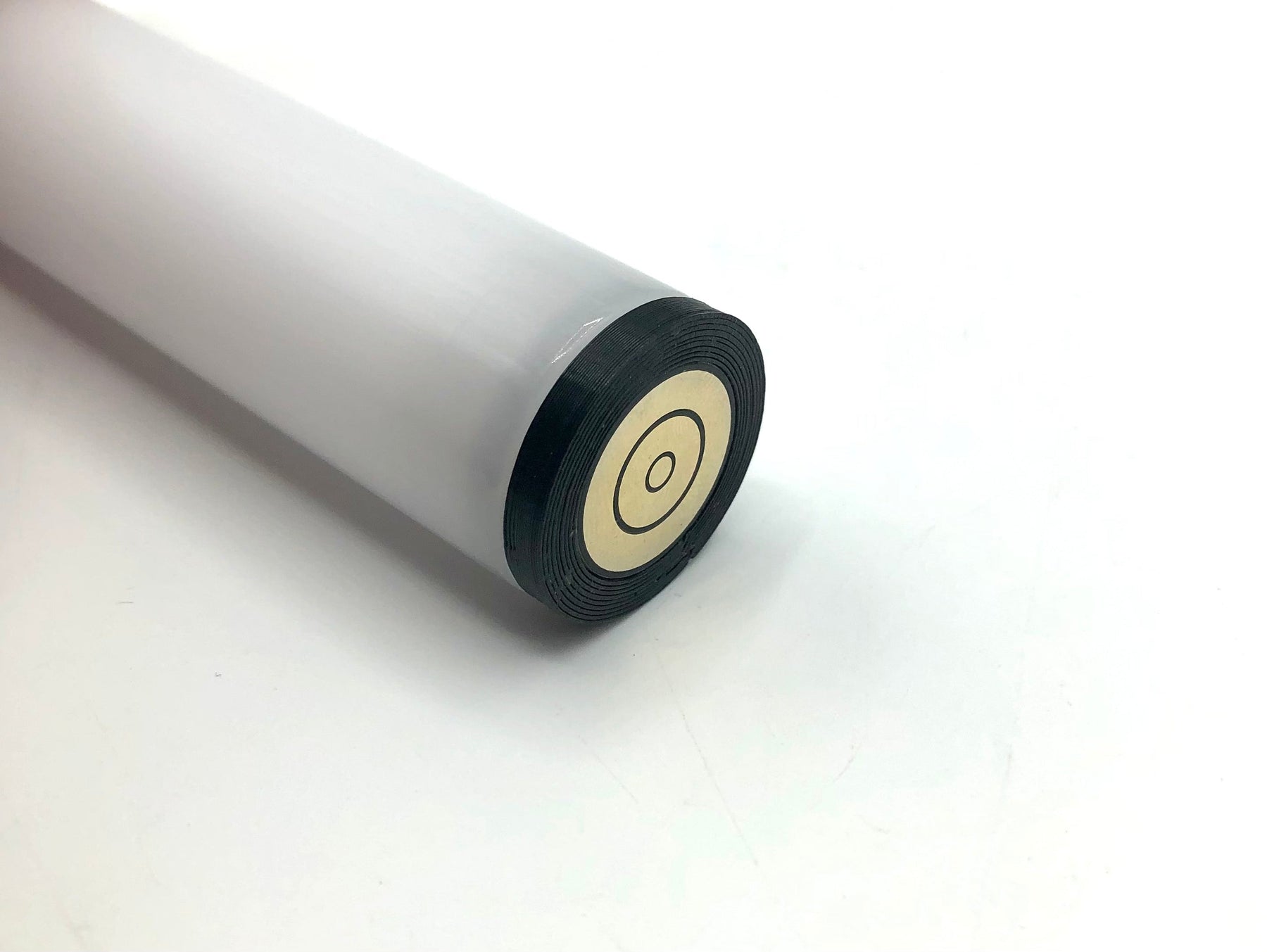

Blade material is 25.3mm in outer diameter with a wall thickness of 2mm. Bases of the blades need to be modified to fit the 1" thin walled blade side PCB holder. We will make this modification for you based on the length chosen.

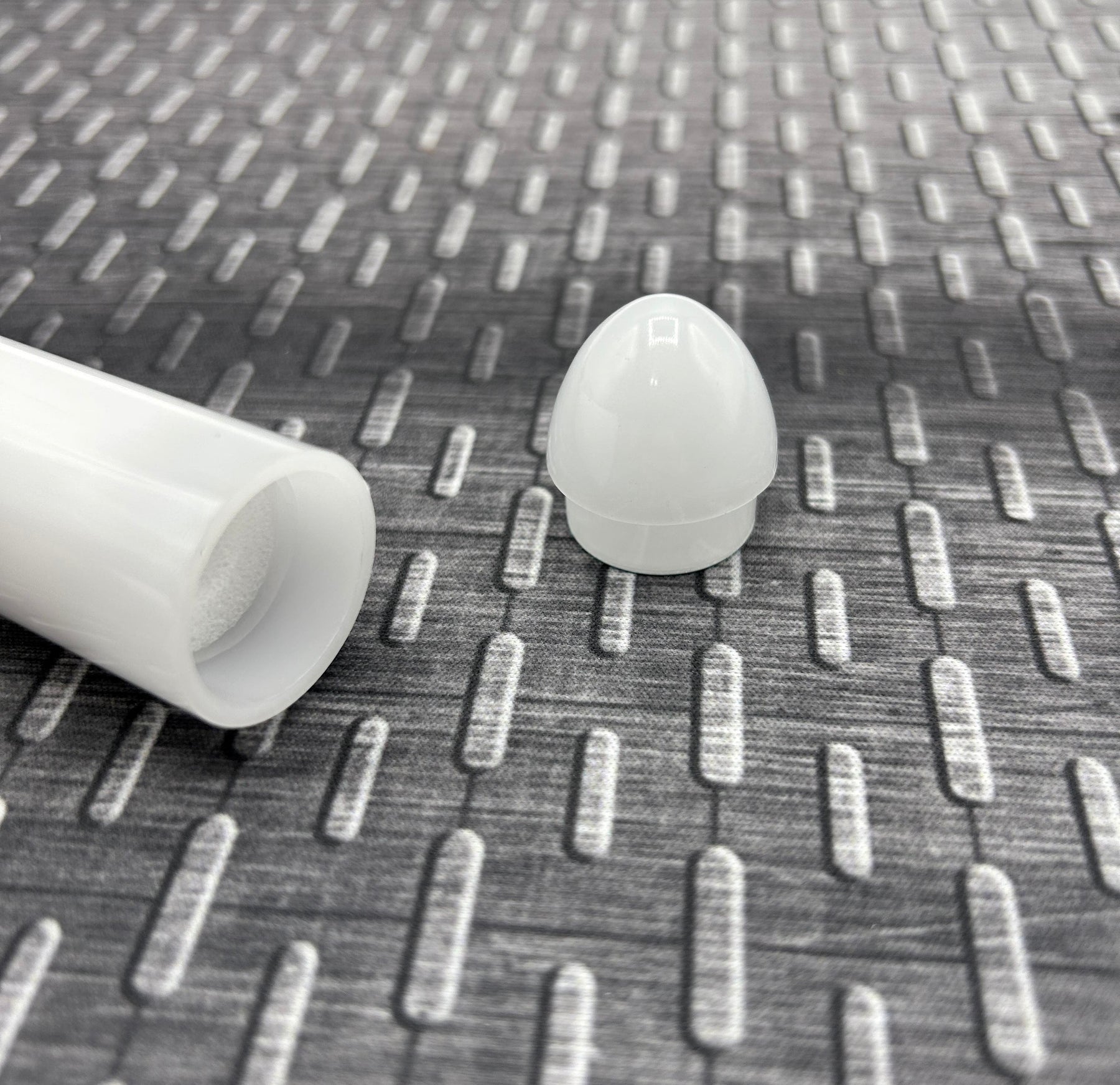

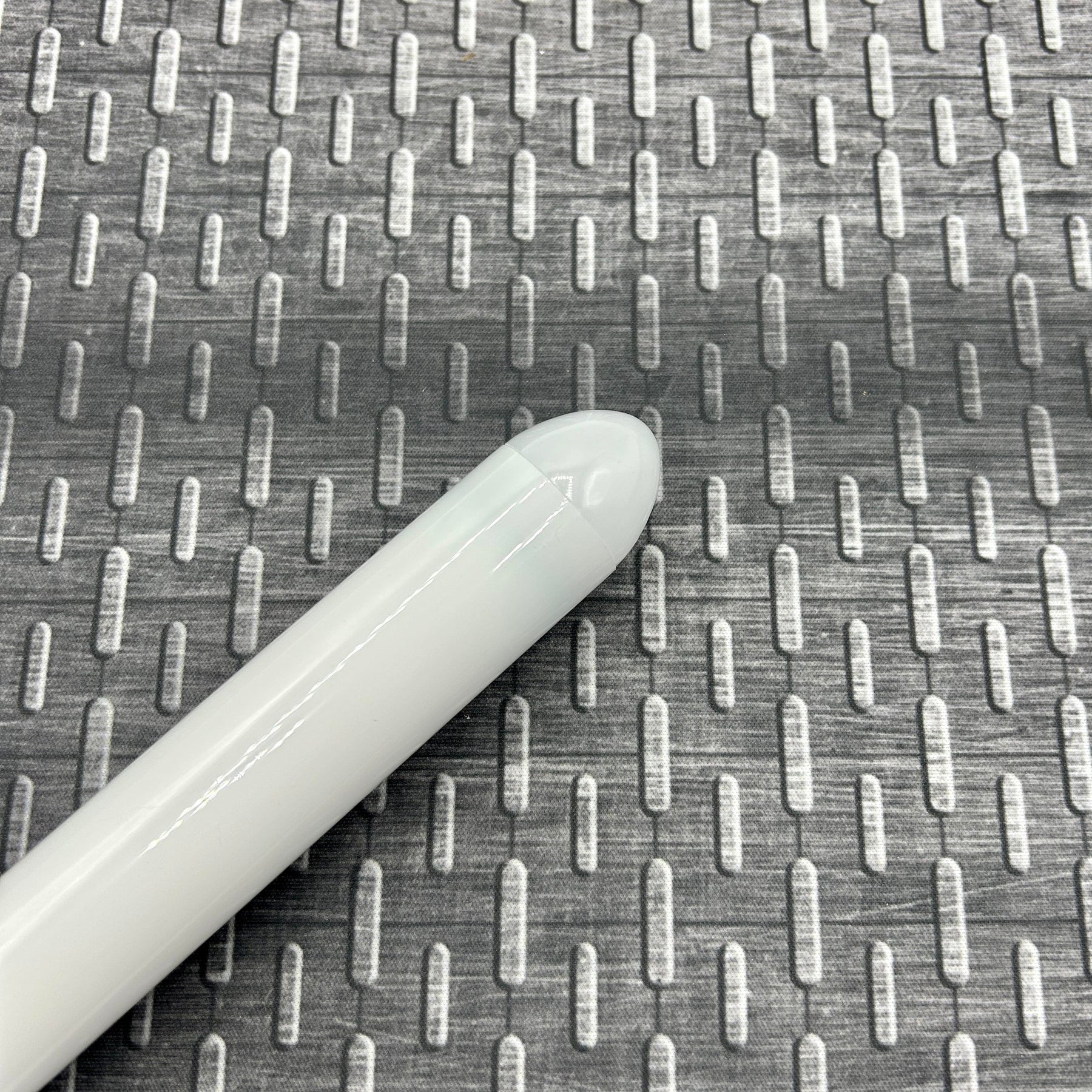

All blades have threaded male tips with matching female threads at the top of the blade. These are not compatible with other blade materials.

Diffusion foam has been custom made to fit the BTF Lighting led strips, other led strips may require some trimming to fit inside.

BUYERS NOTE: these will not work with standard thick walled blade side PCB holders, they will fit standard thin walled blade side PCB holders with the base bored out slightly with a step bit. This also makes the PCB holder a snug press fit without the use of any type of glue.
