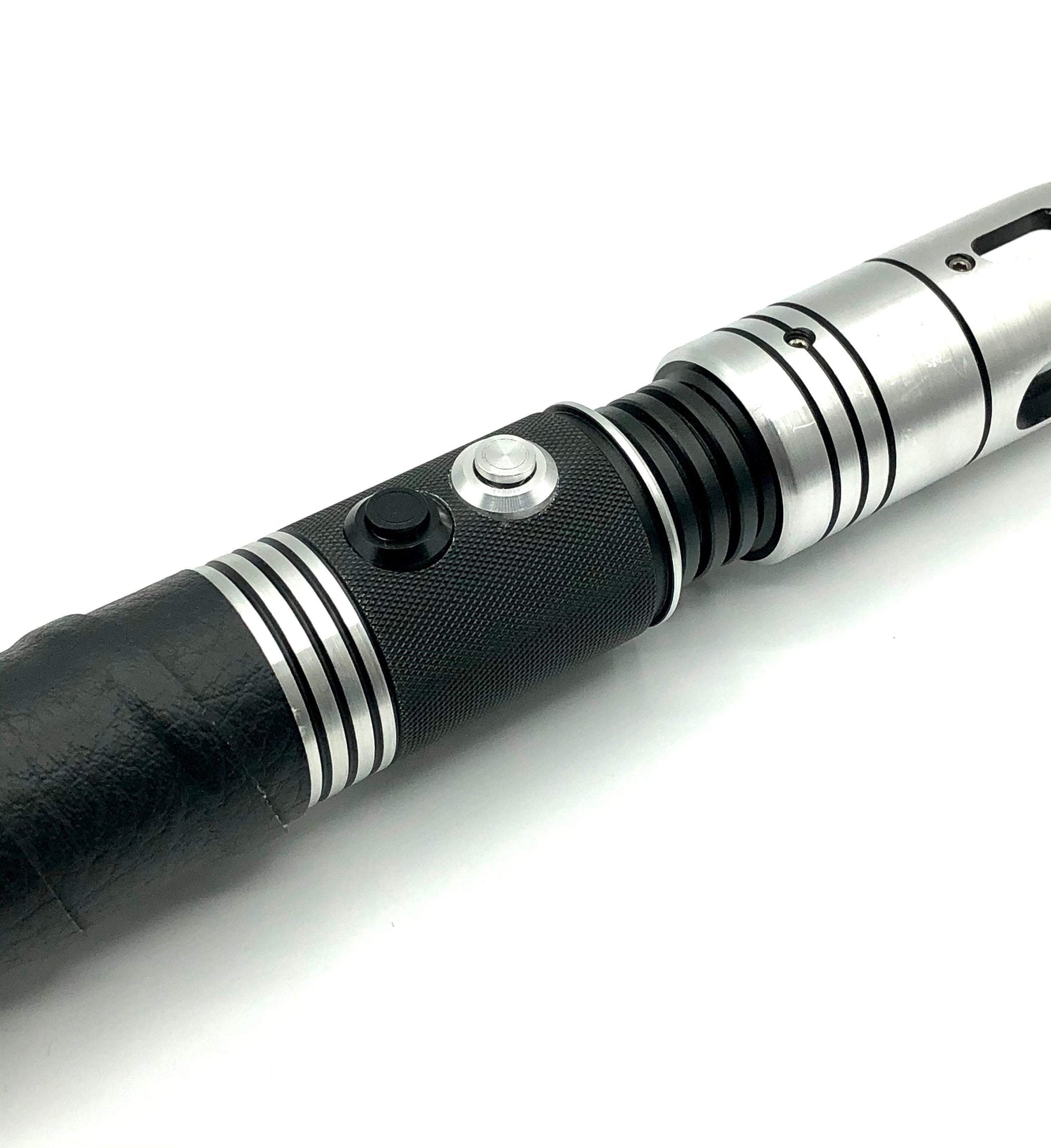

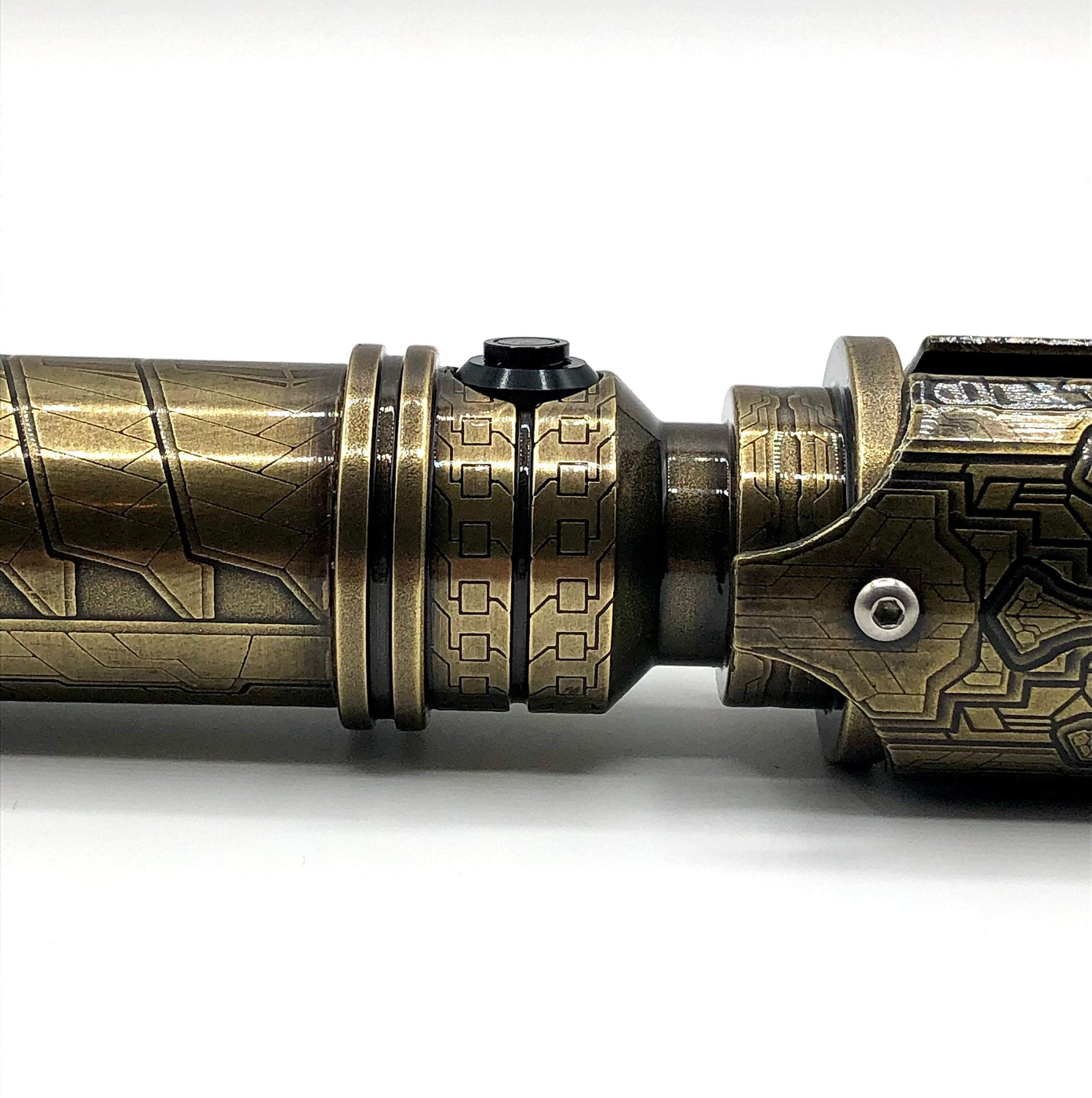

Switch plunger actuators designed for 12mm AV switch most commonly found on lightsaber hilts

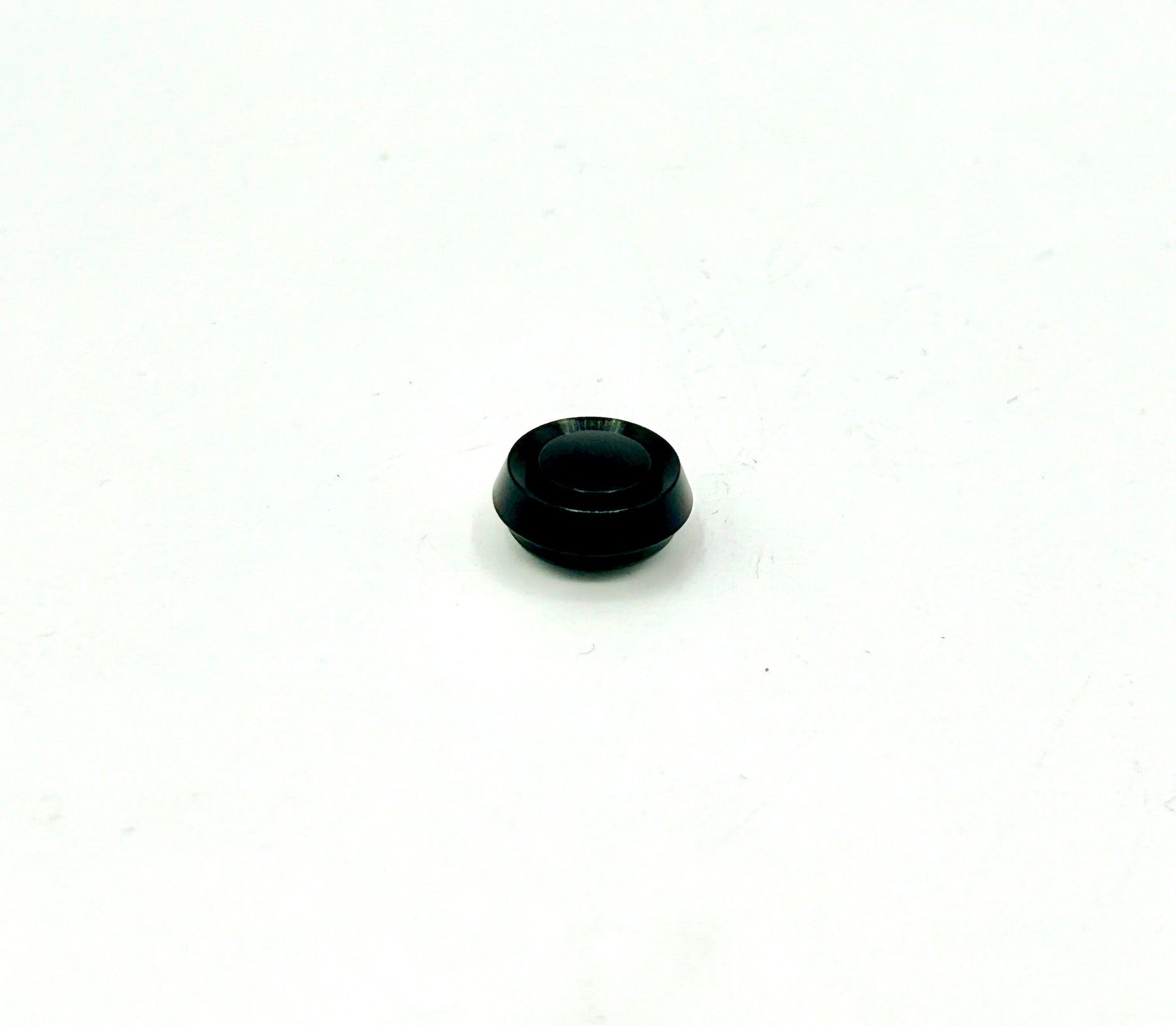

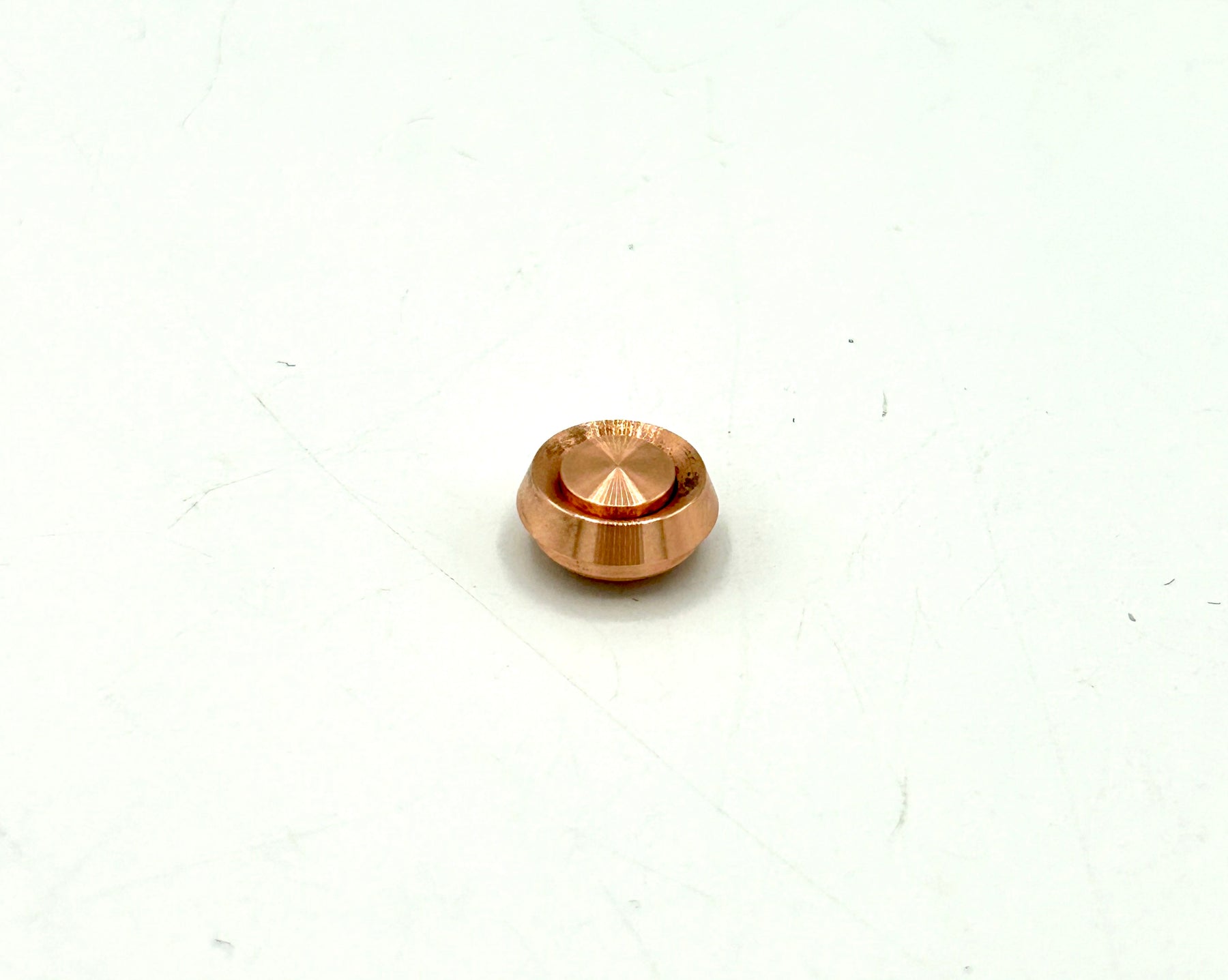

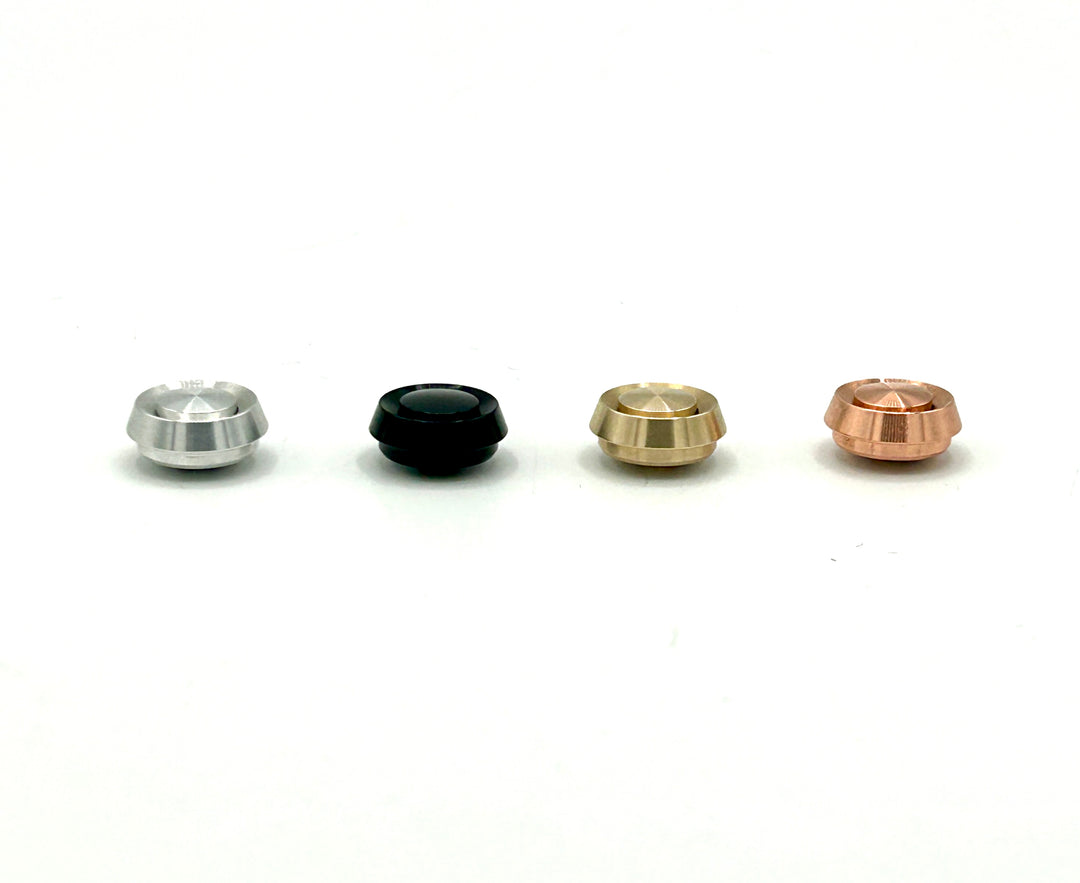

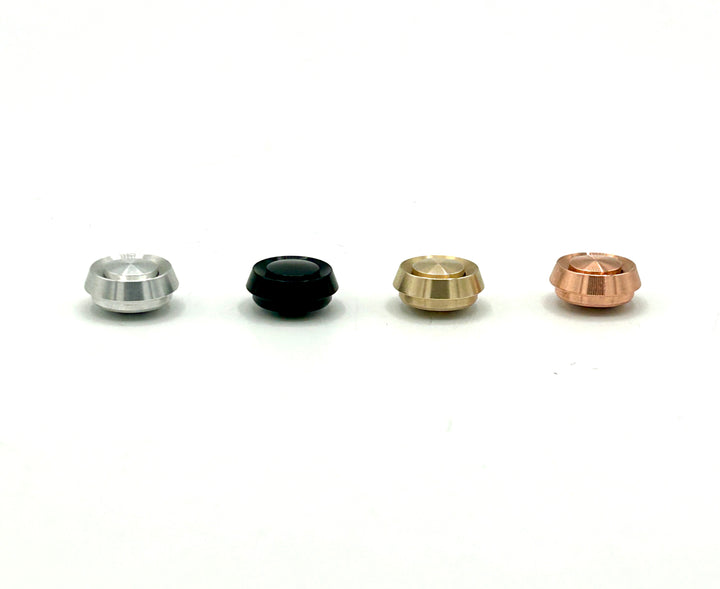

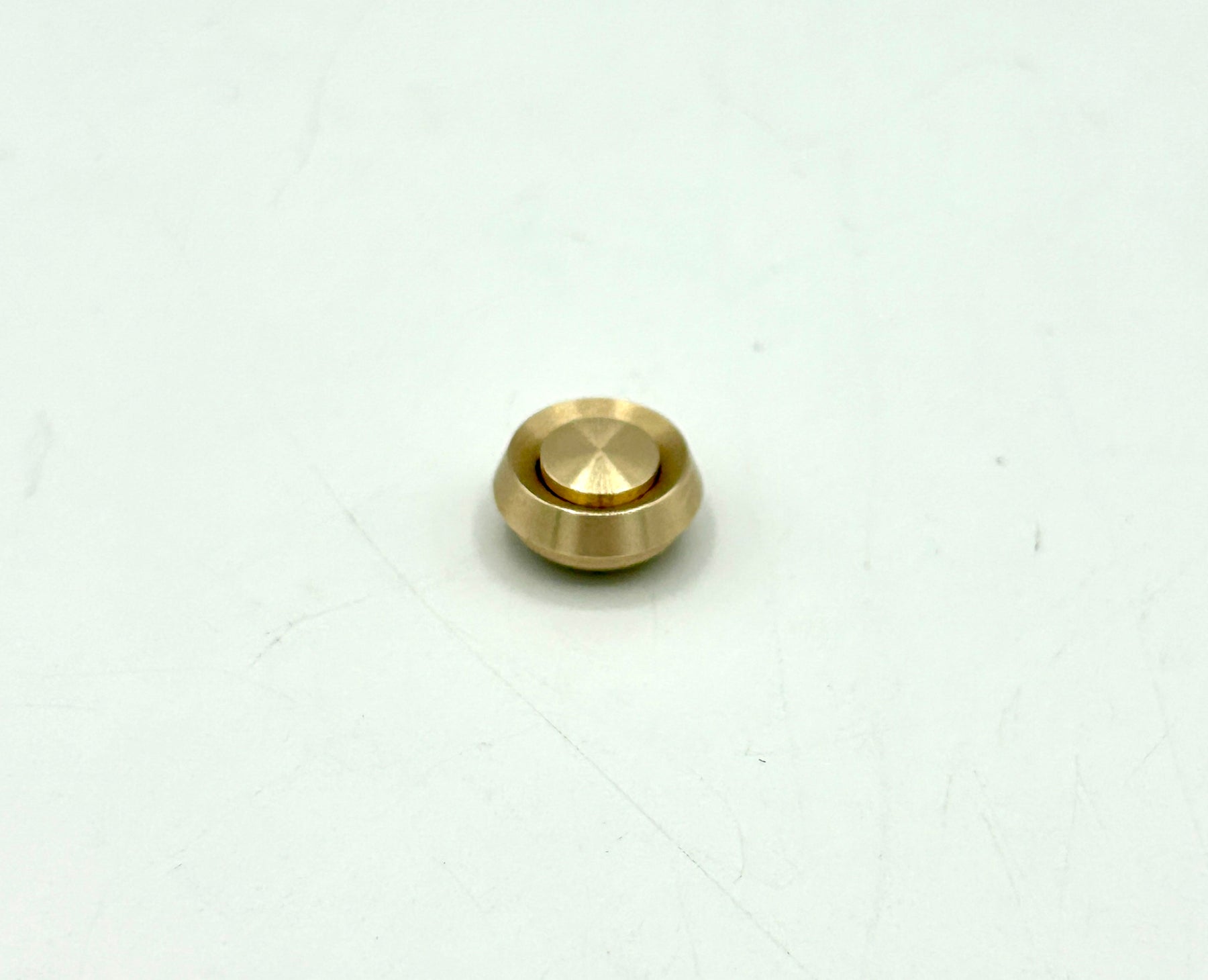

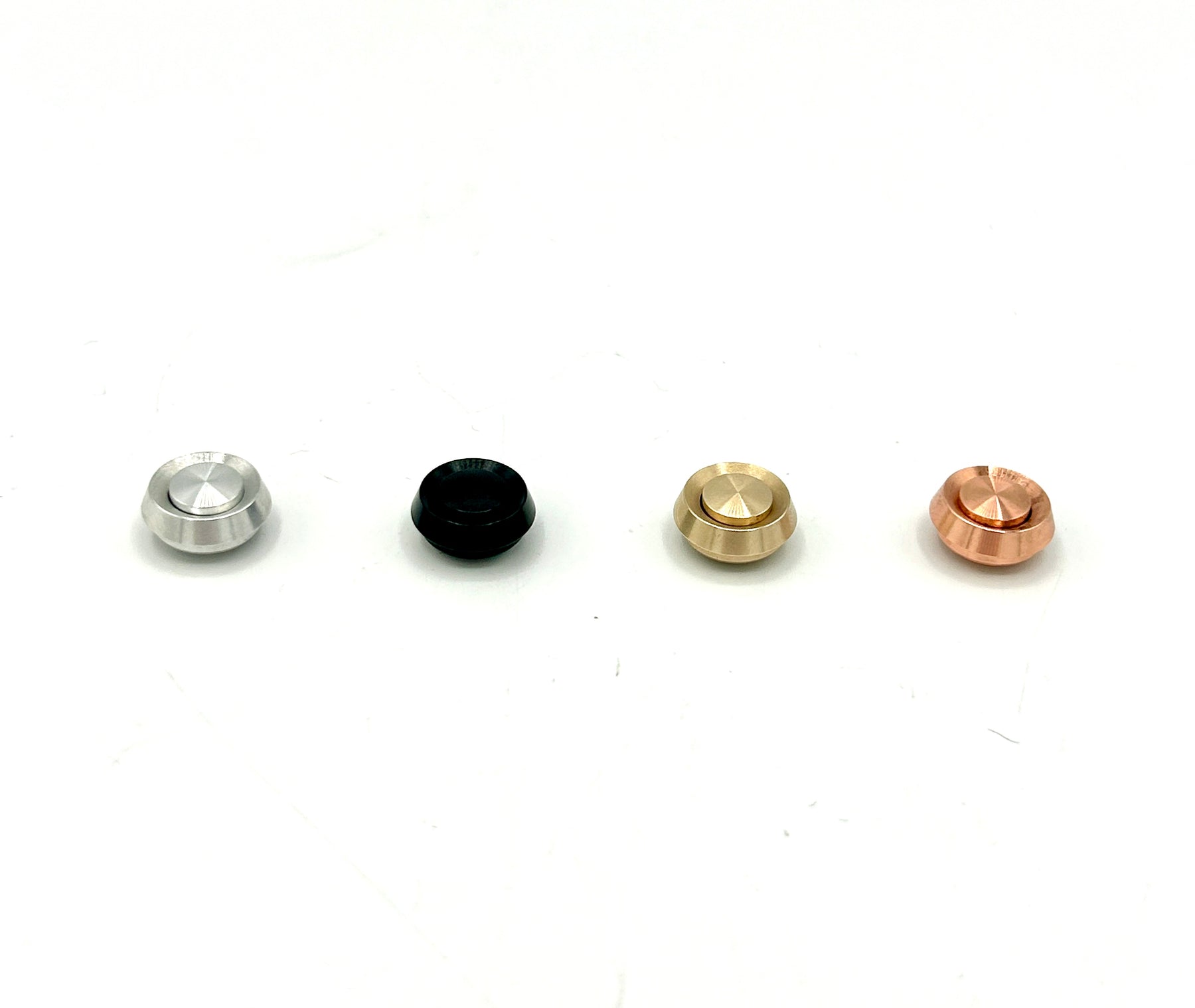

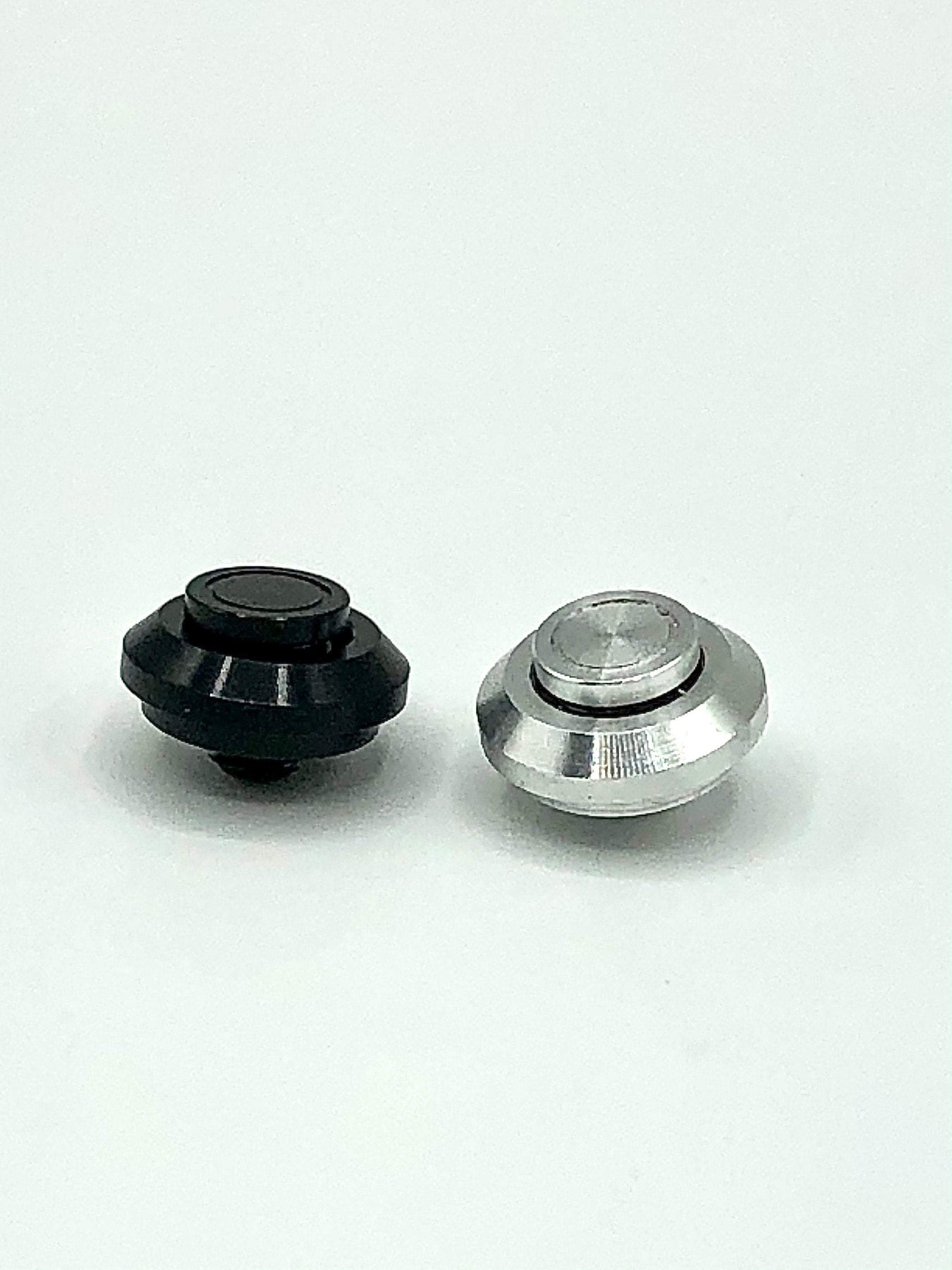

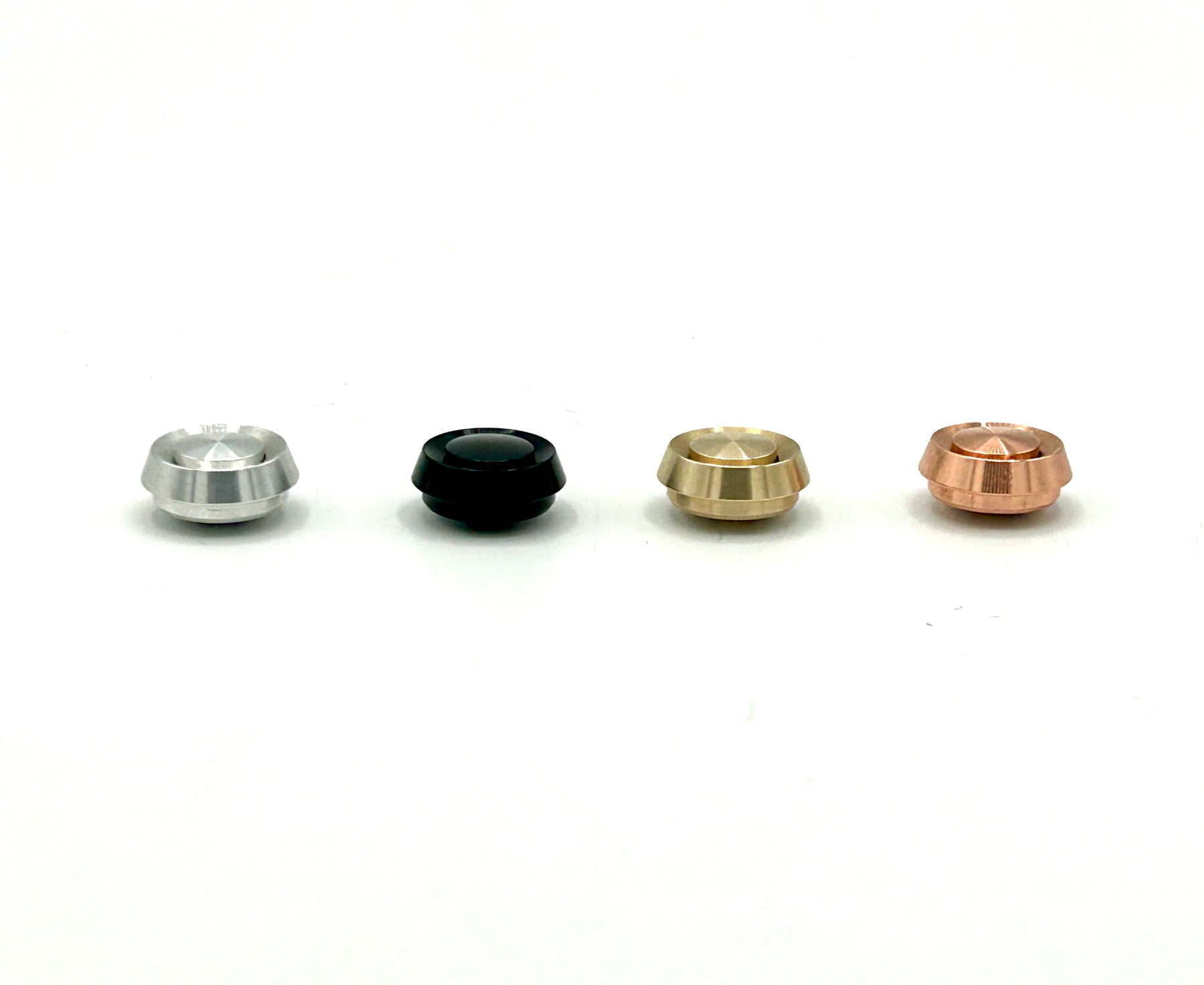

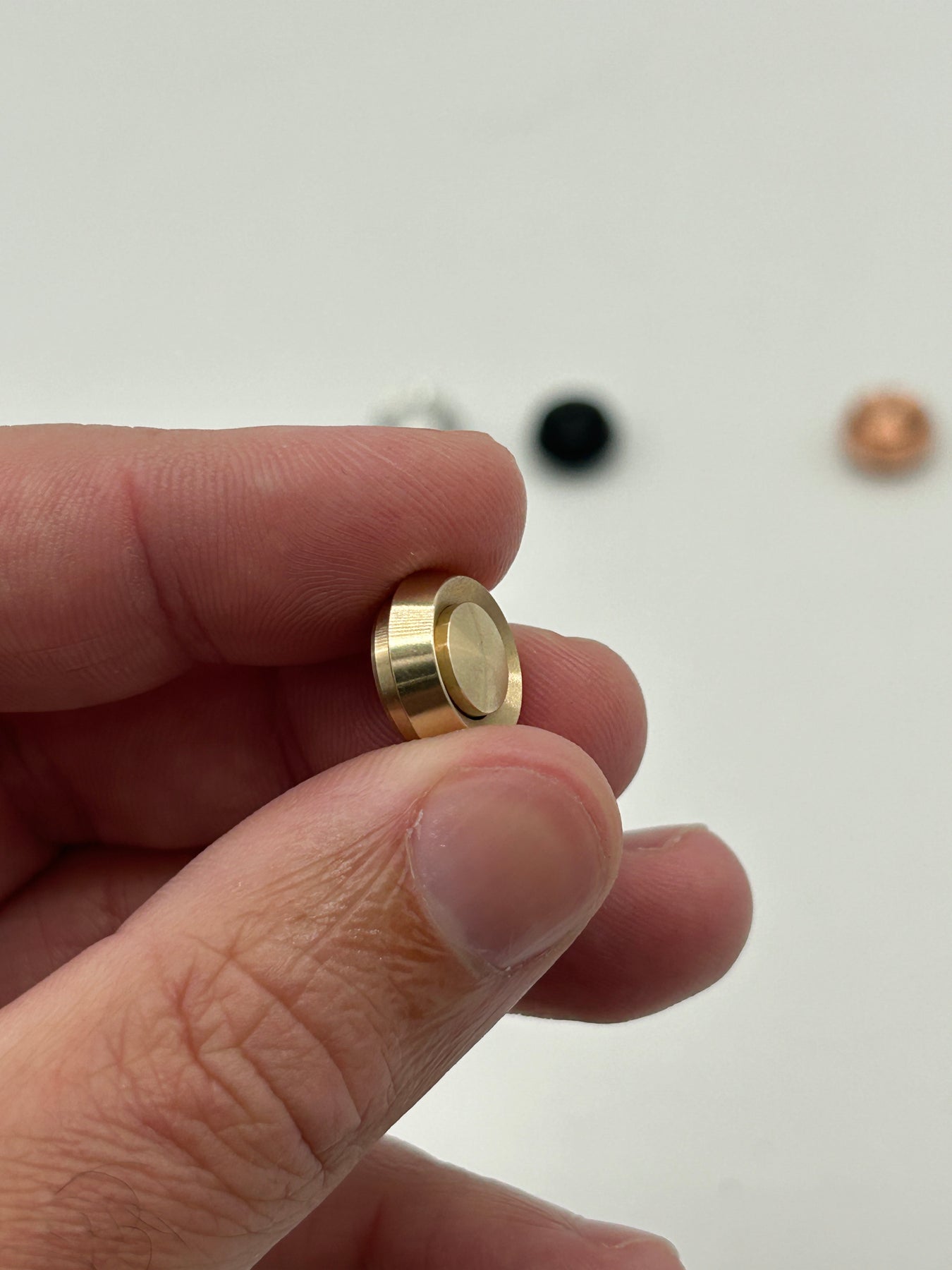

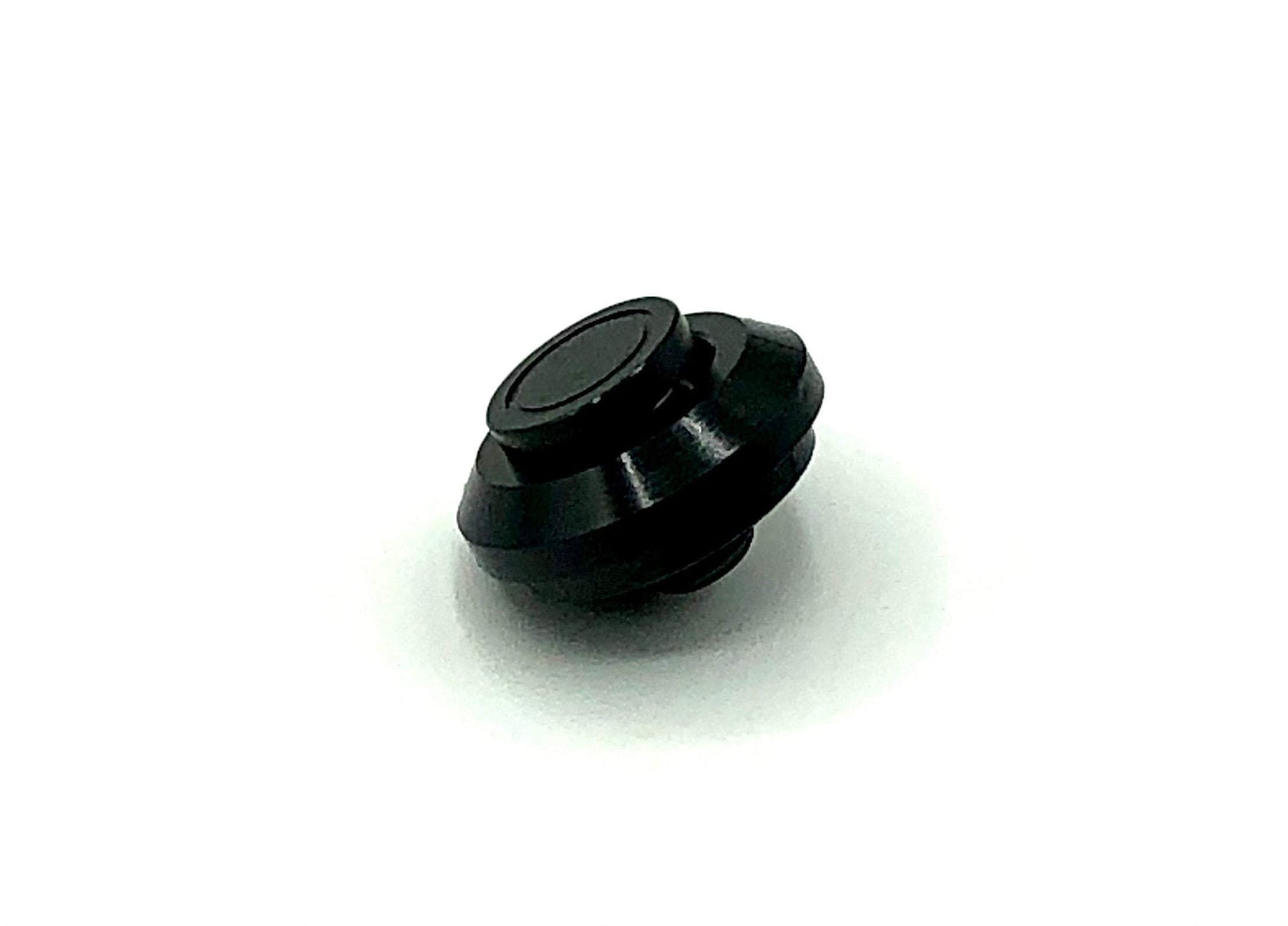

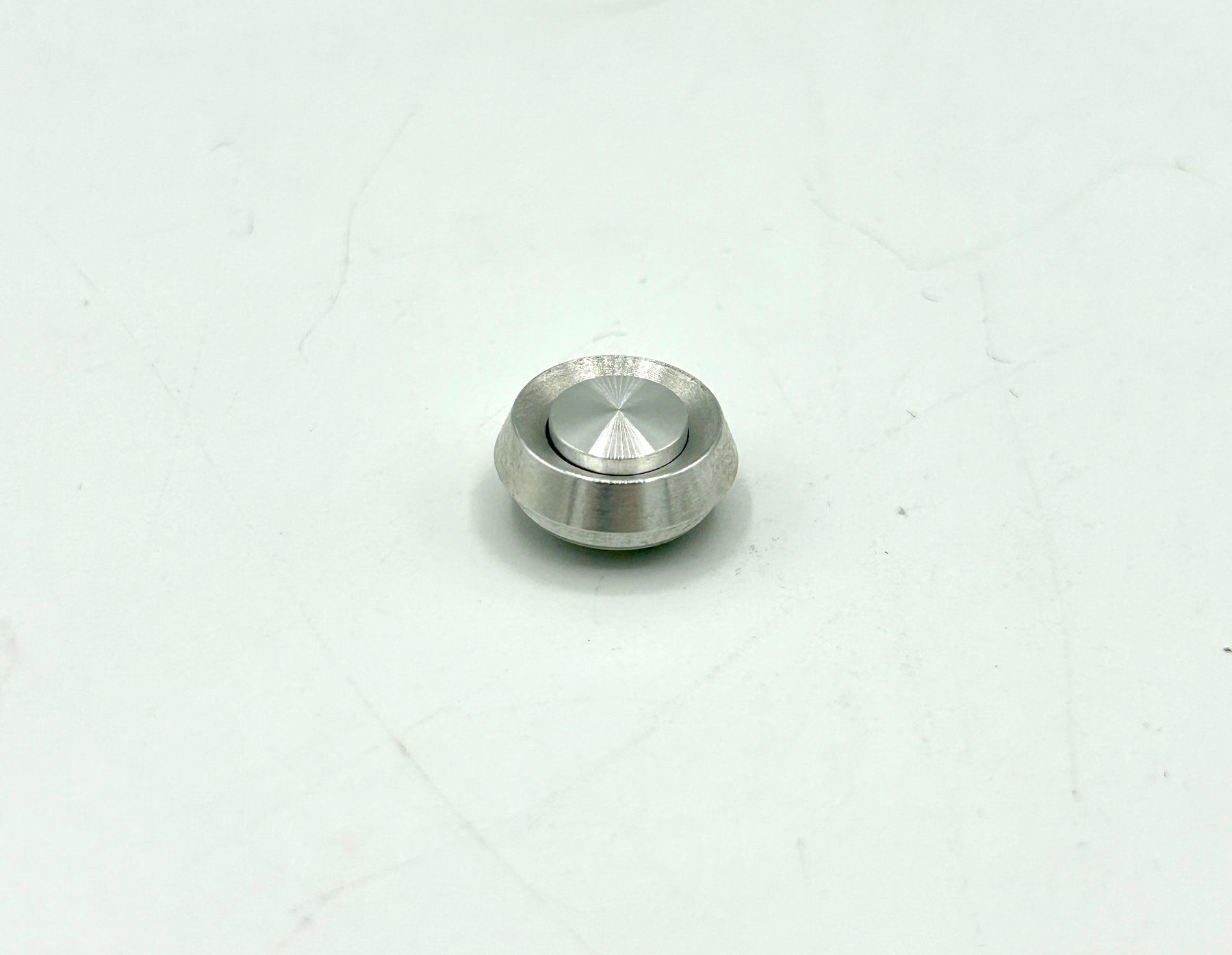

Made in various finishes including, standard aluminum, anodized black, brass and copper.
Intended to assist with removable chassis electronic designs, these work best with any of the most recent removable chassis systems also here in other listings in the store. They can be used for any other lightsaber application where possible

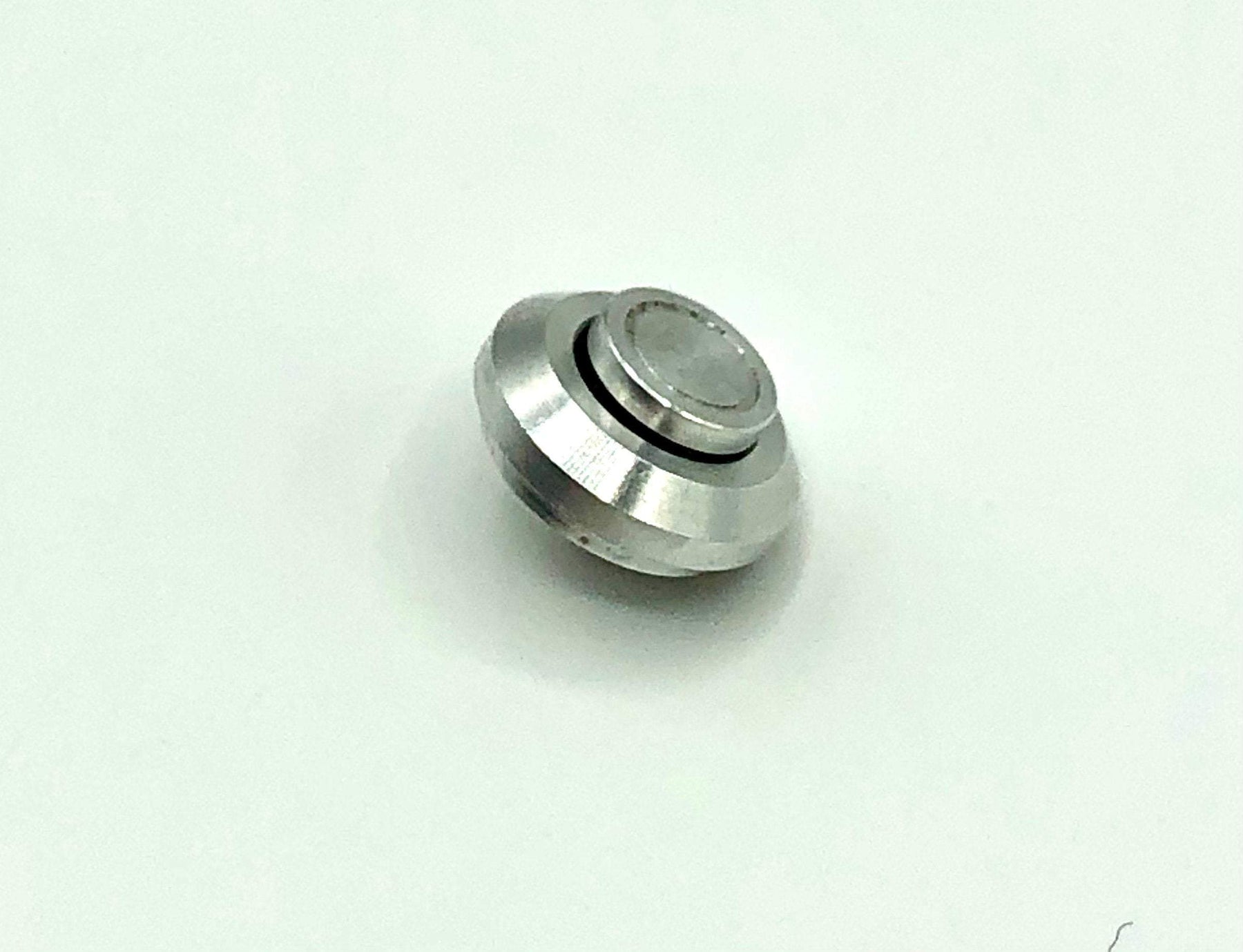

Switch plunger mechanism is a 14mm OD at the widest part to accommodate the recessed area around most 12mm switch holes
The top most section has a height of 3mm, with a total height of around 5mm including the smaller section below.

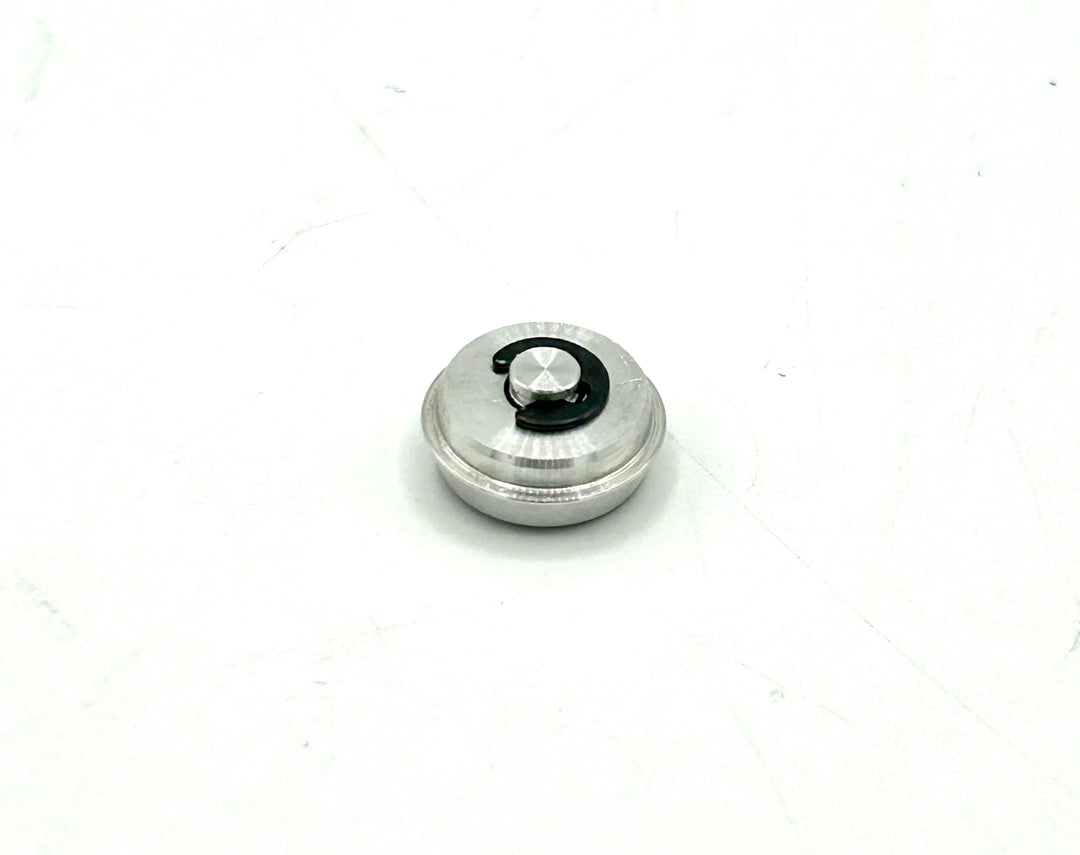

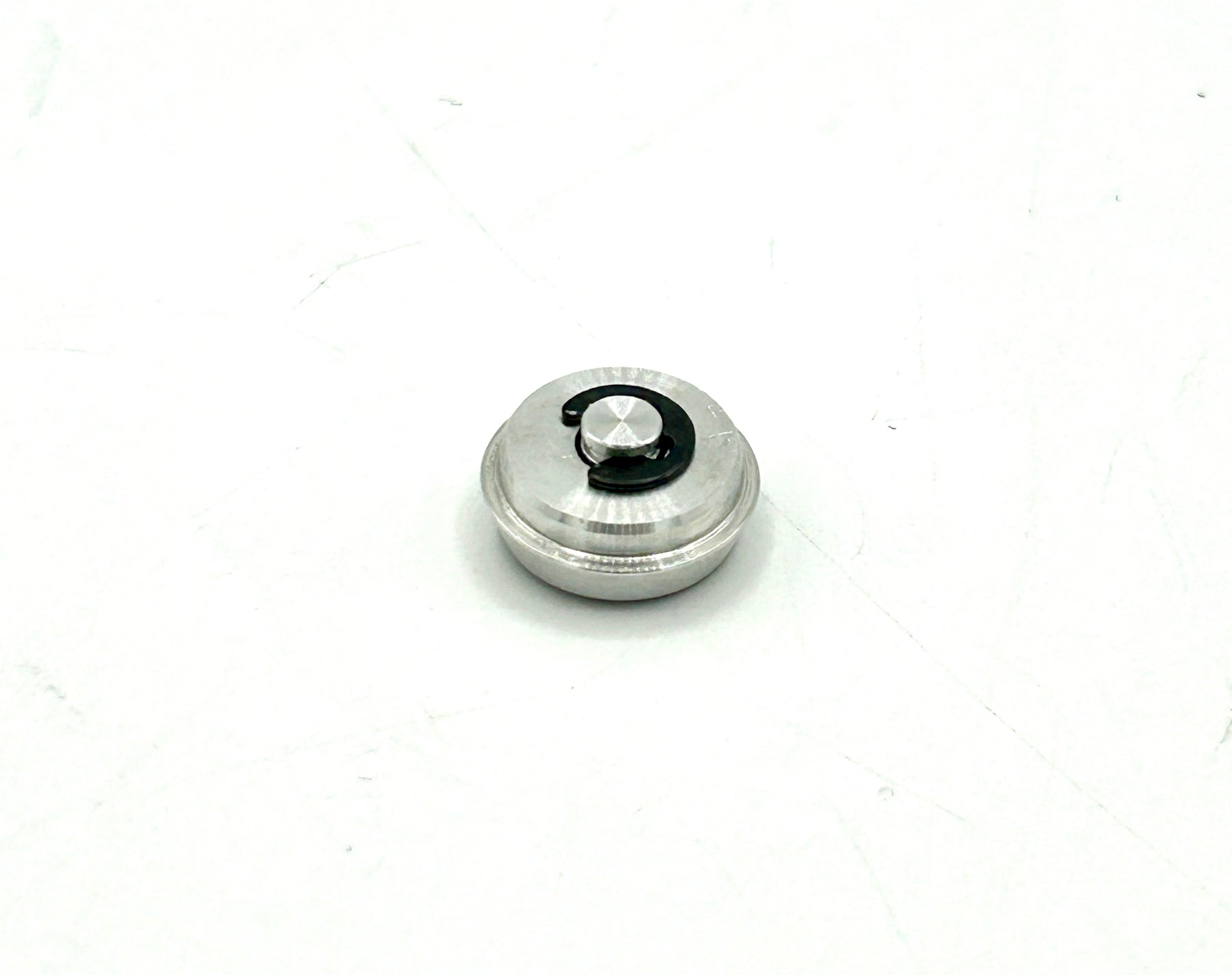

The actuator is held in place by a plunger and C-Clip retention method, and sticks out about 1mm below the bottom of the housing, with an additional actuation depth of another 1mm.
Fully pressed in, these plungers have a low profile and are easy to press comfortably Depending on your specific hilt, some plungers may have a tighter fit than others
It is recommended to secure these with E6000 after final fitting to prevent them from coming out of your switch hole
