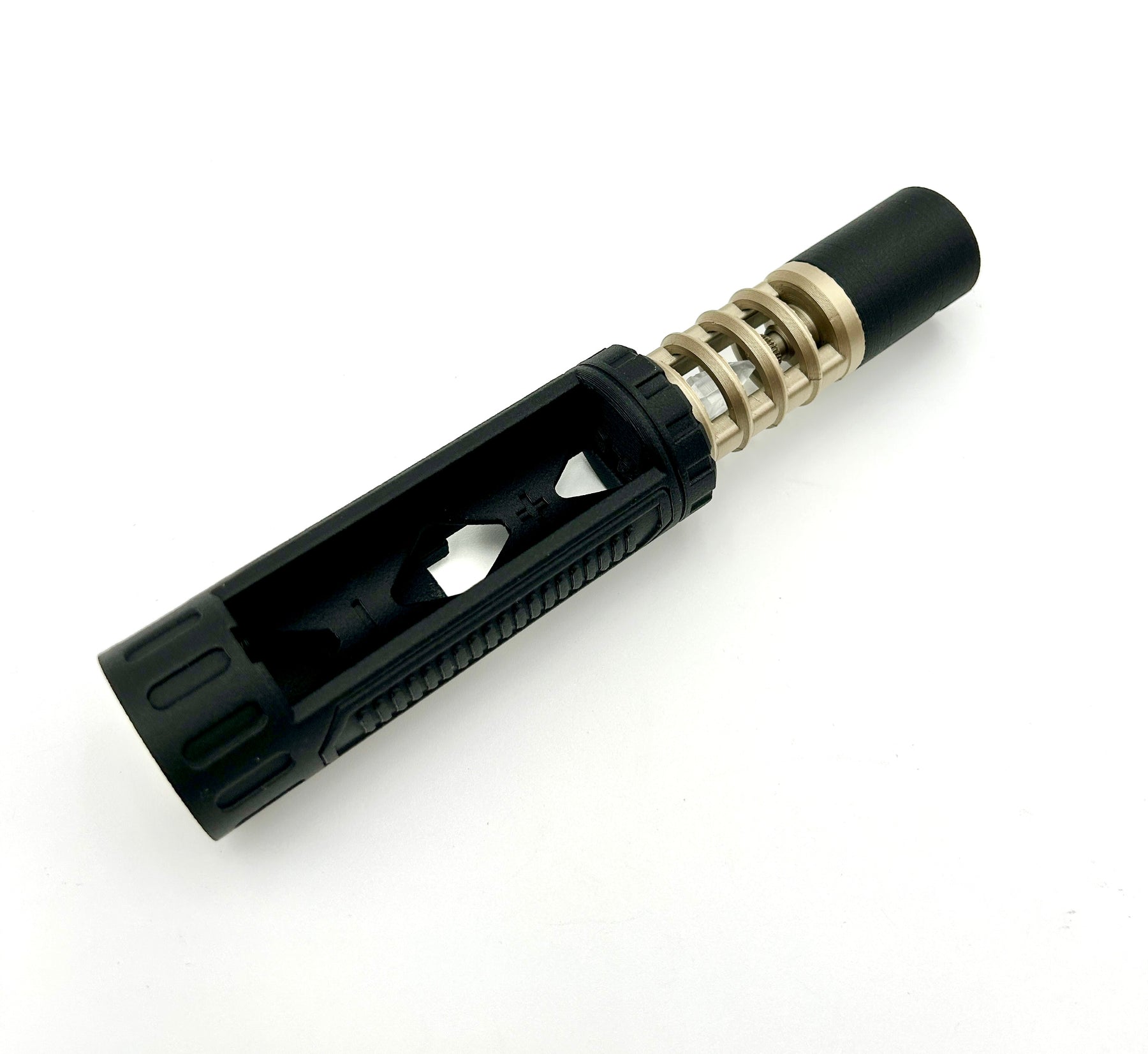

3D printed install chassis for the 89Sabers Graflex models. Not intended for other Graflex designs or other hilts.

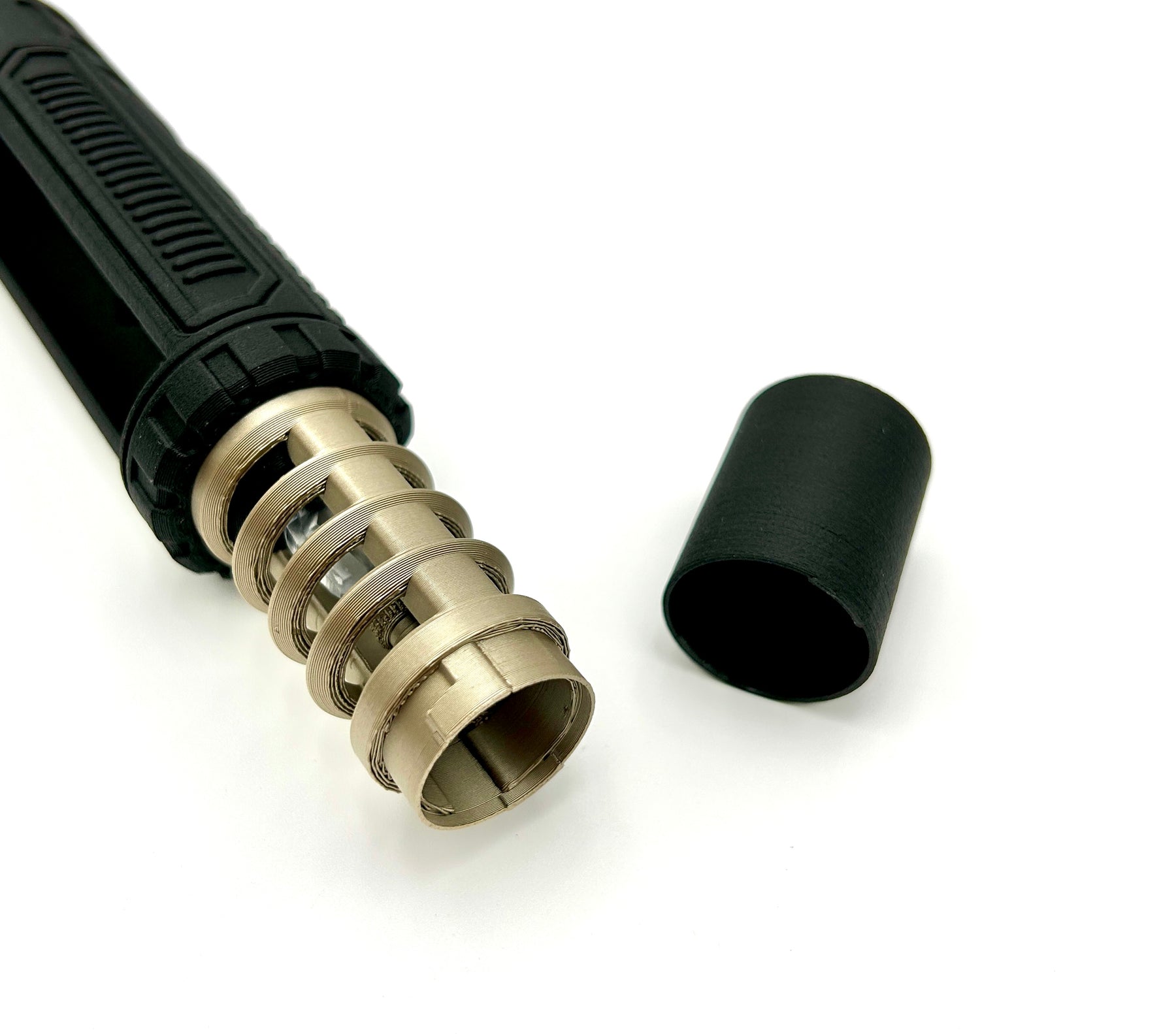

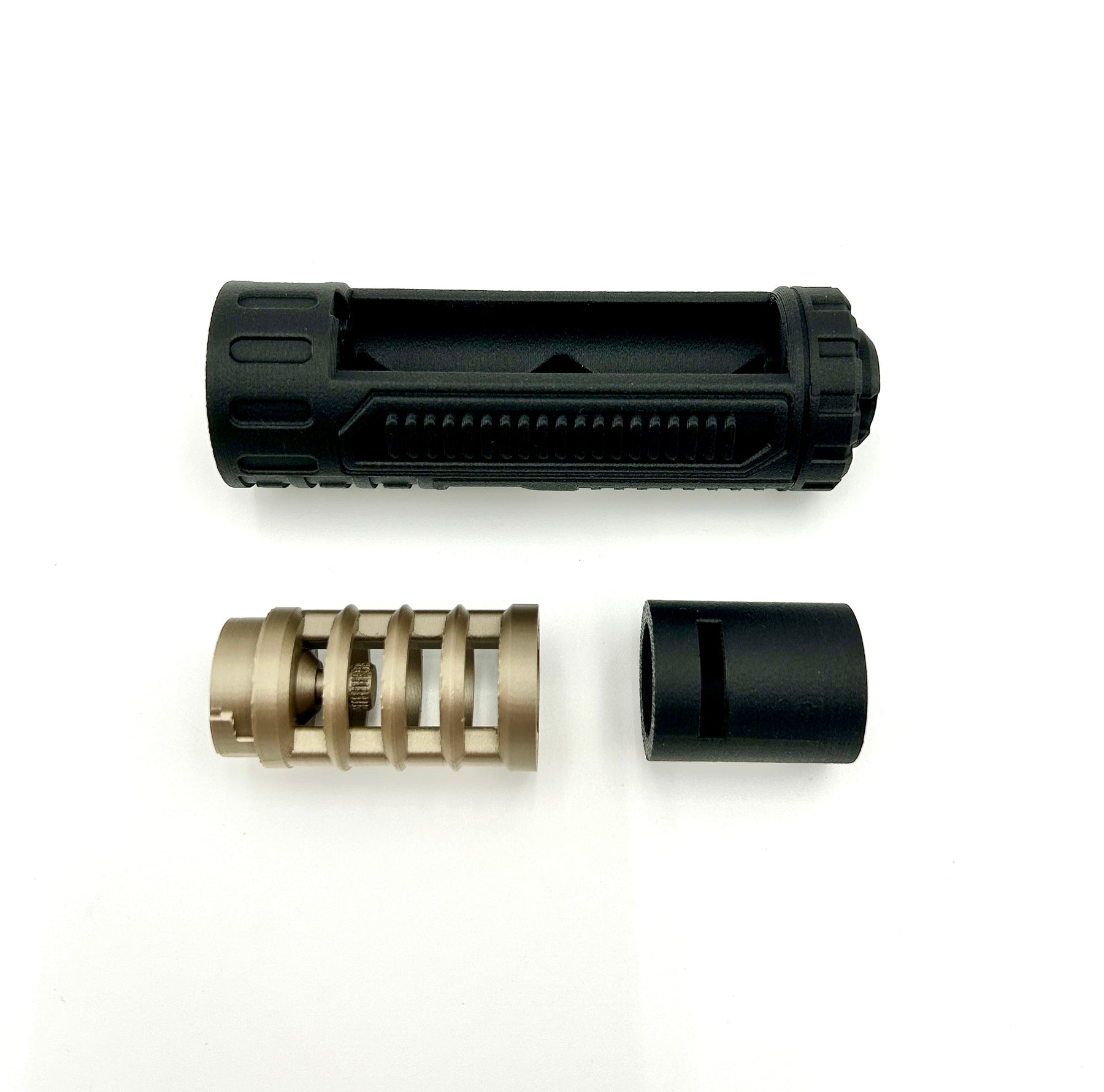

This design is a multi piece assembly, featuring a static upper piece that holds the hiltside connector and the pin side of the 6 trace chassis connector. This piece needs to be secured inside the inner bladeholder of the hilt using a set screw.

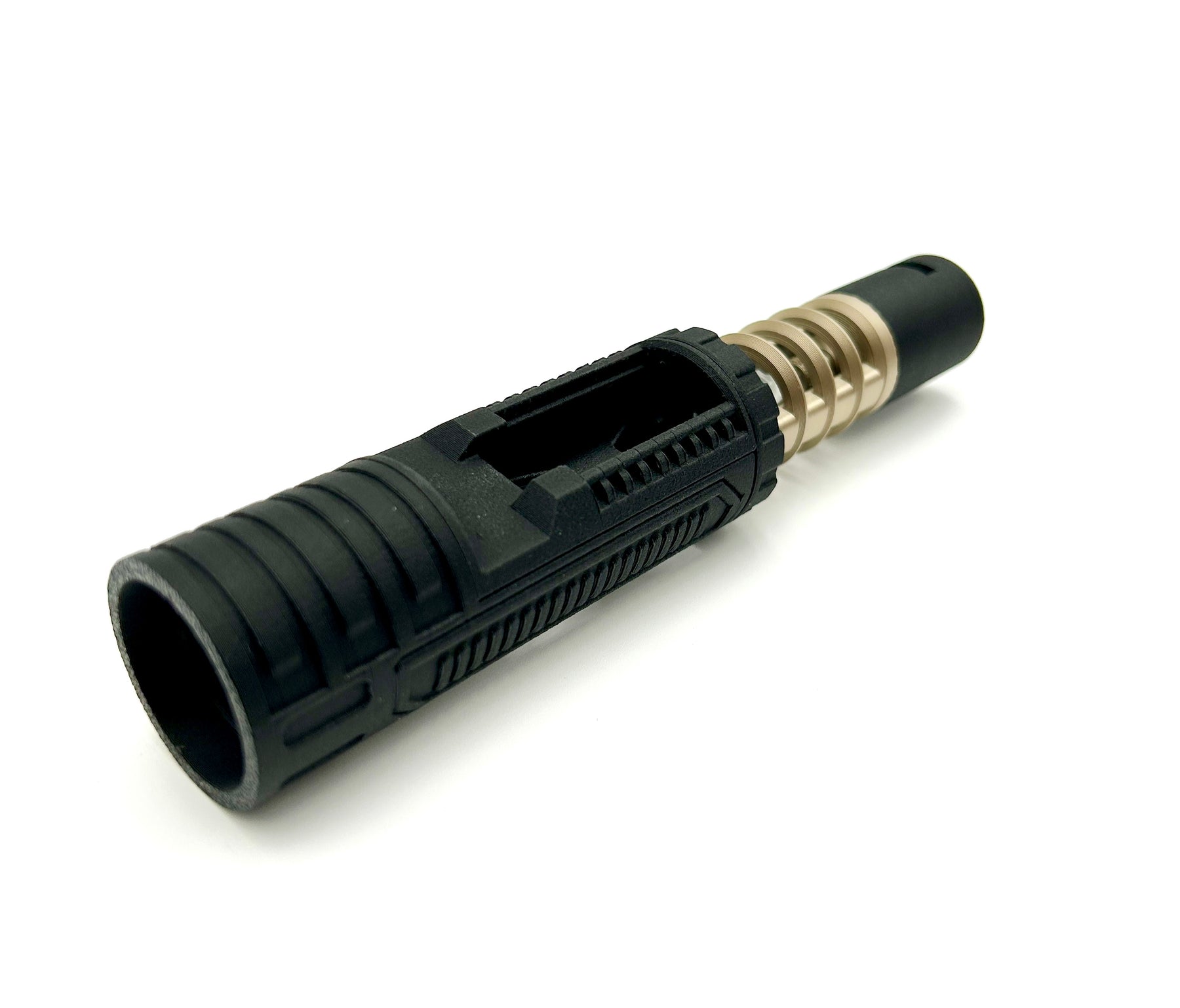

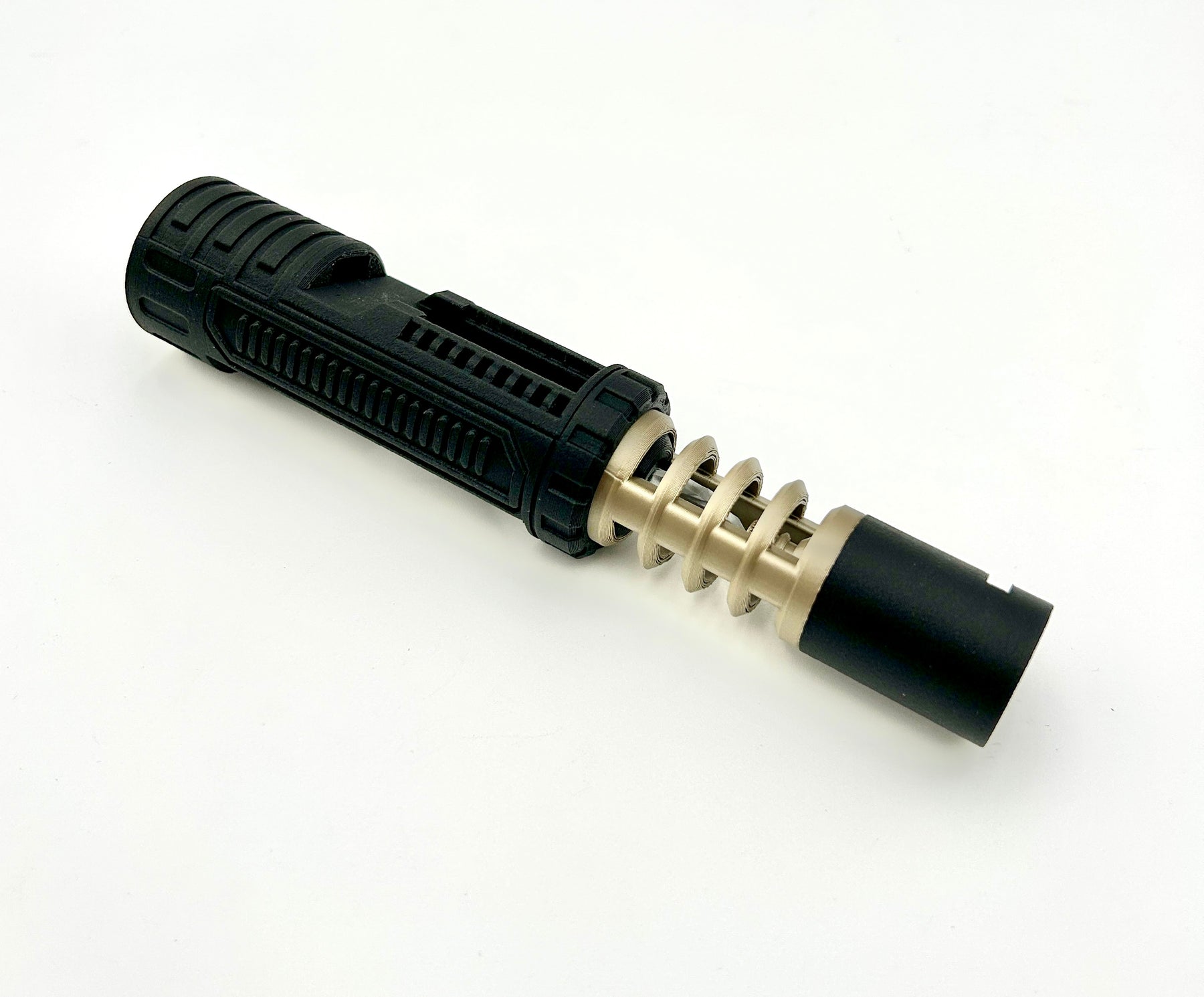

The remaining chassis parts can be fully removed once assembled together using the J-lock retention system incorporated into the design.
Parts list for install:
-CFX, Proffie, or GHV4 soundboard
-shortpin hiltside neopixel connector
-removable 18650 protected button top battery (Option 2 battery contacts included with chassis prints)
-high amp killswitch
-single pixel accent for crystal chamber illumination
-28mm bass speaker
-6 trace chassis connector
