89Sabers Obi Wan Kenobi TPM Chassis

Regular price$15.00
/
Shipping calculated at checkout.

Soundboard
Full Parts Kit

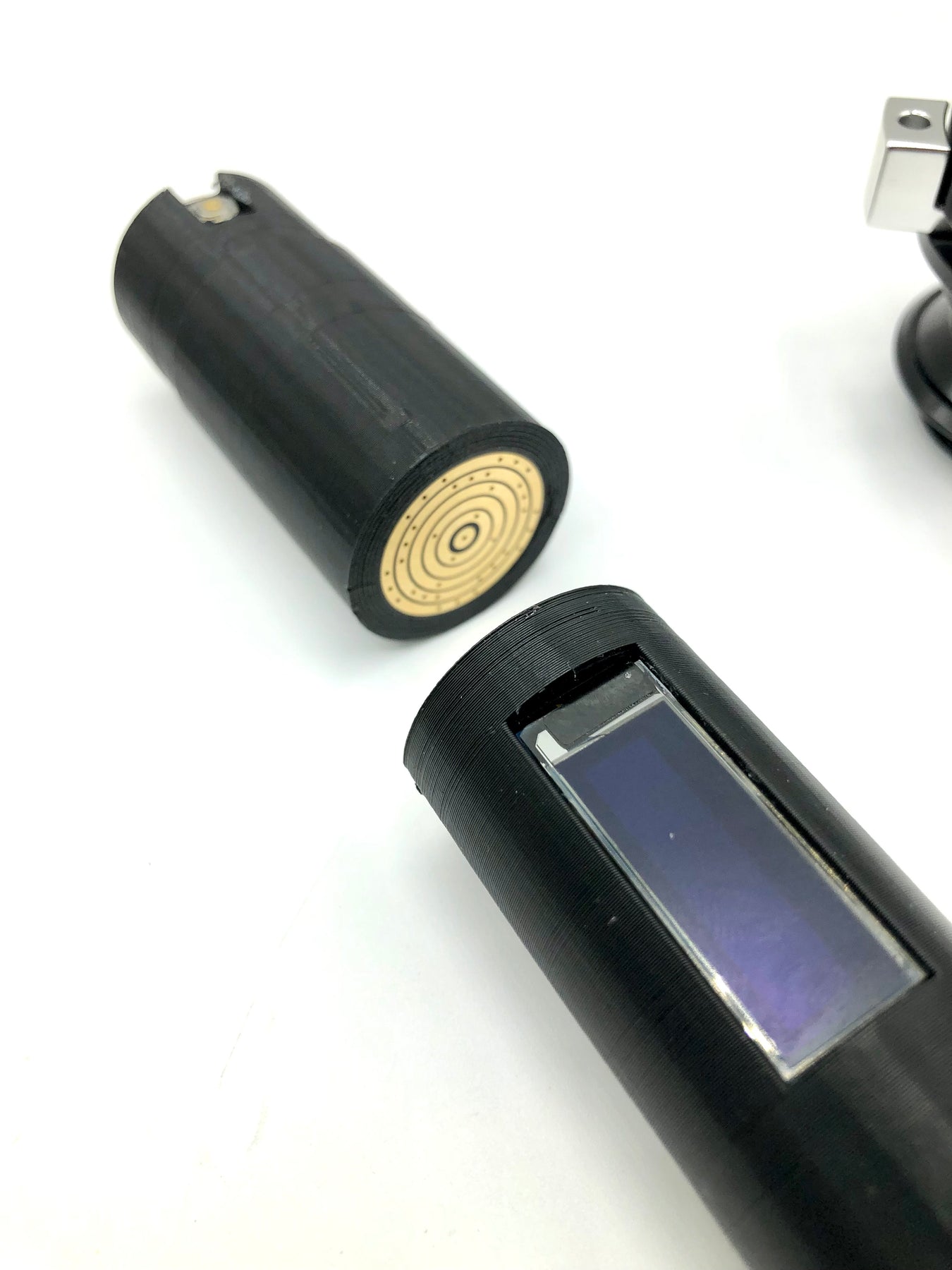

Install chassis for 89Sabers OWK1 TPM hilt.

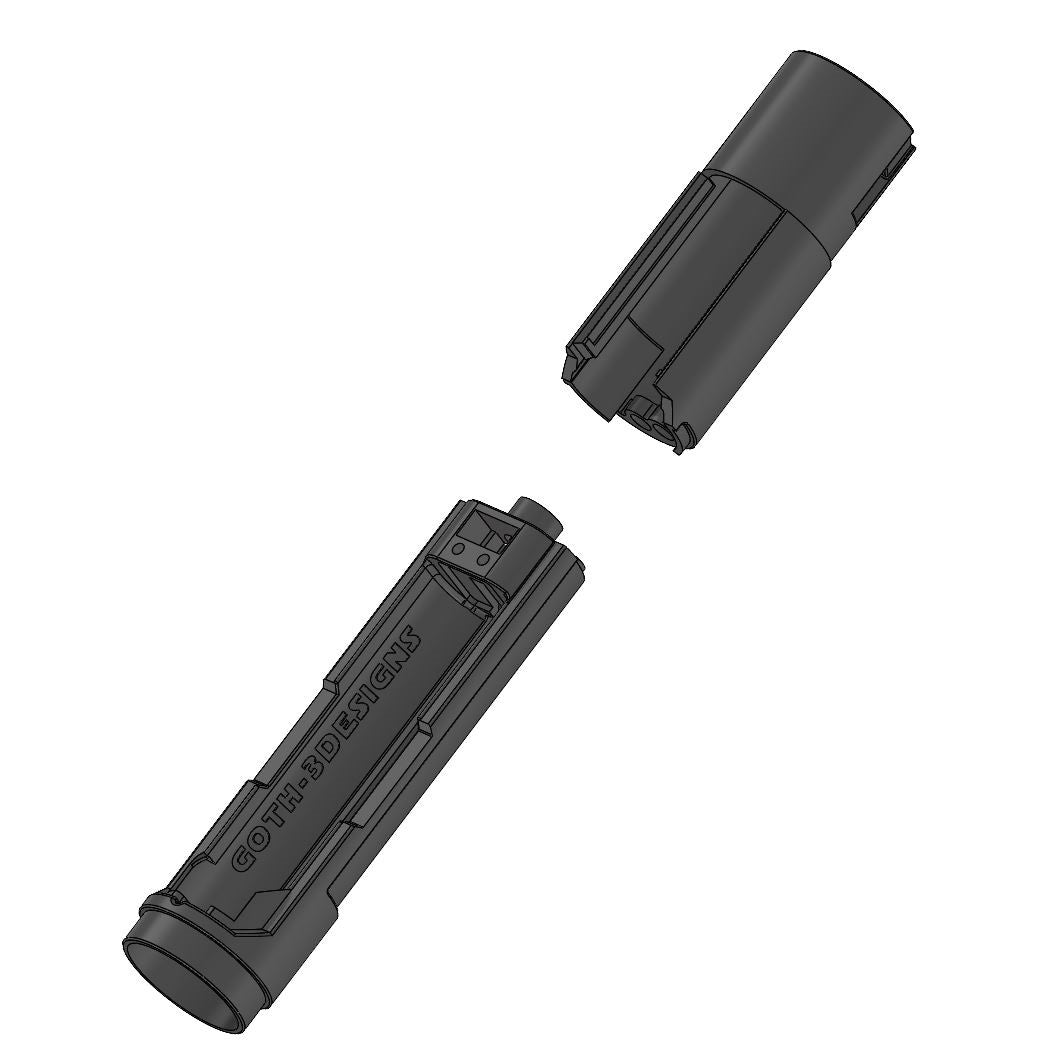

3D printed chassis comes in two parts.
Top half holds the following parts:
-NPVL V3 short pin connector
-brass tactile switches 1.5mm height(included with chassis print)
-flat side PCB Rotary Chassis PCB set
In order to install top half of chassis, silver plate must be removed from inside of the hilt first. Top half needs to be fully pressed all the way up and switch channels lined up with switch plunger holes. Always test fit your chassis before installing to ensure proper fitment and alignment of tactile switches.

Bottom half of chassis can hold the following parts:
-Soundboard option chosen(CFX, Proffie, GHV3)
-pin side PCB of Rotary Chassis PCB set
-OLED screen(optional)
-removable 18650 battery
-battery contacts(provided with chassis)
-22mm speaker (KR Sabers or Veco)

FULL PARTS KIT includes:
-choice of soundboard (CFX, ProffieV3.9, or GHV3)
-assembled NPXL V3 shortpin hiltside connector
-unassembled 6 Trace Rotary Chassis PCB
-removable KeepPower 18650 3000mah 15A protected button top cell
-22mm Veco 4ohm/3W bass speaker
-blue TCSS OLED screen
