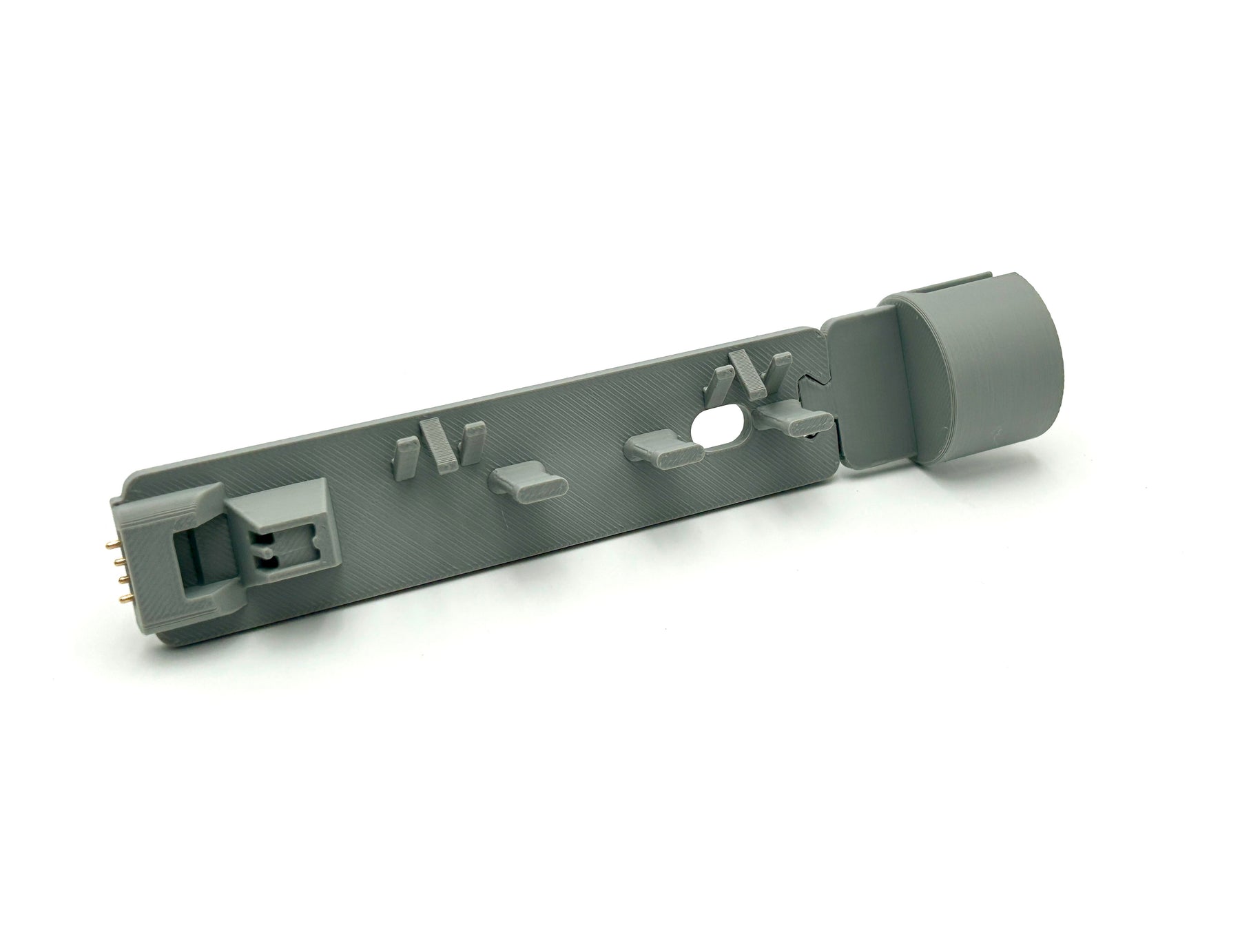

Install chassis for the 89Sabers Qui Gon hilt (most recent release 2024). Not intended for any other saber design.

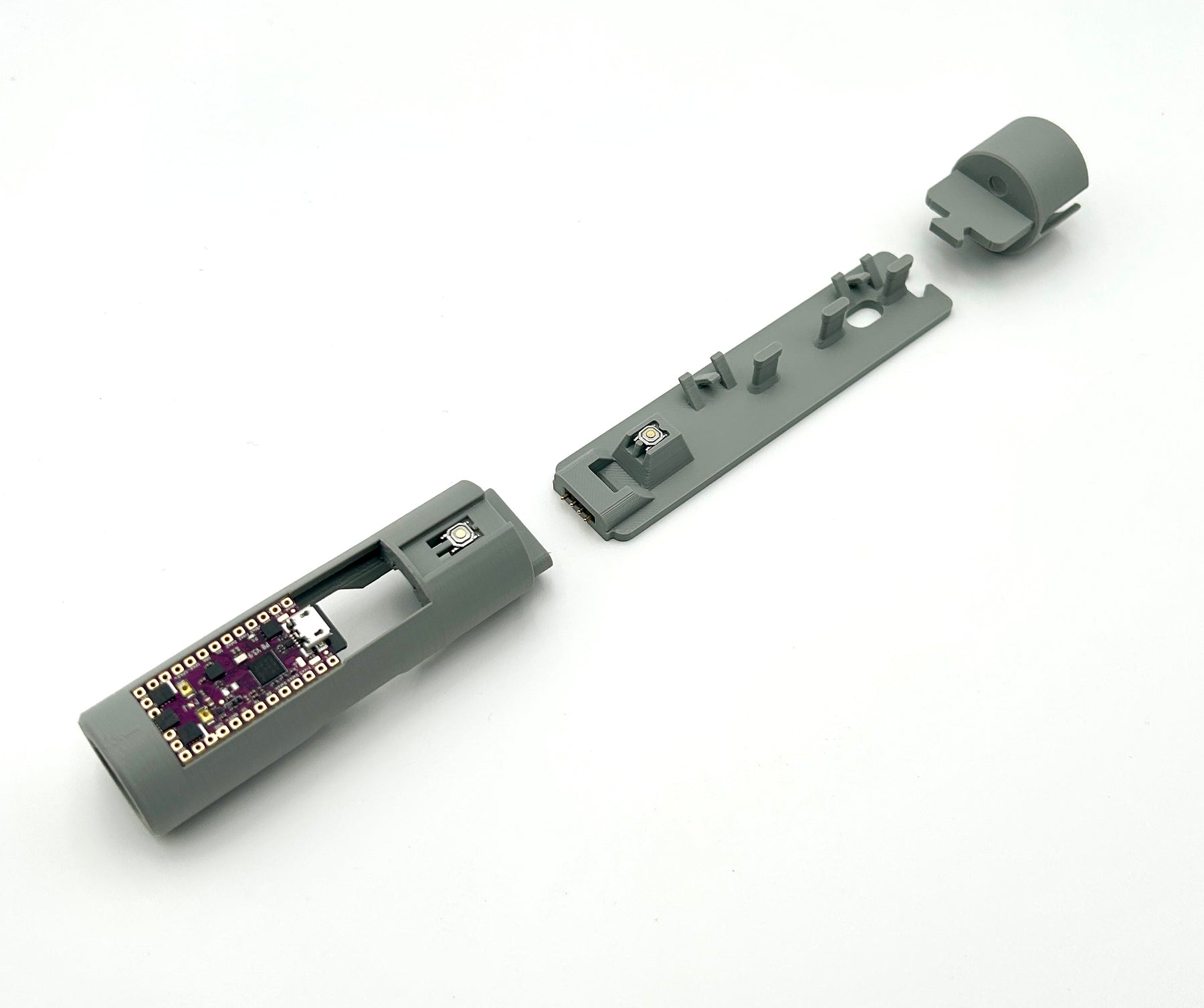

Comprised of 3 different parts; speaker holder section, grip section, and a removable upper emitter/button section.

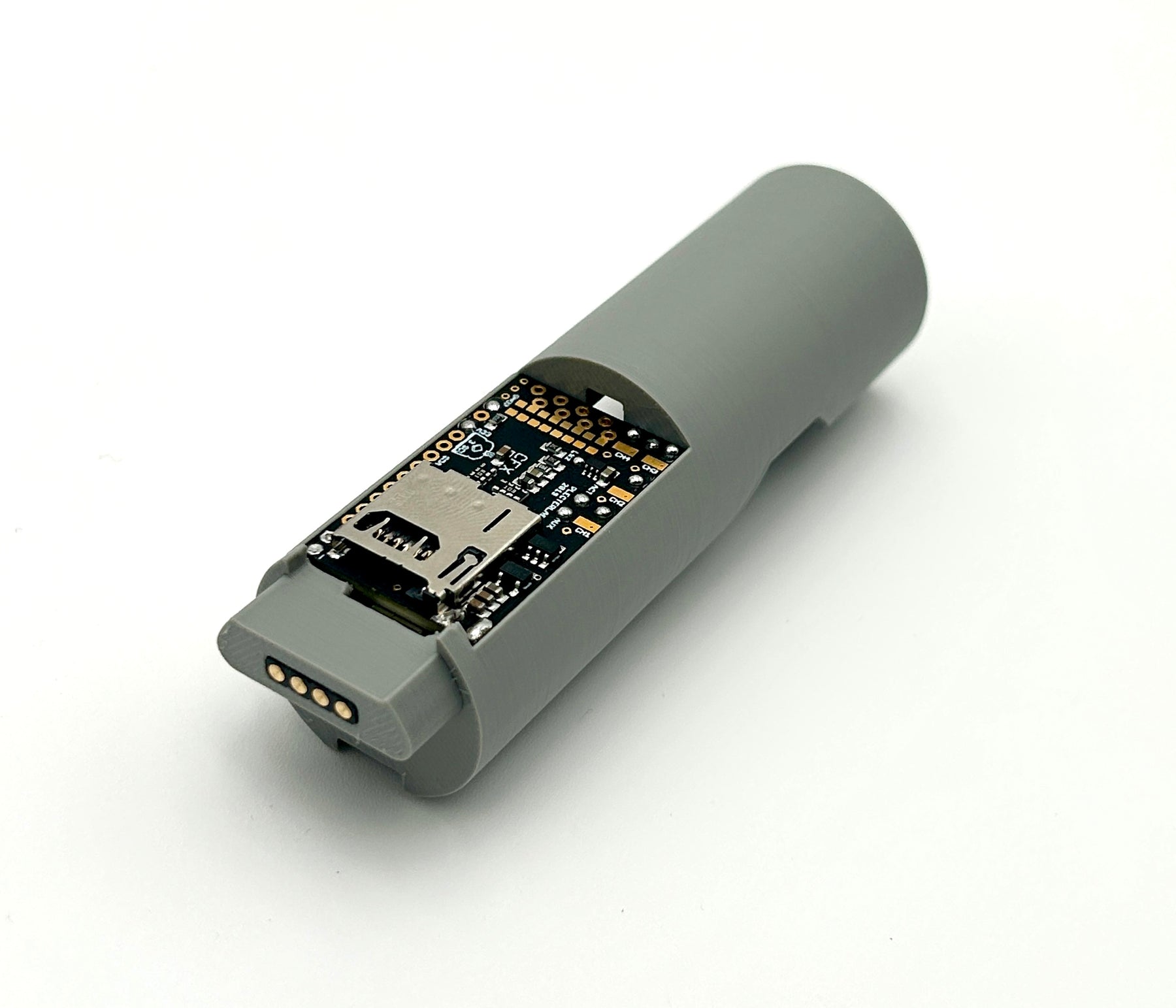

The removable chassis section holds the soundboard, removable battery, hiltside connector, one of the tactile switches, and the flat side of the 4 pin connector set.

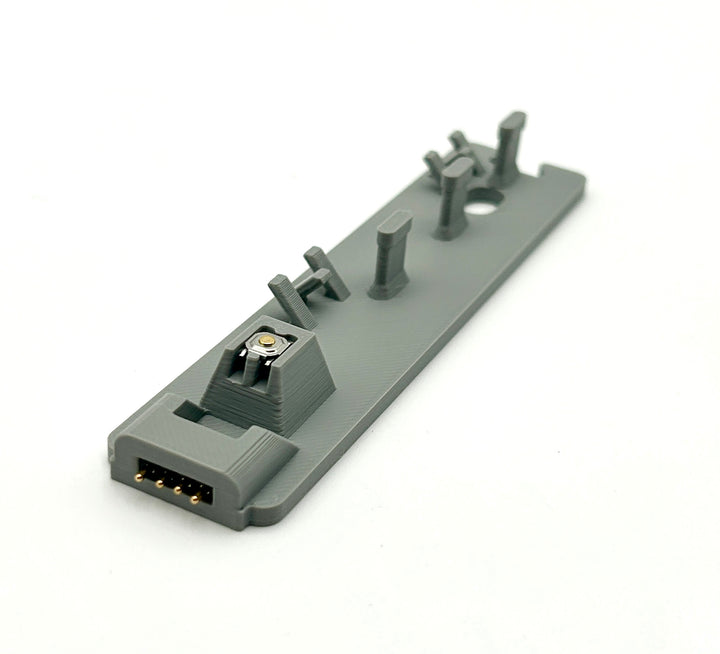

Middle grip chassis section holds the optional auxswitch (which is used with the actuator that is included with the Qui Gon hilt), and the spring pin side of the 4 pin connector set.
The middle grip chassis has a slotted cutout to hold the speaker holder chassis section.
After the installation, the middle piece and speaker holder should be static in the hilt.
Parts list for install:
-CFX, Proffie or GHV4 soundboard
-shortpin NPXL hiltside connector (V4 or ECO or similar)
-up to two 1.5mm brass tactile switches (included with the chassis print)

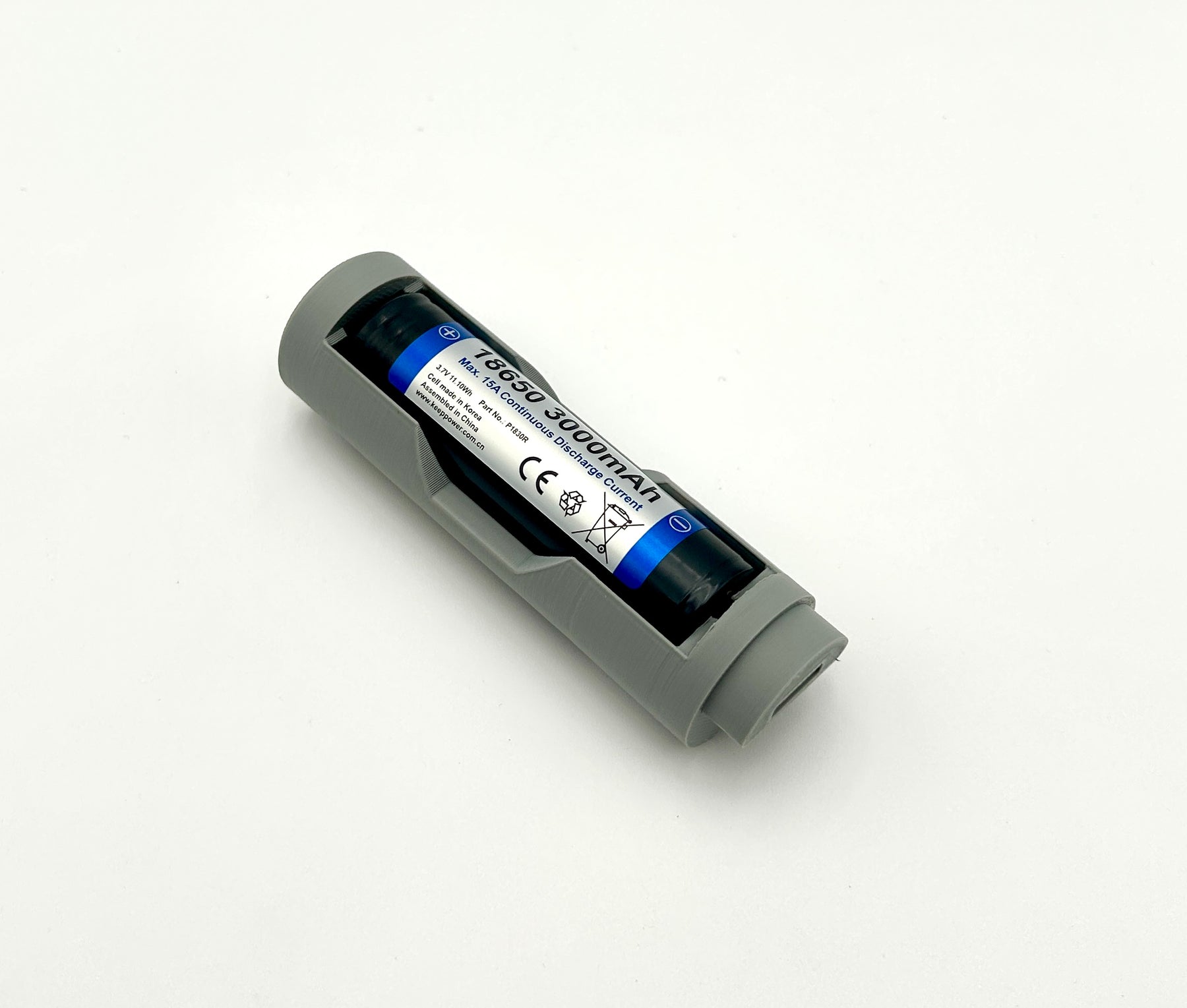

-removable 18650 protected button top cell for Proffie and GHV4, removable 18350 protected button top cell for CFX (Option 2 battery contacts included with chassis print)
-4 pin single row connector set
-28mm bass speaker
This chassis worked perfectly for my build!
