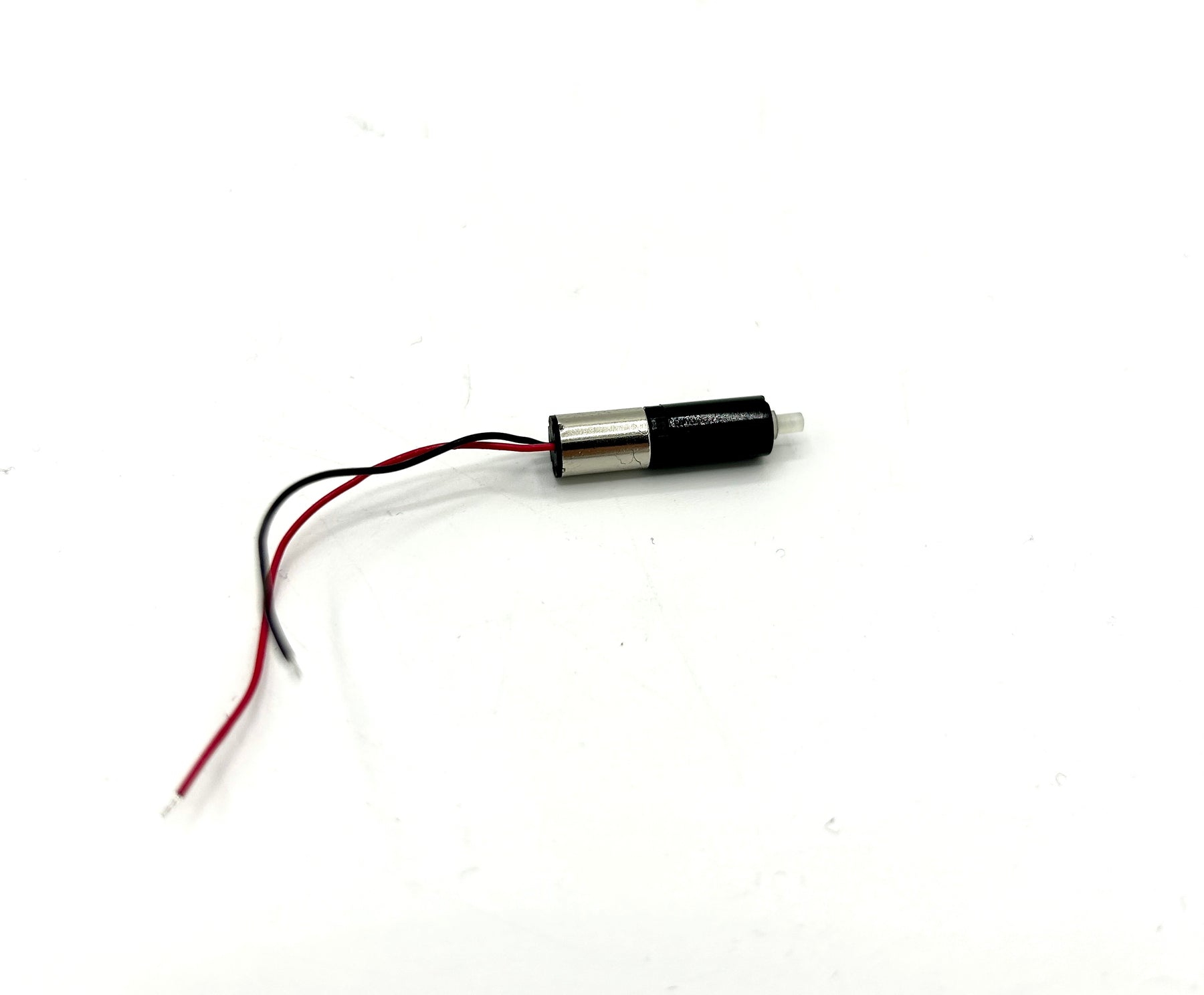

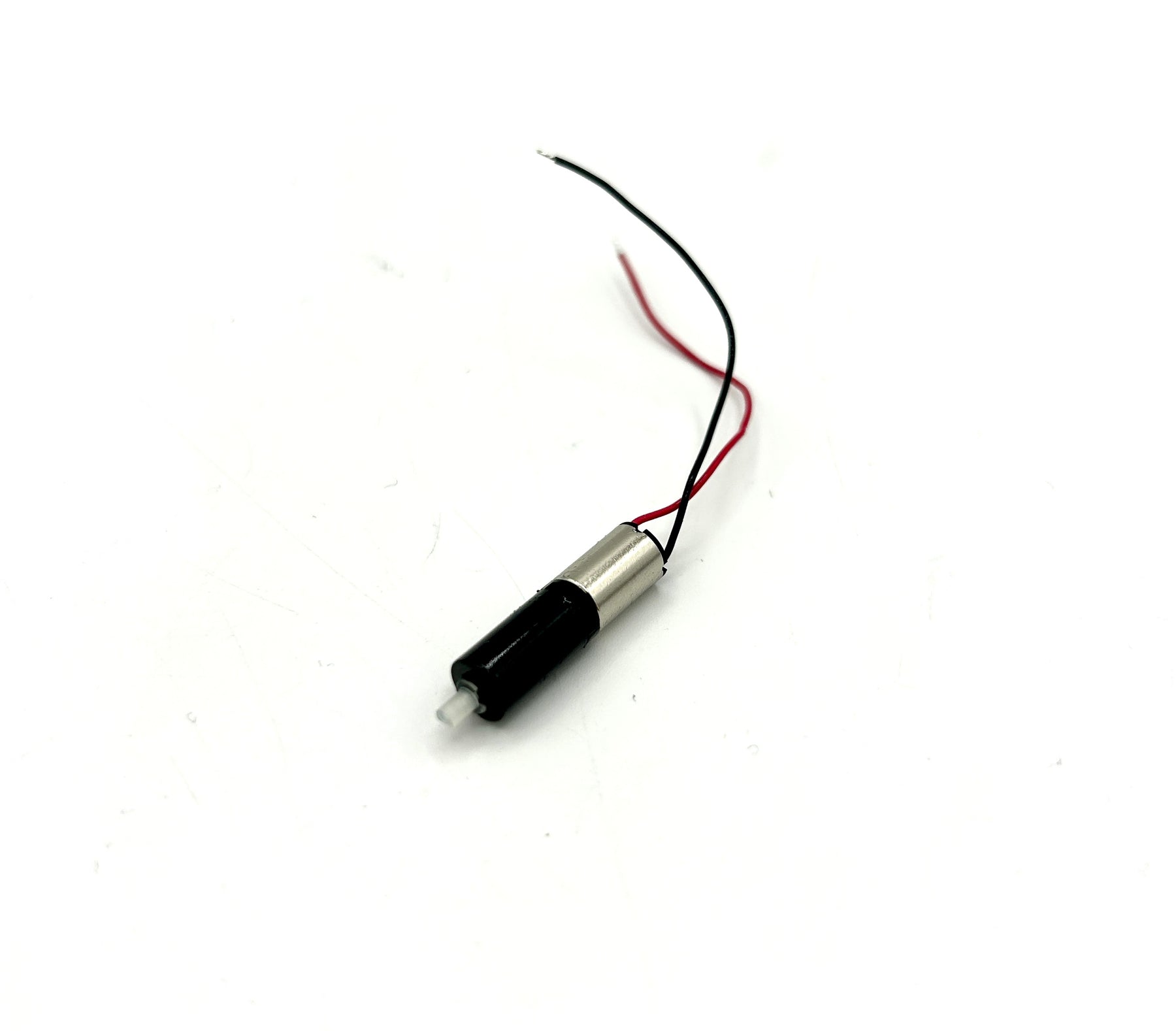

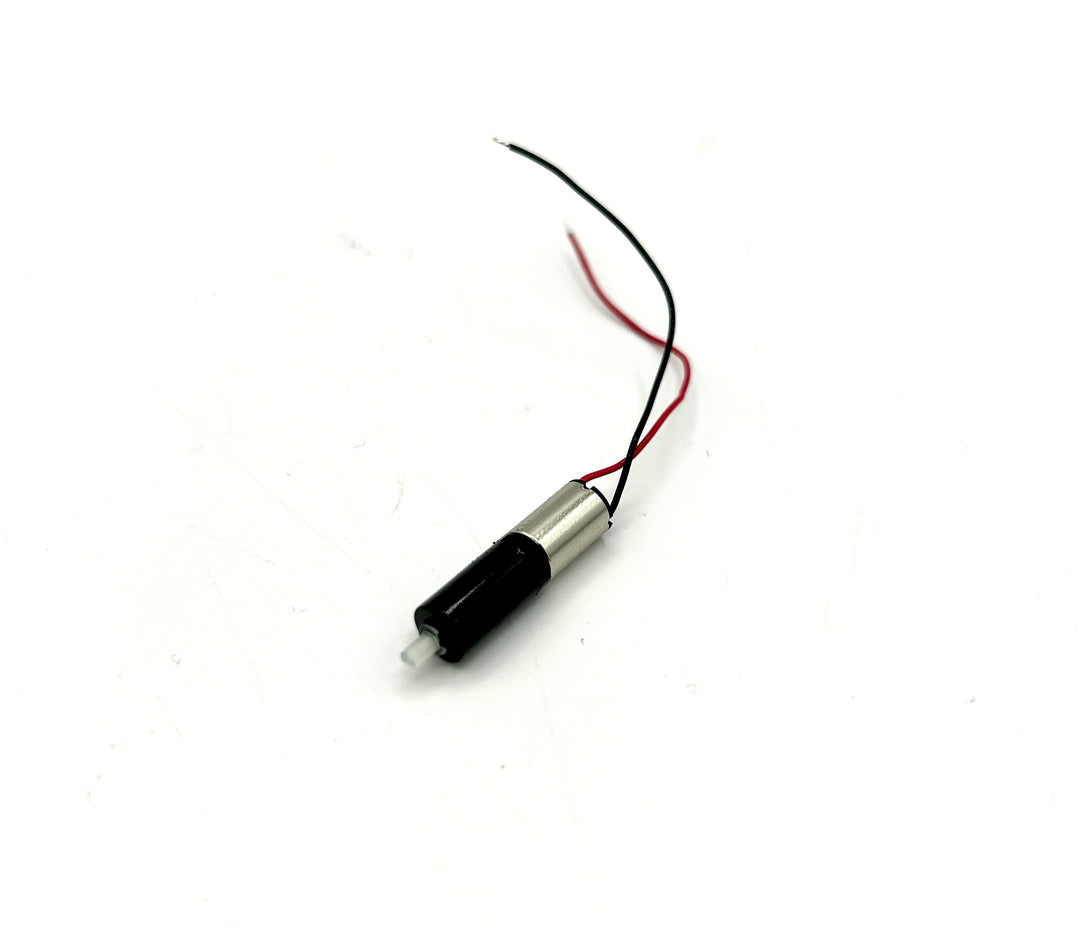

DIY Mini Motor 46RPM
DIY Mini Motor 46RPM
DIY Mini Motor 46RPM

DIY Mini Motor 46RPM

Regular price$10.00
/
Shipping calculated at checkout.

DIY motor for saber installs. Can be used for crystal chambers, blade plugs, or anything else you need them for.

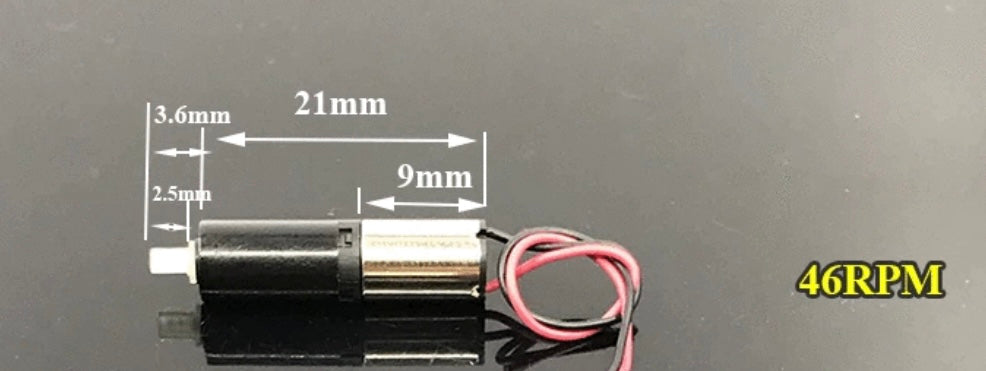

1.Gearbox diameter: 6mm

2.Total height: 21mm(not include shaft)

3.Output shaft diameter: 1.95mm (flat position 1.5mm)

4.Output shaft length: 2.8mm

5.Gearbox gear ratio: 1/700

6.Test data:

(1)Voltage:3.0V Current:45mA Stall current:200mA

Motor speed:32000RPM Output speed: 46RPM Torque:200g.cm Stall torque:300g.cm

(2)Voltage:1.5V Current:25mA Stall current:100mA

 Motor speed:17000RPM Output speed: 20RPM Torque:100g.cm Stall torque:150g.cm
