Install chassis for the Saberbay/Laredo Sabers GeonObi hilt. Not compatible with any other hilt design.

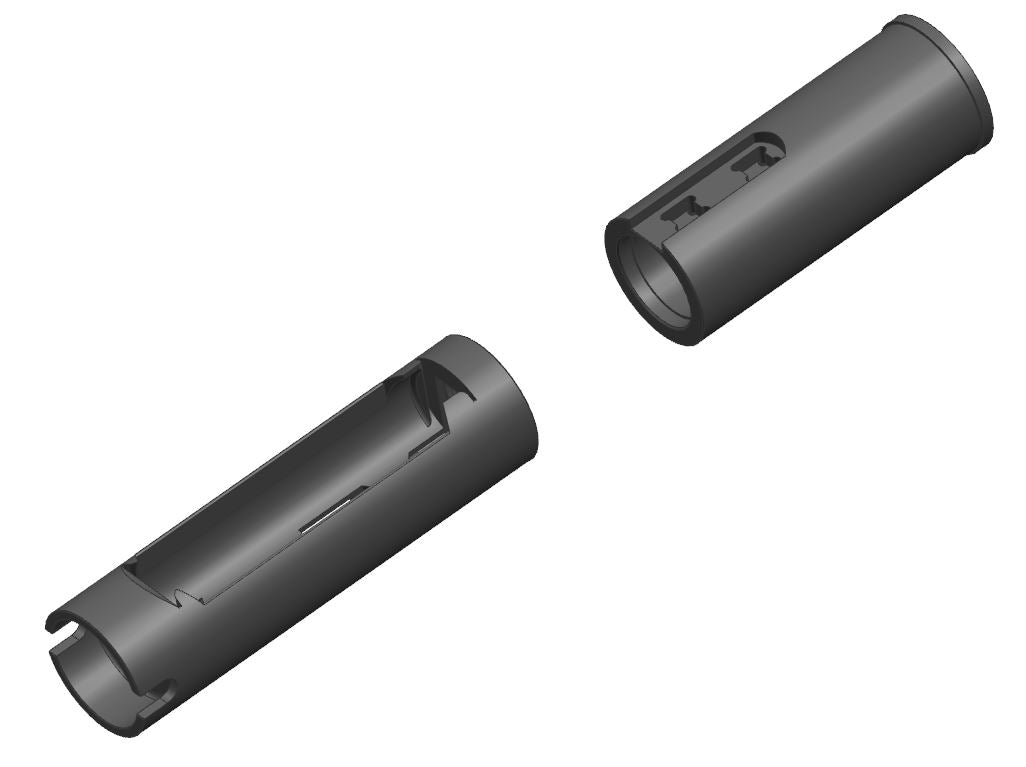

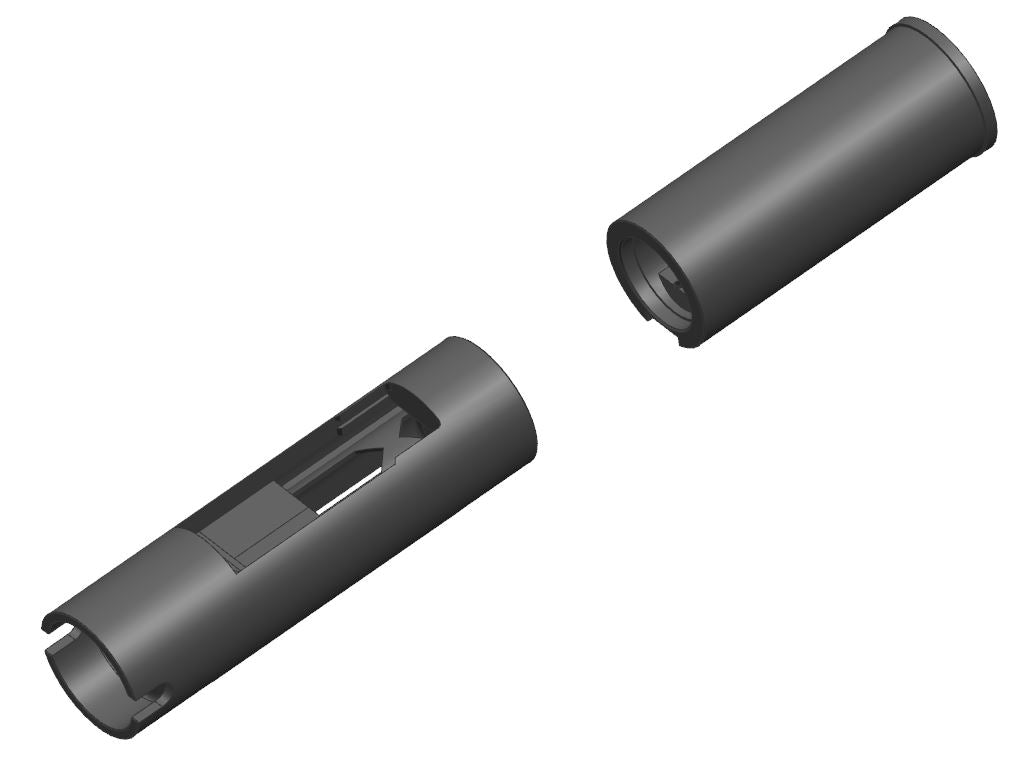

This is 3D printed in two parts in black PLA+ filament.

This chassis is being offered for free for anyone who has purchased a GeonObi hilt. Please do not purchase this chassis for other hilt purposes. Customers who buy this without a matching GeonObi may have their orders canceled.

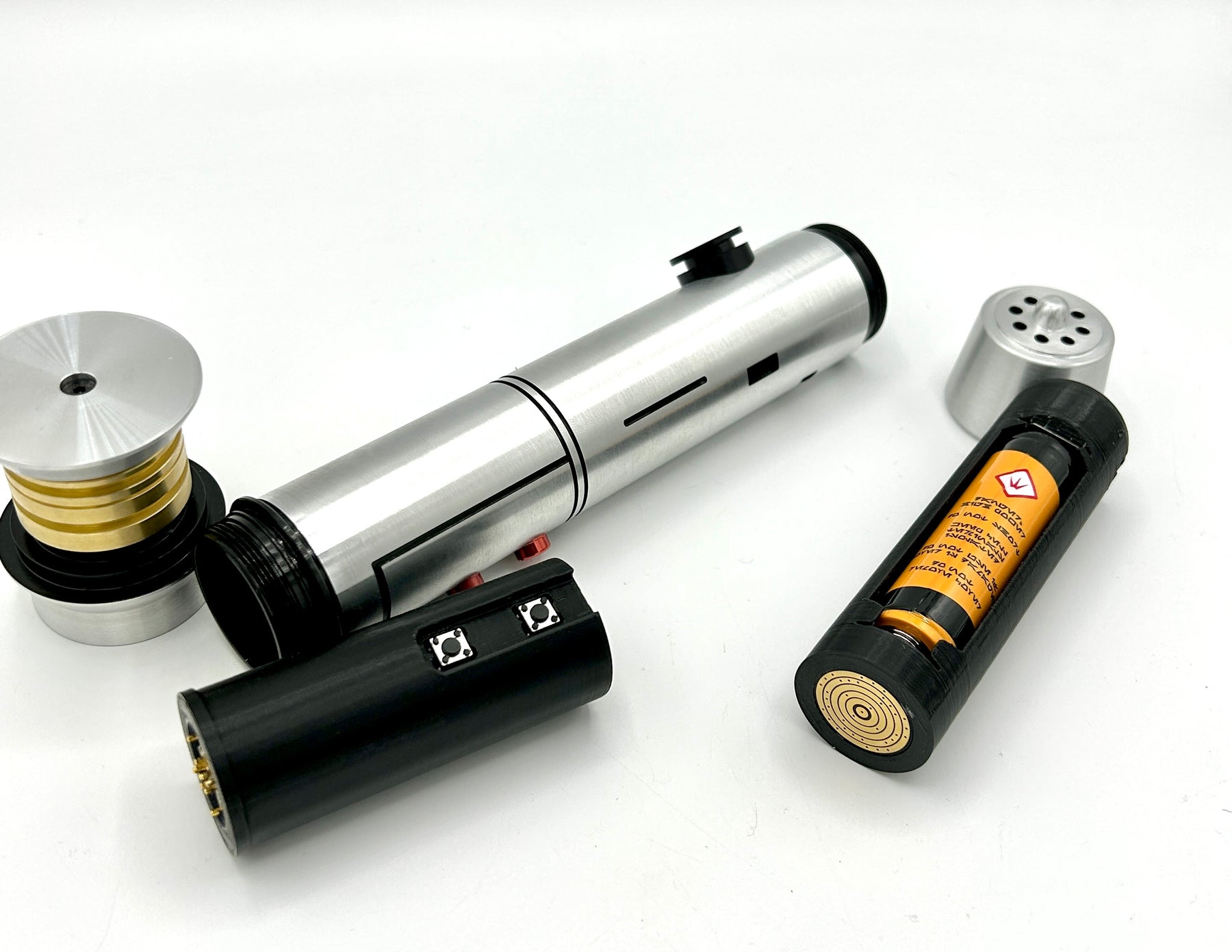

Chassis design features a fully removable design that allows easy access to the soundboard and removable battery once fully installed.

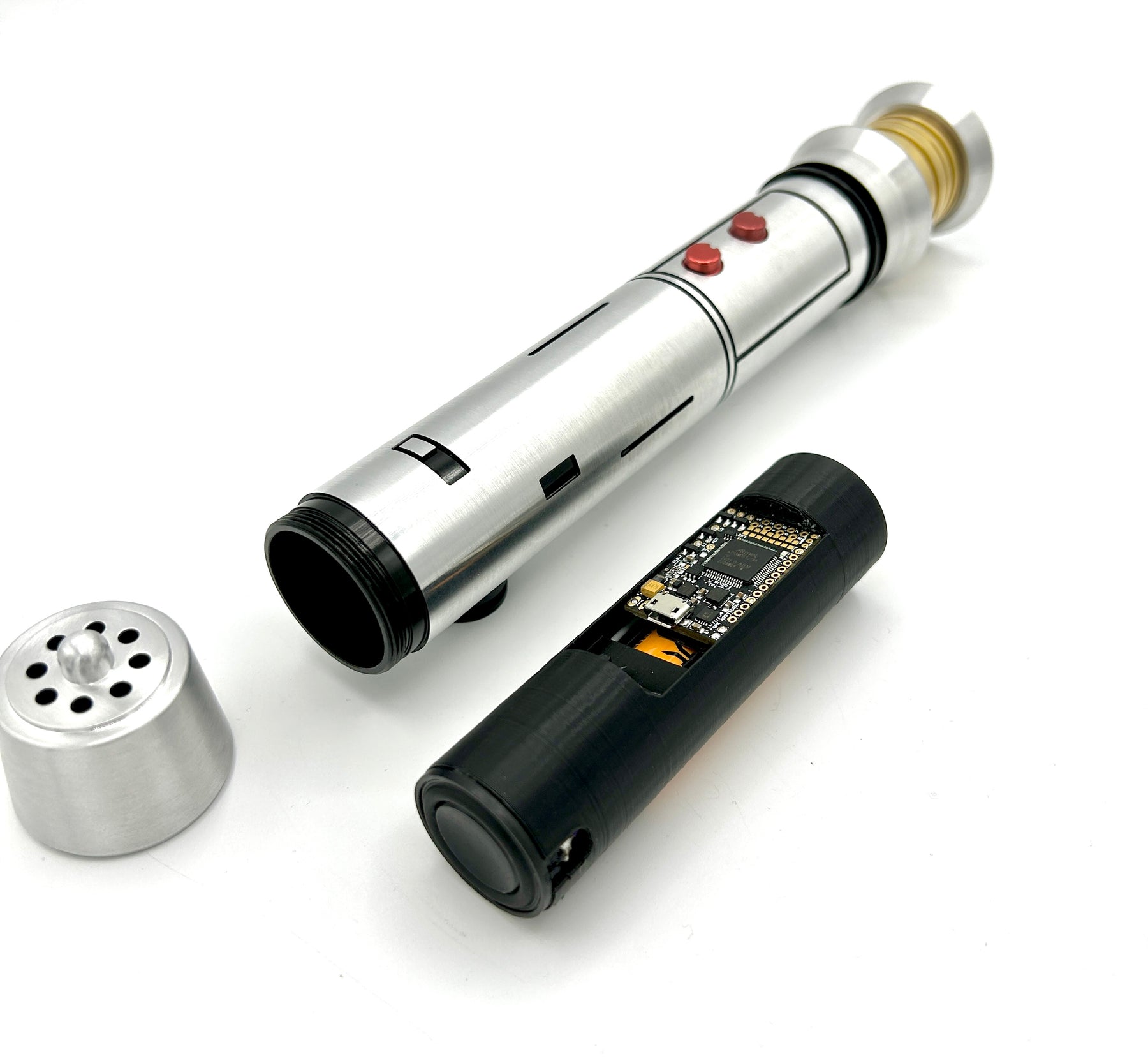

The bottom half slides out from the pommel and is reinserted the same way.
The top half is inserted from the top end below the emitter section, and used to keep the red actuators upright and aligned with the hilt. Top half is held in place after installation by screwing back on the hilt emitter.
Parts list required for install:
-CFX, Proffie, GHV3, or Verso soundboard
-NPXL shortpin hiltside connector (V3 or ECO)
-Two 6x6x4.3 tactile switches(INCLUDED)
-removable 18650 battery(spring loaded battery contacts included)
-high amp killswitch(optional, recommended)
-28mm bass speaker

Please note that is a DIY chassis and no other parts or electronics or installation is included with this listing.  Pictures of installed electronics are for reference only.
