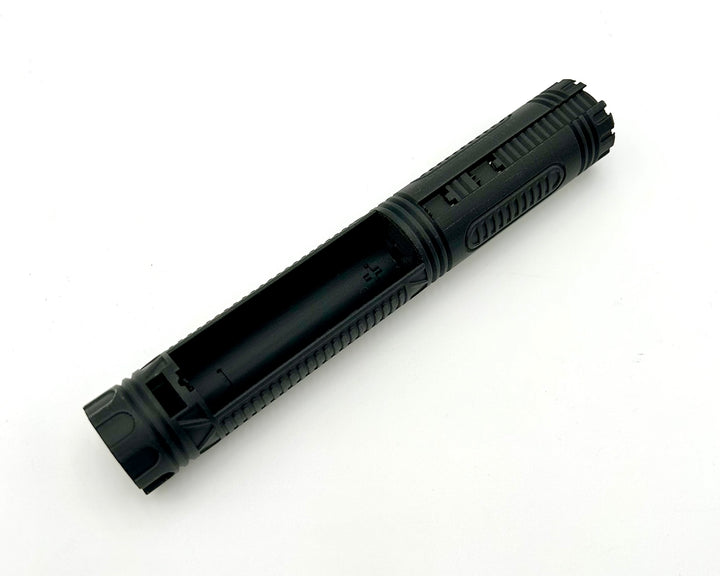

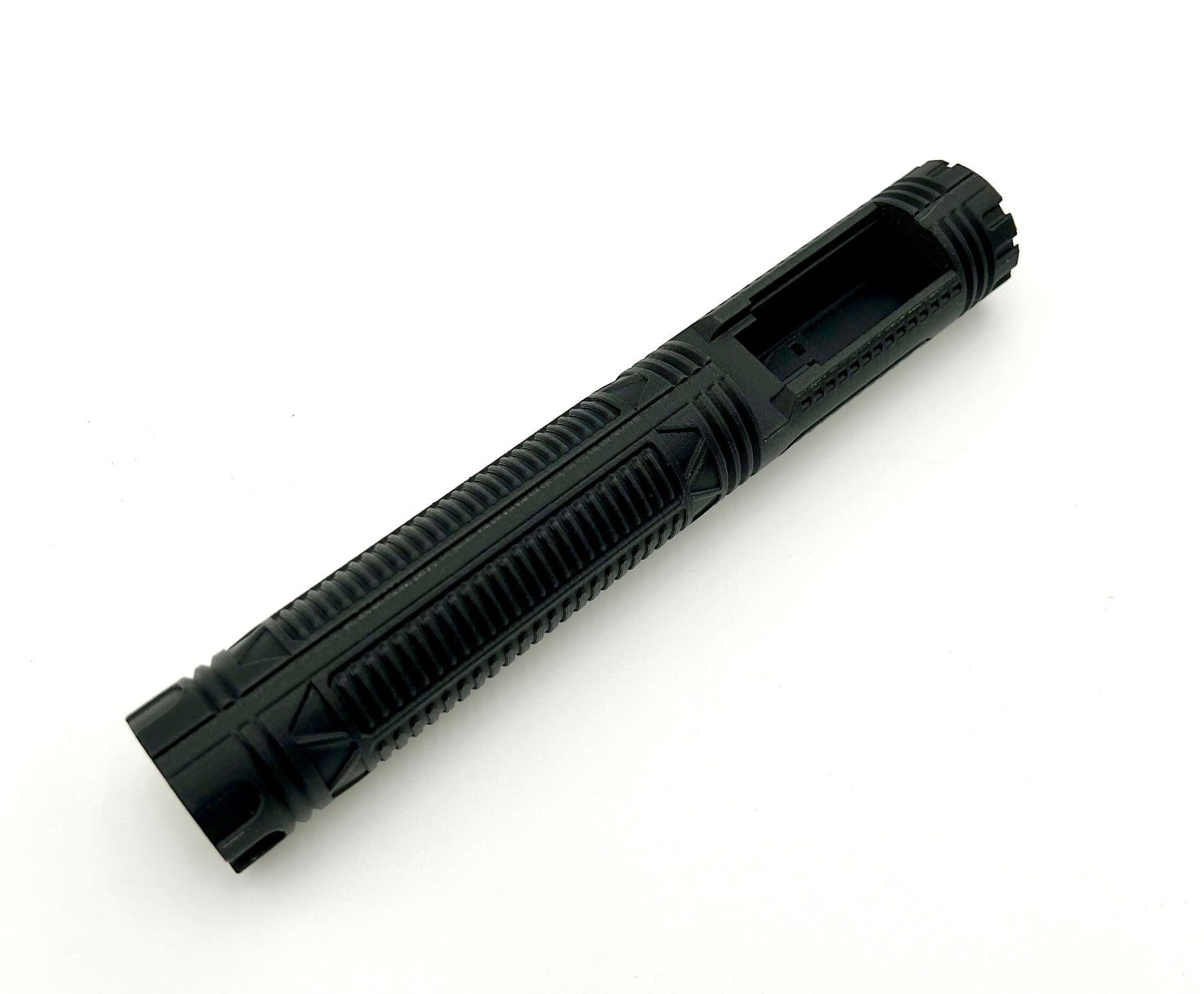

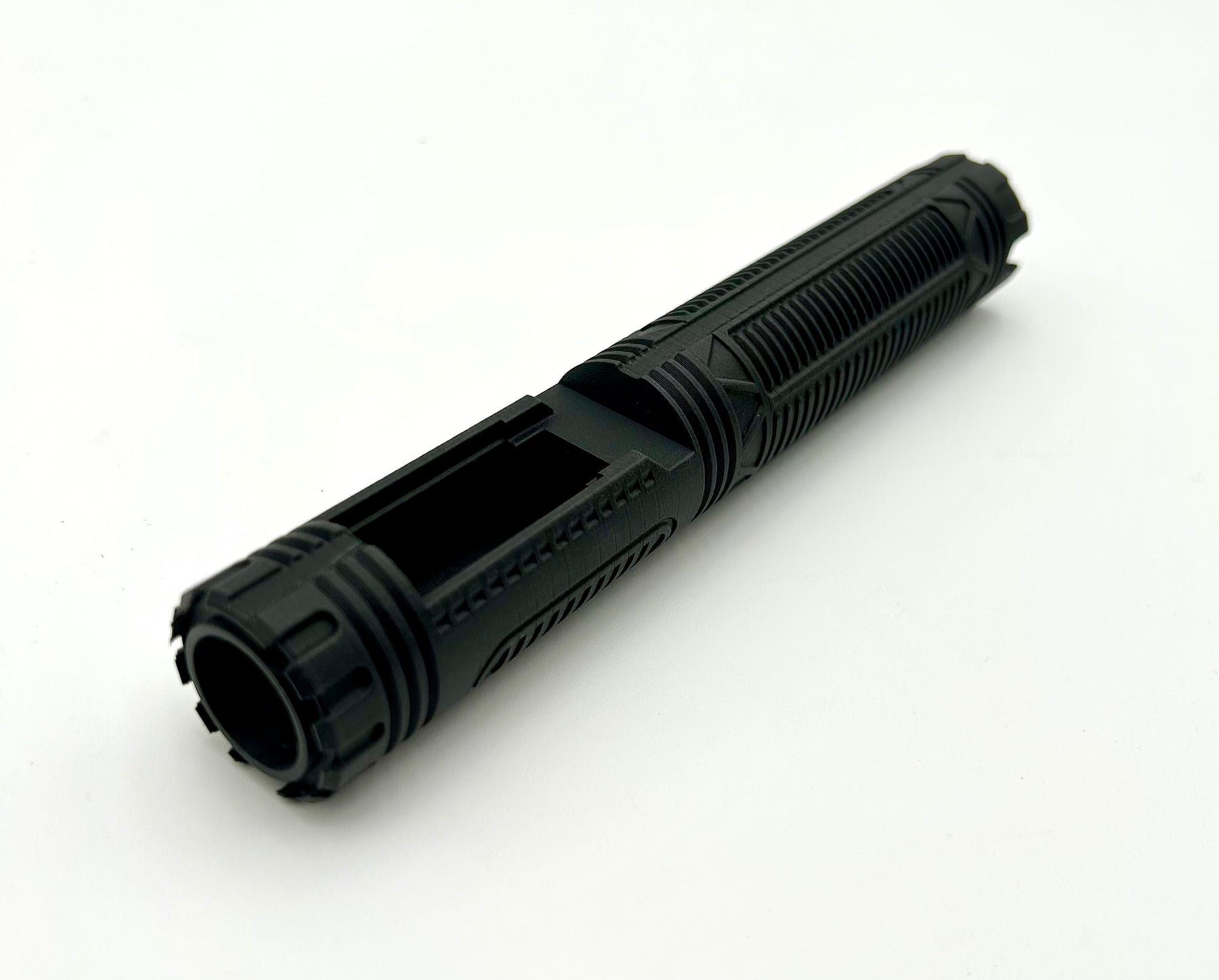

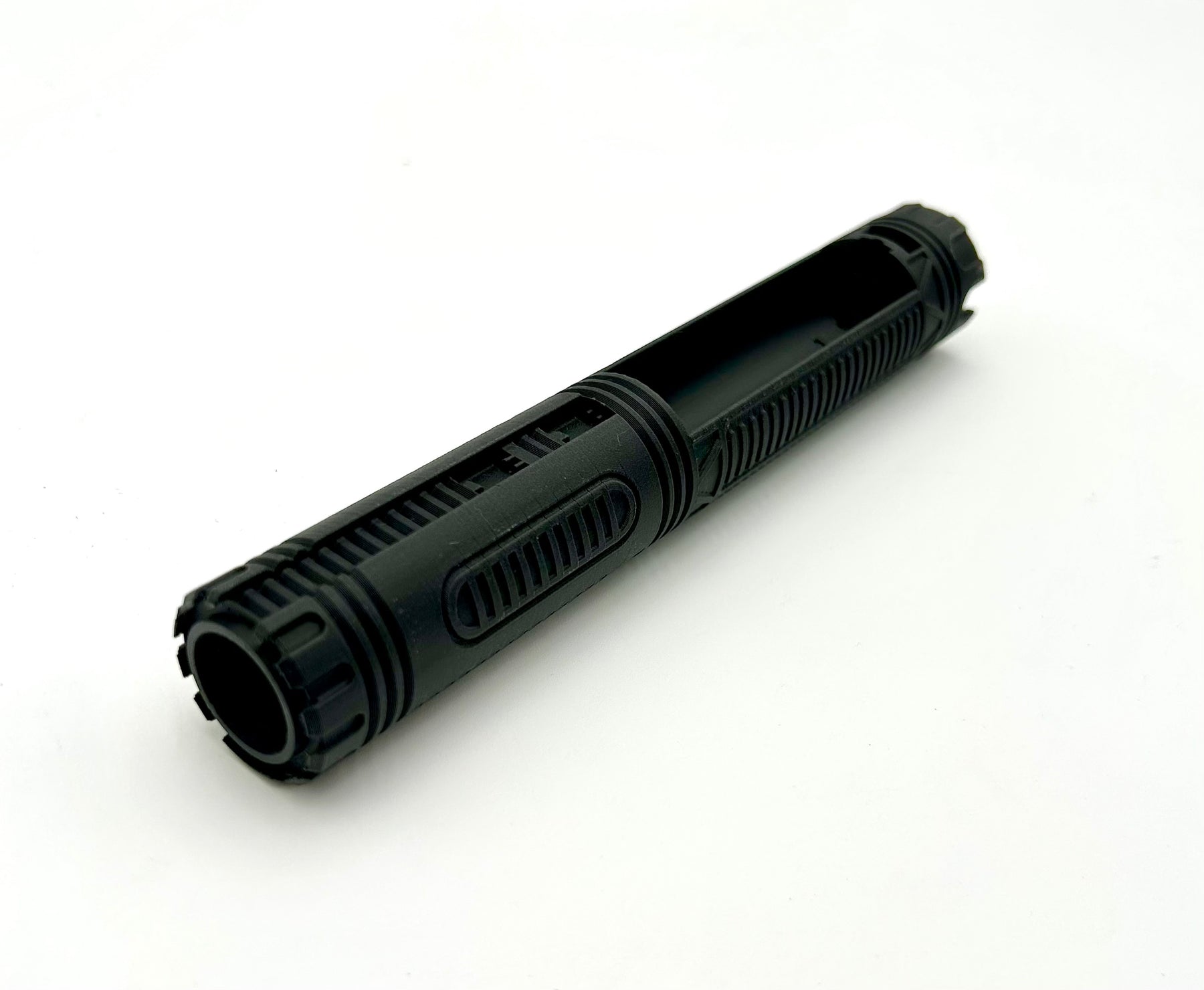

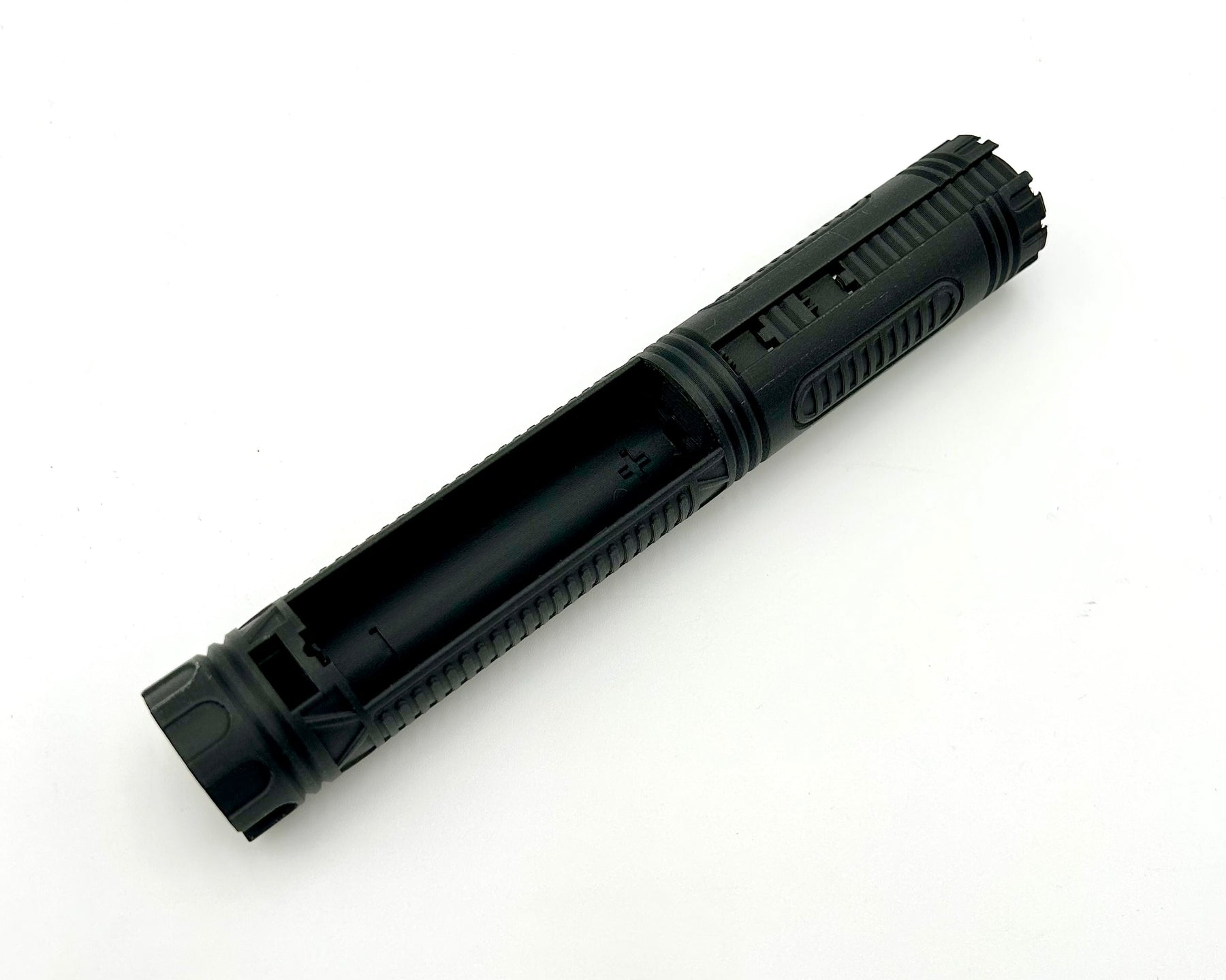

GeonObi V2 Install Chassis DIY Kit

3D printed install chassis for the Geonobi V2 hilt design. Please note this design is not intended to be compatible with any other hilt, including the original Geonobi (it is exclusive to the updated V2)

This is a single piece, all in one removable chassis, removable through the pommel section of the hilt.
This features two channels for proper alignment, utilizing the V2 switch actuators as well as the covertech wheel screw.

Parts list for install:
-CFX, Proffie or GHV4 soundboard
-short pin hiltside neopixel connector
-removable 18650 protected button top battery (Option 2 battery contacts included with chassis print)
-qty.2 red tactile switches (included with chassis print)
-high amp killswitch
-28mm bass speaker
