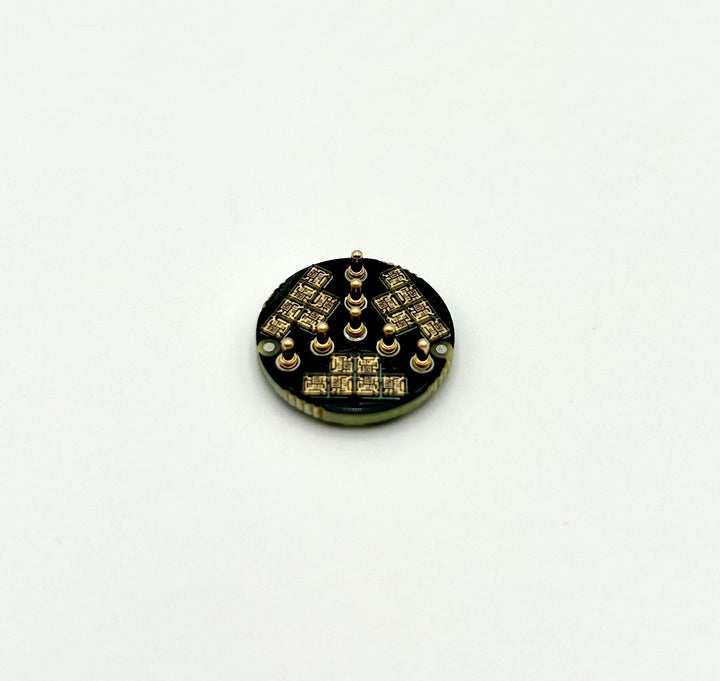

Our new in house made hiltside neopixel connector, the LITE! Proudly designed and assembled here in the USA!

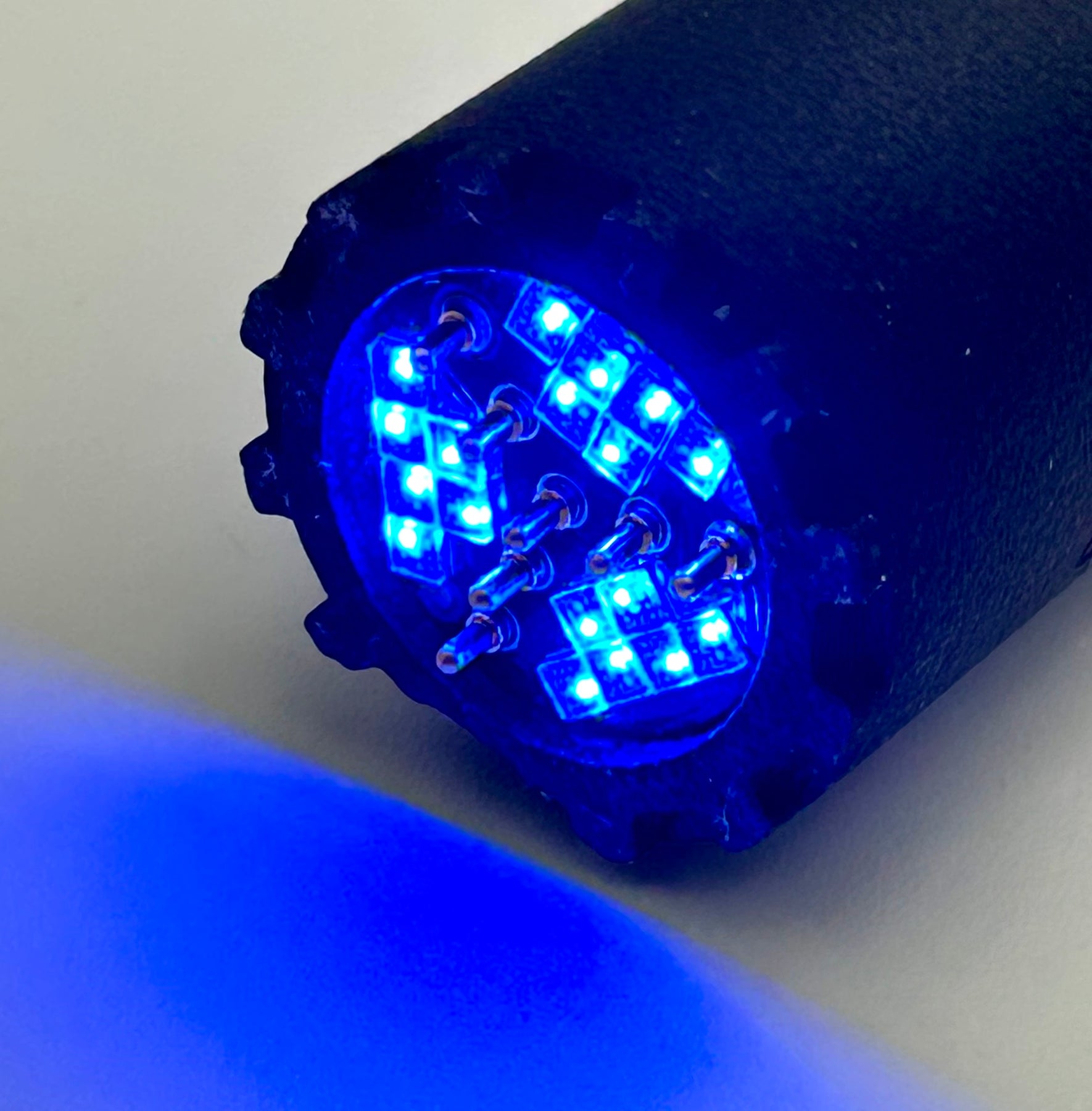

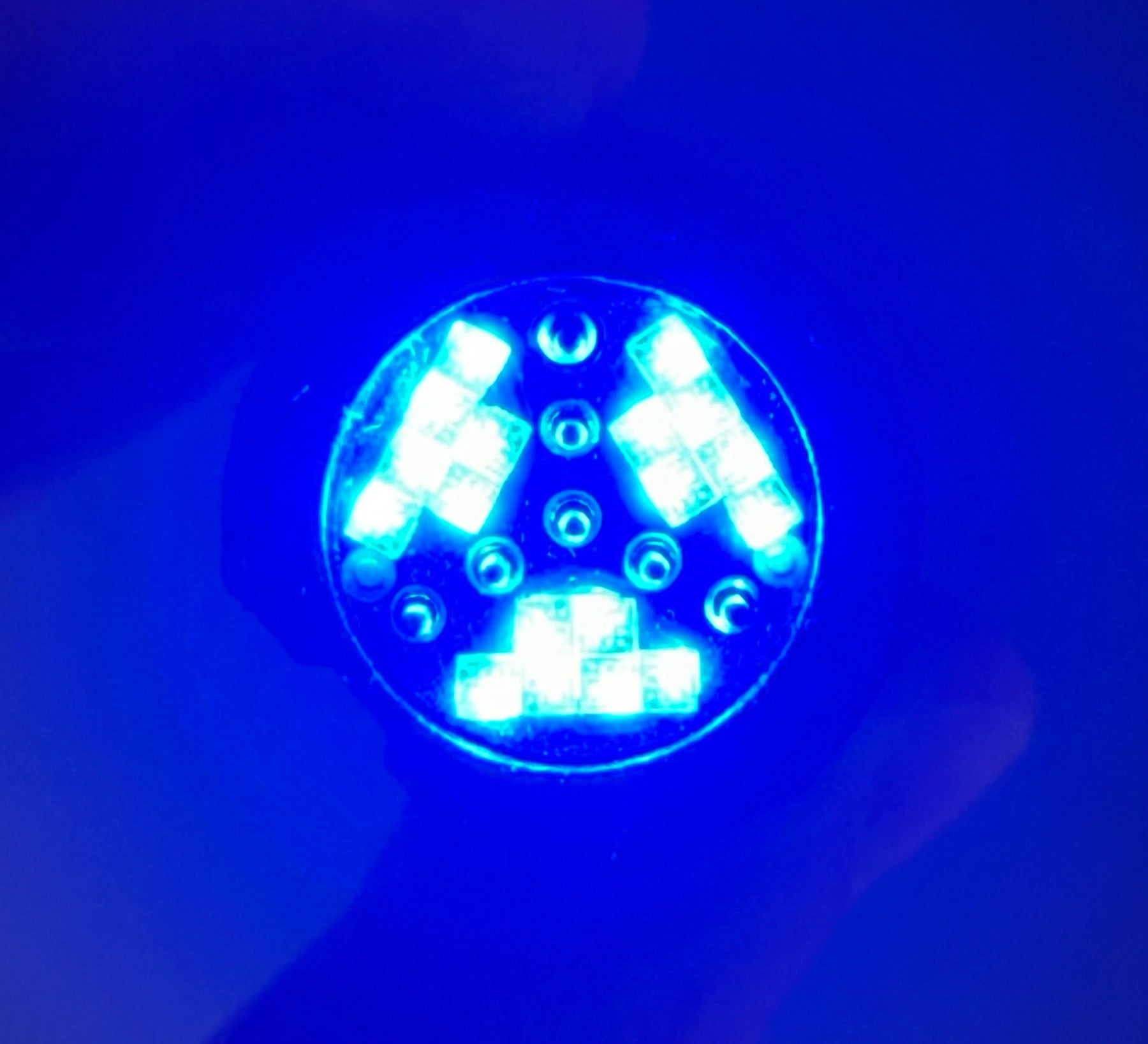

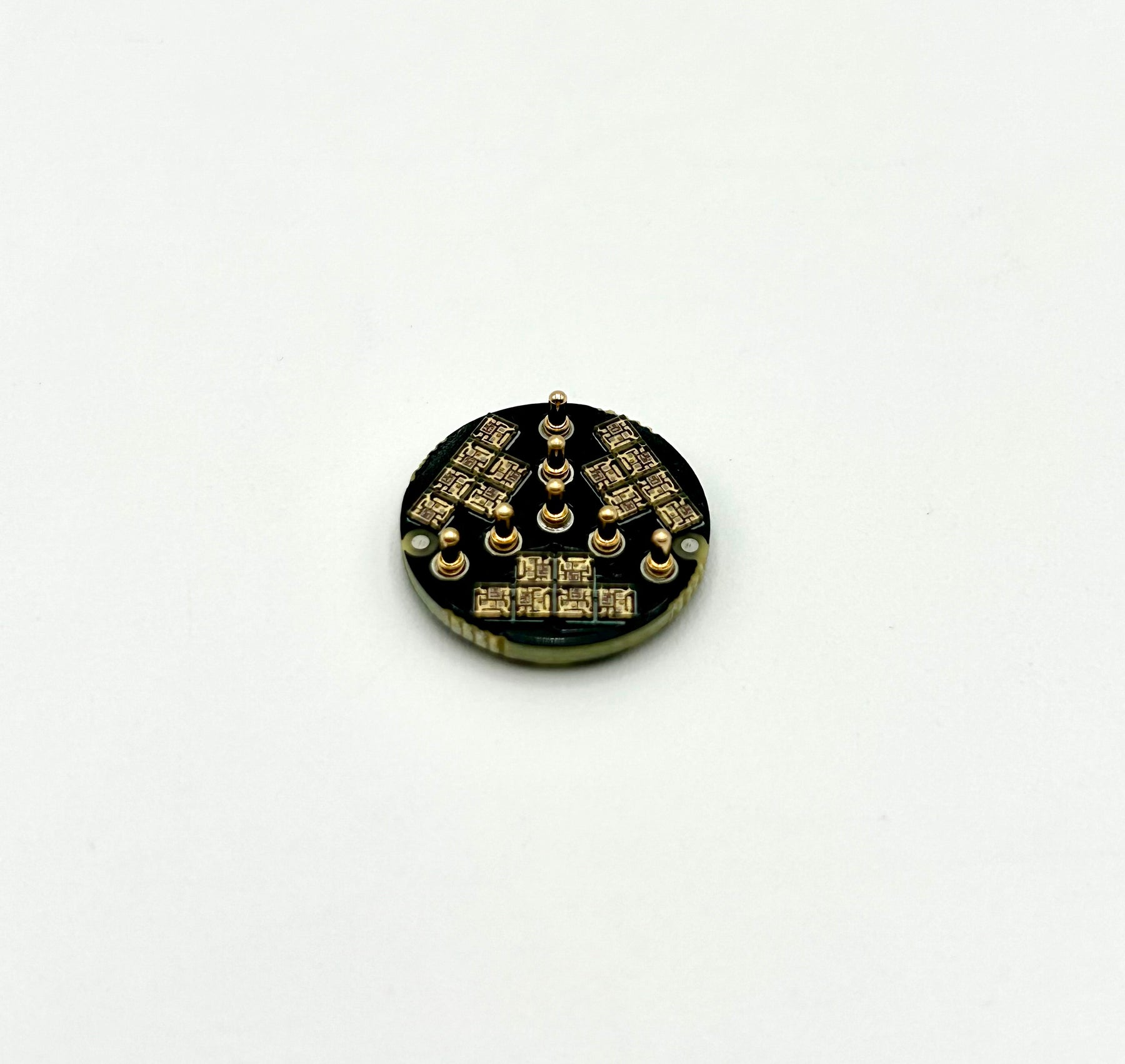

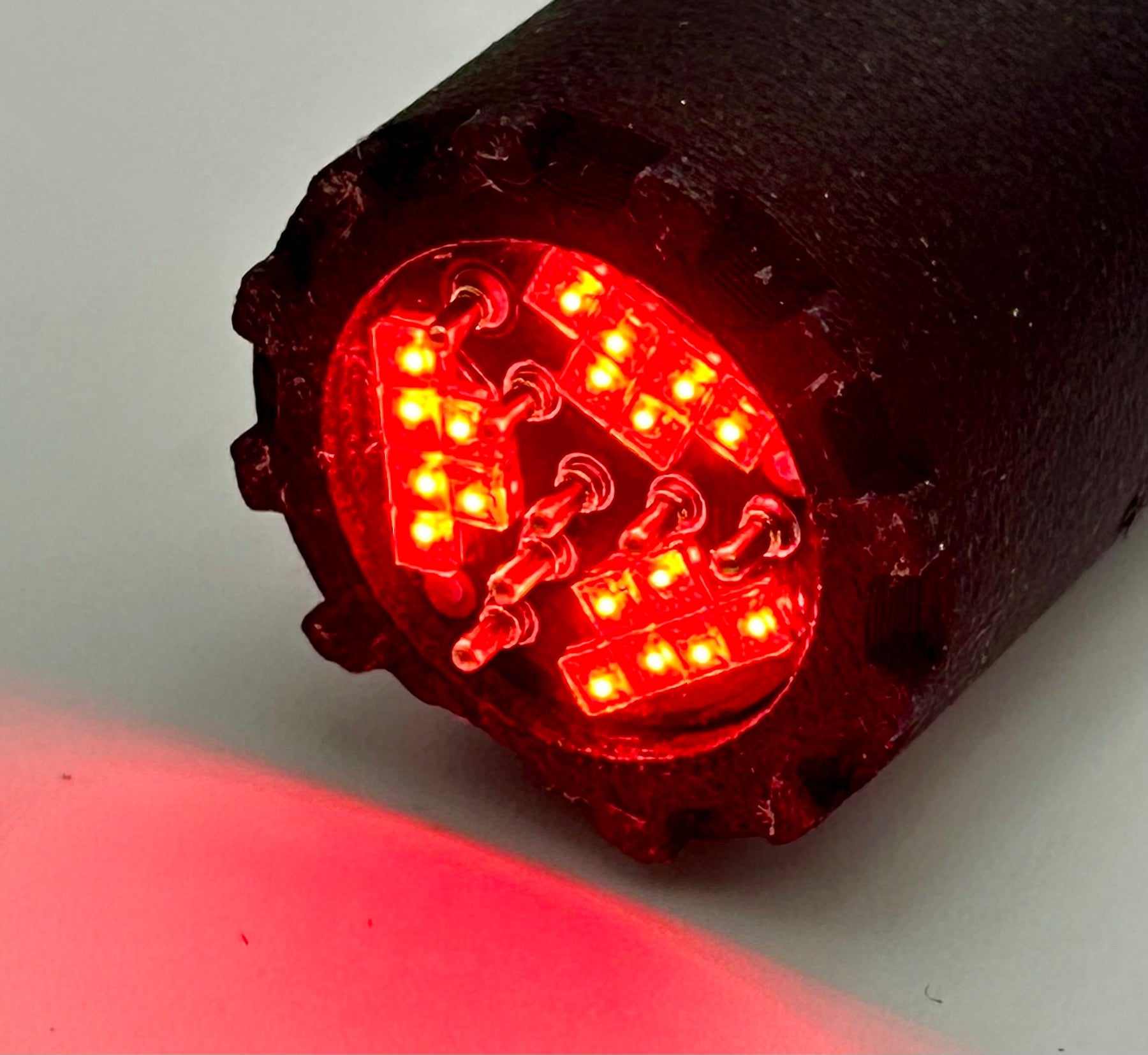

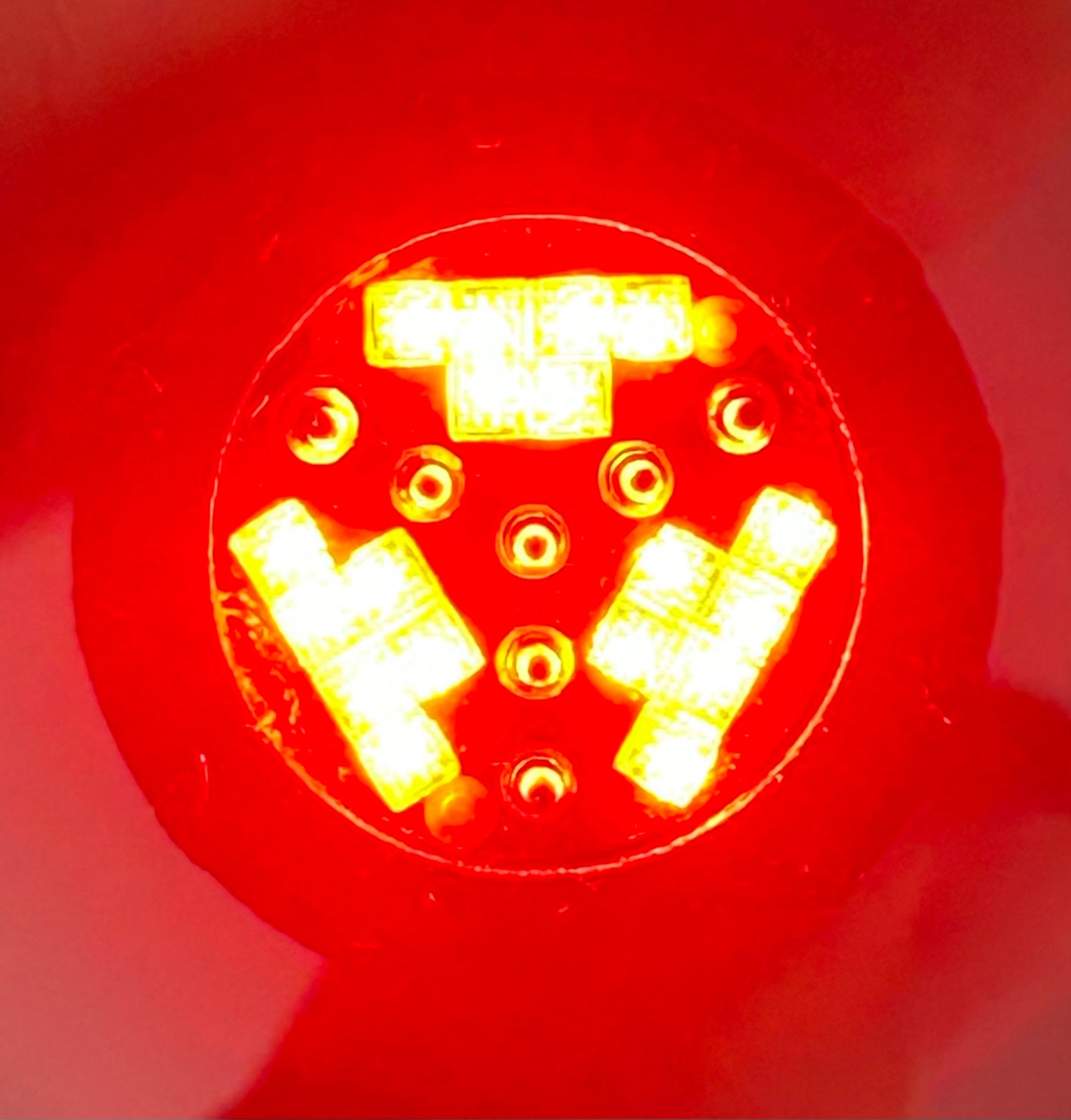

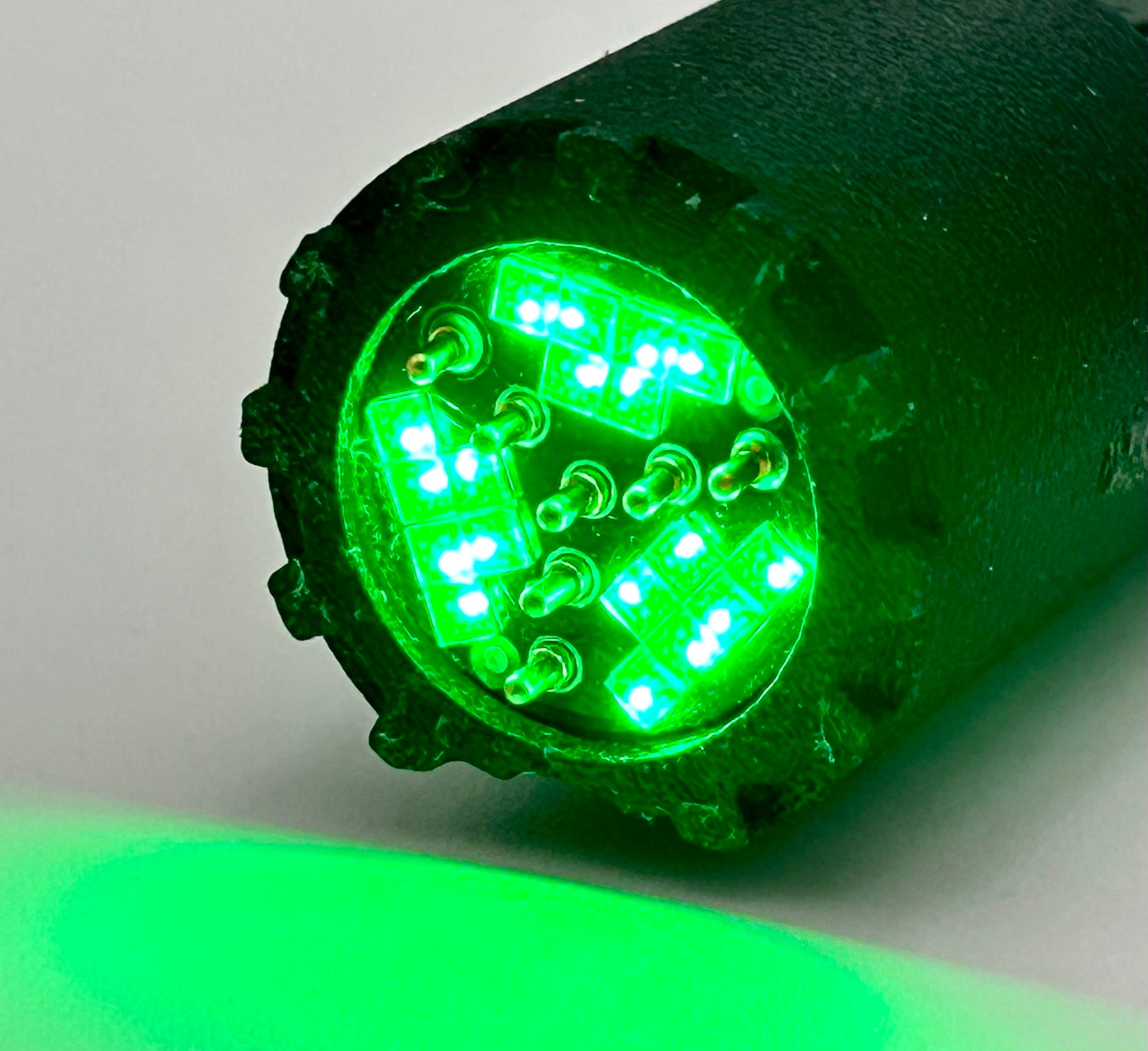

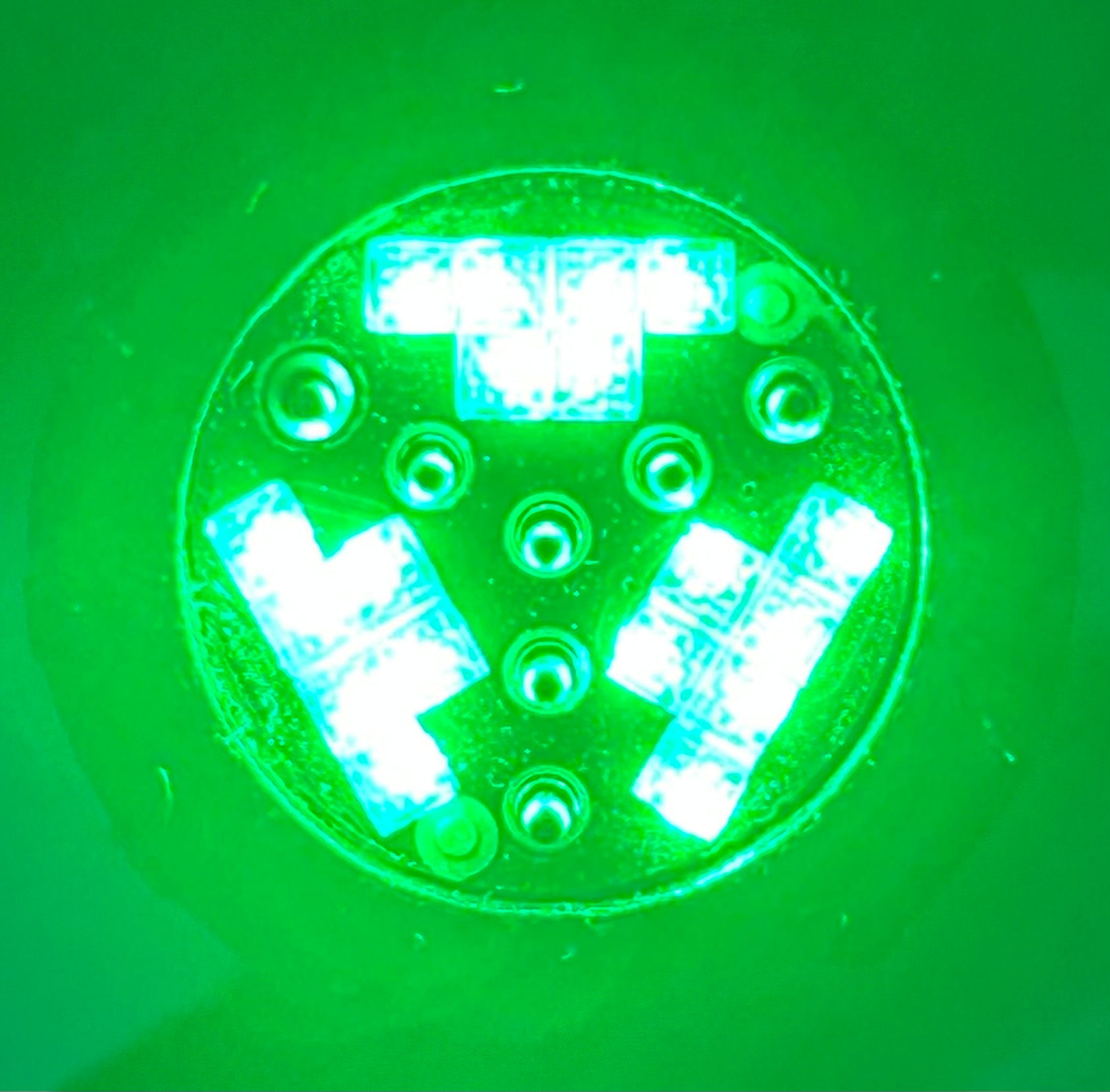

This is a budget friendly, easy to use connector option for all install types. Featuring a unique tri-array of super bright onboard neopixel LED's, 18 in total.
Rated for continuous 12A use, suitable for almost every blade amp draw requirement.
These are designed for blade mirroring purposes only, the onboard pixels do not have a separate data line to be programming individually.
A prewired option can be included which will presolder both the pins and the wires for install. The wire used for the prewired option will contain a single 22AWG red wire for positive, two 24AWG black or white wires for negative, and a single 28AWG green wire for data line.
SMD data line resistor comes presoldered for your convenience.

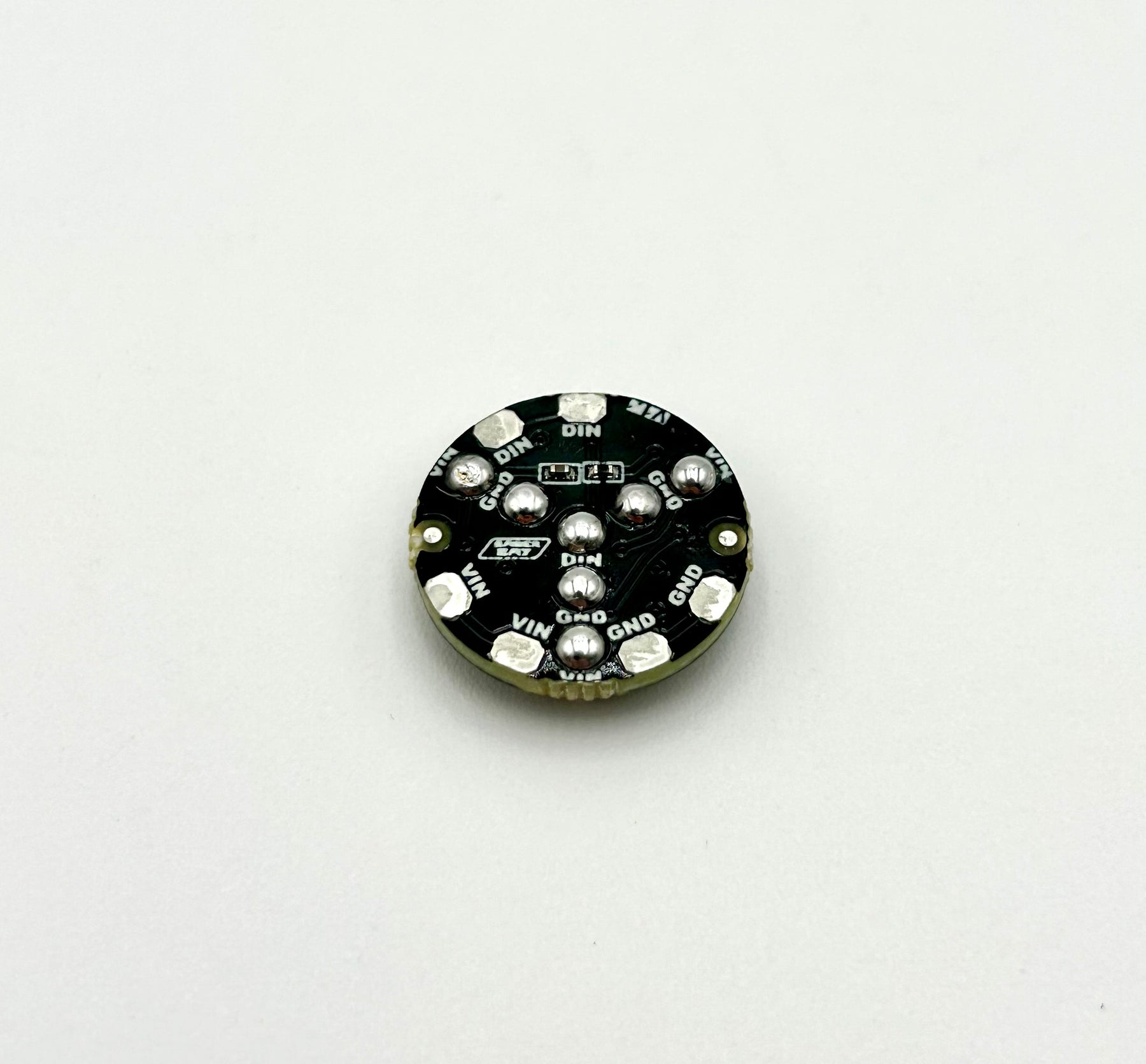

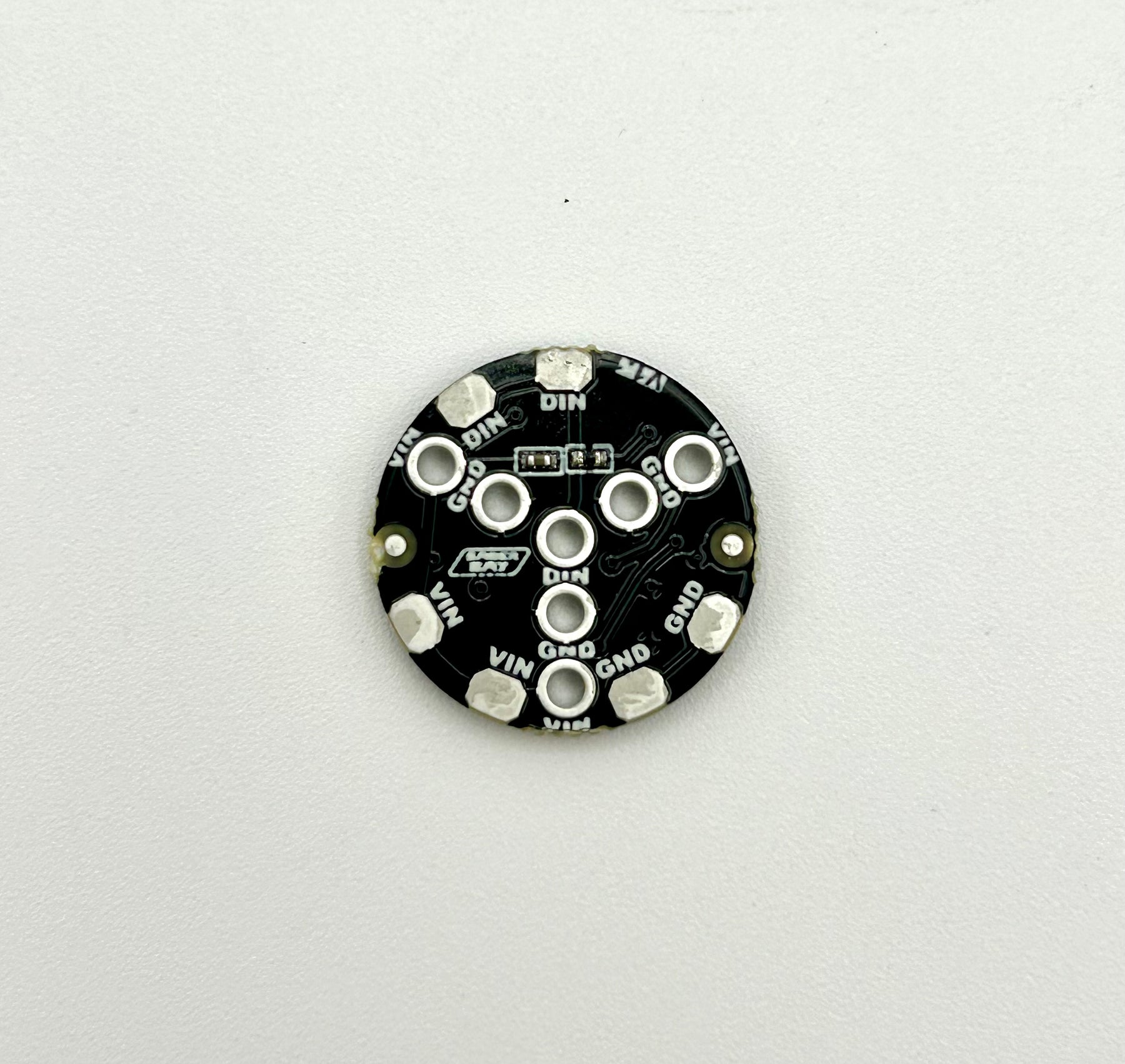

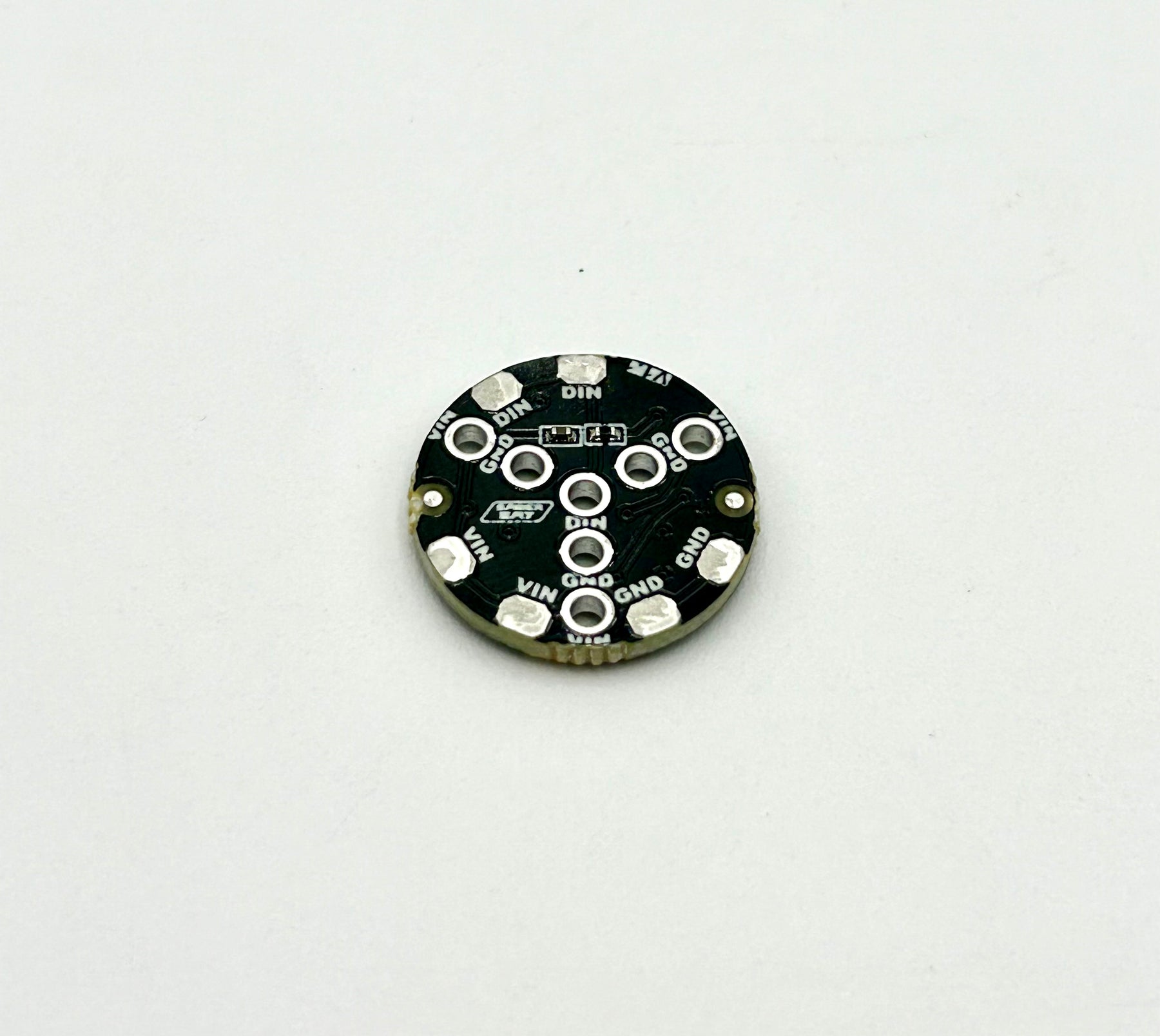

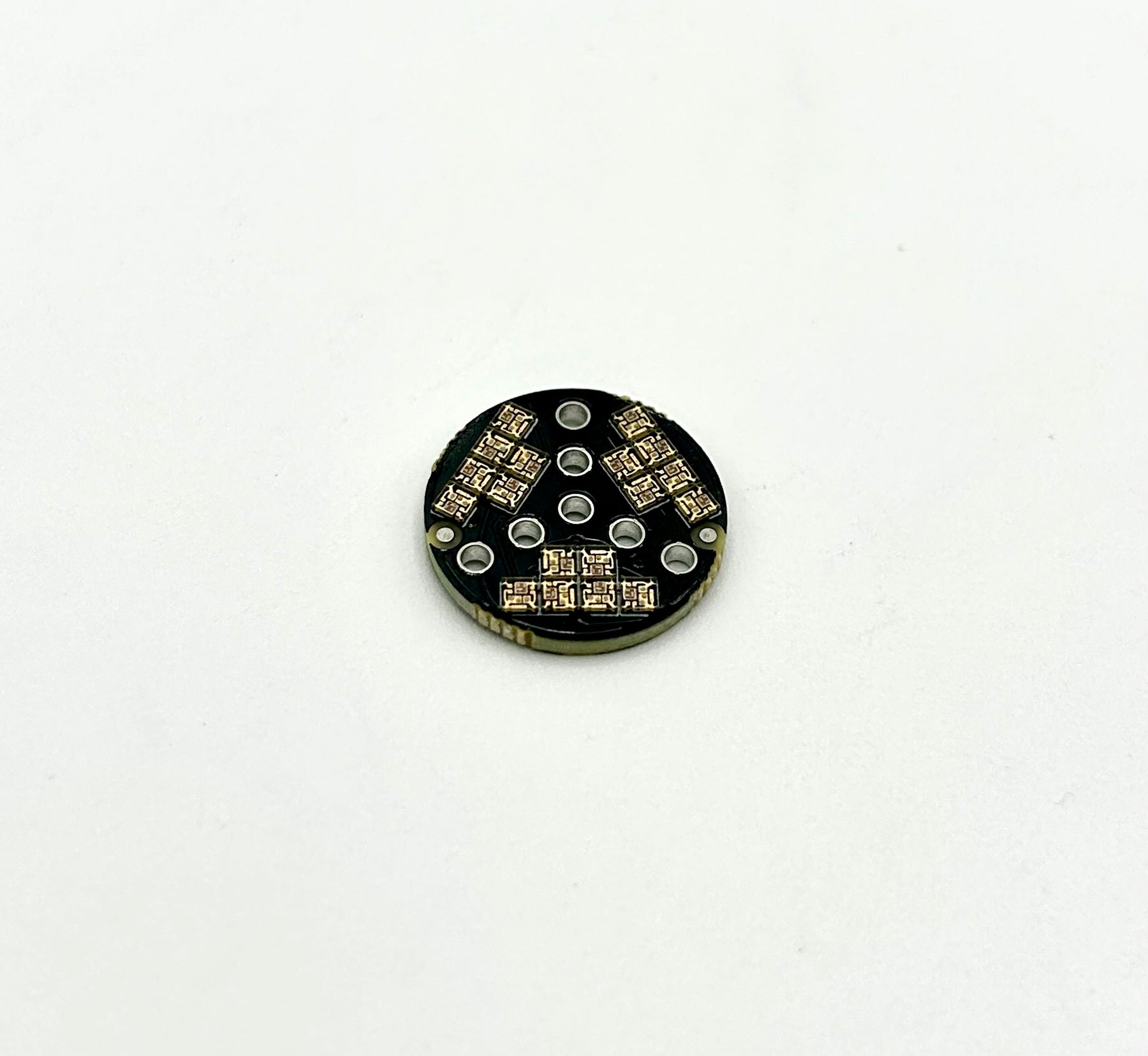

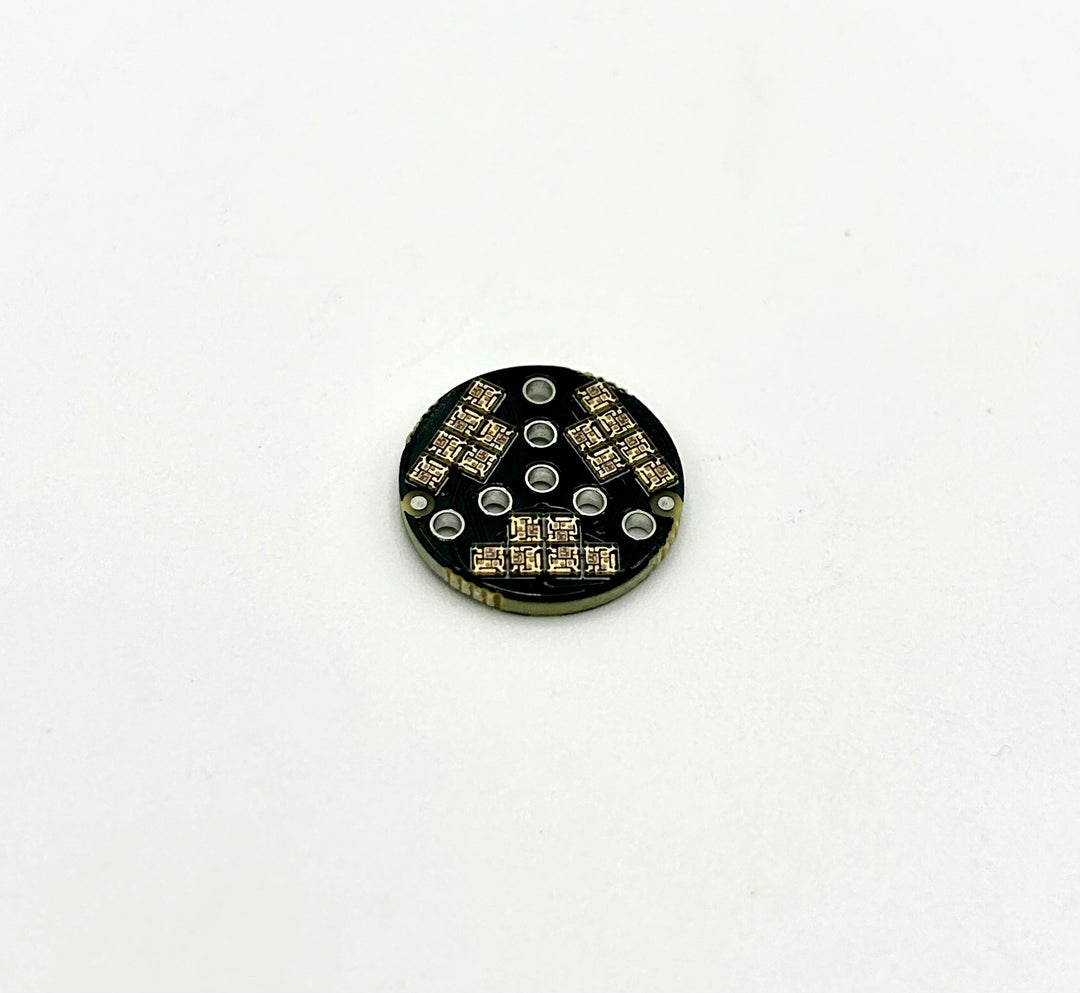

Data pad identification:
-2 separate data line pads, marked as DIN
-2 separate negative wire pads, marked as GND
-2 separate positive wire pads, marked as VIN
PCB outer dimension: 17.5mm
