These are single pixel accent LED’s designed by Shadowfoil Props

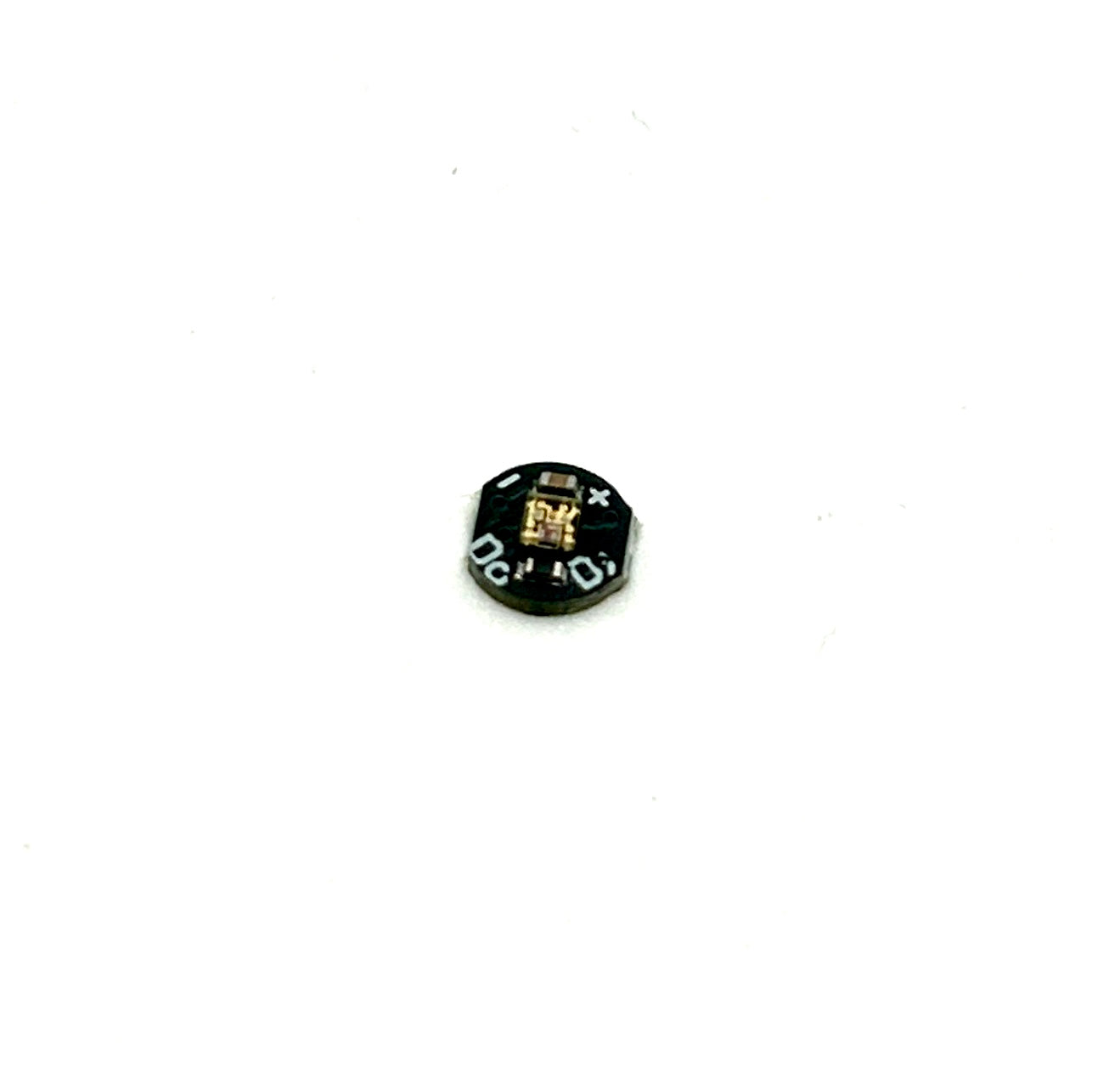

Small and compact for the tiniest of spaces, these small PCB’s are just over 5mm in diameter with minor sanding around the edges.
Each PCB is pre-resistored so no external resistor wiring is required.

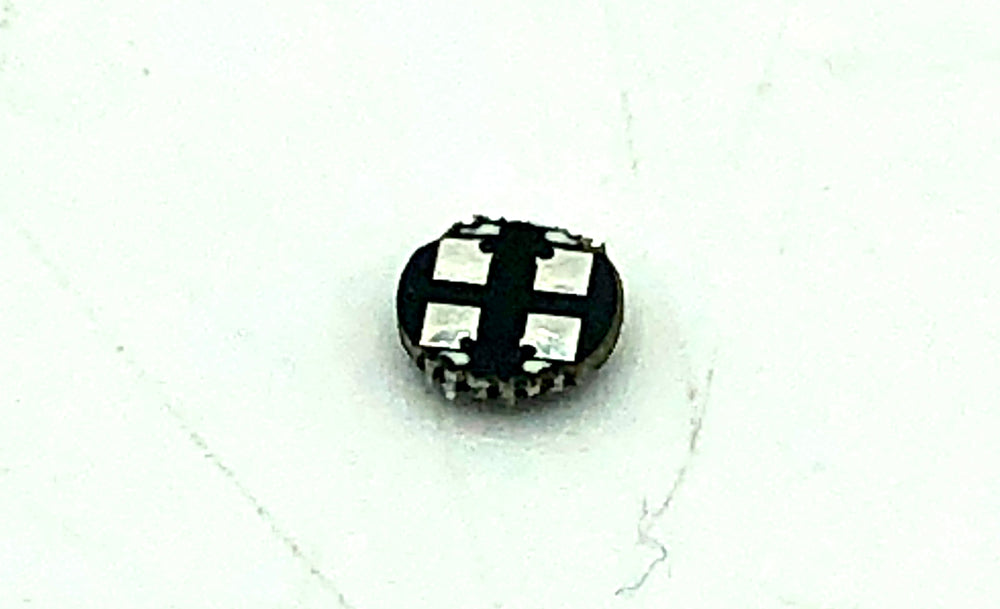

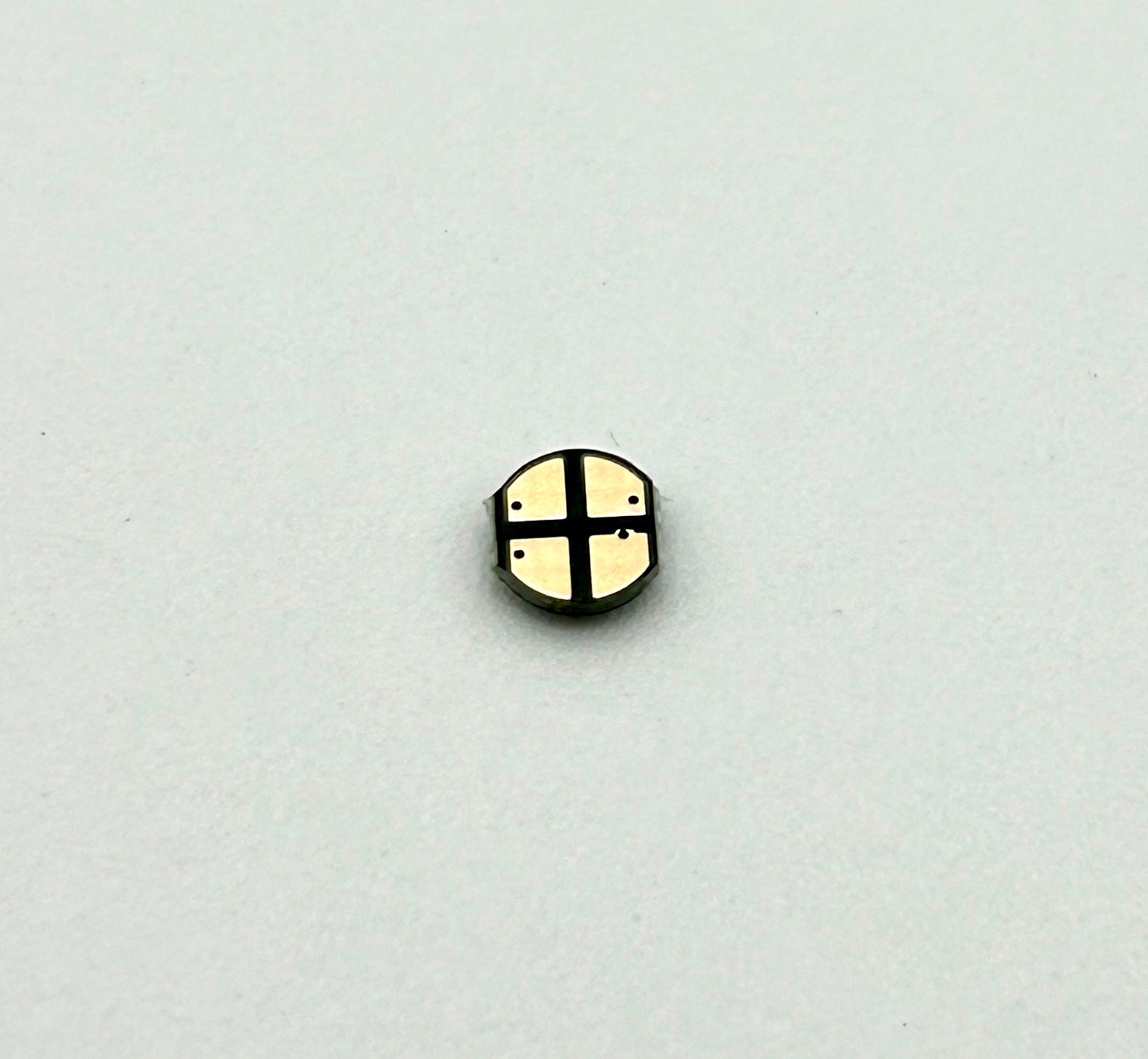

Each PCB has four pads used for VDD, GND, DIN, and DOUT
VDD is for Neopixel positive wiring
GND is for Neopixel negative wiring
DIN is for the data line signal going in
DOUT is for the data line signal going out, for wiring in series with other pixels

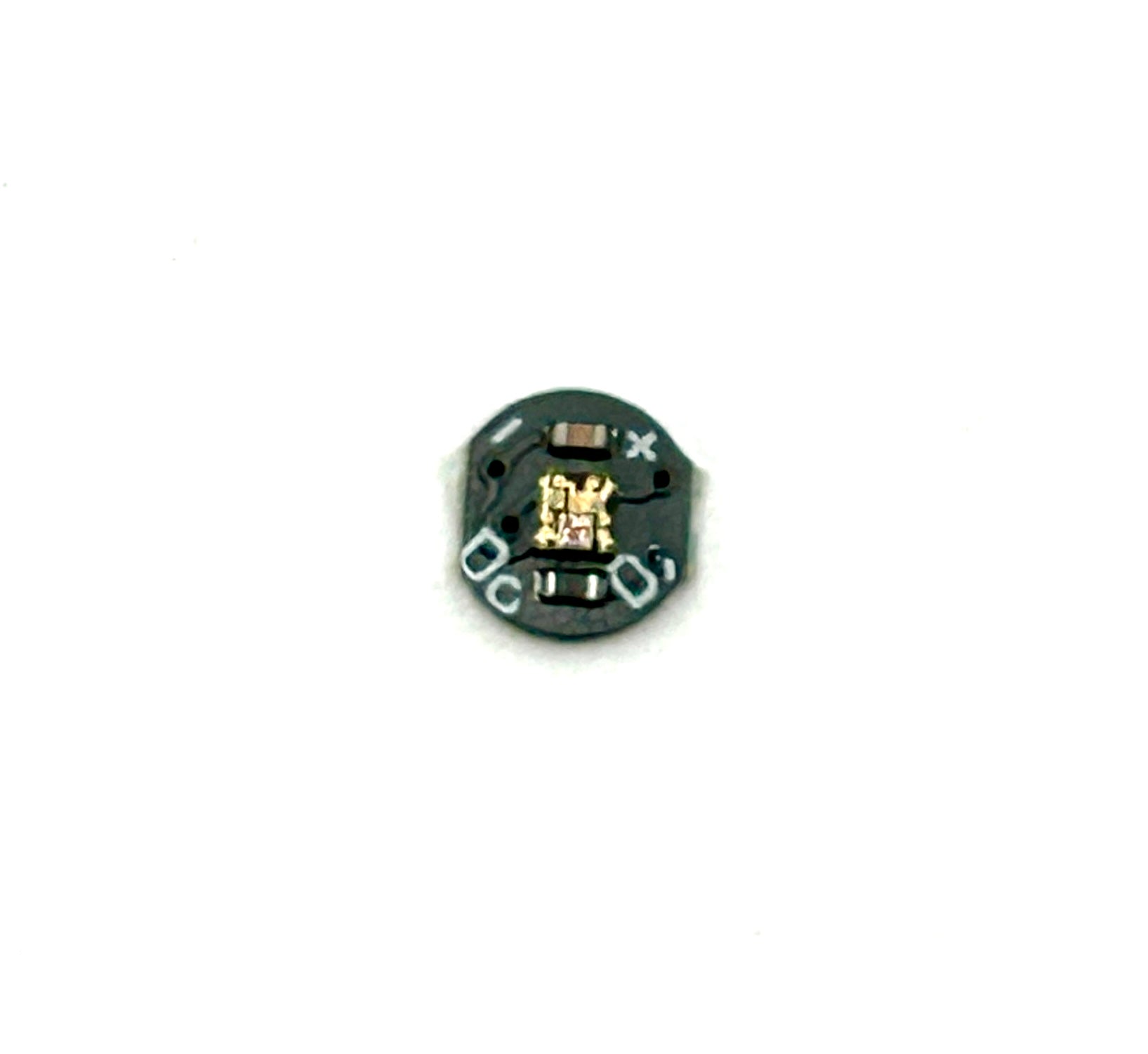

Please refer to the listing images for proper pad layouts, and orientation is indicated by the red line which is where the resistor is located on the opposite side of the pads.
Wire gauges of 30-32AWG are highly recommended
