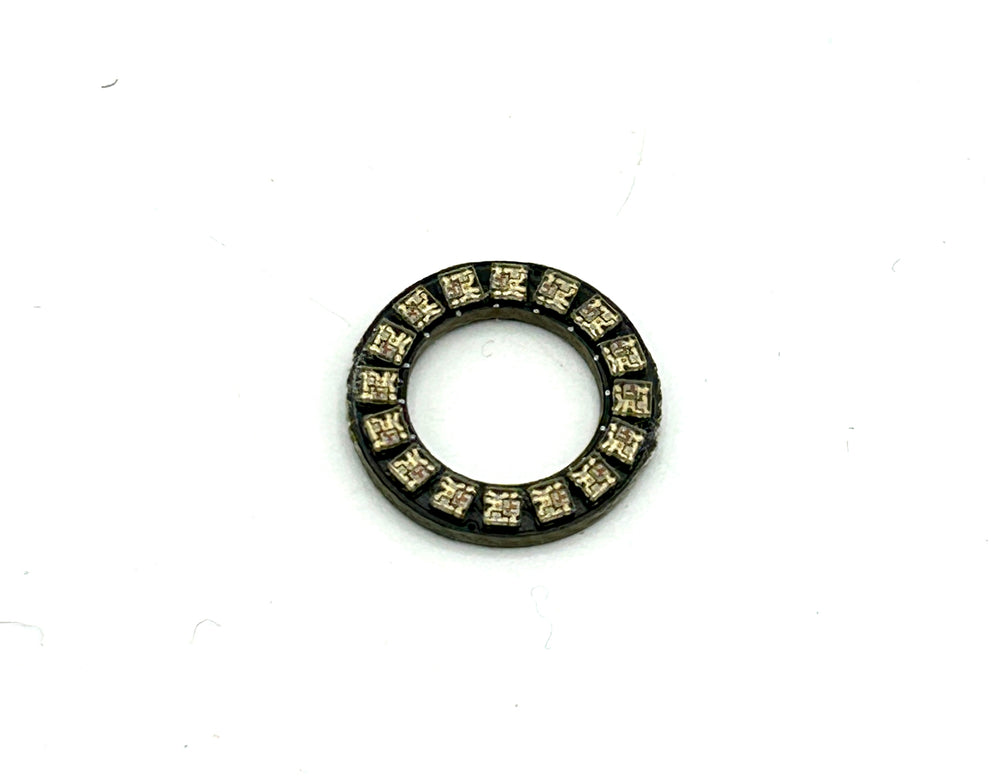

These are neopixel compatible rings designed for extra pixel illumination in lightsaber builds such as crystal chambers. These can be used for any purpose that works for your custom build.
Designed by Dmitry Shtok from ShtokCustomWorx, these come in three different sizes, and are preresistored for neopixel use.
Large-inner diameter of 10mm, outer diameter of 15mm, total of 20 individual pixel accents
Medium- inner diameter of 8mm, outer diameter of 13mm, total of 16 individual pixel accents
Small- inner diameter of 5mm, outer diameter of 10mm, total of 11 individual pixel accents
Please follow the wiring pads labeled on the back of these to wire accordingly to your soundboard.
Pads are labeled as:
'DIN' for data input
'DOUT' for data output
'+' for neopixel positive
'-' for neopixel negative
Some light sanding may be required on the perforated edges. Please handle with care as misuse and mishandling of these products may lead to damaged or malfunctioning components.
