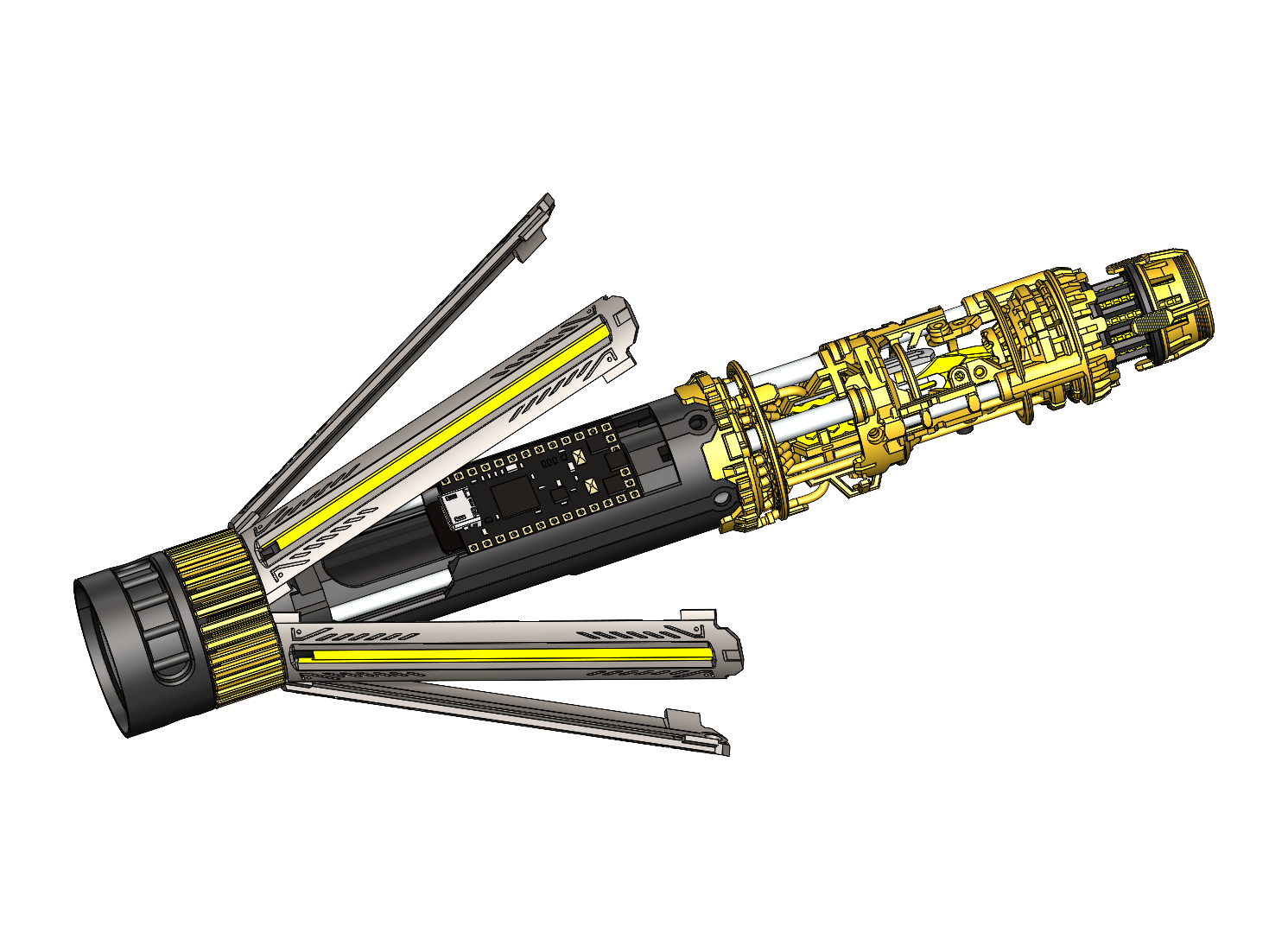

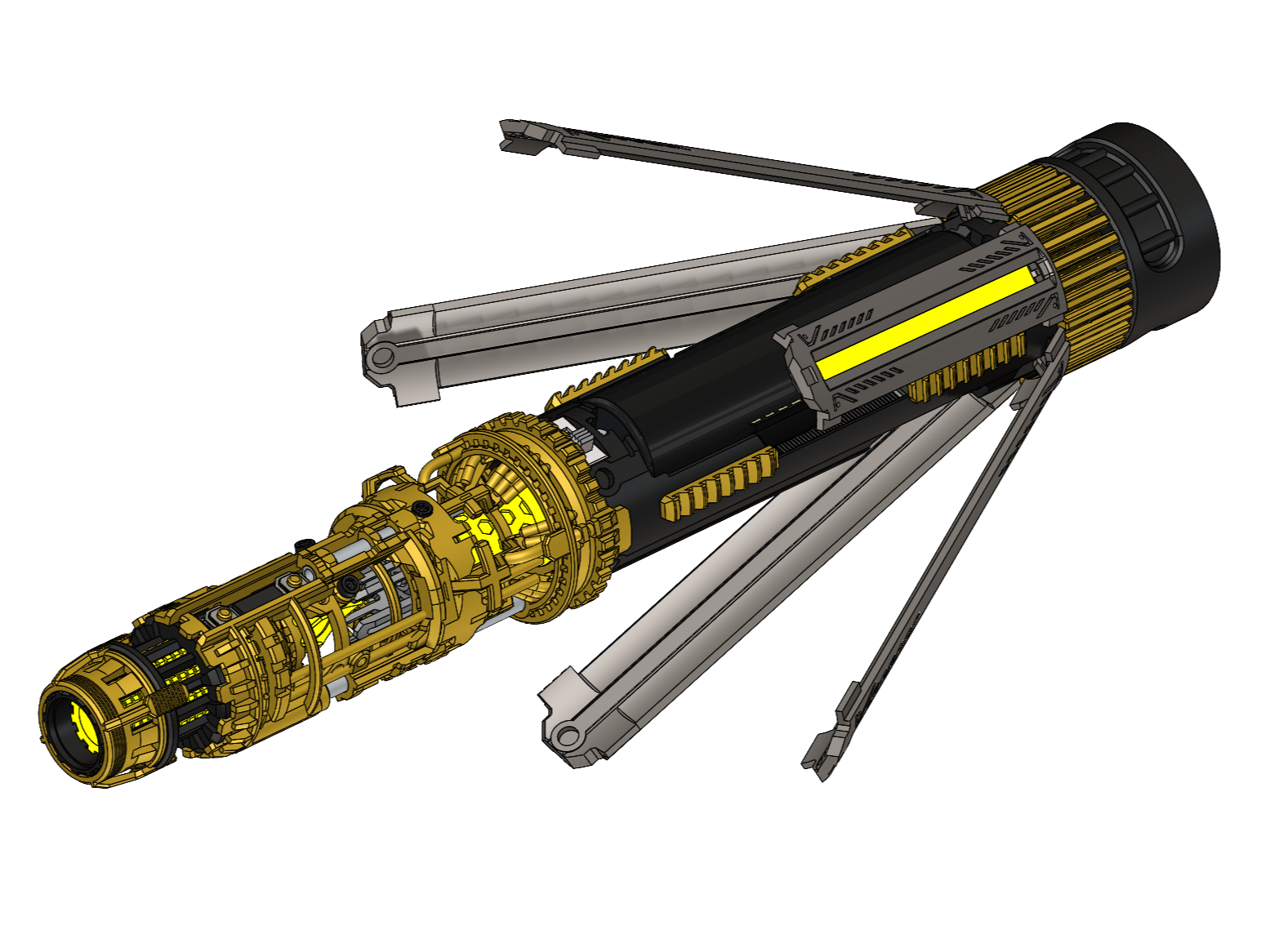

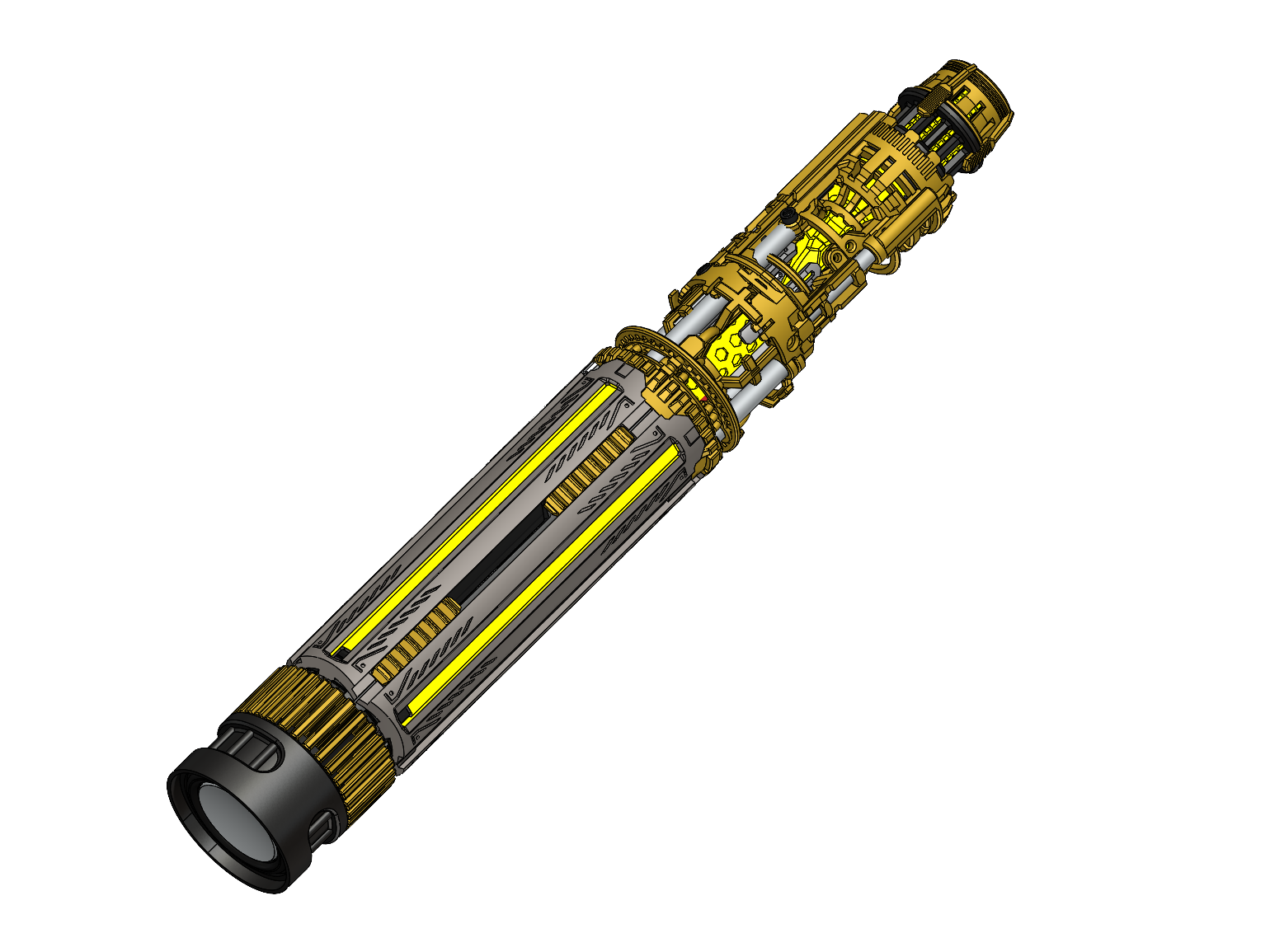

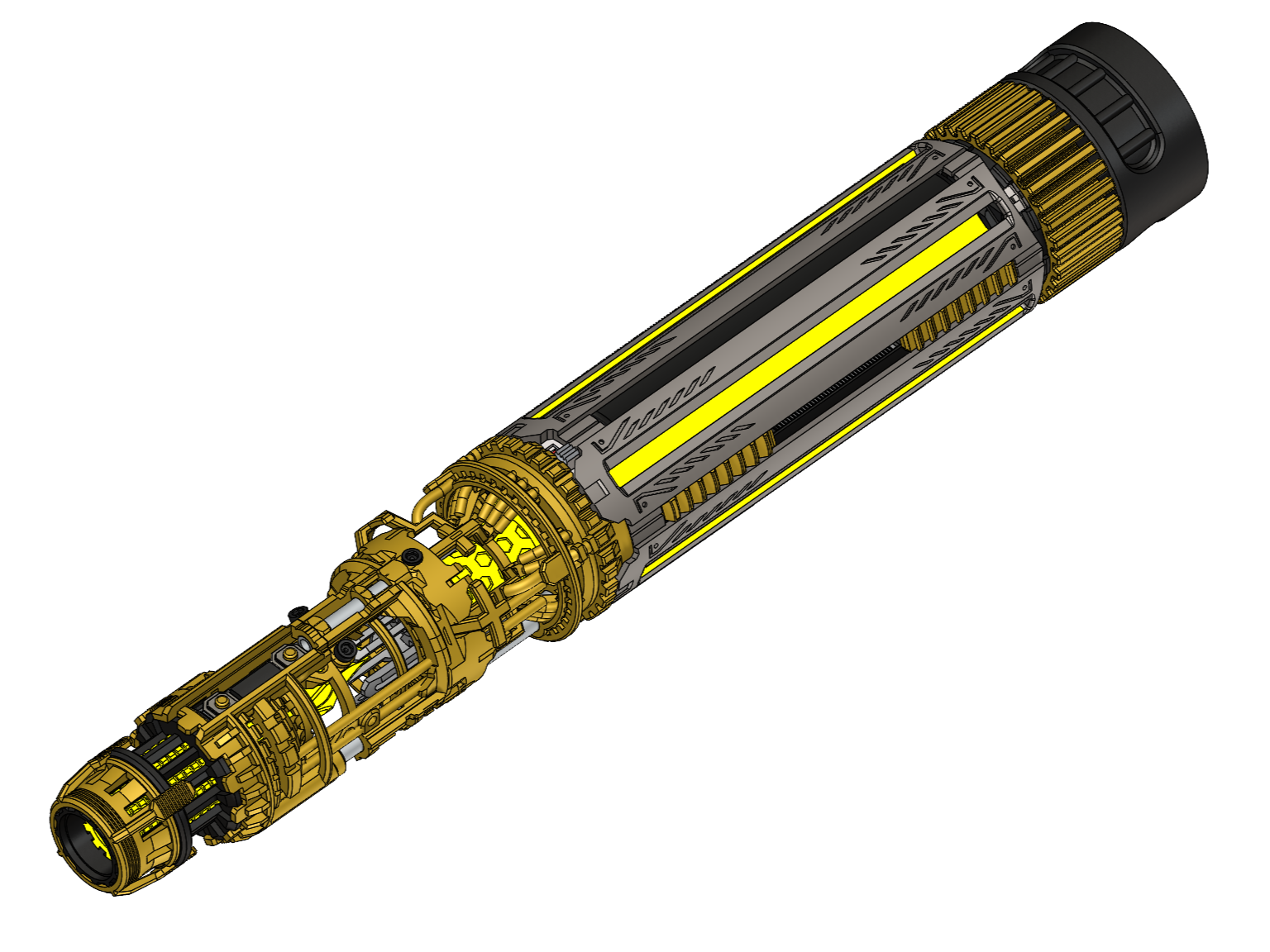

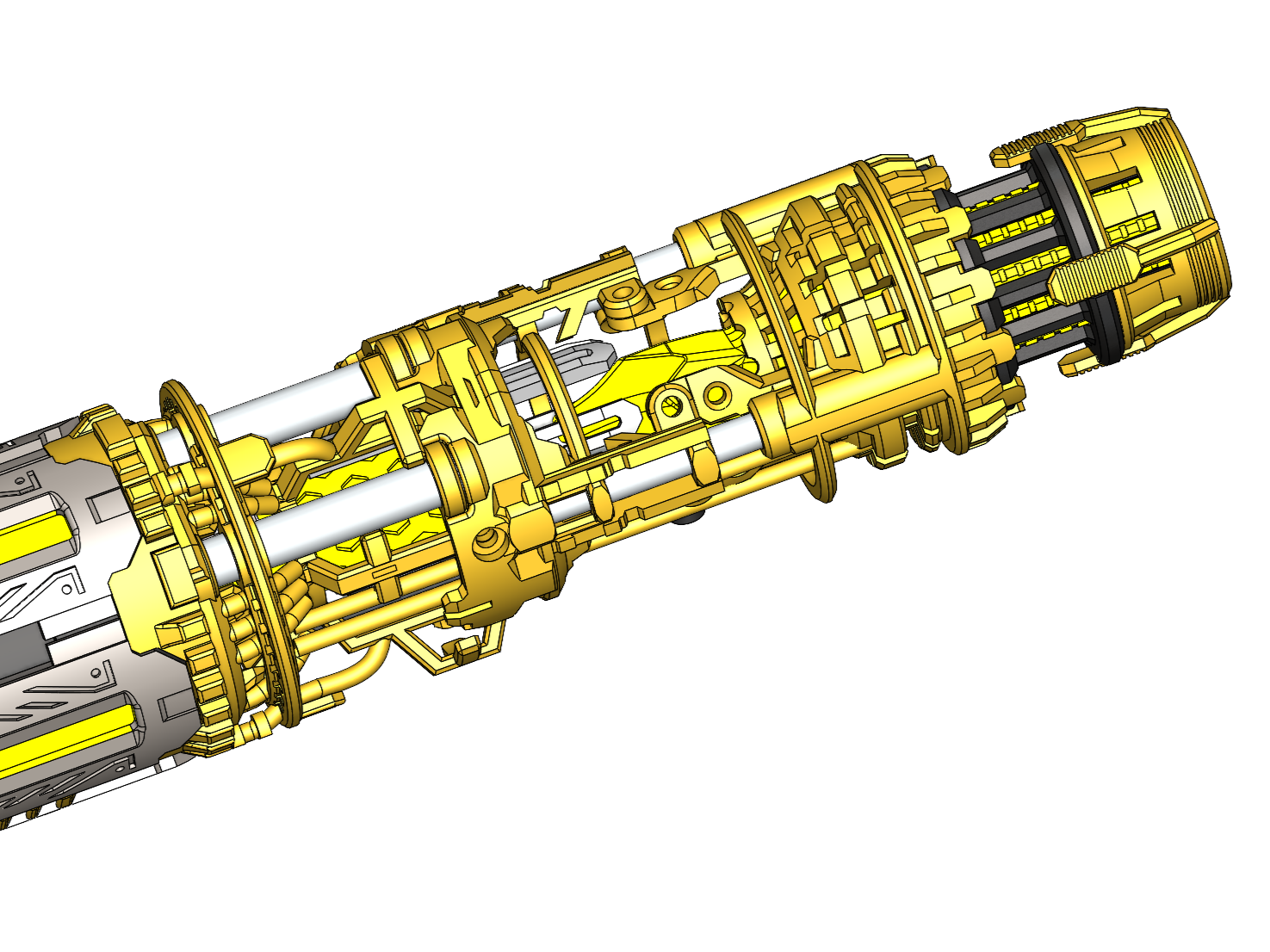

The Machina Master Chassis design from Goth3Designs. This listing is for the printed chassis parts only, saber is not included. This is a high end expert level install design, please only attempt if you have prior advanced install experience.
The chassis is comprised of high quality print material included multi jet fusion black main body material and cast polished brass.
Parts list for install:
-Proffie soundboard -removable 18650 button top protected cell -28mm Bass Speaker -Option2 Battery Contacts(included with chassis print) -High Amp Kill Switch -qty.2 1.5mm brass tactile switches (included with chassis print) -47 RPM DIY Motor -qty.2 Large Pixel Ring -Thin Neck PCB Connector Set -qty.1 micro pixel -qty.5 2.7mm width mini WS2812 LED Strips (cut to 12 LED's) -qty.1 2.7mm width mini WS2812 LED Strips (cut to 6 LED's) -short pin hiltside neopixel connector -4mm OD Tube -3mm OD Tube -qty.10 3mmx1mm neodymium magnets qty.15 2mmx2mm neodymium magnets -qty.10 2mmx1mm neodymium magnets -qty.5 M1.6 socket screw black 10mm length -qty.6 M1.6 socket screw black 5mm length -qty.3 M1.6 socket screw black 4mm length -qty.16 M1.6 nuts -qty.2 M2 socket screw black 8mm length -qty.2 M2 nuts
