NPXL Blade Side PCB Connector *With and Without LED's*
NPXL Blade Side PCB Connector *With and Without LED's*
NPXL Blade Side PCB Connector *With and Without LED's*
NPXL Blade Side PCB Connector *With and Without LED's*

NPXL Blade Side PCB Connector *With and Without LED's*

Regular price $7.00 Save $-7.00
/
Shipping calculated at checkout.

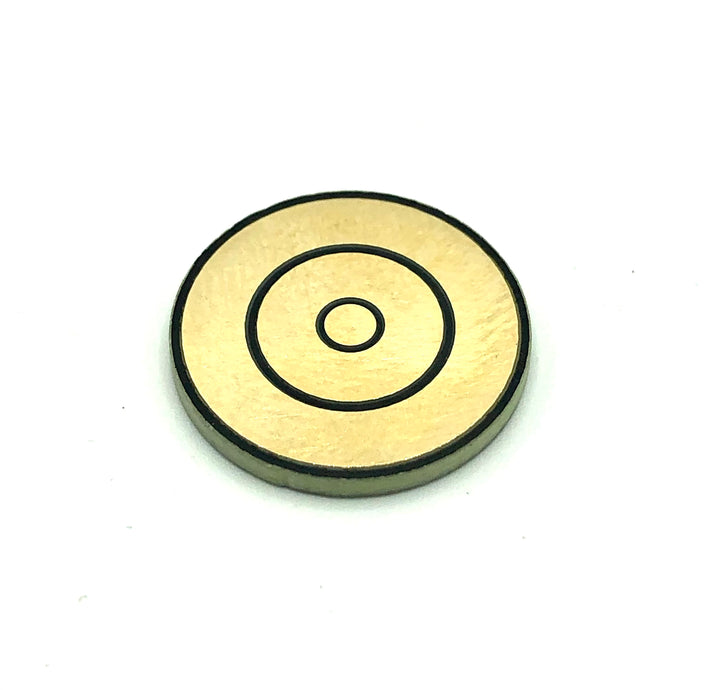

Blade side PCB's for making neopixel blades, blade plugs, and other neopixel connections.

Use with our thin or thick walled blade side holders(1" or 7/8" compatible)

WITH LEDS version are perfect for making easy neopixel blade plugs with the correctly sized holder. No extra wires necessary for blade plug function.

Explanation here --> https://youtu.be/Fpv4AnaMPoY
-Each set includes 0603 470 ohm resistor required for data line(foot prints on both blade and hilt side connectors)
-Resistor already placed on V2 With LED

V2 with led means quick and easy neo pixel blade plug

Specifications:
- true 20A max current rating
- 17.5mm pcbs OD
- Gold Plated wear out resistive finish

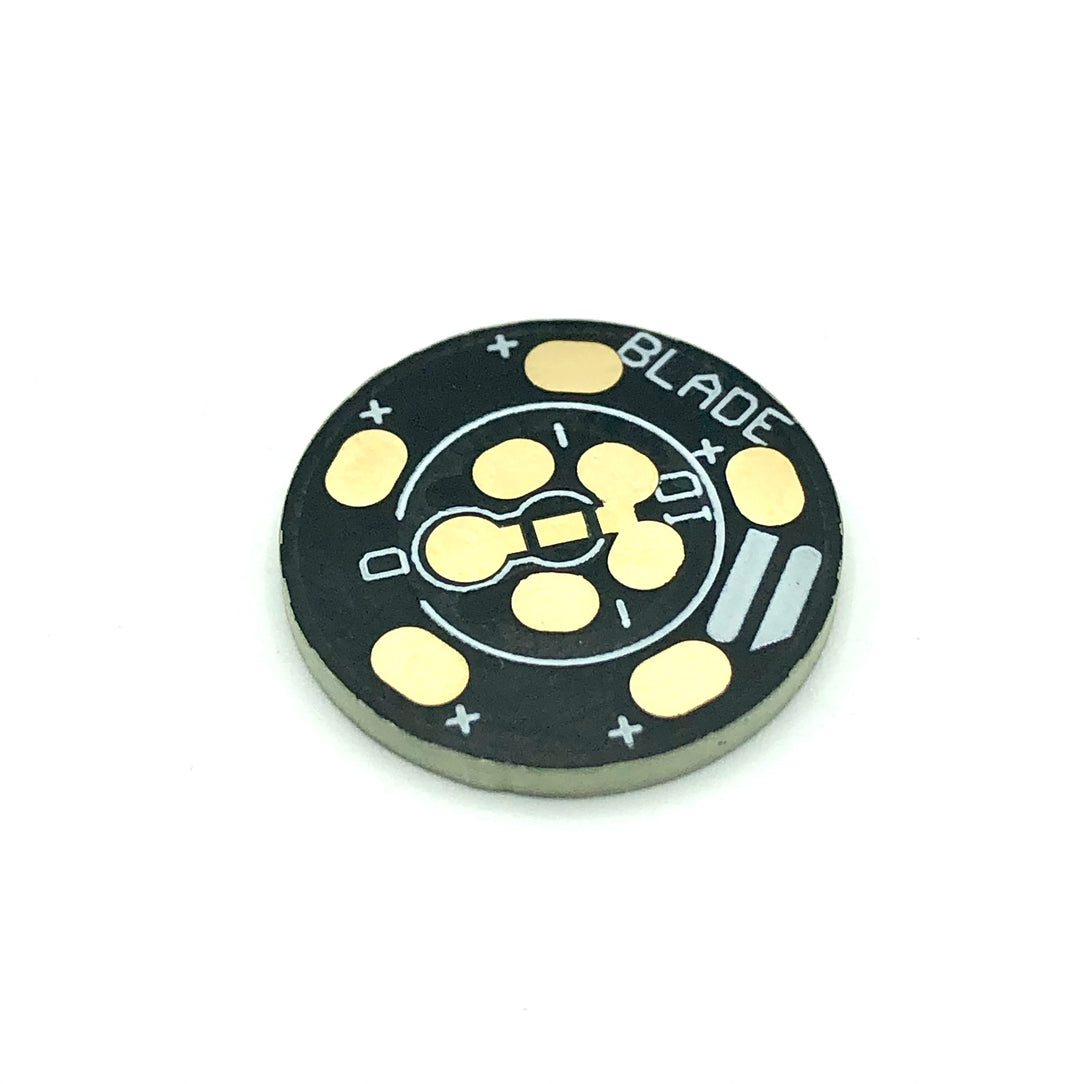

- 0603 Data resistor footprint on “Blade” pcb
- big solder pads for easier wiring
-V2 includes "blade id" resistor foot print(optional)
