Temperance DIY Install Chassis Kit

Basic install chassis designed for the Saberbay Temperance hilt, not intended for any other saber design.

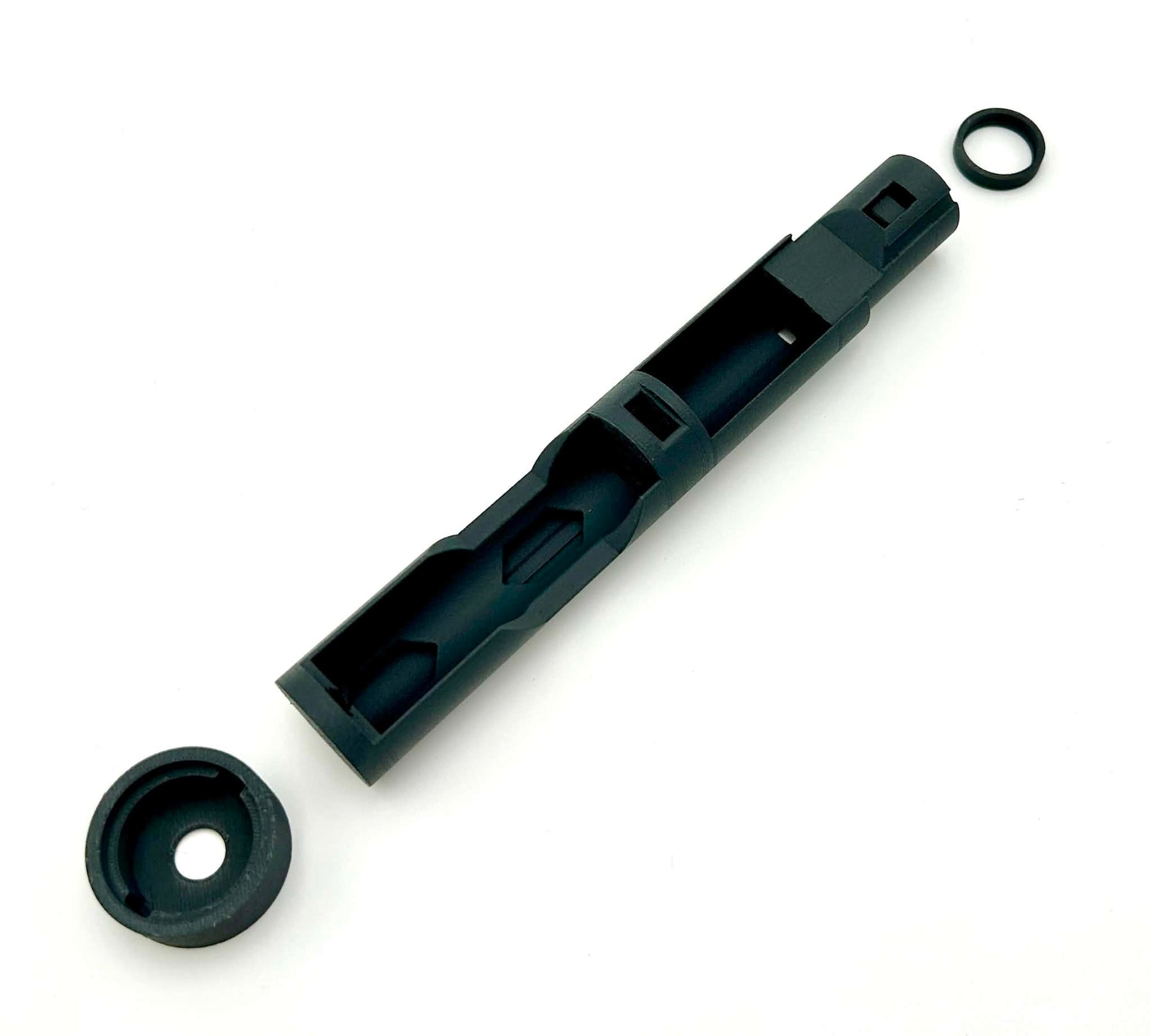

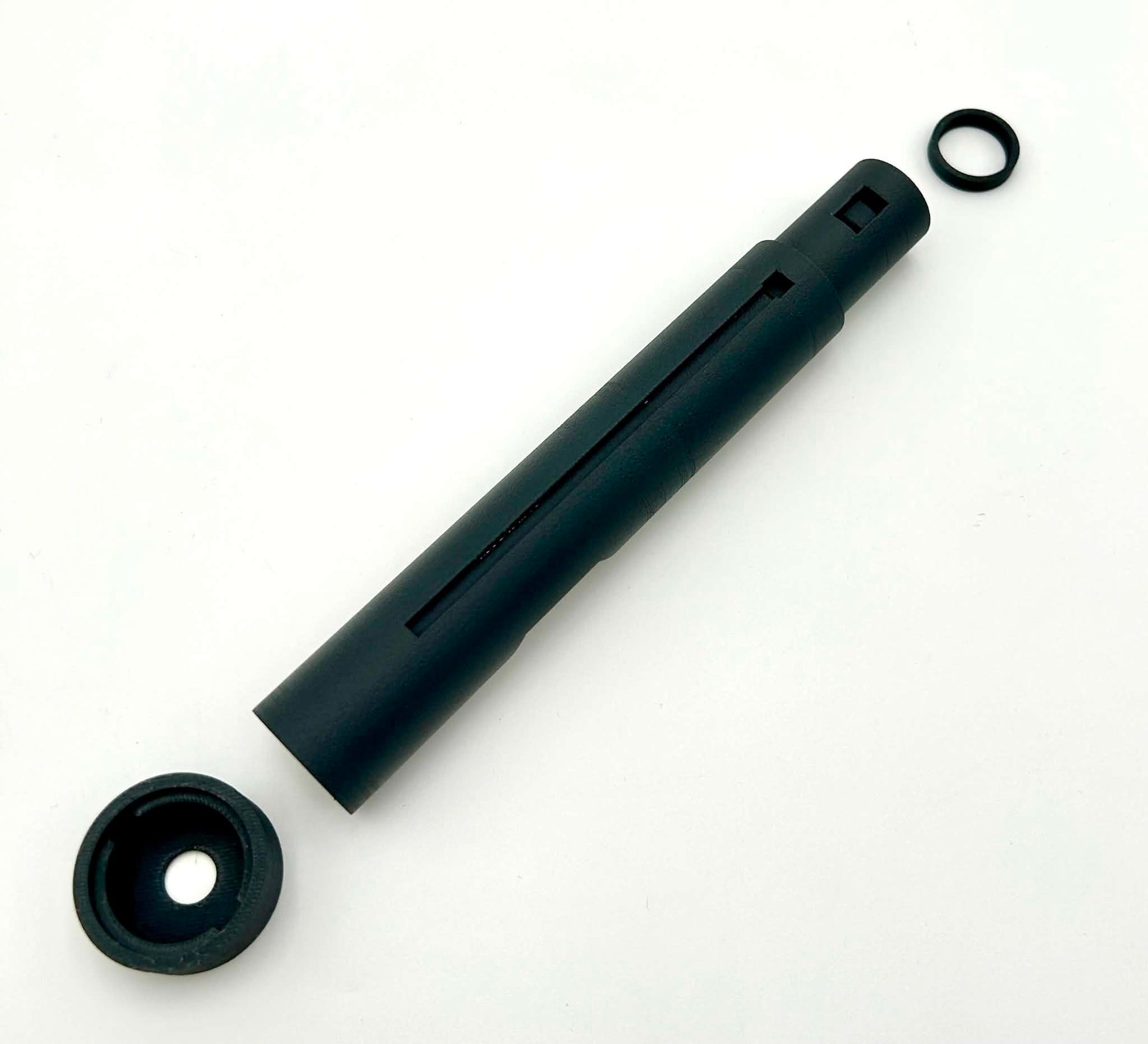

Comprised of 3 individual parts for housing all required electronics.
The small hiltside PCB holder goes in the recessed section of the emitter (I recommend adding some kind of adhesive to the bottom before installing)
The main chassis body stays static in the upper section aligned with the switch actuators, and uses the retention screw to hold in place
The chassis also uses a separate speaker pod which secures in place with the pommel added on

Parts list for install:
-CFX, Proffie or GHV4 soundboard
-short pin hiltside neopixel connector
-tactile switch PCB for main button
-tactile pixel switch PCB for aux button
-WS2812C-2020 4mm width mini LED strip (30 LED length)
-high amp killswitch
-removable 18650 protected button top battery (Option 2 battery contacts included with chassis print)
-speaker pod PCB set
-28mm bass speaker
