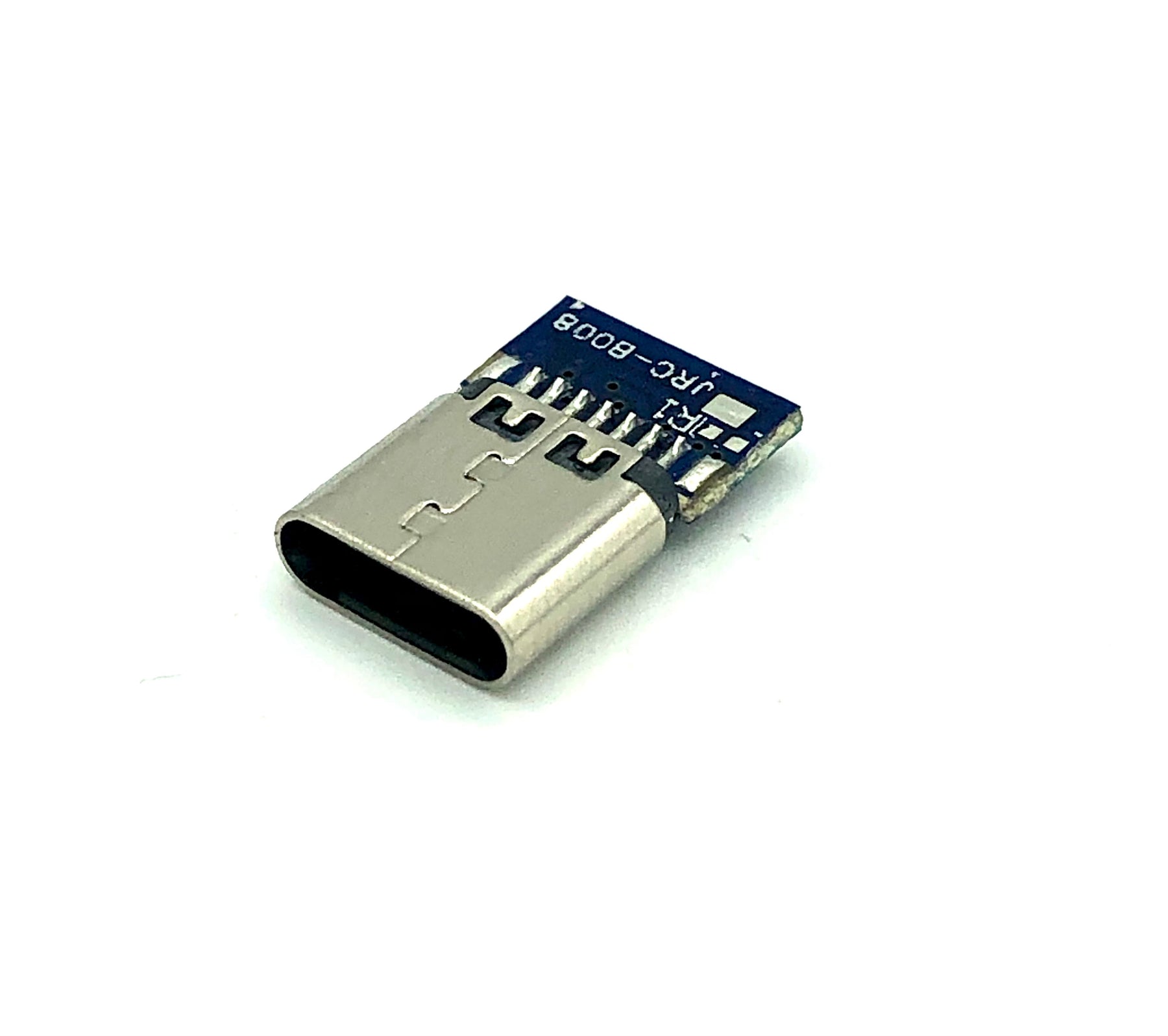

USB Type C port for data transfer and also charging with an additional TC4056 charging module.
Please not this is a TYPE C port and will not be compatible with non TYPE C plugs.
Please refer to the attached wiring diagram for suggested wiring when wiring to your soundboard, for both data transfer only and also for using the port also as a charger. The wiring diagram refers to a Proffie board can same schematic can be applied to different boards.
